The Complete Guide to 48V Magnetic Track Lighting System

Jun. 26, 2024

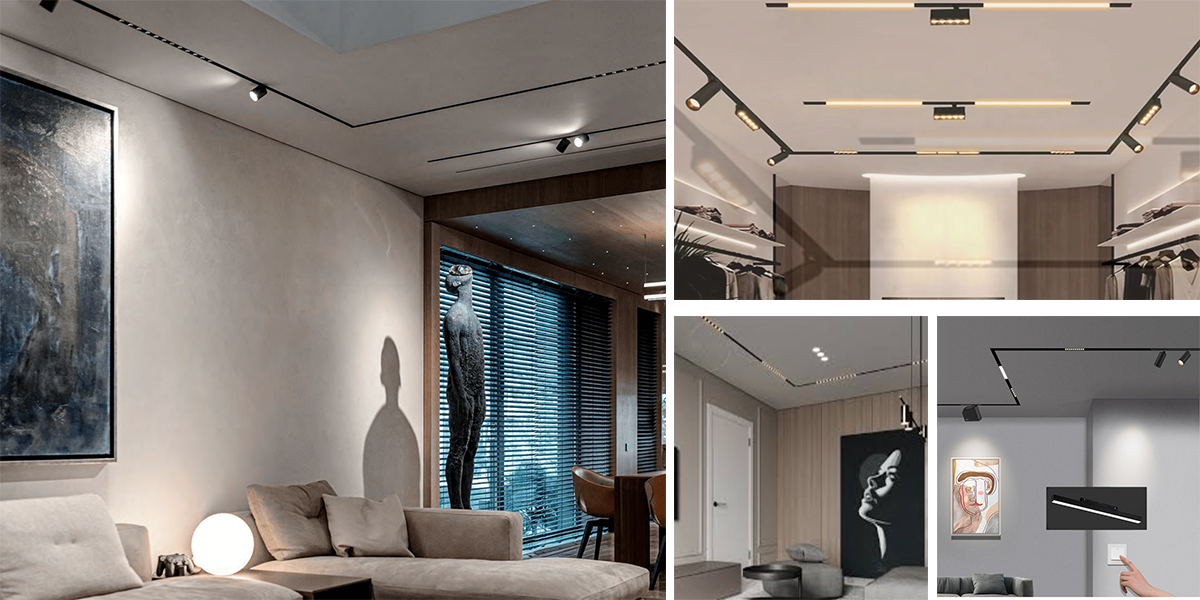

The magnetic track lighting system is an innovative solution for contemporary spaces,  with the popularity of minimalist design style,more and more lighting and interior designers start to choose magnetic track lights and linear lighting fixtures. It is allowing for vertical and horizontal designs on walls and ceilings, so your creative DIY lighting ideas came up.



At the same time, its quick installation method and minimal decorative effect make it the first choice for home lighting and office lighting.



Magnetic track lighting system can meet different decoration requirements for different spaces. Besides satisfying basic lighting functions,magnetic track lights are the flexible track lighting which can be easily plug,unplug and slide within the magnetic track. This offers a great freedom of lighting arrangement and styling.  The magnetic lighting system which combines all linear led lights emerges and there is a trend to replace the conventional led track lighting and the conventional linear lamp in the future.



What is 48V magnetic track lighting system?

The magnetic track light is a kind of light fixture installed on the track by the magnet on the light fixture. The track is composed of an aluminum shell, copper conductor, and iron sheet. When the luminaire with magnet is close to the iron sheet in the track, the luminaire will be adsorbed on the trail without any tools, and at the same time the luminaire is in contact with the copper conductor, then powered by an AC110-220V to DC48V transformer for the whole track lighting system.It is a low voltage magnetic led lighting system for indoor lighting.



The composition of magnetic lighting syste

There are mainly four parts for the magnetic track lighting system:track rail and light fixture, track connectors,drivers





1.Magnetic track rail

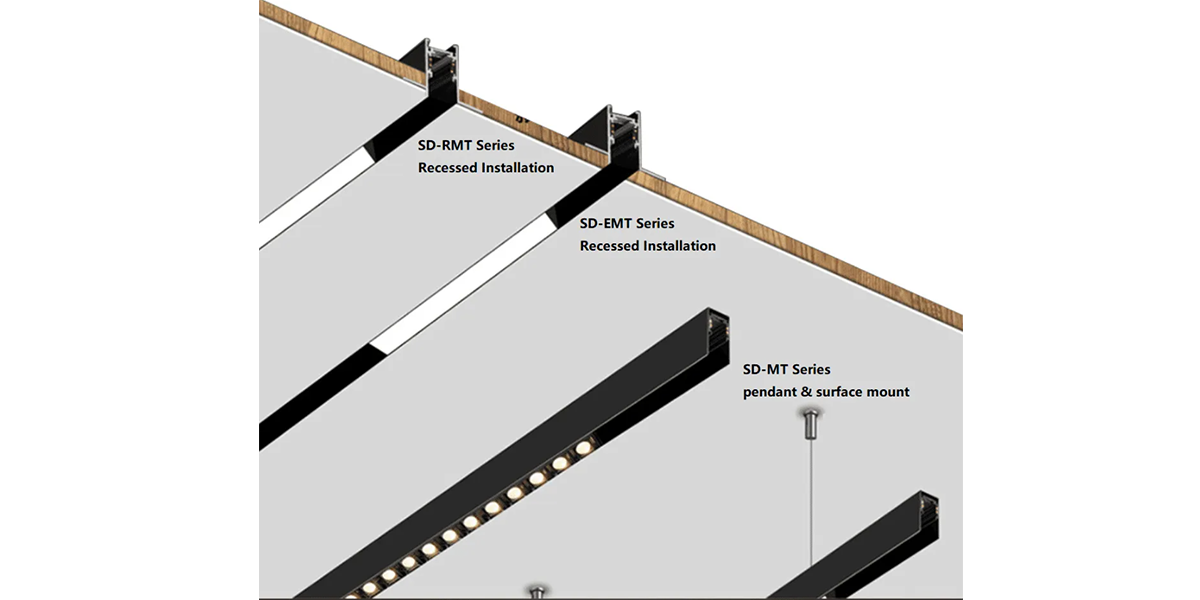

Magnetic track rail is made of high-quality aluminum profiles and is the foundation and key part of the entire system. All the magnetic led light fixtures can be installed onto it and move freely. The track rail has the invisible conductive copper strip on both sides inside the track. There are mainly three kind of installation method for the track rail: surface mounted ,suspension and recessed installation and recessed track is the most popular in market.

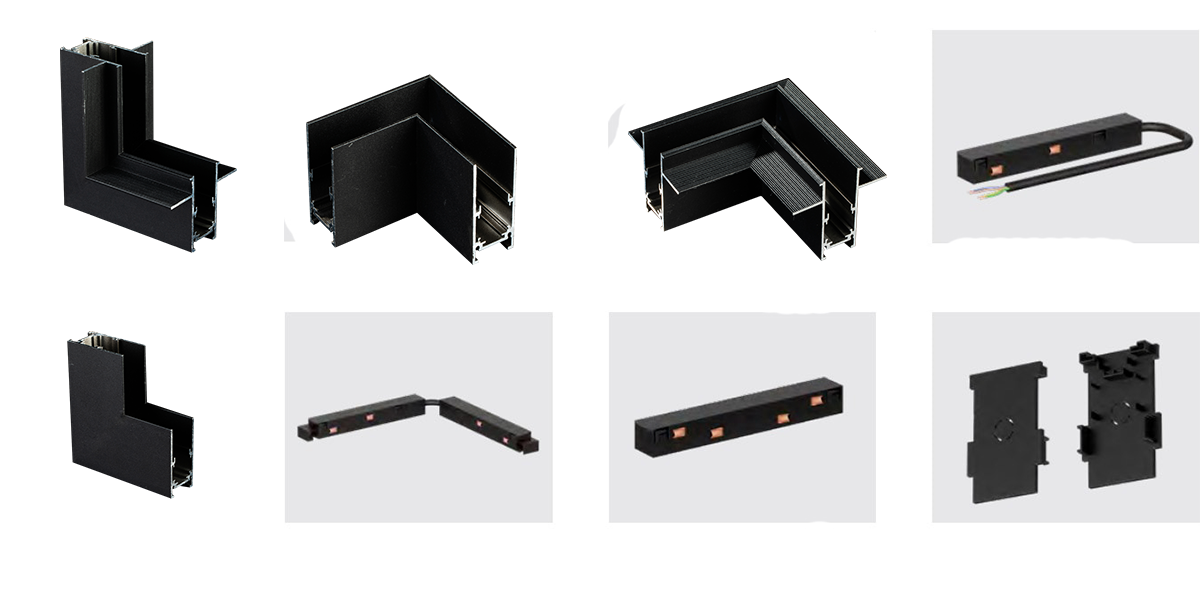

2 The magnetic track connectors



3.Magnetic track lights

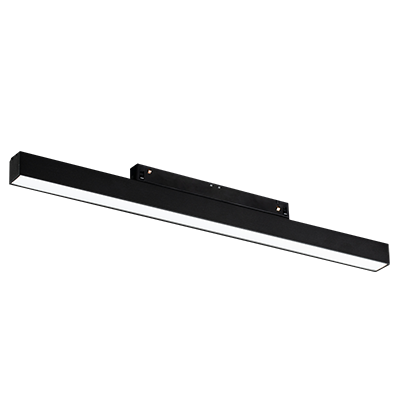

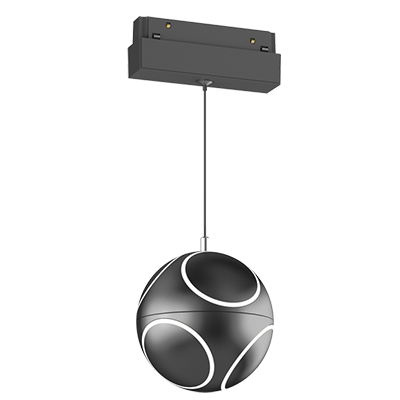

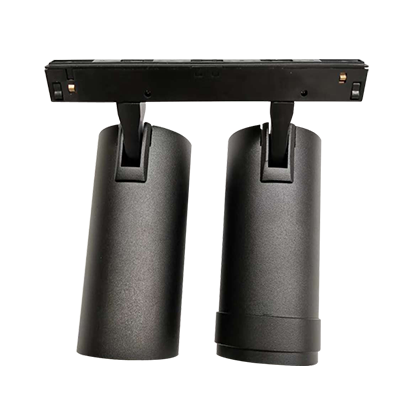

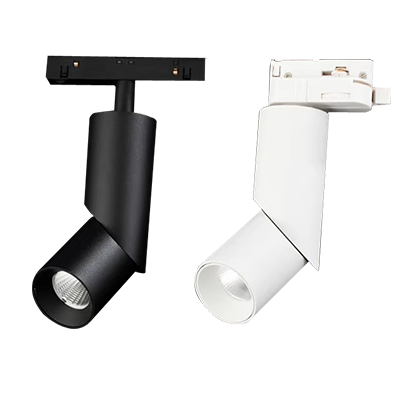

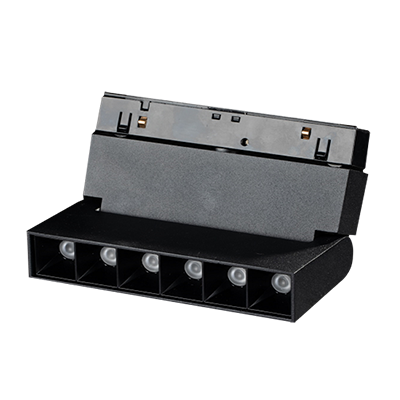

Different light fixture are available for the 48V magnetic track lighting system:magnetic flood lights, magnetic linear lights,magnetic track spot lights, magnetic pendent light,magnetic adjustable grille light,etc. All the magnetic track lights are designed with the magnetic adapter and can be fixed into the track rail both mechanical and electrically



4.Drivers

There are two kinds of drivers.



48V Built-in driver. It is good for integration with all magnet tracks, especially for suspension or surface-mounted tracks. Available 100W 200W in power.

External driver. Mainly working for recessed installation. The external driver is much better than a built-in driver in quality. Meanwell power supply 100W 200W 350W is available. The external power supply is suitable for placing the air outlet of the air conditioner or the exclusive maintenance port, which is convenient for future maintenance, repair, or replacement.





What are the advantages of magnetic light

1. Under the condition of a reliable power connection, it is more convenient to install and dismantle the lights. It is also convenient for daily maintenance and repair, and the power connection is stable and reliable.

2.It can be flexibly matched with different types and quantities of track lights according to various requirements. If the power of the transformer allowed. The magnet track can support different led lights, so it can be used in a wider range of applications.

3.It can slide to any position easily without any other tools.



Overall, magnetic track lighting can be the perfect lighting solution for your home. When people are still using the traditional fixture, you can be the one to receive all the benefits from our magnetic track lights.
