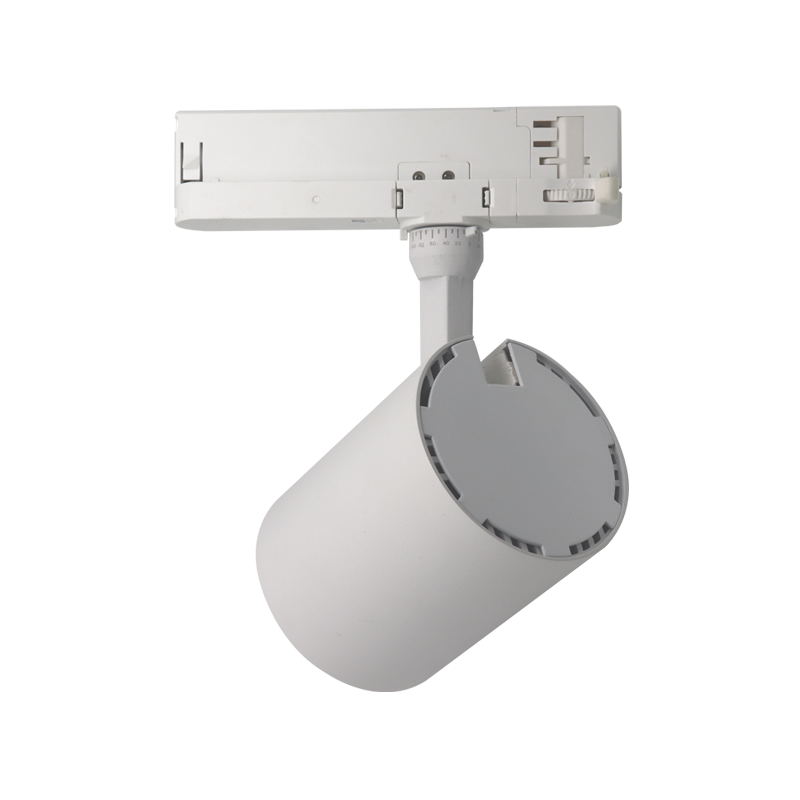

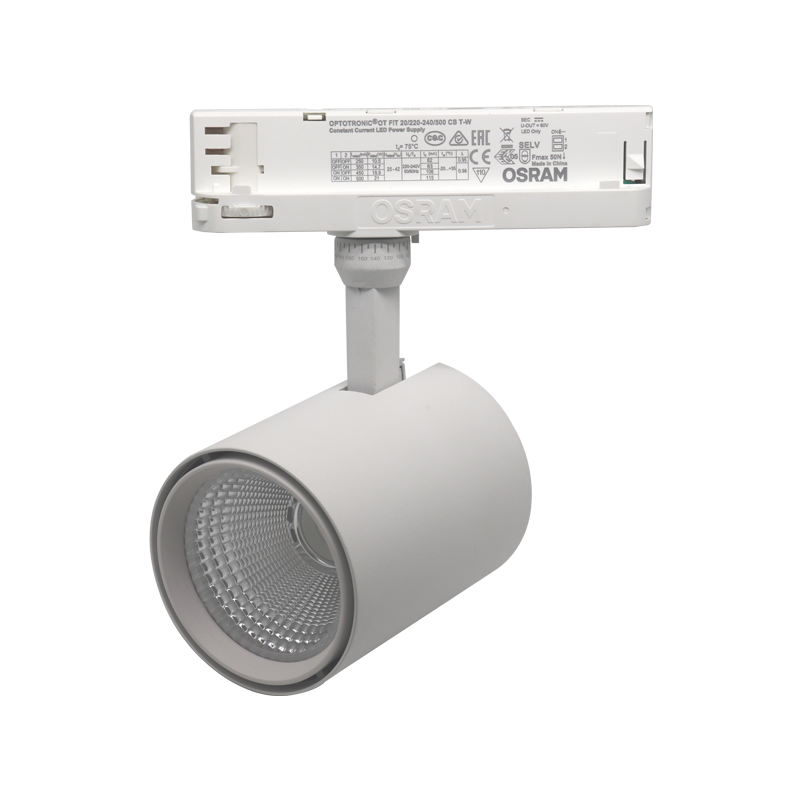

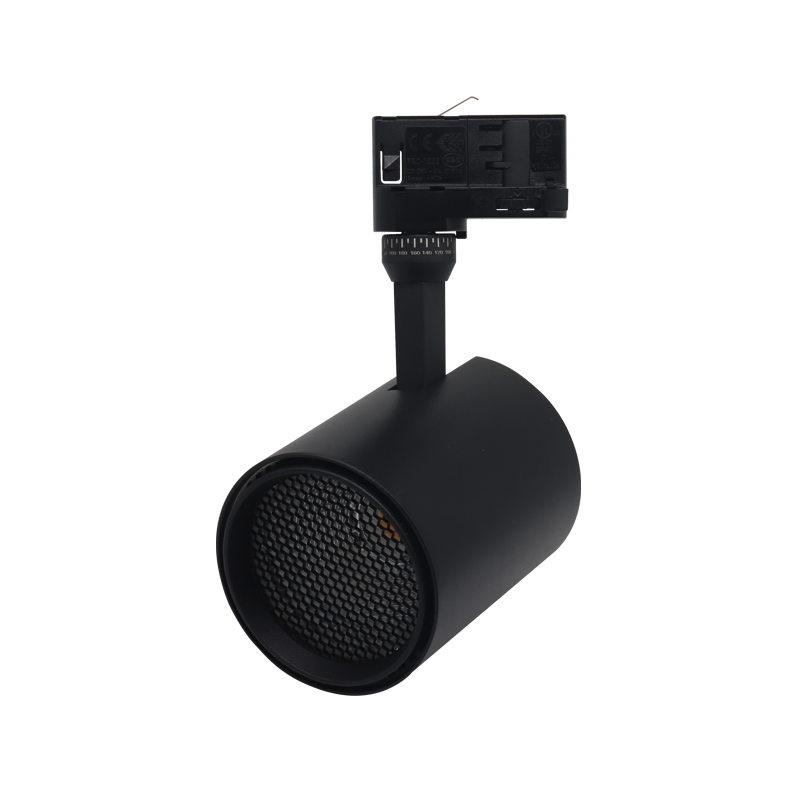

LED Track Light

LED Track Light XS Series

Model: JST-XS

Wattage: 15W-35W

LED Chip: Citizen/Cree/Epistar

Driver Brand: OSRAM/Lifud/Tridonic

RA: >90/95

Finish Color: White/Black/Silver/Customized

Beam Angle: 15°/24°/36°/45°/60°

Diameter: 90mm

Adapater: 6wires/4wires/3wires/2wires

Description

Track lights are a type of light that can independently swivel and pivot to highlight different focal points. This allows to move the lights (called the track heads) along the track and position them as needed.Track lights

can highlight important features in a home. They’re the perfect way to illuminate artwork, photos, or unique architectural elements. You can also position them to illuminate a dark corner of a room. Their design

blends industrial origins with an elegant aesthetic to create a sophisticated and adaptable light source.


LED track lights have numerous advantages such as energy efficiency, longer lifespan, lesser heat emission, relatively inexpensive, versatility to add or remove etc and are now commonly used everywhere from the

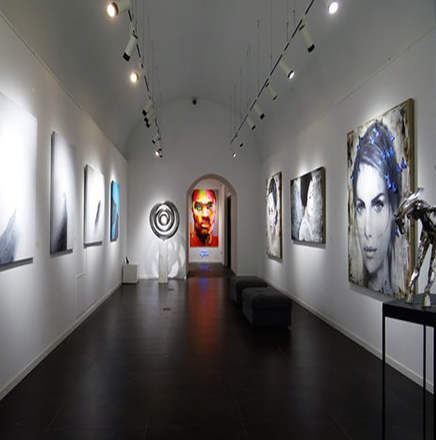

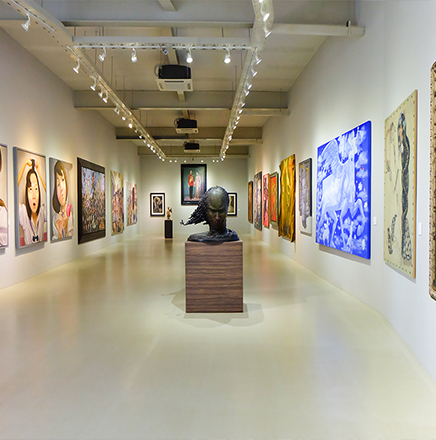

kitchen to the bedroom. It can also be used as accent lighting, such as art galleries, museum, shops, Windows, exhibition halls...

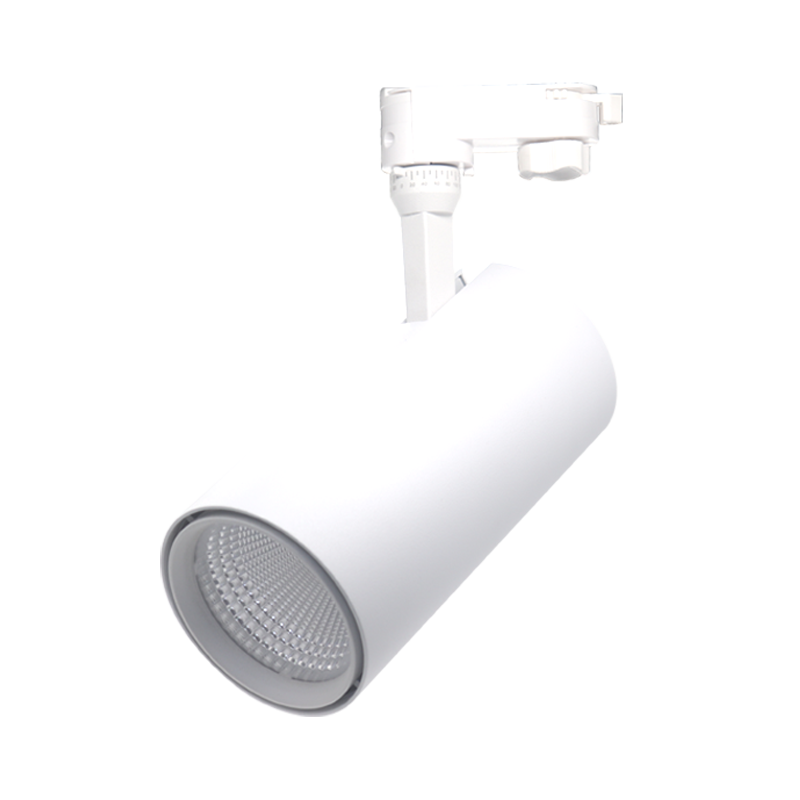

Track light XS series originally developed by JST, 90mm diameter mask, modular CNC aluminum alloy one-piece lamp housing,  black spray-painted aluminum, color can be customized, passive dissipation to achieve

proper thermal management, simple and smooth appearance, lifespan up to 50,000 hours .


The LED track light XS series adopt with Citizen/Cree COB chips as the light source, which can improve the brightness of the lamps, the color rendering (CRI>90), and the focusing effect is also better.  Coupled with

exclusive flicker-free driver, has a power range from 15w to 35w, making it an ideal choice for royal families, high-end clubs, museums, and internationally renowned brands. Louis Vuitton, Prada, GUCCI etc., it can inject

modern brilliance into these spaces.


15°/24°/36°/45°/60°, 5 different angles to meet different needs, equipped with different power supplies, non-dim, triac dim, 0-10V dim, DALI dim, 2700K/3000K/4000K /5000K, 4CCT,  your choice can create a more

friendly environment.



Advantages

· High Ra﹥90, high efficacy, high luminosity ,SDCM﹤3, make surroundings of high-quality illumination

· Glare-free design, perfect light spot with precise cast, make surroundings of comfortable illumination

· Non-flicker design for superior surrounding lighting requirement

· Integral light housing for better heat dissipation , built-in driver for low-temperature operation

· Refined components and design, guarantee a long life span of over 50000 hours

Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimension
JST-XS-A15W>80/902700K-5000K>0.900.35AAC220-240V15°/24°/36°/45°/60°D90*L110mm
JST-XS-A20W>80/902700K-5000K>0.900.50AAC220-240V15°/24°/36°/45°/60°D90*L110mm
JST-XS-B20W>80/902700K-5000K>0.900.50AAC220-240V15°/24°/36°/45°/60°D90*L110mm
JST-XS-B25W>80/902700K-5000K>0.900.60AAC220-240V15°/24°/36°/45°/60°D90*L110mm
JST-XS-B30W>80/902700K-5000K>0.900.75AAC220-240V15°/24°/36°/45°/60°D90*L180mm
JST-XS-B35W>80/902700K-5000K>0.900.875AAC220-240V15°/24°/36°/45°/60°D90*L180mm
Application

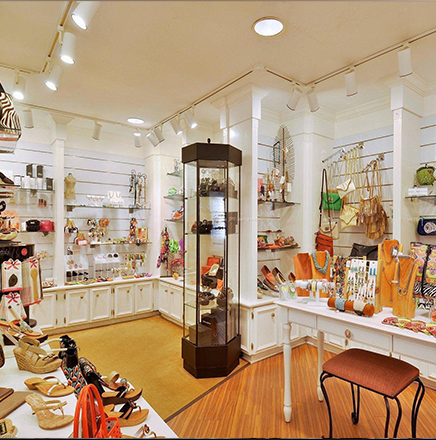

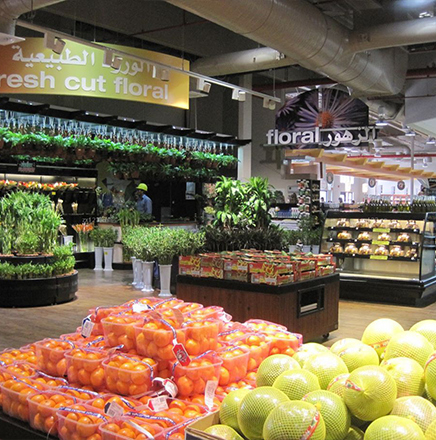

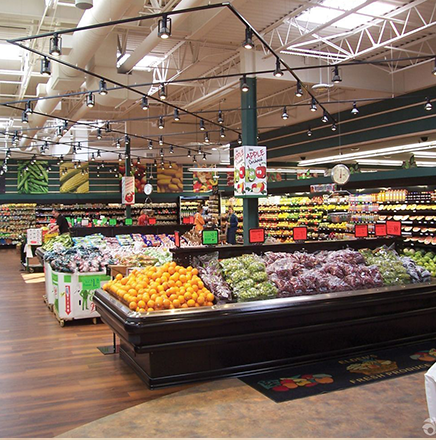

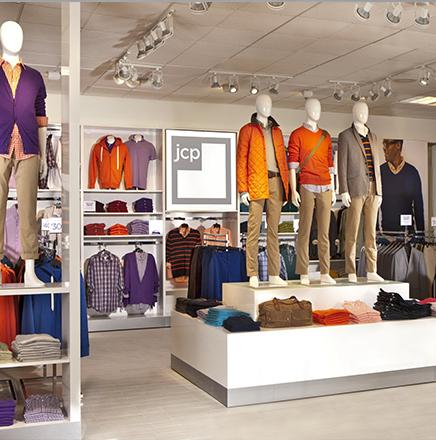

Fashion stores lighting, Stations lighting, Hotels lighting, Offices lighting, Shopping malls lighting, Clubs lighting, Supermarkets lighting etc.

LED Track Light XS Series LED Track Light XS Series LED Track Light XS Series
LED Track Light XS Series LED Track Light XS Series LED Track Light XS Series
