LED Track Light

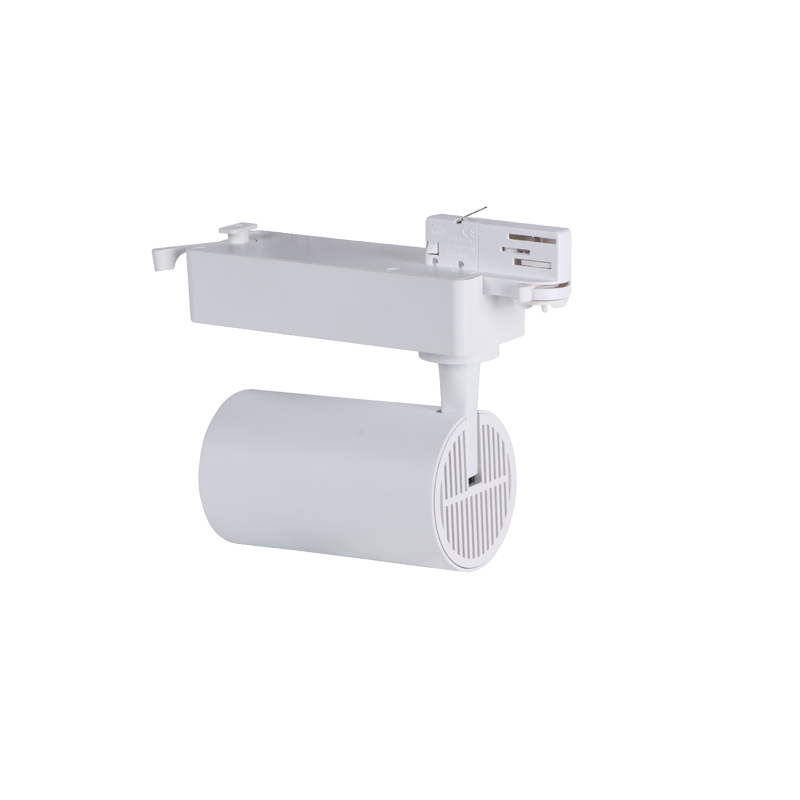

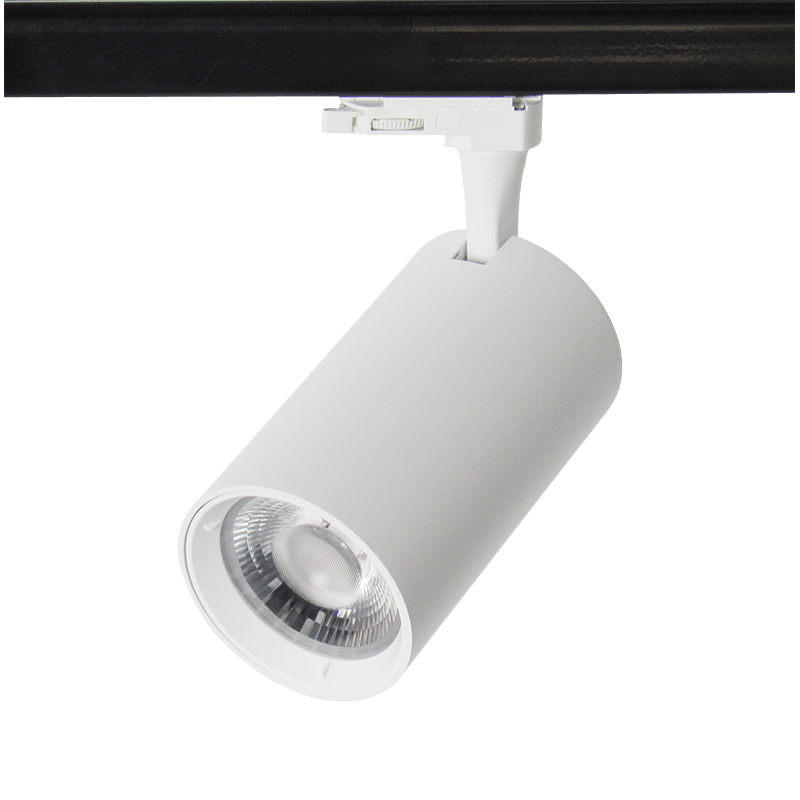

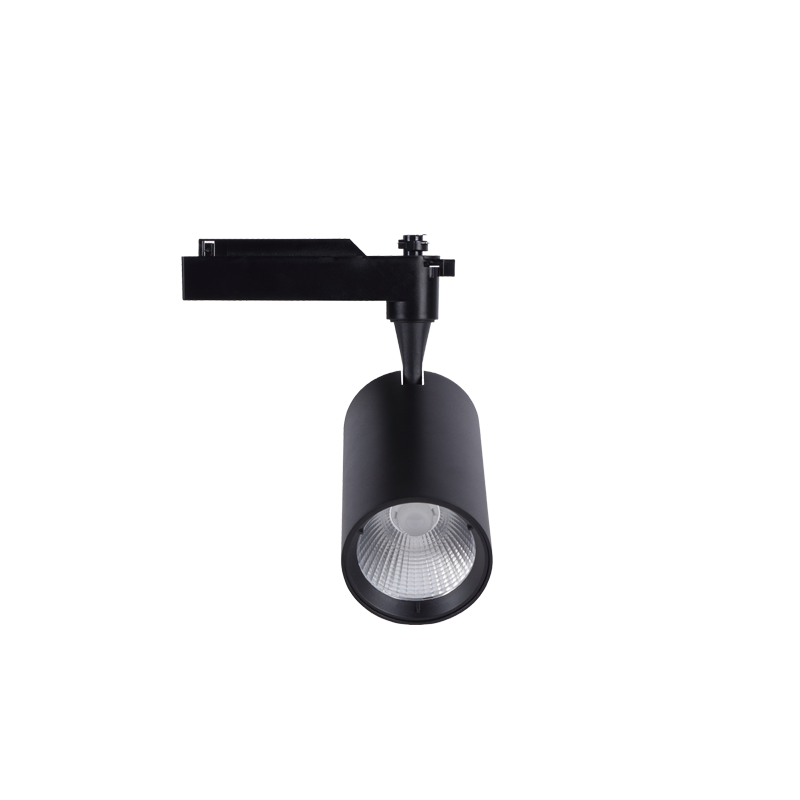

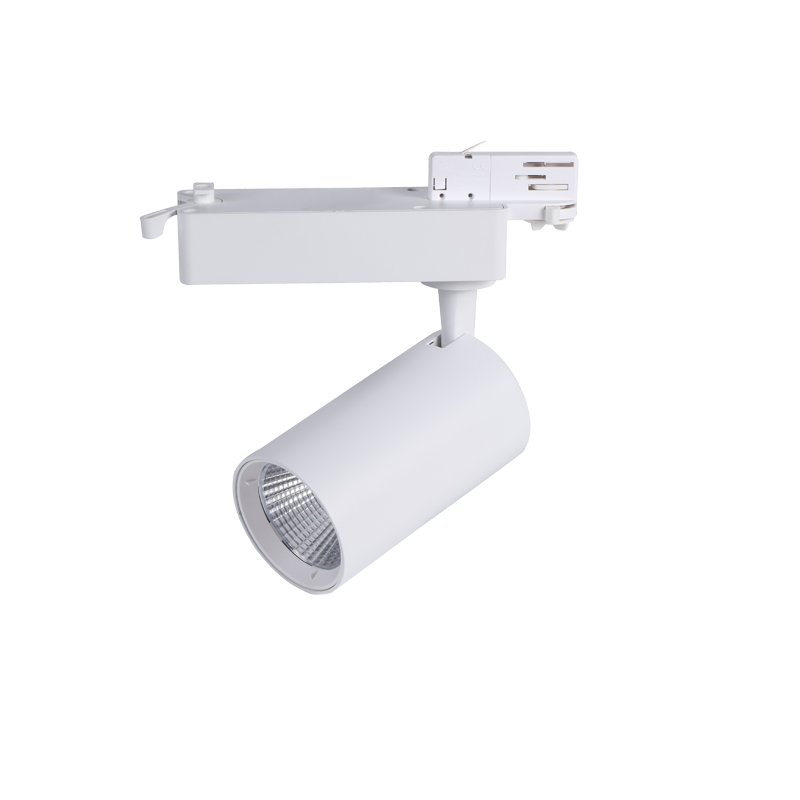

LED Track Light XL-B Series

Model: JST-XL-B

Wattage: 15W-40W

LED Chip: Citizen/Cree/Epistar

Driver Brand: Lifud/Tridonic

RA: >90/95

Finish Color: White/Black/Silver/Customized

Beam Angle: 15°/24°/36°/60°

Diameter: 75mm/90mm

Adapater: 6wires/4wires/3wires/2wires


Description

XL-B series is originally researched and developed by JST,  a minimalist design and high-quality electronics,  external driver can effectively dissipate heat and extend life span, life span 50000hrs.  With a 75/90mm

diameter, a aluminium alloy housing, the latest LED COB Chip, constant voltage driver, 15W - 40W power, 15°/24°/36°/60° optic, CRI>90 which reproduces faithfully the colors of object.  The XL-B series of LED Track

Lighting from JARSTAR Lighting offers you stable, flicker-free, low-glare lighting for all your commercial or residential needs and all backed.


XL-B series as a LED track light, what are the uses of ?

The main characteristic of LED track spotlight is the concentrated directional light, which can be used in commercial spaces, exhibition halls, galleries, museums, offices, restaurants, homes, and other places. In these

scenarios, it can be divided into the following types of lighting:


LED track spotlight has strong directionality and can control the light in a specific area. Choose the appropriate beam angle according to the size of the area.


LED track spotlight can provide task lighting, providing sufficient brightness for specific areas.


By adjusting the color temperature, brightness, and direction of the light source, LED track spotlight can create an ideal atmosphere for different spaces.


LED track spotlight can be used for emphasis lighting, highlighting a particular feature in a building or space. This is similar to ambient and task lighting and is mainly used to emphasize the characteristics, texture, and

shape of a space.


Advantages

.High Ra﹥90, high efficiency, high luminosity, SDCM﹤3, make surroundings of high-quality illumination

·Glare-free design, perfect light spot with precise cast, make surroundings of comfortable illumination

·Rotatable horizontal 355° and vertical 90°

·Non-flicker design for superior surrounding lighting requirement

·Refined components and design, guarantee a long life span of over 50000 hours

·Driver box designed close to rail for a neat and elegant visual feeling

Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimension
JST-XL-B15W>80/902700K-5000K>0.900.35AAC220-240V15°/24°/36°/60°D75*H130mm
JST-XL-B20W>80/902700K-5000K>0.900.50AAC220-240V15°/24°/36°/60°D75*H130mm
JST-XL-B25W>80/902700K-5000K>0.900.60AAC220-240V15°/24°/36°/60°D75*H130mm
JST-XL-B30W>80/902700K-5000K>0.900.75AAC220-240V15°/24°/36°/60°D90*H155mm
JST-XL-B35W>80/902700K-5000K>0.900.85AAC220-240V15°/24°/36°/60°D90*H155mm
JST-XL-B40W>80/902700K-5000K>0.901.00AAC220-240V15°/24°/36°/60°D90*H155mm

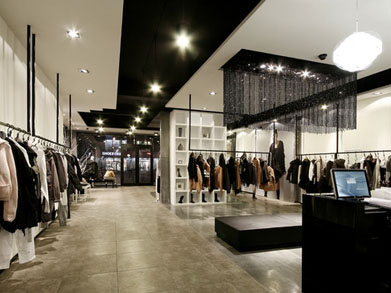

Application

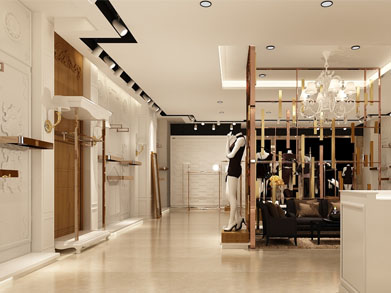

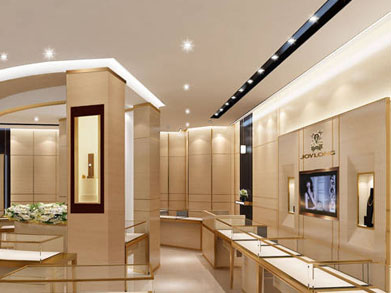

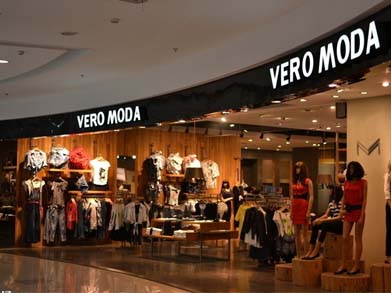

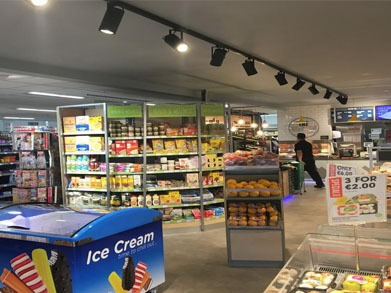

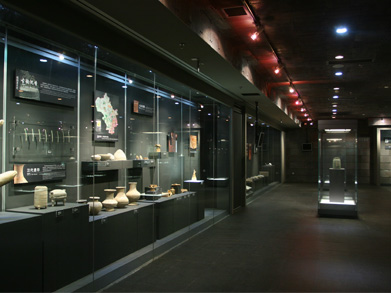

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,jewelry stores lighting,banks lighting, airport,lighting, suppermaket lighting etc.

LED Track Light XL-B Series LED Track Light XL-B Series LED Track Light XL-B Series
LED Track Light XL-B Series LED Track Light XL-B Series LED Track Light XL-B Series
