Model: JST-XC
Wattage: 15W-40W
LED Chip: Citizen/Cree/Epistar
Driver Brand: OSRAM/Lifud/Tridonic
RA: >90/95
Finish Color: White/Black/Silver/Customized
Beam Angle: 15°/24°/38°
Diameter: 75mm/95mm
Adapater: 6wires/4wires/3wires/2wires
Track lighting means any lighting feature that uses a ceiling mounted support track or a rail to provide the electricity to individual light fixtures. In other words, the overall purpose of track lighting to highlight any
object or specific area you want. Track lighting allows flexibility in placement as the lights can be attached to the track anywhere they are needed, rather than at a particular fixture like a light bulb socket requires.
The number of light fixtures can be freely increased or decreased. If the light intensity is not enougn, then simply add track lights to the track fail. If the brightness is too bright, then remove the led light.
It can move freely and adjust the angle freely on the track light, the lights can move freely and the lamp can be arranged freely according to the space demand, besides, many of the led light are adjustable angles
which increased the degree of freedom of light design.

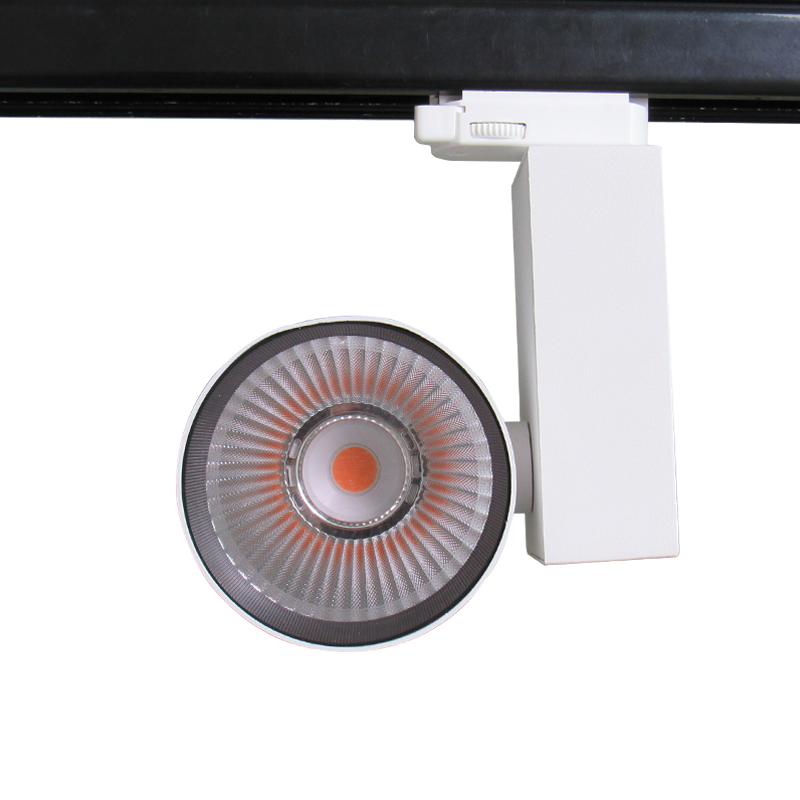

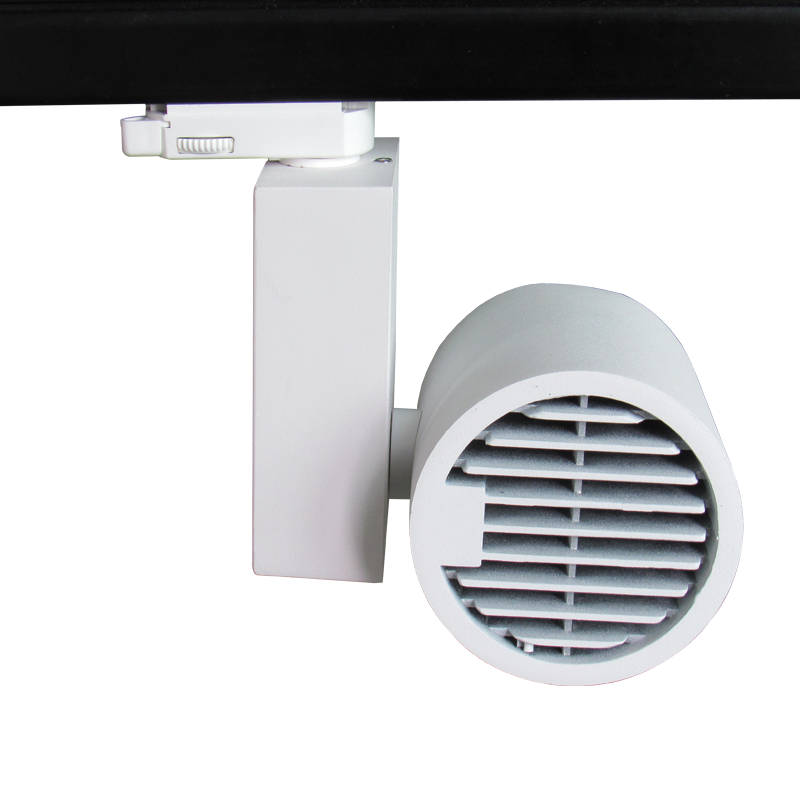

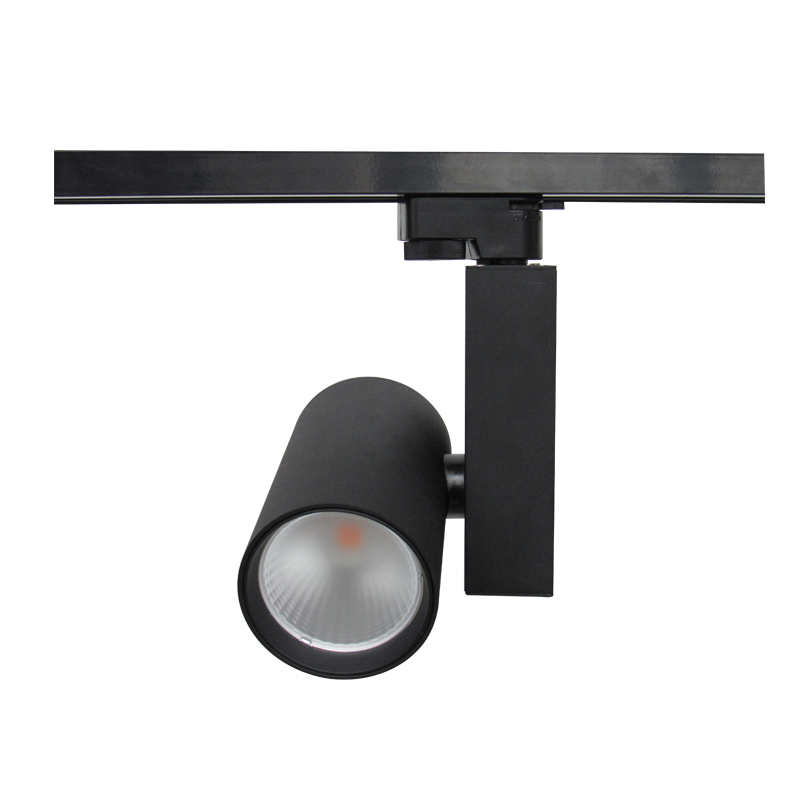

XC series is one of LED track spot Light, they are made of Aluminum ,the directions is adjustable with 90° vertical adjustment, 360° rotation to cover different area lightings . The XC series is an external driver which is

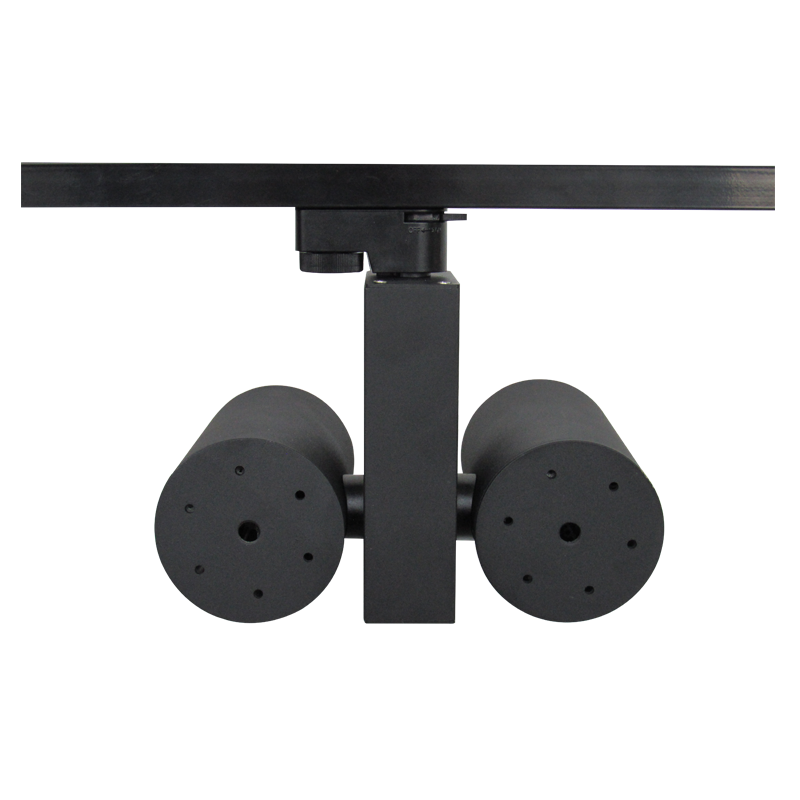

more conducive to heat dissipation and increases the service life. Single head and double heads designs for you choose which offers a fresh take on a traditional aesthetic while providing extraordinary. If you need a
the double heads, the track light can be adjusted to different angles at the same time, such as one head facing front, the head facing towards the back.
The CRI of the led is 90, Glare-free design, perfect light spot and accurate beam angle, make surroundings of comfortable illumination,which will show the real beauty of the objects ,the tracking light use Spot reflector
and its beam angle is 15°/24°/38° which make the illuminated object more prominent. Modern diecast aluminum fixture provides superior strength and rigidity.T he warranty is for 50,000 hours
Citizen COB LED with CRI>97, high efficiency, high illuminance
Glare-free design, perfect light spot and accurate beamangle, make surroundings of comfortable illumination
Black baffle eliminates glare and adds finished touch
Adjustable continuous 350° rotation and 180° pivot
Perfect combination of spherical heat sink and cambered driver box, smooth and concise appearance
Die cast aluminum provides superior strength and rigidity Brushed aluminum construction and good heat dissipation
Model | Power | CRI | CCT | PF | Current | Input Voltage | Beam Angle | Dimension |
JST-XC | 15W | >80/90 | 2700K-5000K | >0.90 | 0.35A | AC220-240V | 15°/24°/38° | D75*L140mm |
JST-XC | 20W | >80/90 | 2700K-5000K | >0.90 | 0.50A | AC220-240V | 15°/24°/38° | D75*L140mm |
JST-XC | 30W | >80/90 | 2700K-5000K | >0.90 | 0.75A | AC220-240V | 15°/24°/38° | D95*L125mm |
JST-XC | 35W | >80/90 | 2700K-5000K | >0.90 | 0.90A | AC220-240V | 15/24/36 | D95*L125mm |
JST-XC | 2*20W | >80/90 | 2700K-5000K | >0.90 | 1.00A | AC220-240V | 15/24/36 | D75*L140mmx2 |

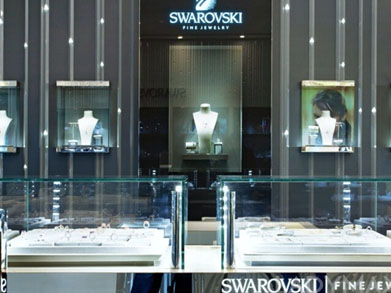

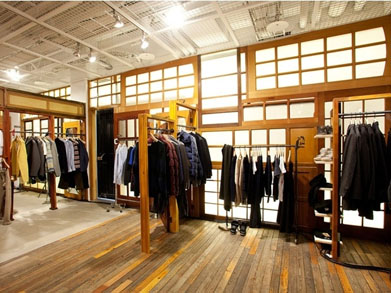

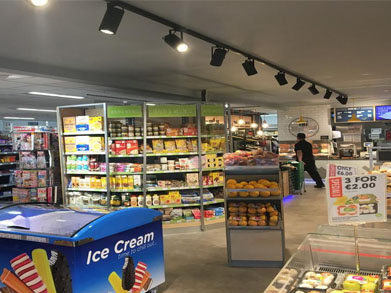

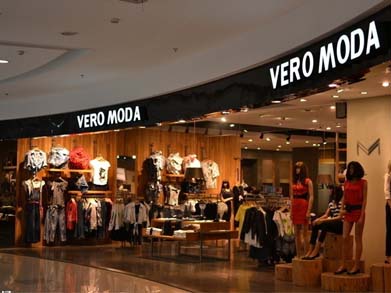

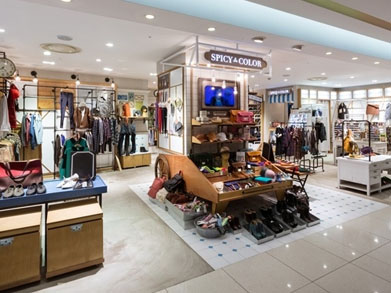

Fashion stores lighting, Stations lighting, Hotels lighting, Office lighting, Shopping malls lighting, Clubs lighting, Supermarkets lighting etc.
