Model: JST-XF-RC
Wattage: 10W-35W
LED Chip: Citizen/Cree/Epistar
Driver Brand: OSRAM/Lifud/Tridonic
RA: >90/95
Finish Color: White/Black/Silver/Customized
Beam Angle: 15°/24°/36°/45°/60°
Diameter: 60mm/70mm/90mm
Installation: Recessed

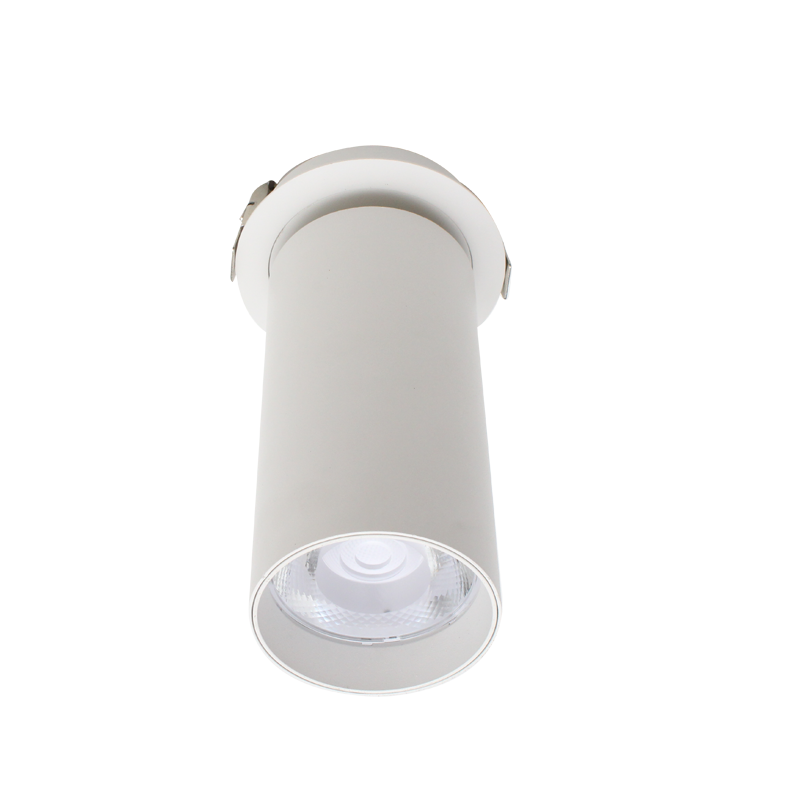

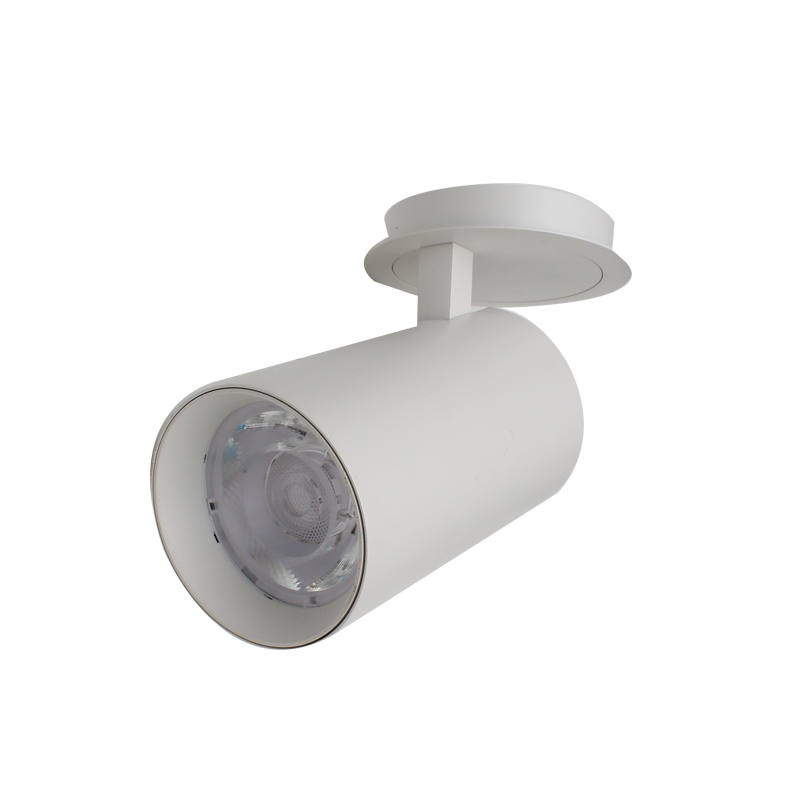

LED track light XF-RC series originally developed by JST, it's a special track light which the installation method is the same as that of downlights. It has more functions than downlights, can be rotate 360° horizontally

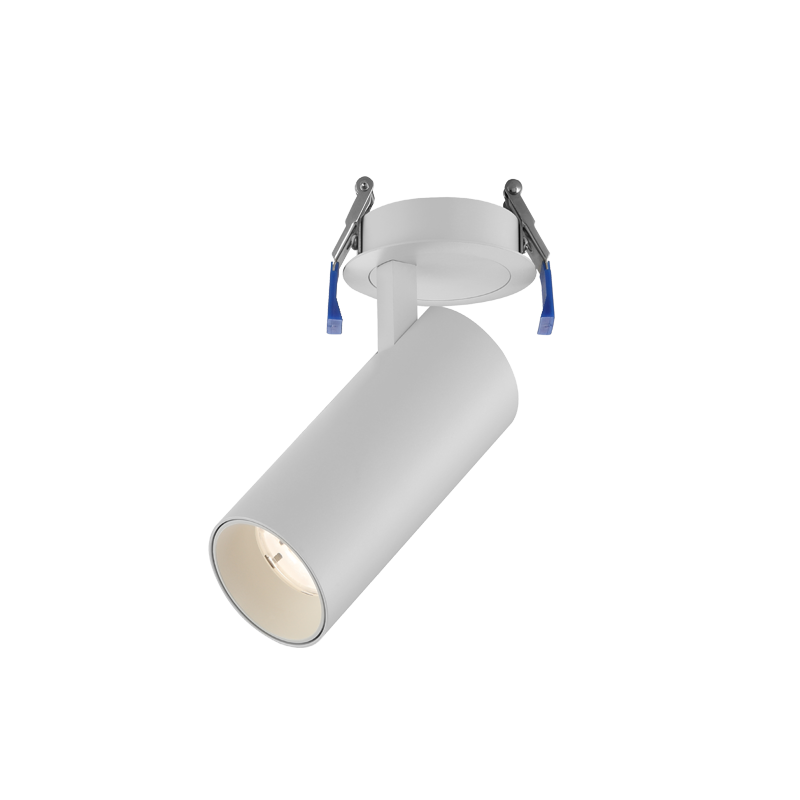

and 90° vertical which the same as track lights. With 2 high quality spring buckles, tightly Adsorb tothe ceiling and will not fall easily.
Track light XF-RC series is a recessed track light that plasters into the ceiling, providing a clean, seamless look.makes it safer to use and more beautiful to look at. Because it is not installed on a track, it cannot adjust
the illumination angle arbitrarily. The surface is flush with the ceiling and can only be used as a directional spotlight in places that require accent lighting.
Track light XF-RC series with high CRI90+ vividly displays the true color of objects for a better lighting effect Combined with the unique color matching of the spot light body, it is the best choice for an integrated
spotlight for bedrooms, dining rooms, hallways, living rooms, kitchens, cupboards, and offices. No more dangling track bars or hanging wires, creates a minimalist aesthetic with only the track head visible.
Perfect for contemporary homes, urban open offices and shared workspaces, high end retail and small rooms where space is a premium, track light XF-RC series recessed track lighting keeps the ceiling clean and
unadorned. Adjust your track heads, move the light beams with ease and highlight artwork, walls, furniture or sculptures without adding focus to a protruding track rail.
High Ra﹥90, Low SDCM﹤3
High efficacy, high illuminance
Glare-free design, perfect light spot and accurate beam angle, make surroundings of comfortable illumination
Refined components and design, guarantee a long life span of over 50,000 hours
Rotatable horizontal 355° and vertical 90°
Buld-in driver triac dimmable (200-240v input)and 0-10v dimmable (100-240v input)
Model | Power | CRI | CCT | PF | Current | Input Voltage | Beam Angle | Dimension |
JST-XF-RC | 10W | >80/90 | 2700K-5000K | >0.90 | 0.25A | AC220-240V | 15°/24°/36°/45°/60° | D60*L170mm |
JST-XF-RC | 15W | >80/90 | 2700K-5000K | >0.90 | 0.35A | AC220-240V | 15°/24°/36°/45°/60° | D60*L170mm |
JST-XF-RC | 20W | >80/90 | 2700K-5000K | >0.90 | 0.50A | AC220-240V | 15°/24°/36°/45°/60° | D70*L170mm |
JST-XF-RC | 25W | >80/90 | 2700K-5000K | >0.90 | 0.60A | AC220-240V | 15°/24°/36°/45°/60° | D80*L190mm |
JST-XF-RC | 30W | >80/90 | 2700K-5000K | >0.90 | 0.75A | AC220-240V | 15°/24°/36°/45°/60° | D90*L180mm |
JST-XF-RC | 35W | >80/90 | 2700K-5000K | >0.90 | 0.85A | AC220-240V | 15°/24°/36°/45°/60° | D90*L180mm |

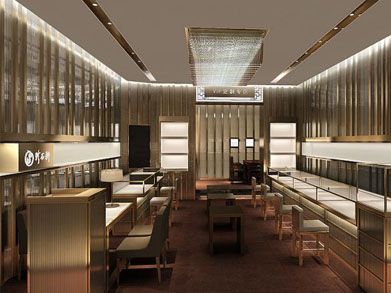

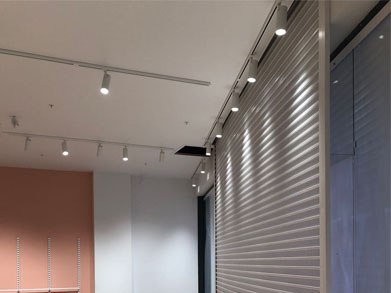

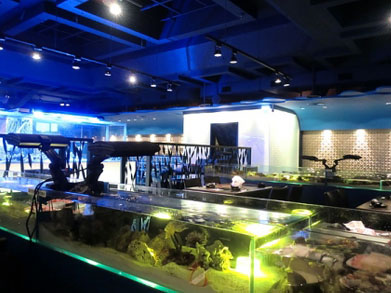

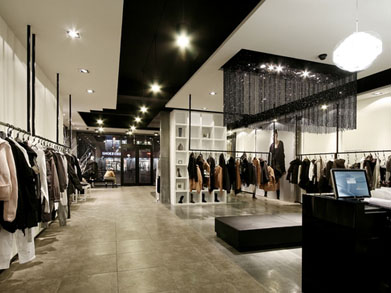

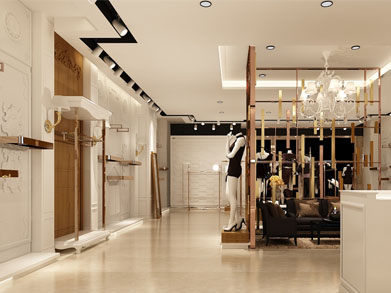

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,Jewelry stores lighting,Banks lighting, Airportlighting, Suppermaket lighting etc.
