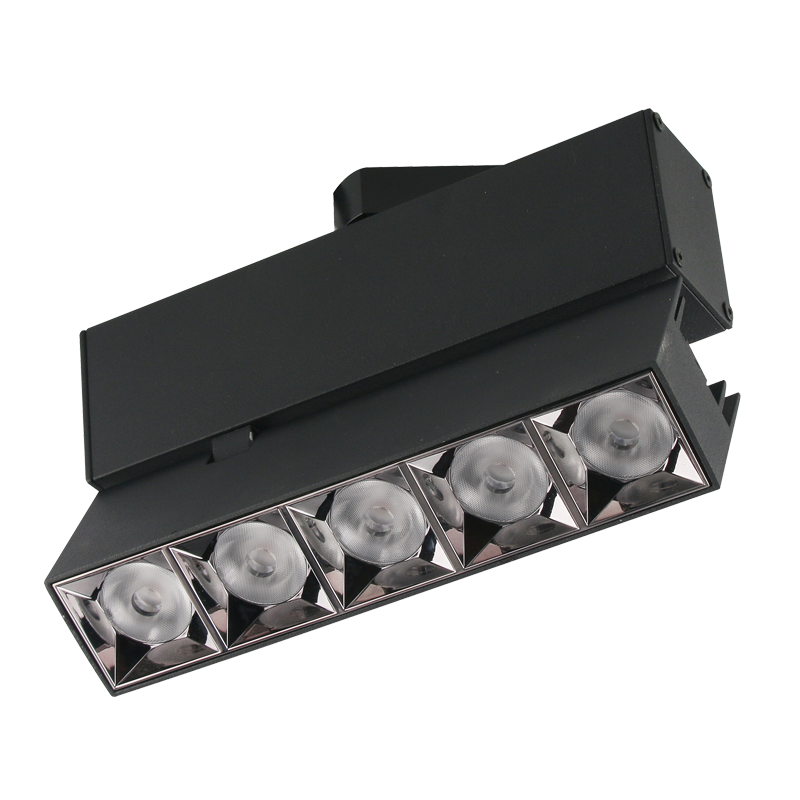

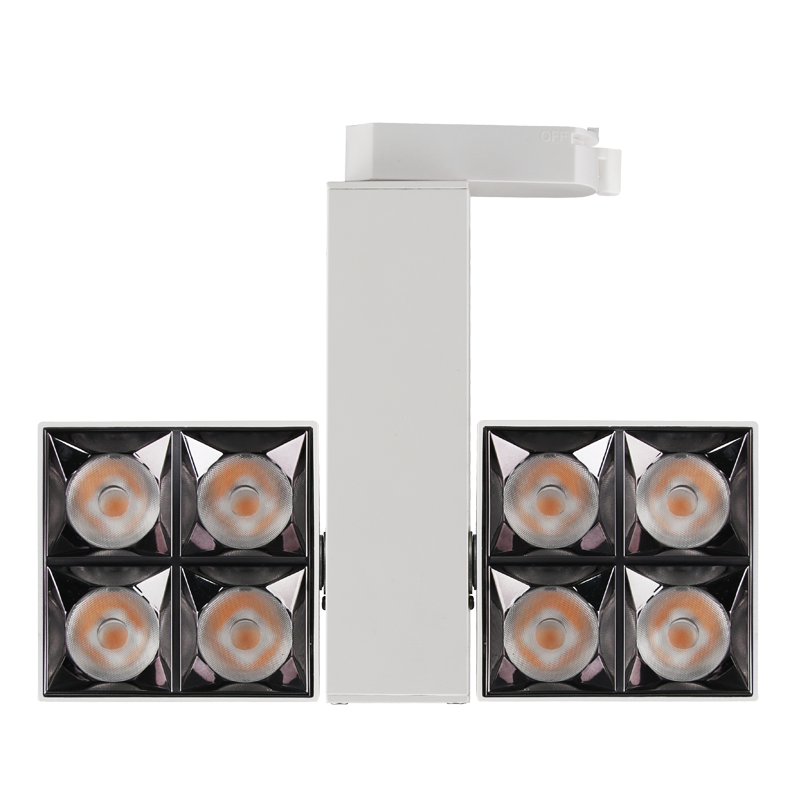

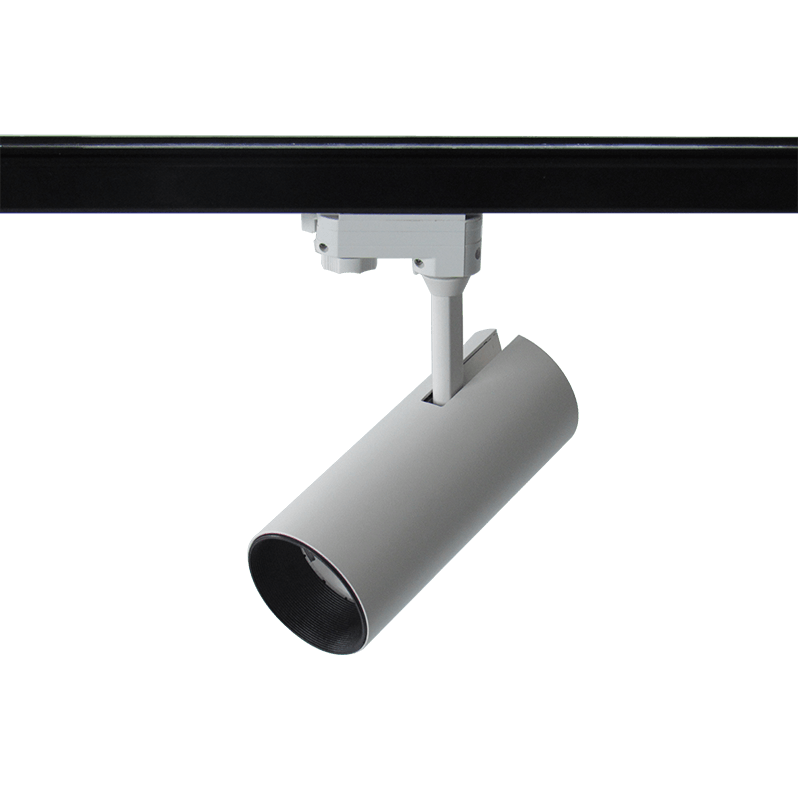

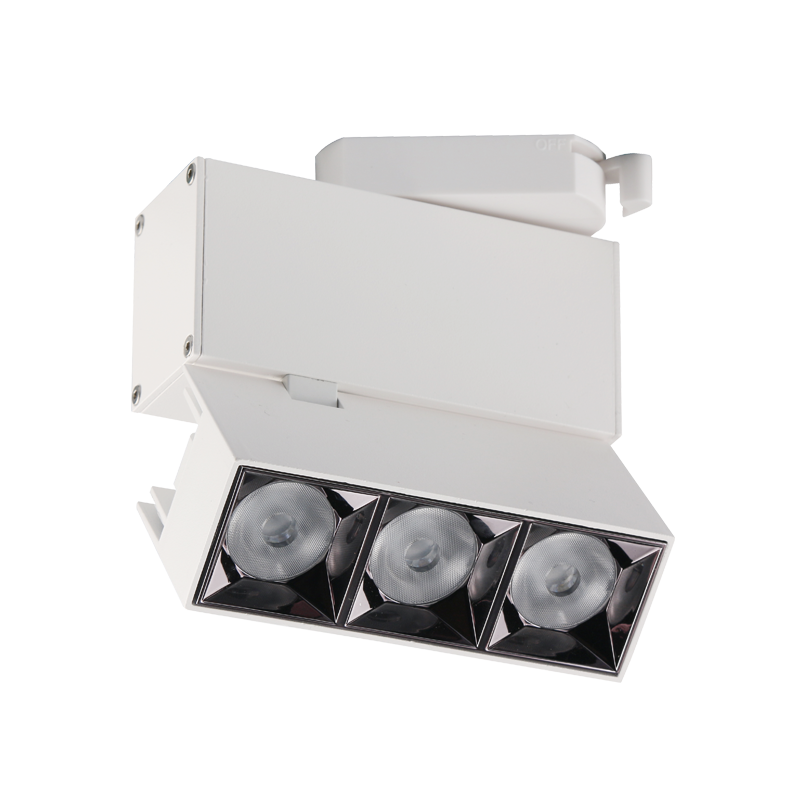

LED Track Light

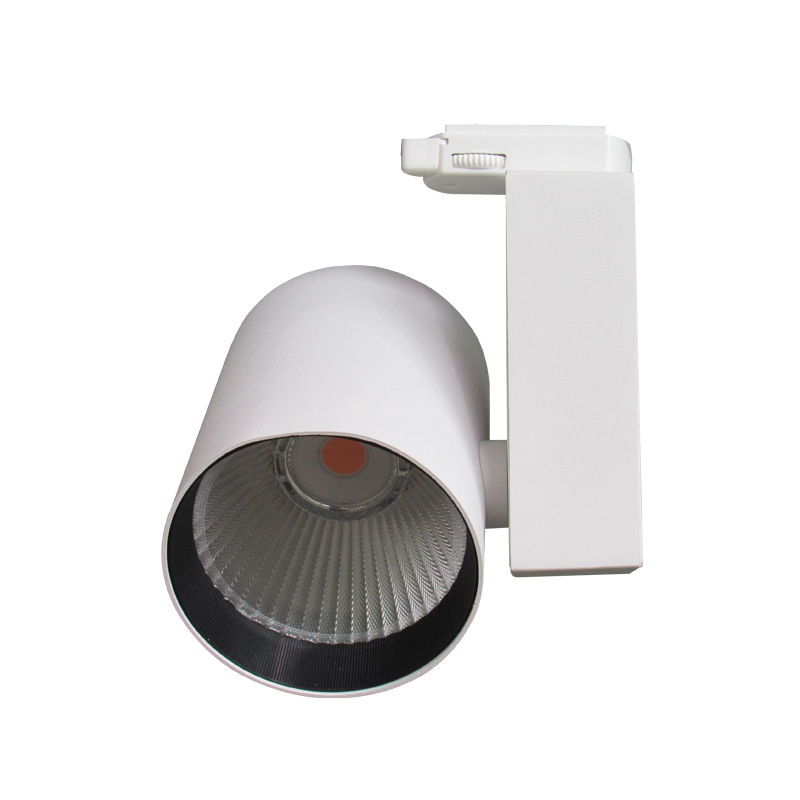

LED Track Light XQ Series

Model: JST-XQ

Wattage: 12W-30W

LED Chip: OSRAM/Cree/Philipe

Driver Brand: OSRAM/Lifud/Tridonic

RA: >90/95

Finish Color: White/Black/Silver/Customized

Beam Angle: 15°/24°/38°/50°/50x50°/70x70°/35x70°

Diameter: 118*145mm/193*145mm/120*180mm/160*180mm/205*180mm

Adapater: 6wires/4wires/3wires/2wires

Description

XQ series track lights originally developed by JST, available in 5 sizes optiona, modular CNC aluminum alloy integrated light housing, simple and smooth appearance, international top-level OSRAM/CREE COB, plus dual

anti-glare design and exclusive flicker-free driver, power range from 12w to 30w, with high color rendering index and full spectrum. The ultimate light color helps you create the best space in high-end residential

areas such as museums, art galleries, and shopping malls. For special room environments and lighting designs, the XQ series can be easily combined with barn and coated lens accessories, making it an ideal choice

for royal families, high-end clubs, museums, and internationally renowned brands.

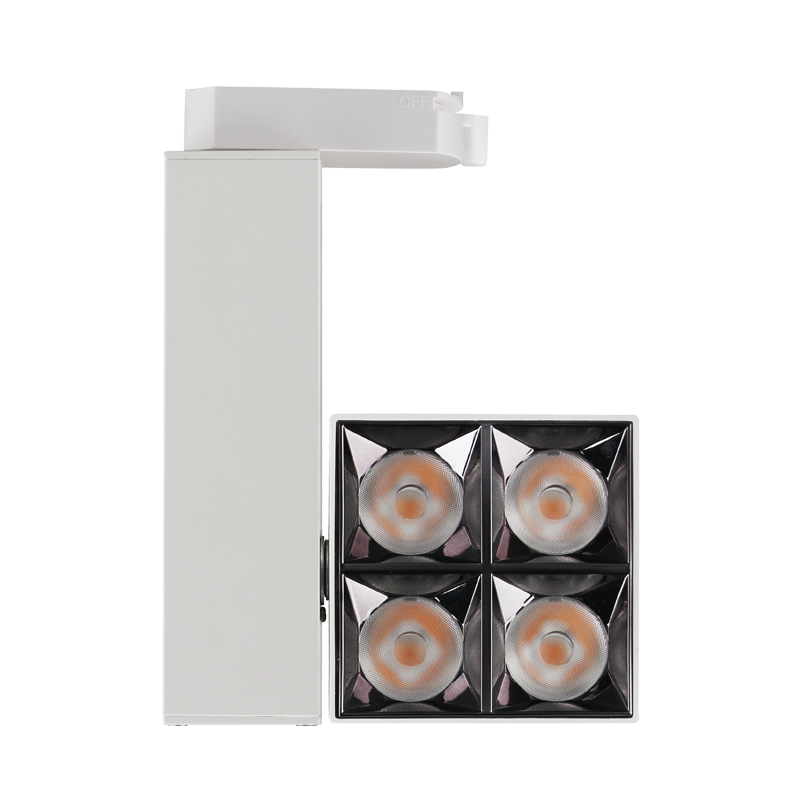

Track Lights XQ Series multi-light adjustable LED fixtures provide superior energy and operational efficiency. They feature 2, 3, 4, 8 or 9 LED luminaires, each producing 1000 lumens, with integrated drivers included in

the modular design, reducing energy consumption by approximately 80%. The LEDs have a lifespan of 50,000 hours, providing 5 or more years of maintenance-free operation in a typical installation.


Track Lights XQ Series is stylish and durable, with an aluminum body, lens.and anti-glare cup. The track head rotates 360° for precise lighting control, with CCT that choose between 3000K, 4000K and 5000K. It's available

15°/24°/38°/50°/50°*50°/70°*70°/35°*70° optional beam angles to suit various design needs. this track light head delivers quality lighting for galleries, museums and retail spaces with a CRI of 90+.



Advantages

.High Ra﹥90, high efficacy, high luminosity, SDCM﹤3, make surroundings of high-quality illumination

·Glare-free design, perfect light spot with precise cast, make surroundings of comfortable illumination

·Non-flicker design for superior surrounding lighting requirement

·Integral light housing for better heat dissipation, built-in driver for low-temperature operation

·Refined components and design, guarantee a long life span of over 50000 hours

Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimension
JST-XQ12W>80/902700K-5000K>0.000.30AAC220-240V

15/24/38/50

/50*50/70*70/35*70

L118*H145mm
JST-XQ15W>80/902700K-5000K>0.900.35AAC220-240V

15/24/38/50

/50*50/70*70/35*70

L120*H180mm
JST-XQ20W>80/902700K-5000K>0.900.50AAC220-240V

15/24/38/50

/50*50/70*70/35*70

L193*H145mm
JST-XQ15Wx2>80/902700K-5000K>0.900.75AAC220-240V

15/24/38/50

/50*50/70*70/35*70

L205*H180mm
JST-XQ30W>80/902700K-5000K>0.900.75AAC220-240V

15/24/38/50

/50*50/70*70

/35*70

L160*H180mm
Application

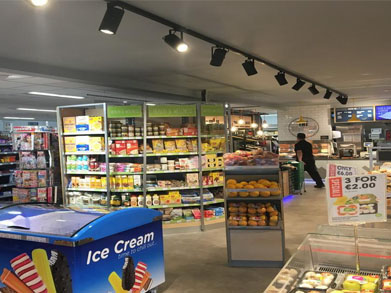

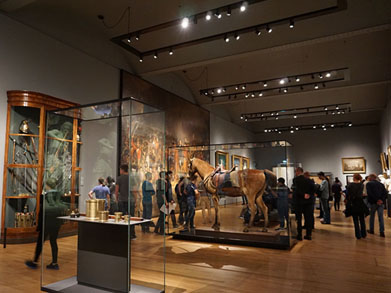

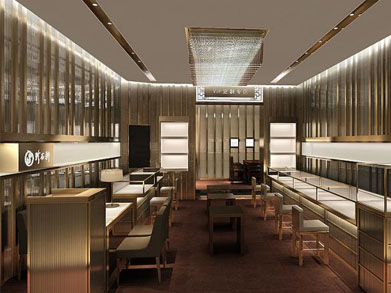

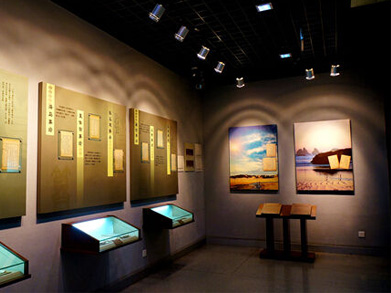

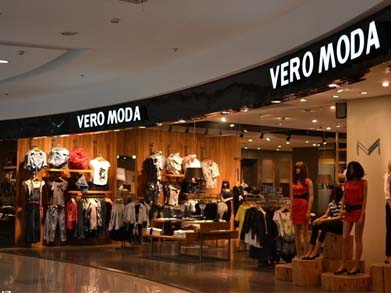

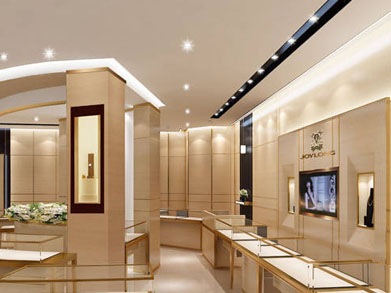

Shop lighting, museums lighting, galleries lighting, hotels lighting, furniture stores lighting, and so on.

LED Track Light XQ Series LED Track Light XQ Series LED Track Light XQ Series
LED Track Light XQ Series LED Track Light XQ Series LED Track Light XQ Series
