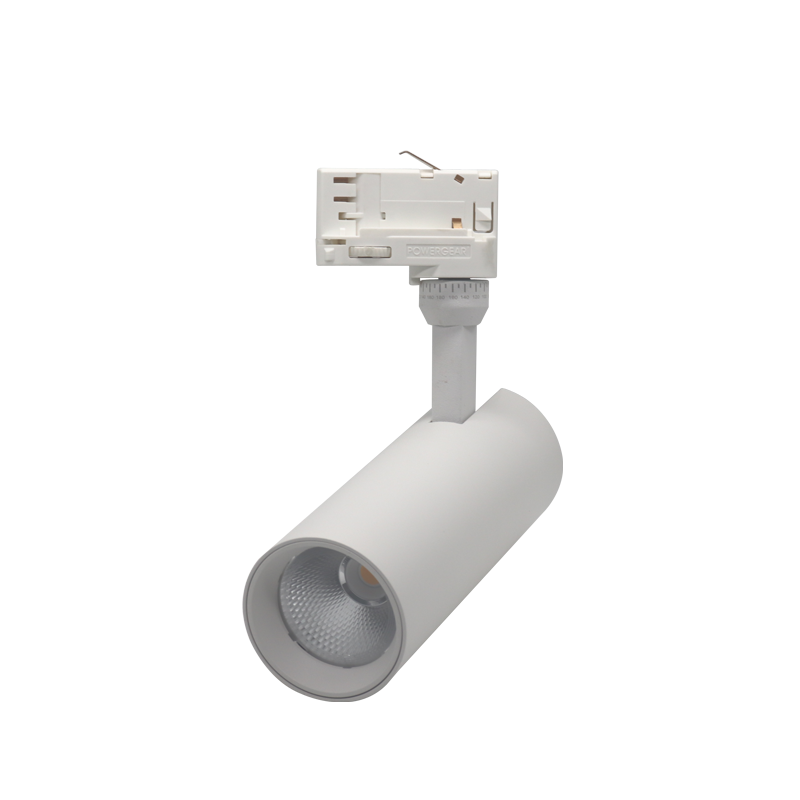

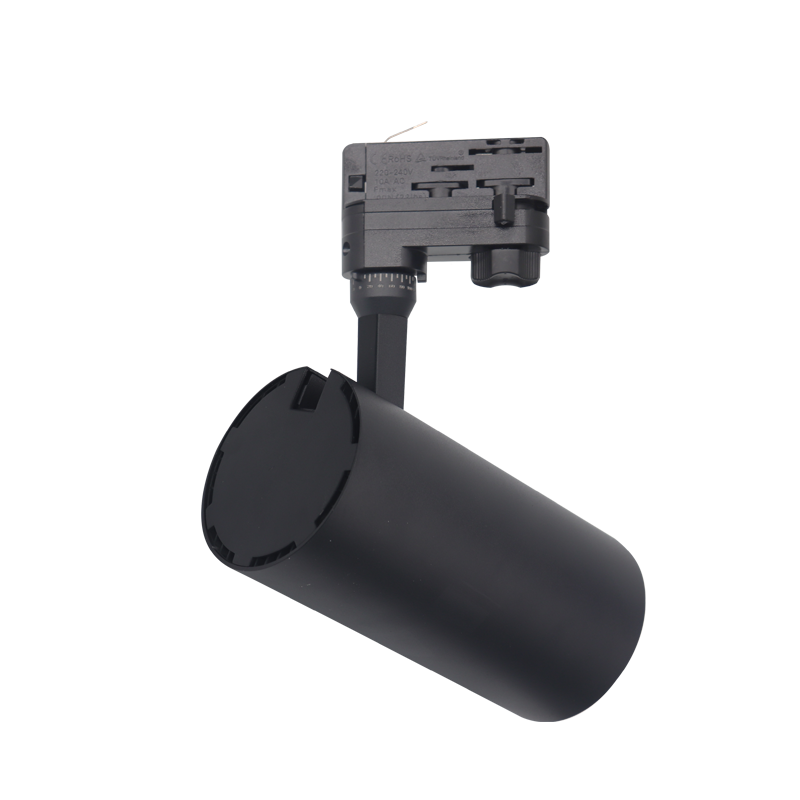

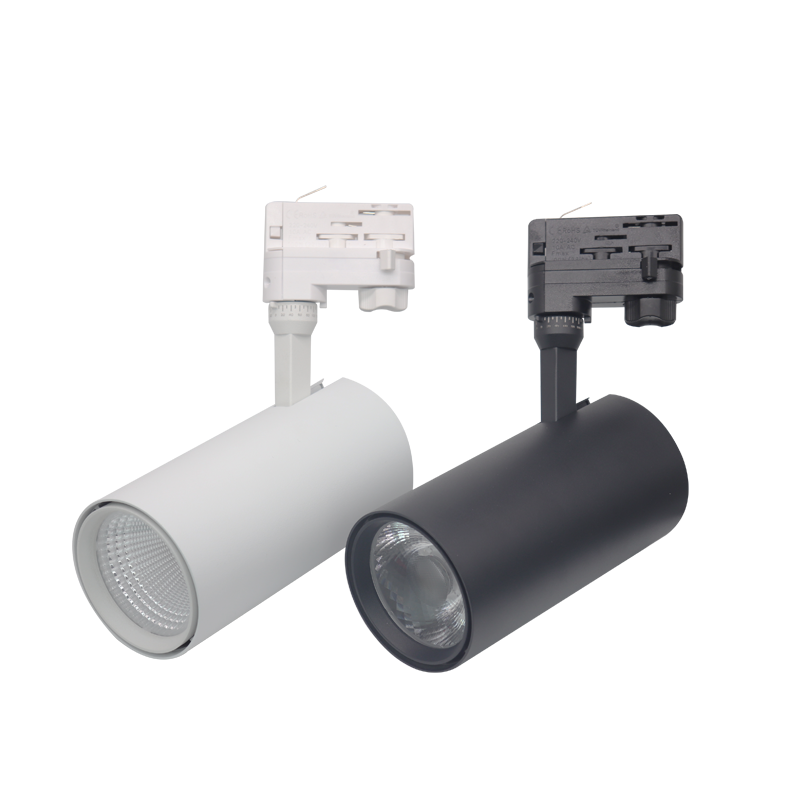

LED Track Light

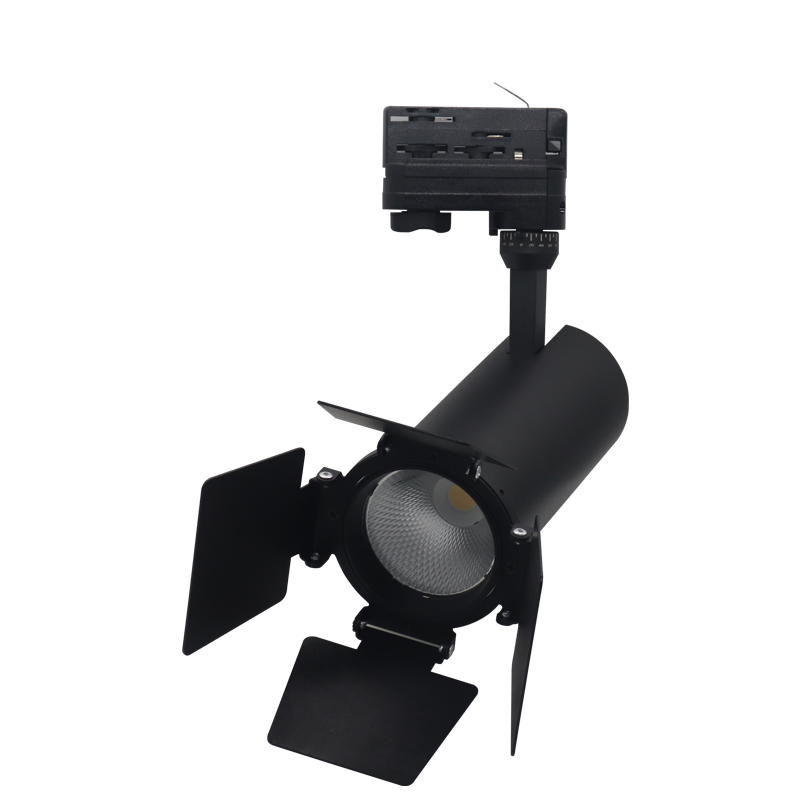

LED Track Light XF Series

Model: JST-XF

Wattage: 10W-35W

LED Chip: Citizen/Cree/Epistar

Driver Brand: OSRAM/Lifud/Tridonic

RA: >90/95

Finish Color: White/Black/Silver/Customized

Beam Angle: 15°/24°/36°/45°/60°

Diameter: 50mm/60mm/70mm/80mm/90mm

Adapater: 6wires/4wires/3wires/2wires

Description

The XF series spotlight for 6/4/3/2-phase power rails, is the perfect solution to set light accents. Thanks to its design, the spotlight adapts to all styles with high performance.


Features of the LED spotlight XF series black for 6/4/3/2-phase power rails. The built-in light source emits 3,000 lumens at a very precise beam angle of 15°/24°/36°. The emitted light is of the best quality and

reproduces the colours naturally.


XF series downlight works at temperatures between -20ºC and 40ºC. Even if this light is designed for the interior.,Like most rail spotlights, the spotlight can be moved on the rail and aligned in different positions,

depending on the current requirements.

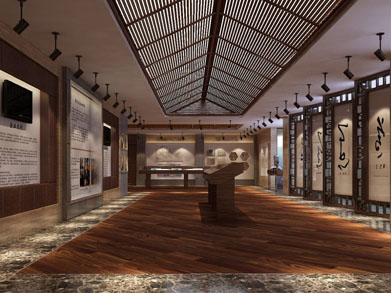

All these features make this spotlight the ideal product if you want to highlight certain objects or products or if you want to create different ambience in a room. XF series is mainly used in sales rooms or exhibitions

such as clothing shops, furniture shops.


Advantages

.High Ra﹥90, high efficacy, high luminosity, SDCM﹤3, make surroundings of high-quality illumination

·Glare-free design, perfect light spot with precise cast, make surroundings of comfortable illumination

·Non-flicker design for superior surrounding lighting requirement

·Integral light housing for better heat dissipation, built-in driver for low-temperature operation

·Refined components and design, guarantee a long life span of over 50000 hours

Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimension
JST-XF10W>80/902700K-5000K>0.900.25AAC220-240V15°/24°/36°/45°/60°D50*L150mm
JST-XF15W>80/902700K-5000K>0.900.35AAC220-240V15°/24°/36°/45°/60°D60*L170mm
JST-XF20W>80/902700K-5000K>0.900.50AAC220-240V15°/24°/36°/45°/60°D70*L170mm
JST-XF25W>80/902700K-5000K>0.900.60AAC220-240V15°/24°/36°/45°/60°D80*L190mm
JST-XF30W>80/902700K-5000K>0.900.75AAC220-240V15°/24°/36°/45°/60°D90*L180mm
JST-XF35W>80/902700K-5000K>0.900.85AAC220-240V15°/24°/36°/45°/60°D90*L180mm
Application

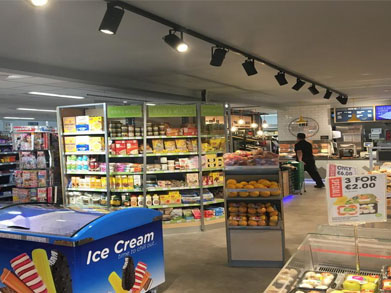

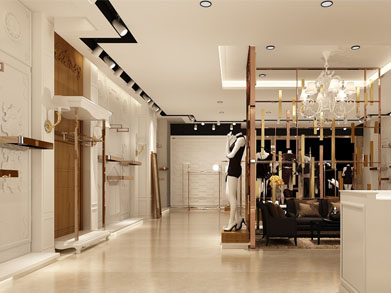

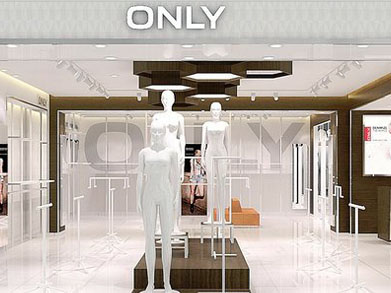

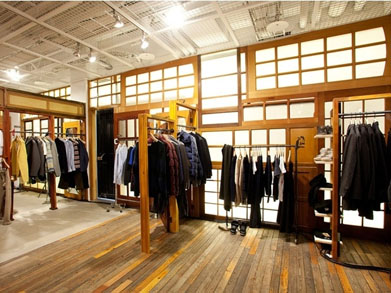

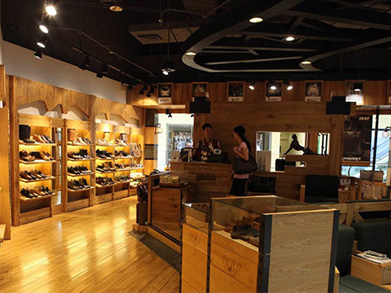

Fashion stores lighting, Stations lighting, Hotels lighting, Offices lighting, Shopping malls lighting, Clubs lighting, Supermarkets lighting etc.

LED Track Light XF Series LED Track Light XF Series LED Track Light XF Series
LED Track Light XF Series LED Track Light XF Series LED Track Light XF Series
