LED Track Light

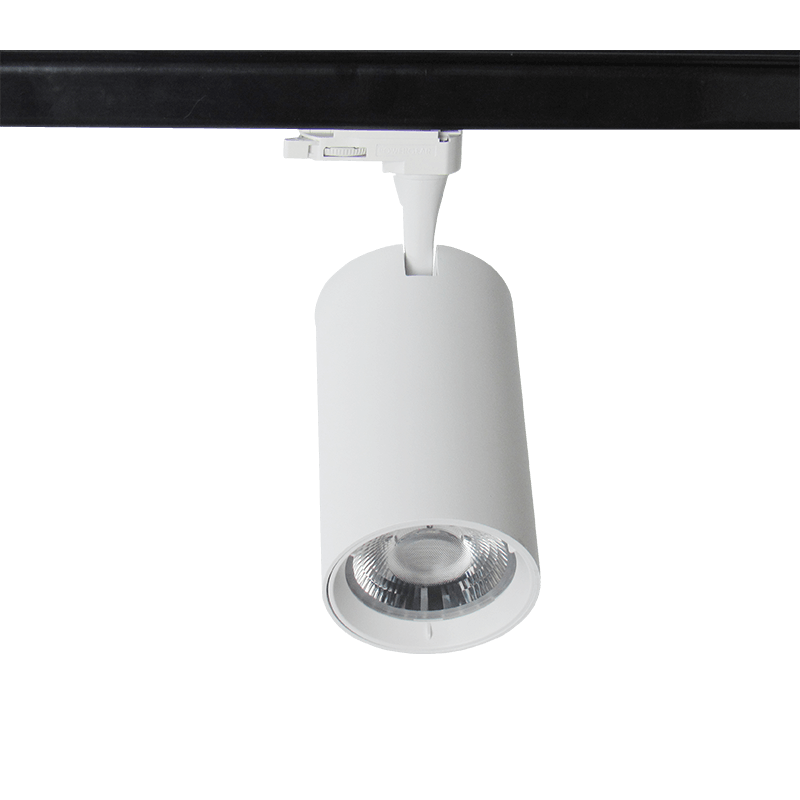

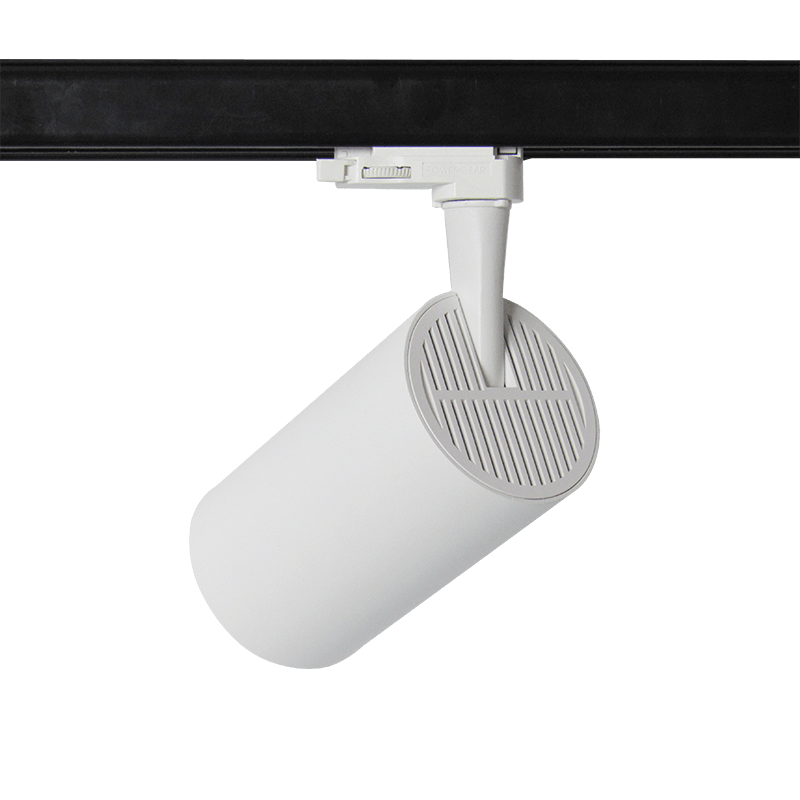

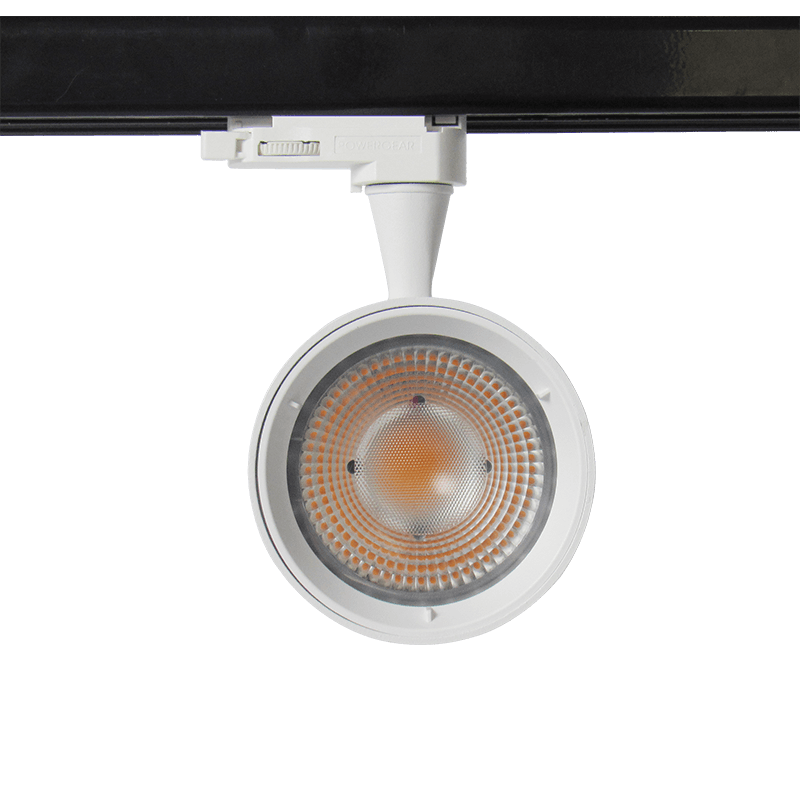

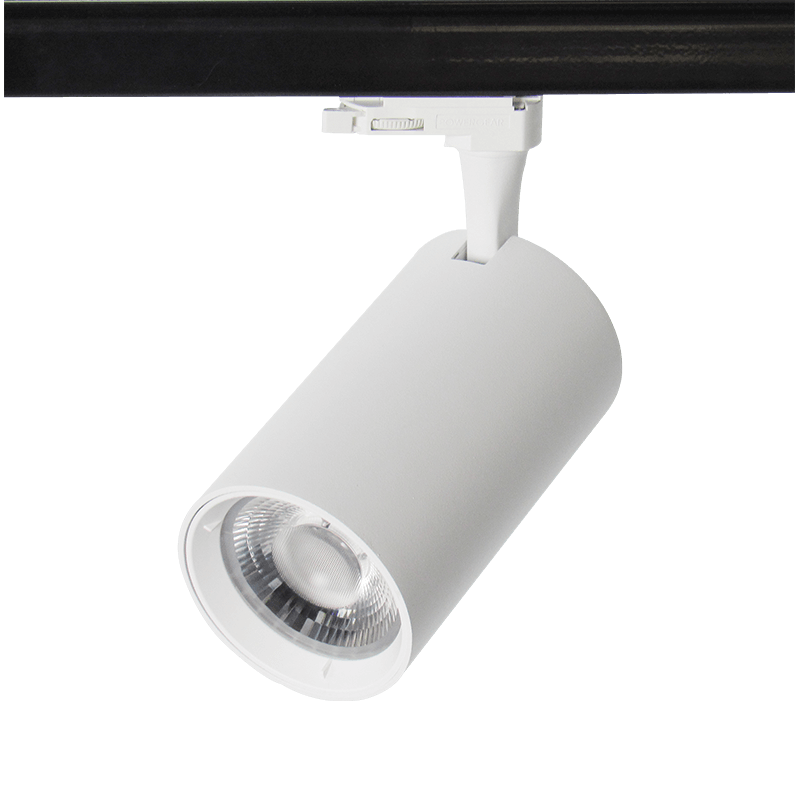

LED Track Light XL Series

Model: JST-XL

Wattage: 10W-35W

LED Chip: Citizen/Cree/Epistar

Driver Brand: Lifud/Tridonic

RA: >90/95

Finish Color: White/Black/Silver/Customized

Beam Angle: 15°/24°/36°/60°

Diameter: 60mm/75mm/90mm

Adapater: 6wires/4wires/3wires/2wires

Description

The XL series is an original research and development by JST. With low profile, aesthetic desig and high-quality electronics, built-in driver makes the ceiling look clearer, concise and fluent outlook cylindrical design

makes the lamp have a larger radiator, which can dissipate heat quickly without affecting the lifespan , 50,000 hours. Diameter 60/75/90mm, die-cast aluminum provides excellent strength and rigidity, latest LED COB

chip, constant voltage driver, 10W - 35W power, 15°/24°/36°/60° optics, CRI>90 It is reproduced faithfully Object color, providing superior lighting for demanding applications.


JARSTAR Lighting's XL Series LED track lights feature directional glare-free reflectors and unique flicker-free drivers, giving you stable, low-glare lighting for oyal families, high-end clubs, museums, and internationally

renowned brands such as Louis Vuitton, Prada, Gucci, etcall your commercial or residential needs and for all backgrounds.


XL series as a LED track light, what are the uses of ?

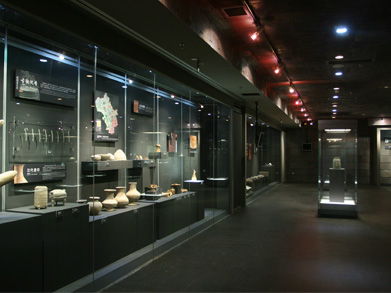

The main characteristic of LED track spotlight is the concentrated directional light, which can be used in commercial spaces, exhibition halls, galleries, museums, offices, restaurants, homes, and other places. In these

scenarios, it can be divided into the following types of lighting:


LED track spotlight has strong directionality and can control the light in a specific area. Choose the appropriate beam angle according to the size of the area.


LED track spotlight can provide task lighting, providing sufficient brightness for specific areas.


By adjusting the color temperature, brightness, and direction of the light source, LED track spotlight can create an ideal atmosphere for different spaces.


LED track spotlight can be used for emphasis lighting, highlighting a particular feature in a building or space. This is similar to ambient and task lighting and is mainly used to emphasize the characteristics, texture, and

shape of a space.


.

Advantages
  1. CRI> 90 ,which will show the real beauty of the objects

  2. Anti-glare design, perfect light spot with precise cast, make surroundings of comfortable illumination

  3. Non-flicker design for superior surrounding lighting requirement

  4. 15°/24°/36°/60° Optical Lens

  5. Integral light housing for better heat dissipation, built-in driver for low-temperature operation, a long life span of over 50000 hours


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimension
JST-XL10W>80/902700K-5000K>0.650.25AAC220-240V15°/24°/36°/60°D60*L115mm
JST-XL15W>80/902700K-5000K>0.900.35AAC220-240V15°/24°/36°/60°D75*H130mm
JST-XL20W>80/902700K-5000K>0.900.50AAC220-240V15°/24°/36°/60°D75*H130mm
JST-XL25W>80/902700K-5000K>0.900.60AAC220-240V15°/24°/36°/60°D90*H155mm
JST-XL30W>80/902700K-5000K>0.900.75AAC220-240V15°/24°/36°/60°D90*H155mm
JST-XL35W>80/902700K-5000K>0.900.90AAC220-240V15°/24°/36°/60°D90*H155mm
Application

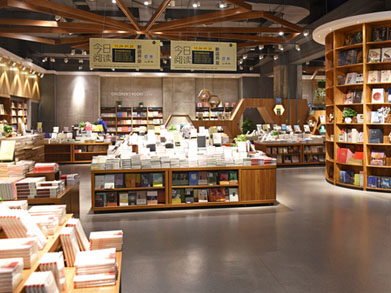

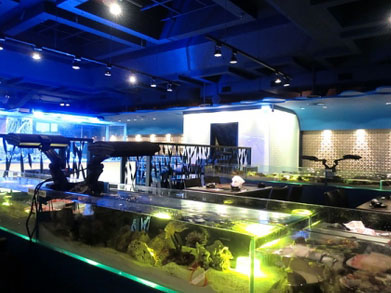

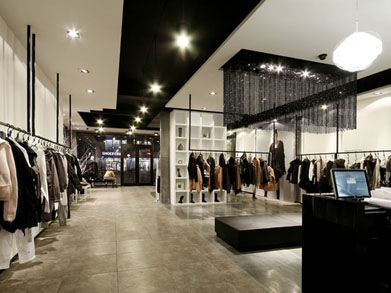

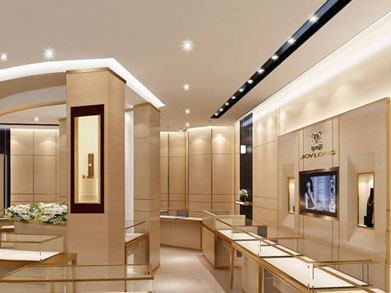

Fashion stores lighting, Stations lighting, Hotels lighting, Offices lighting, Shopping malls lighting, Clubs lighting, Supermarkets lighting etc.

LED Track Light XL Series LED Track Light XL Series LED Track Light XL Series
LED Track Light XL Series LED Track Light XL Series LED Track Light XL Series
