LED Surface Mounted Downlight

LED Surface Mounted Downlight SMY Series

Model: JST-SMY

Wattage: 24W-48W

LED Chip: Citizen/Cree/Epistar

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 15°/24°/36°

Diameter: See below spec.

Installation: Recessed/Surface mounted/Suspend


Description

Surface mounted downlight are downlights that are fixed onto the ceiling, instead of recessed in to the ceiling.  It can adds a decorative toch to the room, easy to instation, ultra-modern and come in a range of designs.


SMY series are famous of multiform and installation modes, inspires with its modern design and flexible lighting options. The lamp is classically styled with a versatile cylinder/square-shaped luminaire with a universal

white/black surface that blends in across styles and decor types. The classics design can be integrated into both the private home and the commercial sector.


SMY series are also adjustable surface mounted downlights. They have a twist and tilt  holder just like adjustable recessed downlights. that' ideasl when adjustments are needed to redirect the light, the light source can

be swiveled around to light worktops, pictures or ornaments. it is a flexible little thing ,each spot can be tilted 90 °, which provides many options for setting the direction of the light.  It can be installed on the ceiling or

wall.


SMY series with glare-free design, it's surface structure to avoid glare, bring the next feeling of natural light, high colour rendering, high light transmittance, uniform light, no irritation to eyes, high-end lens highly

restore color, provide vivid and natural color; bright and soft light, with a modern design sense, better eye protection.


Advantages

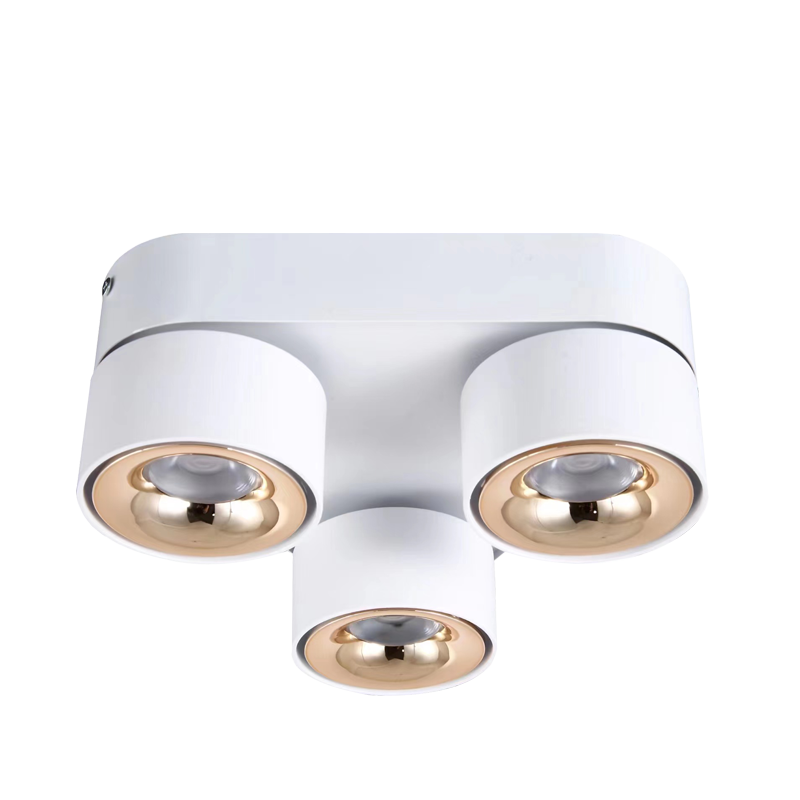

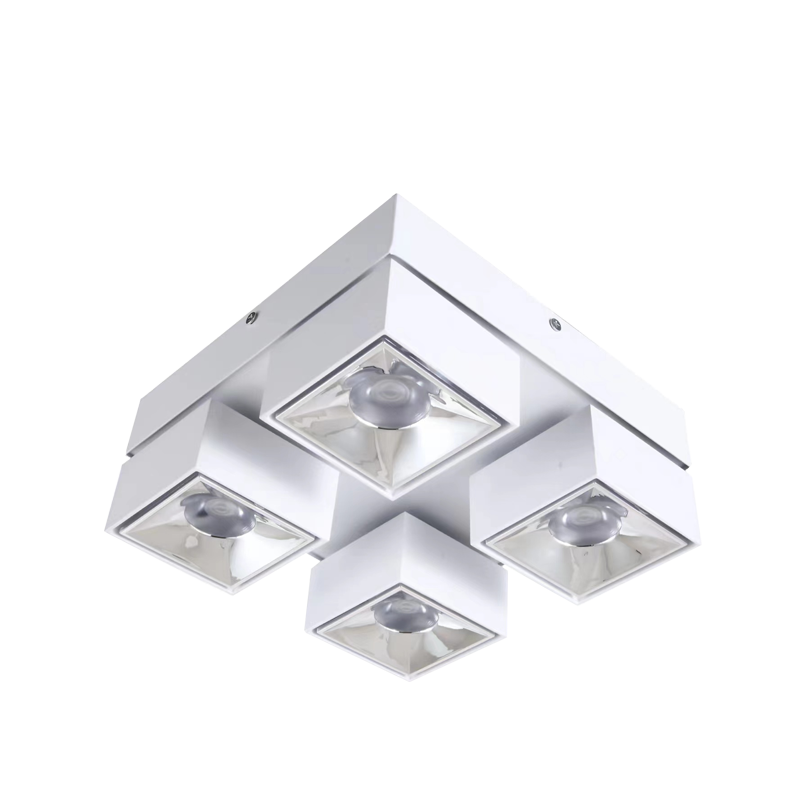

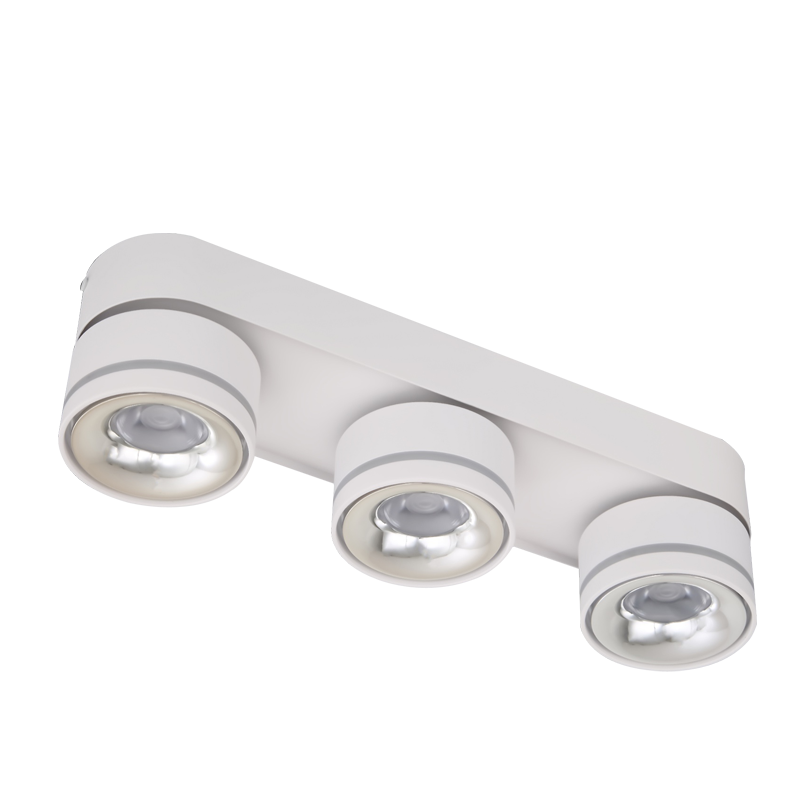

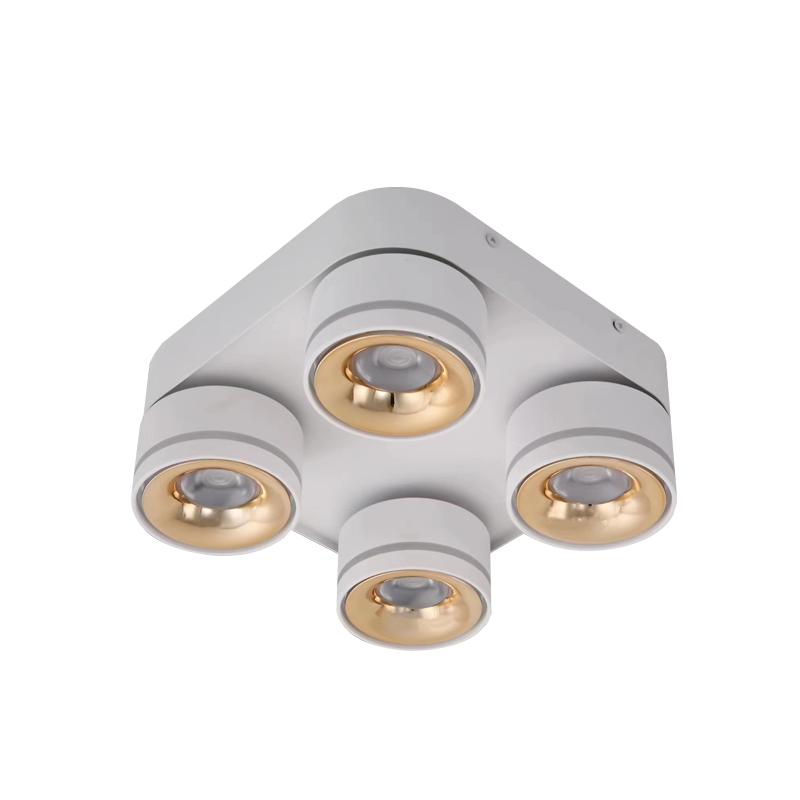

  1. Multiform-round/square/single heads/double heads/three heads/four heads

  2. Adjusts different heads  in different directions, or in the same direction

  3. Die cast aluminum housing

  4. Easy installattion and easy remove

  5. Soft lighting effect

  6. Anti-glare design



Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDiameter
JST-SMY-R12W*2>80/902700K-5000K>0.900.60AAC220-240V15°/24°/36°L220*W85*H88mm
JST-SMY-R-A12W*3>80/902700K-5000K>0.900.85AAC220-240V15°/24°/36°L355*W85*H88mm
JST-SMY-R-B12W*3>80/902700K-5000K>0.900.85AAC220-240V15°/24°/36°L220*W220*H88mm
JST-SMY-R12W*4>80/902700K-5000K>0.901.25AAC220-240V15°/24°/36°L220*W220*H88mm
JST-SMY-S12W*2>80/902700K-5000K>0.900.60AAC220-240V15°/24°/36°L210*W85*H88mm
JST-SMY-S12W*3>80/902700K-5000K>0.900.85AAC220-240V15°/24°/36°L355*W85*H88mm
JST-SMY-S12W*4>80/902700K-5000K>0.901.25AAC220-240V15°/24°/36°L220*W220*H88mm

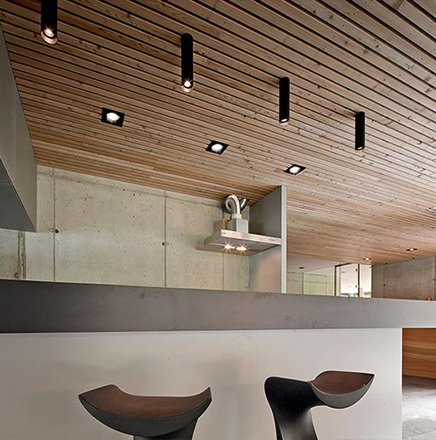

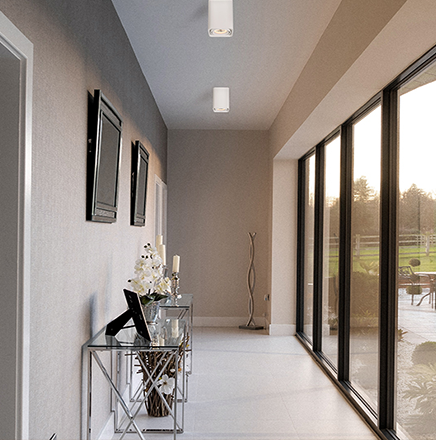

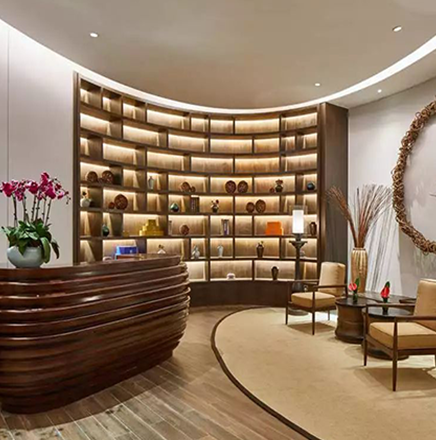

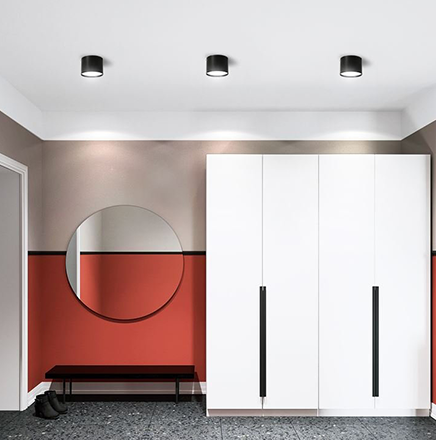

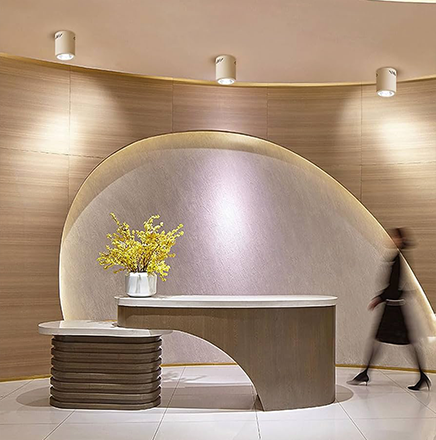

Application

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting, Jewelry stores lighting, Banks lighting, Airportlighting, Suppermaket lighting etc.
