LED Surface Mounted Downlight

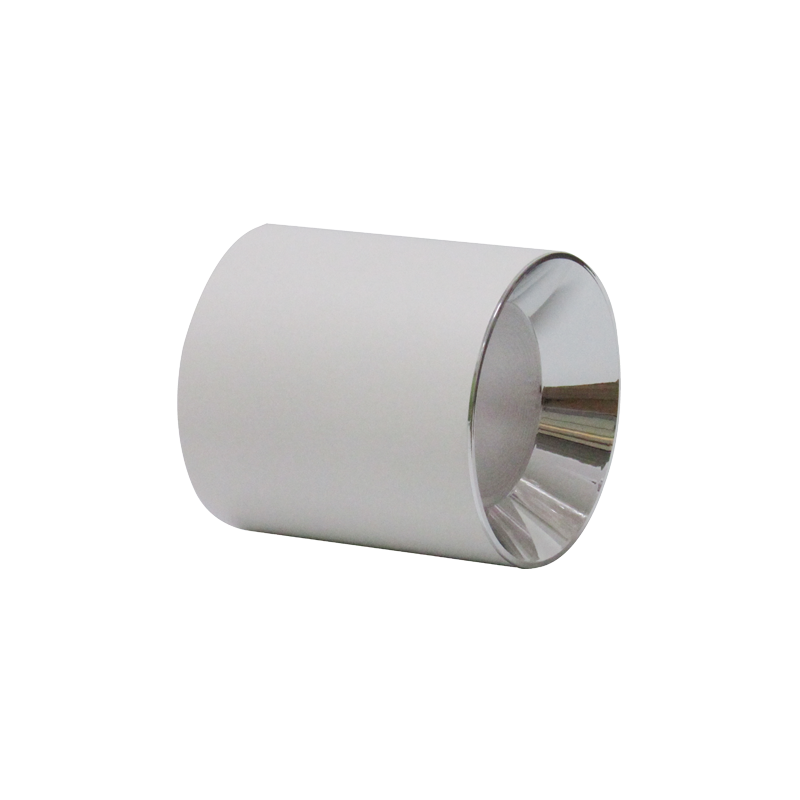

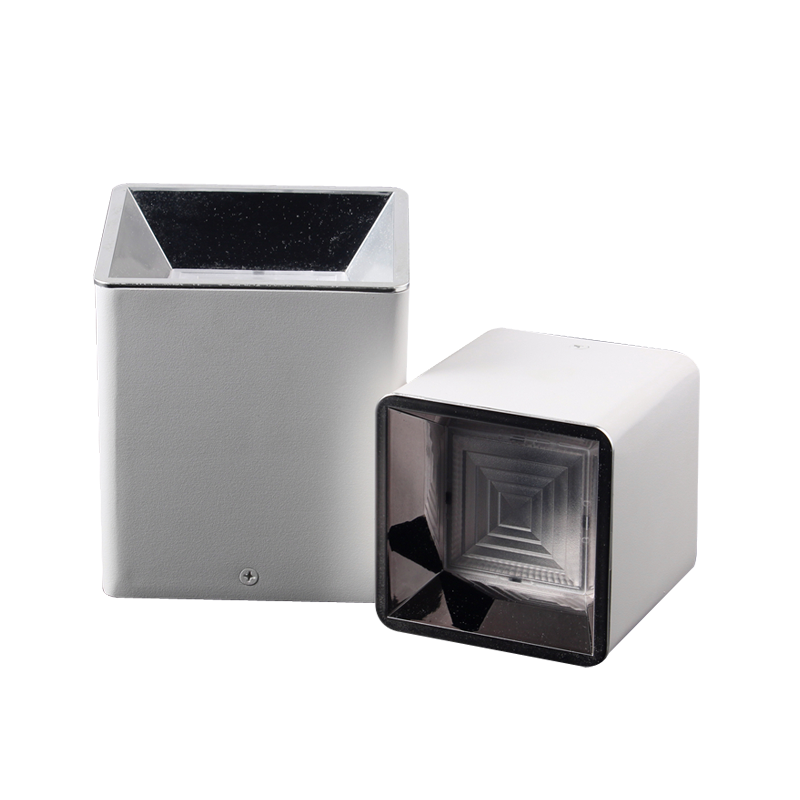

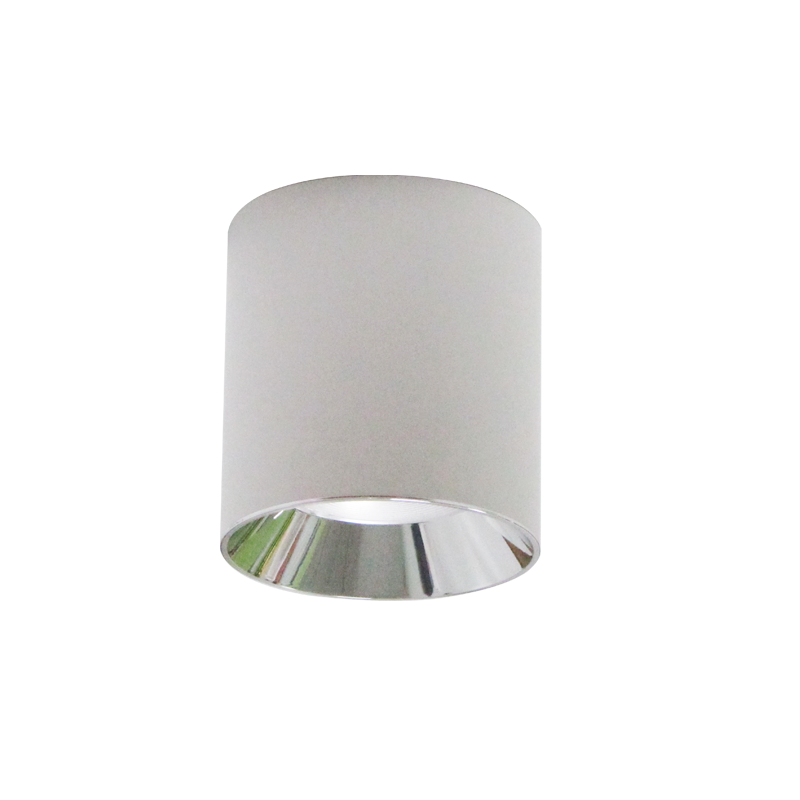

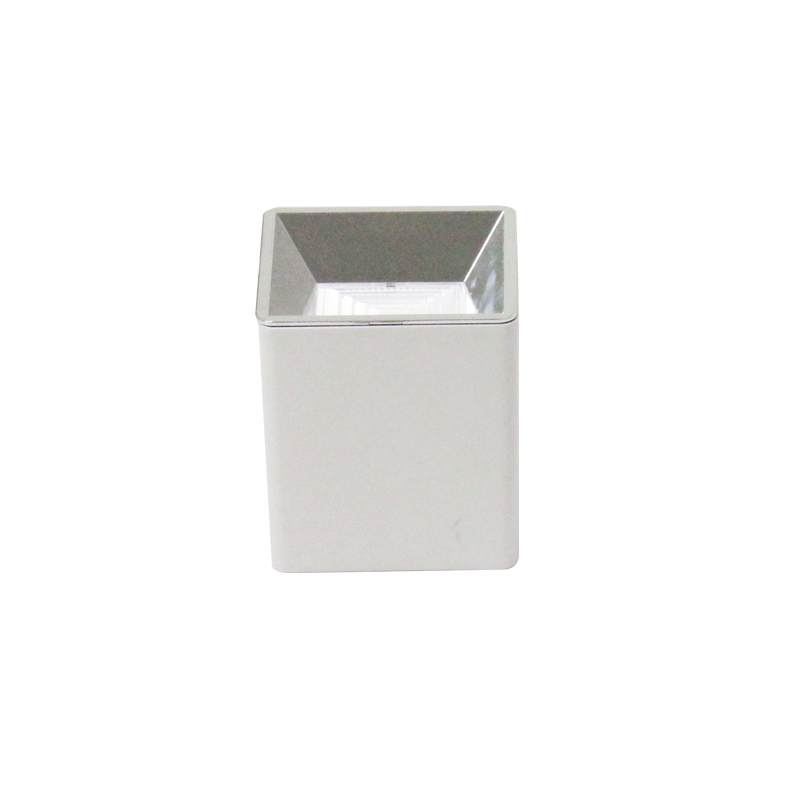

LED Surface Mounted Downlight SMB Series-Round/Squre

Model: JST-SMB

Wattage: 10W-40W

LED Chip: Citizen/Cree/Epistar

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 60°

Diameter: 90mm-190mm

Installation: Surface mounted/Suspend

Description

LED light are one of the widely used lighting solutions all over the world. These are highly common among people for both indoor and outdoor usage because of their cost-effectiveness and efficiency.  They also come

in different varieties such as LED downlight, LED surface mounted downlight, LED track light, LED linear light, LED magnetic light, etc.


LED light which is different CCT optional is one of the most important reasons why people are using LEDs in almost every sector. These lighting fixtures are considered to be the the most popular lumination option to

date.  In the past years, some people complain that LEDs are way too white, but with continuous research and up-gradation LEDs come in different colour temperatures from cool blue to warm and glowing yellow. By

using the right colour temperature, we can reduce the exposure to bright light.


Now we divide the color temperature into:

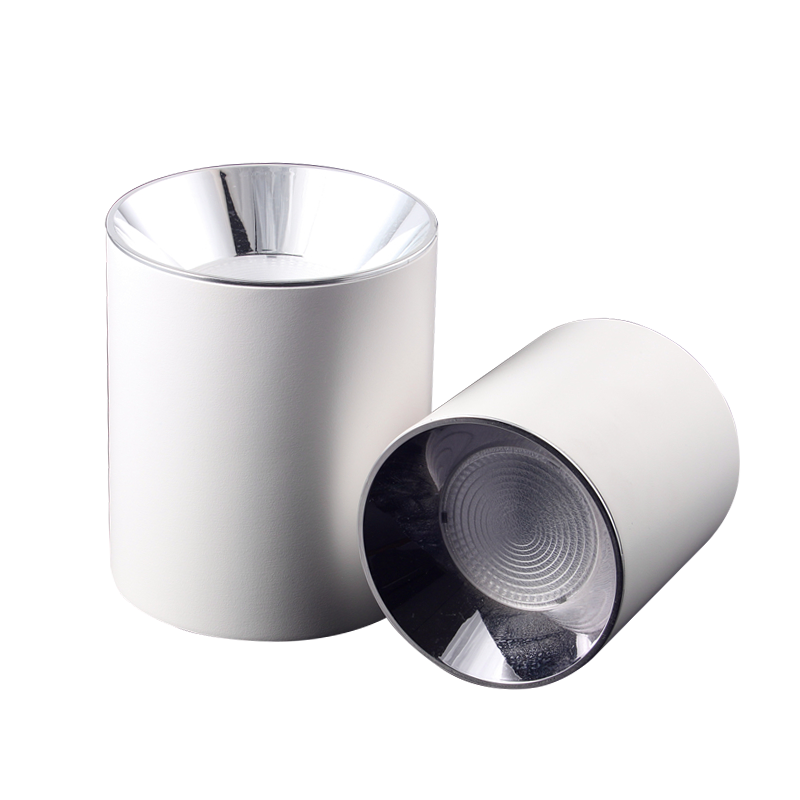

Jarstar's surface mounted downlights SMB series are not only have optional CCT, but also it adopt with CREE/CITIZEN COB chip which is low power consumption, The cylinder design is beautiful with simplicity and

creates luxurious atmosphere. The light passes through the light guide plate with high transmittance which makes the light uniform soft comfortable and without losing the brightness. Therefore, can effectively protect

our eyes.


SMB series esay to install, No need to cut holes in the ceiling, and adds a decorative effect to your space.


Advantages

1. Easy to install and operate.

2. Energy saving, Long lifespan.

3. Light is soft and uniform, Safe to eyes

4. Instant start, NO flickering, NO humming.

5. Green and eco-friendly without mercury.

Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDiameter
JST-SMB-R/S10W>80/902700K-5000K>0.900.25AAC220-240V60°D90*H90mm
JST-SMB-R/S15W>80/902700K-5000K>0.900.35AAC220-240V60°D110*H120mm
JST-SMB-R/S25W>80/902700K-5000K>0.900.60AAC220-240V60°D130*H150mm
JST-SMB-R/S35W>80/902700K-5000K>0.900.85AAC220-240V60°D170*H185mm
JST-SMB-R/S40W>80/902700K-5000K>0.901.00AAC220-240V60°D190*H190mm

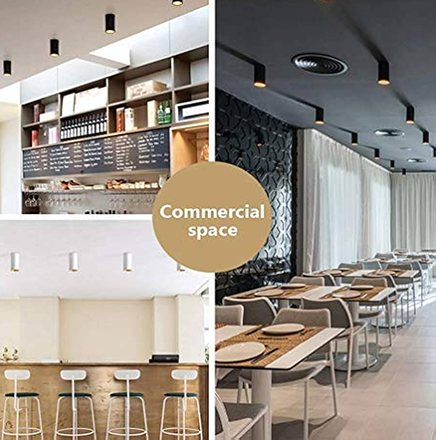

Application

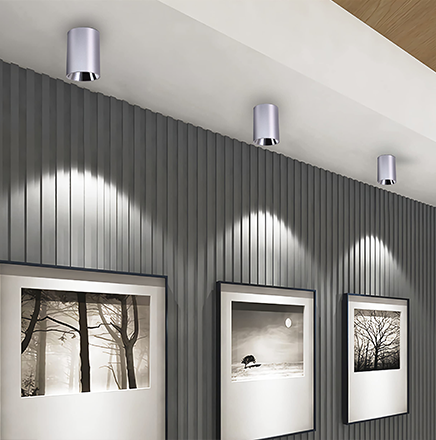

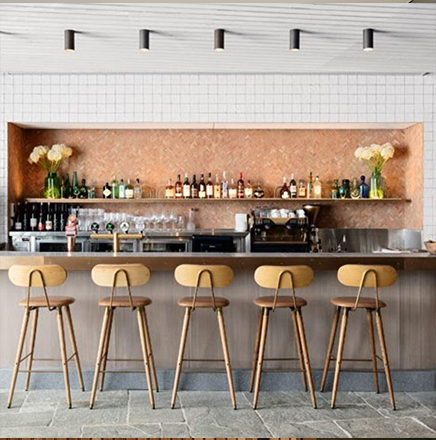

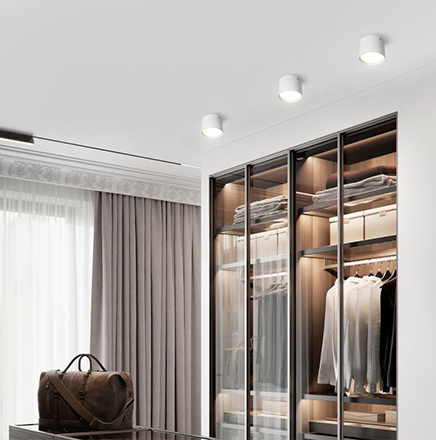

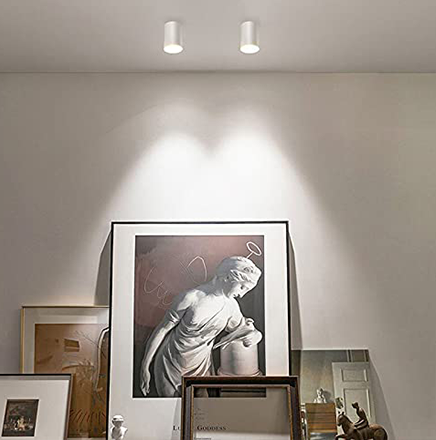

Residentail lighting, Hotel lighting, Restaurant lighting, Shop lighting, Subway lighting, Bar lighting, Disco Hall lighting, KTV lighting, Bank lighting, Meeting Room lighting, Displaying Hall lighting, Stage lighting, office lighting and etc
