LED Surface Mounted Downlight

LED Surface Mounted Downlight SMZ Series

Model: JST-SMZ

Wattage: 10W-40W

LED Chip: Citizen/Cree/Epistar

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 24°/45°

Diameter: See below spec.

Installation: Recessed/Surface mounted/Suspend


Description

Surface mounted downlight are downlights that are fixed onto the ceiling, instead of recessed in to the ceiling.

- Adds a decorative toch to the room. They are perfect alternatives to the recessed downlight, Especially, when there is no void above the ceiling to install a recessed right.

- Easier to instation as well. No need to cut holes in the plasterboard.

- Look ultra-modern and come in a range of designs. Lots of shapes, sizes and finisheds to complement any room. That includes round, square, rectangular and some other bazaar shapes

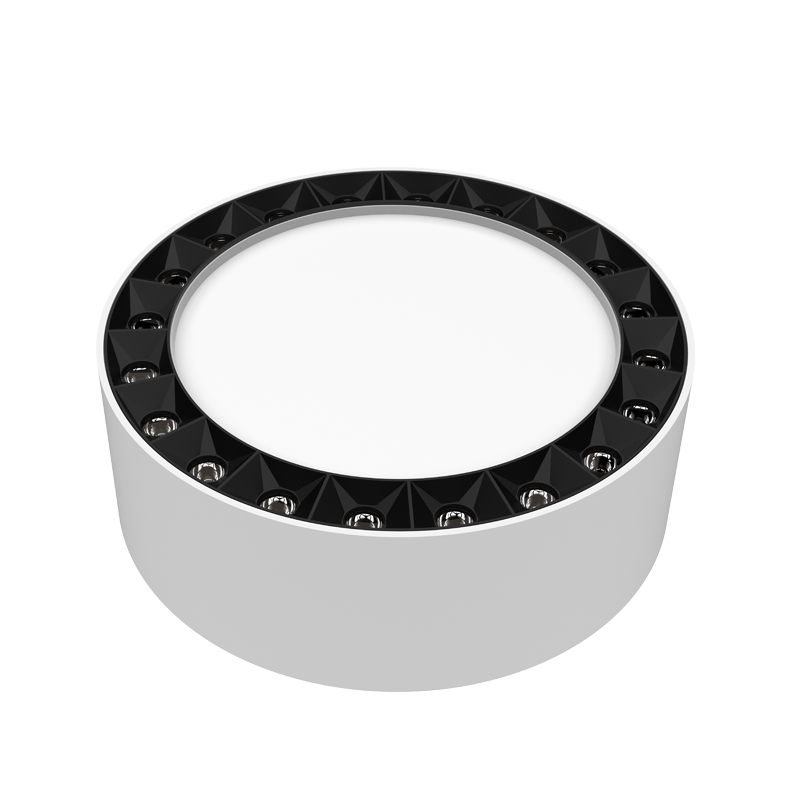

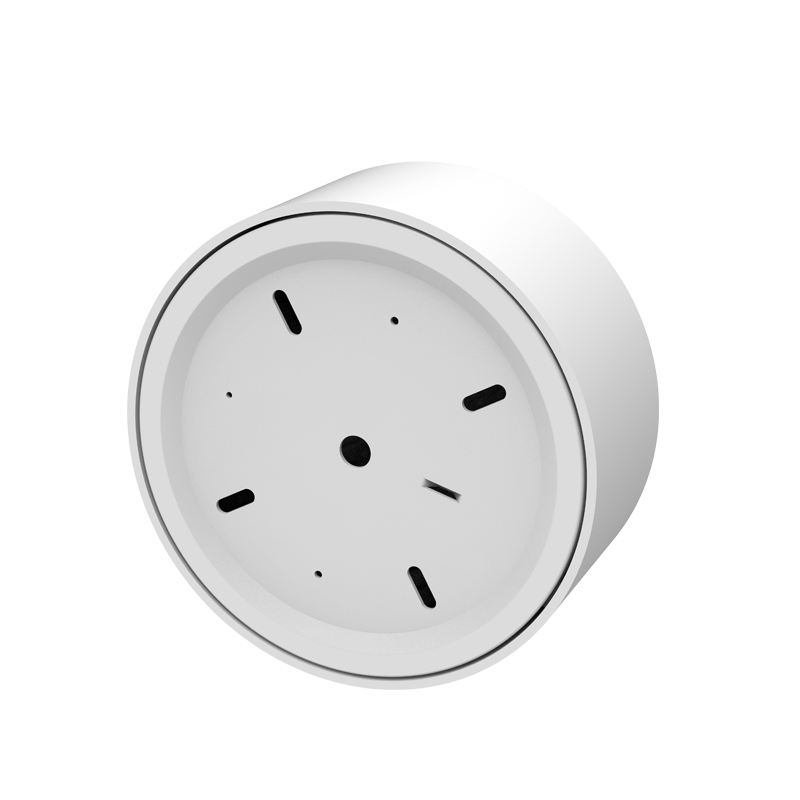

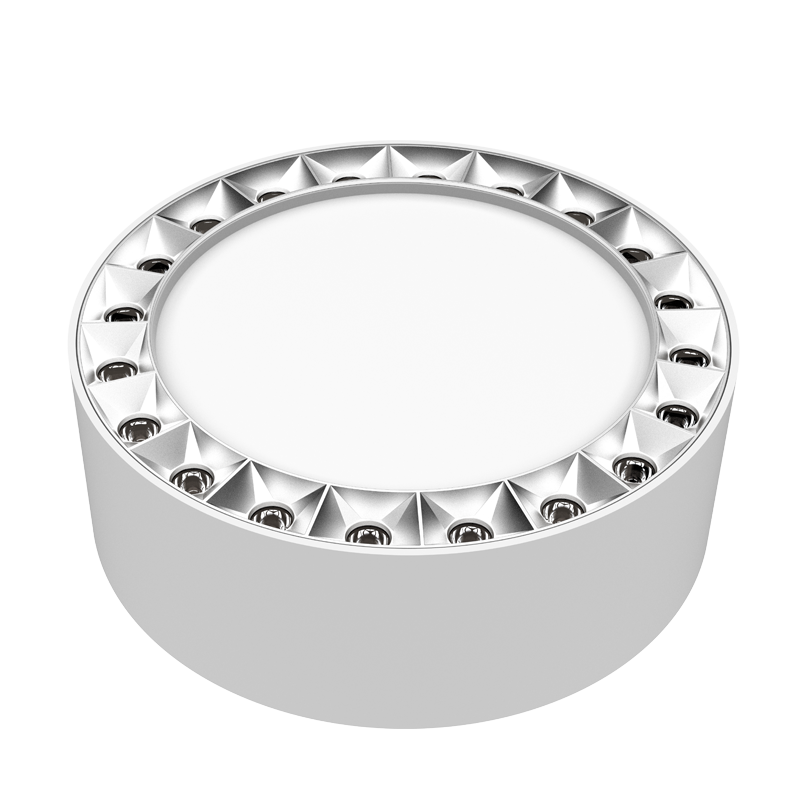

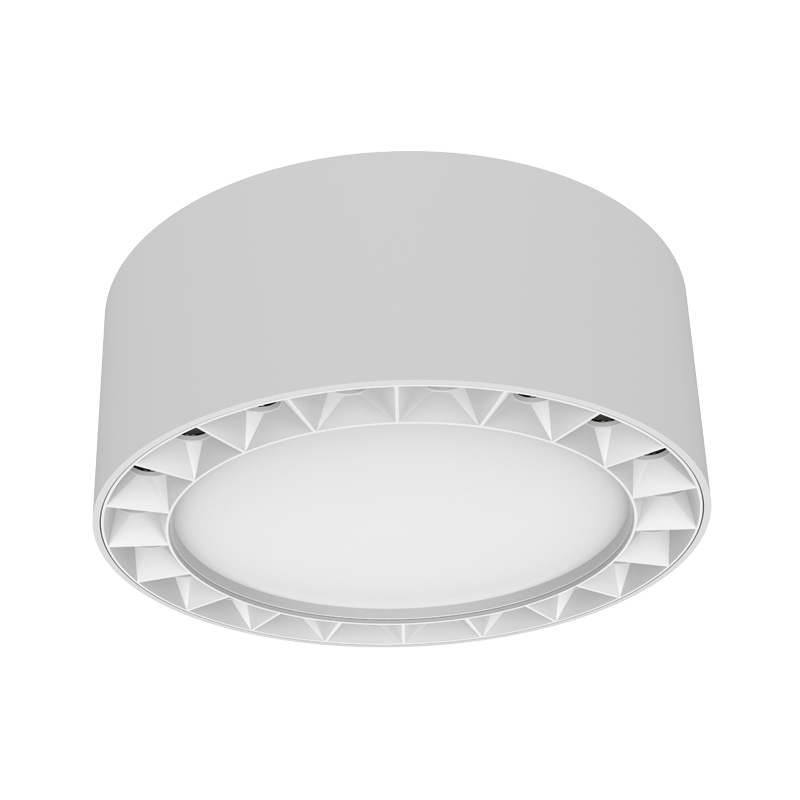

Surface-mounted downlight SMZ series which is Round shape. Luminaire body made of  aluminium profile. Compact version with central blank plate. Surface white,  black, available in various colour finishes. Direct light

using precision lenses with louvre for wide uniform symmetrical light distribution with high glare limitation (UGR<19).


Surface-mounted downlight SMZ series with multiple exquisite craftsmanship, exquisite and elegant, obvious texture, anti-corrosion, wear-resistant and durablesur. Grille structure, adopt granular optical lens, anti-glare

make eyes not dazzling ,  high light transmittance,  uniform light, no irritation to eyes. CRI>80, high-end lens highly restore color, provide vivid and natural color bright and soft light, ,bring the next feeling of natural light, with a modern design sense.



Advantages
  1. High quality aluminum material, one-batch forming,

  2. Alu radiator has fast heat dissipation, longer service life

  3. Deep polarized light design for anti-glare

  4. Soft lighting effect, eye protection

  5. Unique reflector design

  6. Anti-glare make eyes not dazzling adopt granular optical lens


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDiameter
JST-SMZ10W>80/902700K-5000K>0.900.25AAC220-240V24°/45°D75*H60mm
JST-SMZ15W>80/902700K-5000K>0.900.35AAC220-240V24°/45°D95*H60mm
JST-SMZ20W>80/902700K-5000K>0.900.50AAC220-240V24°/45°D112*H60mm
JST-SMZ30W>80/902700K-5000K>0.900.75AAC220-240V24°/45°D158*H70mm
JST-SMZ40W>80/902700K-5000K>0.901.00AAC220-240V24°/45°D200*H70mm

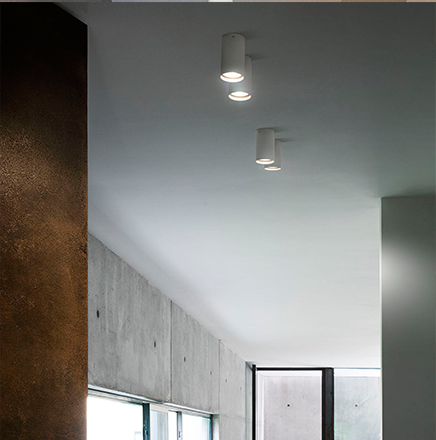

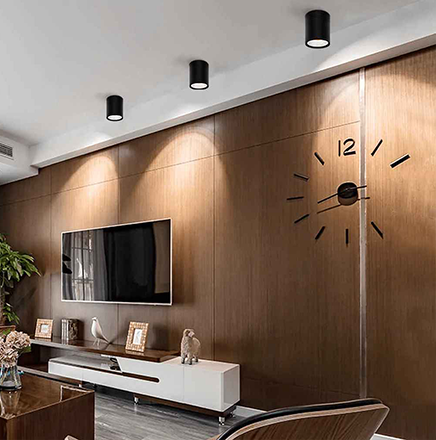

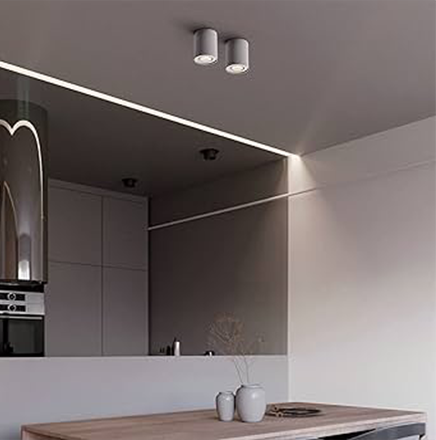

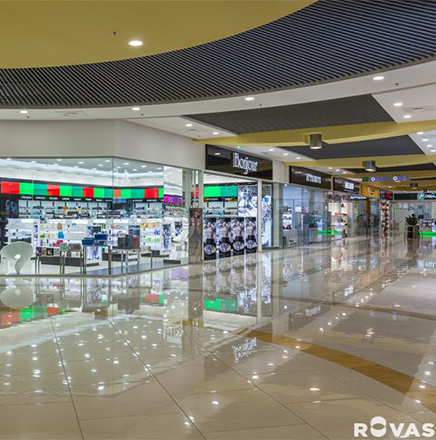

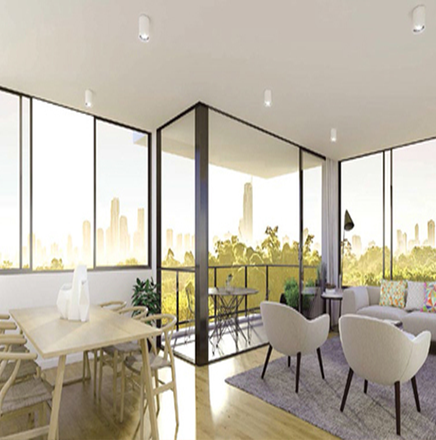

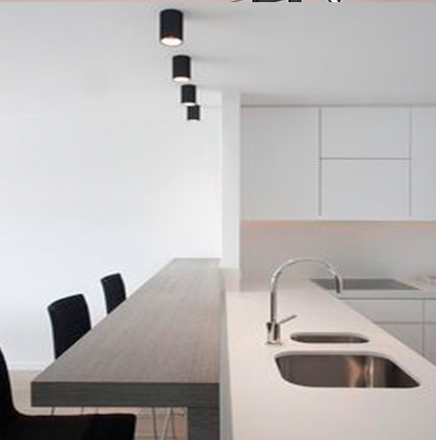

Application

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,Jewelry stores lighting,Banks lighting, Airportlighting, Suppermaket lighting etc.
