Model: JST-SMW
Wattage: 5W-80W
LED Chip: Citizen/Cree/Epistar
Driver Brand: OSRAM/Philips/Lifud
RA: ＞90
Finish Color: White/Black/Customized
Beam Angle: 24°/45°/60°
Diameter: 65mm-200mm
Installation: Surface mounted/Suspend

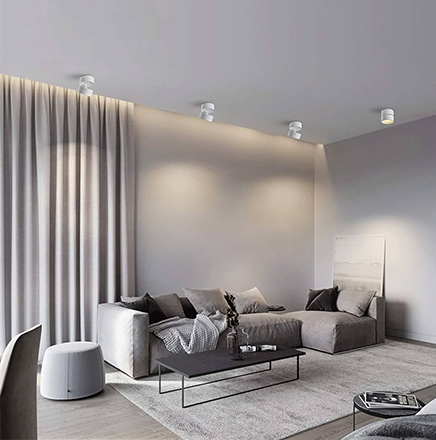

For decades，LED lights are becoming more and more popular. Surface mounted light fixtures have been a staple piece of design. Their immense strength lies in their flexibility, since they can be installed in almost
any space without dramatically altering the ceiling, and are available in endless shapes and sizes.
As the name implies, surface-mounted lights require placing fixtures on flat surfaces. So, they usually protrude from surfaces which provide a more decorative aesthetic. Easy to install and save time. It involves no more
than fixing them to the ceiling, then, making the electrical connections.

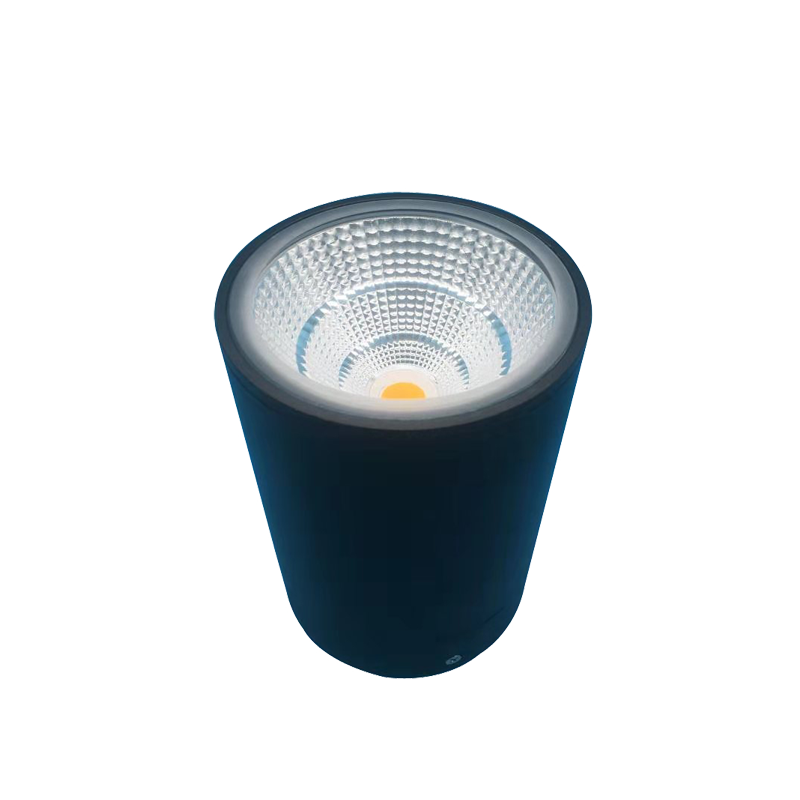

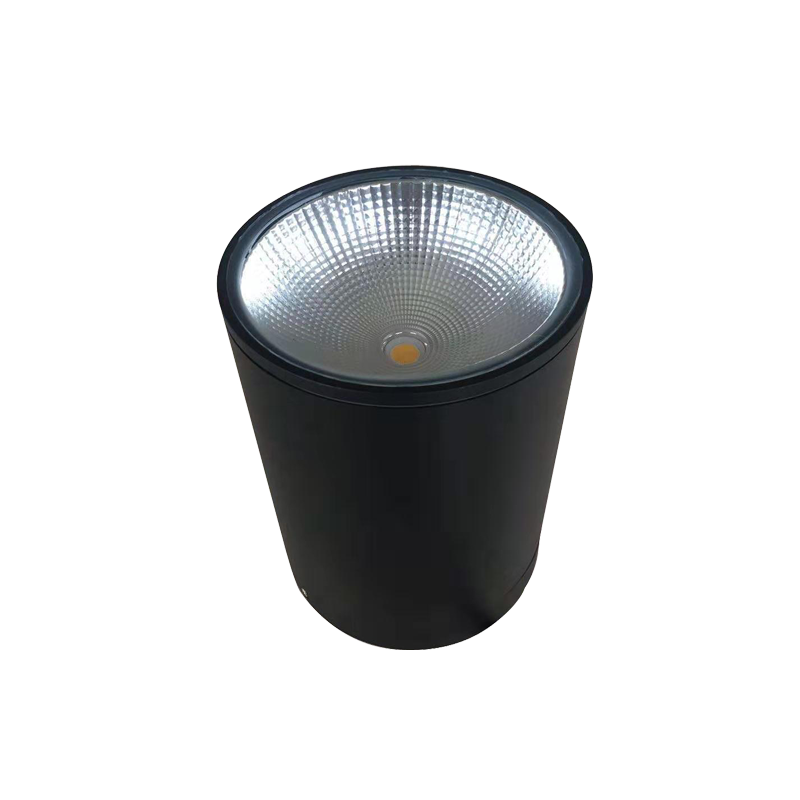

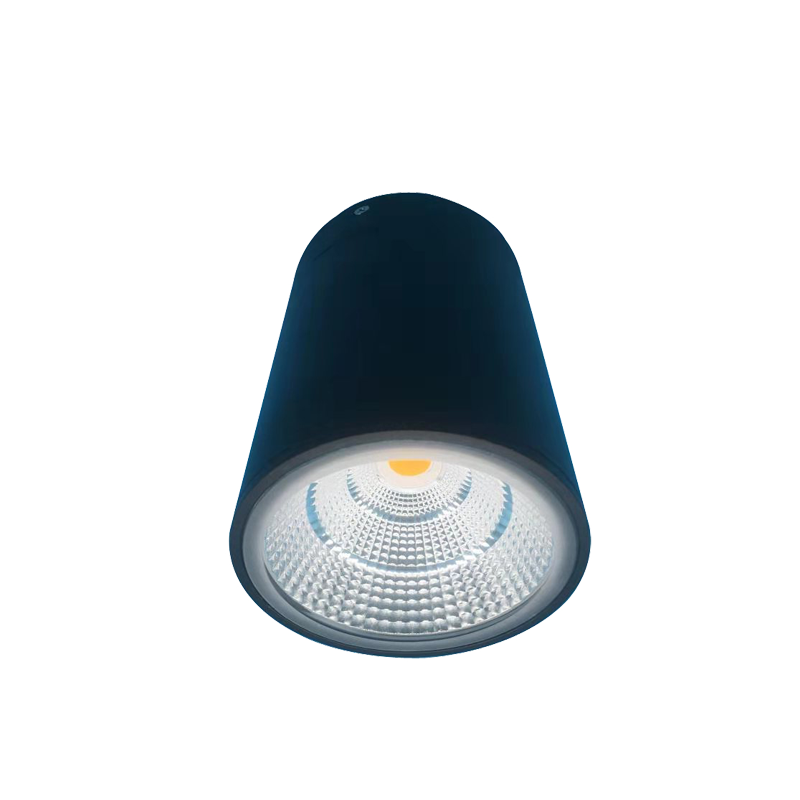

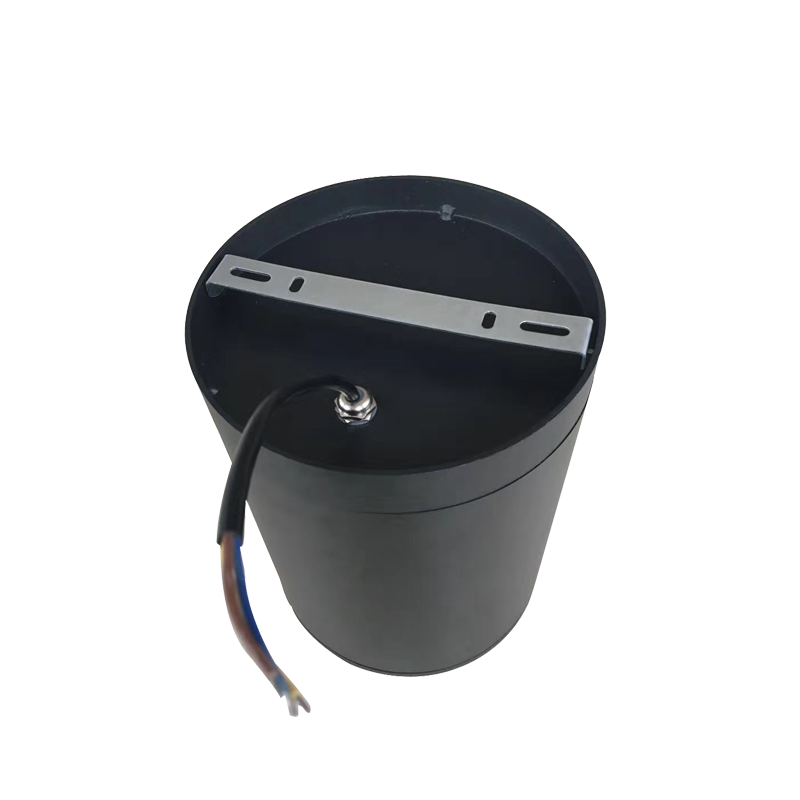

Surface mounted SMW series is cylindrical sleek and Modern design, with IP65, can use for outdoor lighting.Their stylish appearance adds a touch of elegance to any outdoor setting.
SMW series dopts high-quality die-casted aluminum body, performs well in cooling. Anti-Oxidation, Anti-Rust, Anti-Corrosion. IP65 that they are built to withstand the elements. They are weather-resistant and
designed to provide long-lasting performance, even in challenging outdoor conditions.
SMW series cylinder lights are adopt CREE/CITIZEN COB chip which highly energy-efficient, helping you save on energy costs while reducing your carbon footprint. They use minimal electricity compared to traditional
outdoor lighting options.
Eco-Friendly,Energy Saving,Good Performance
Die cast aluminium powder coated with choice of RAL colors
Anodized aluminum reflector.
Central frosted tempered glass or clear tempered glass
50,000 hrs lifetime working under temp(-20°C To 50°C
IP65, can use for outside
| Model | Power | CRI | CCT | PF | Current | Input Voltage | Beam Angle | Diameter |
| JST-SMW | 5W | >80/90 | 2700K-5000K | >0.90 | 0.13A | AC220-240V | 24°/45°/60° | D65*H110mm |
| JST-SMW | 7W | >80/90 | 2700K-5000K | >0.90 | 0.16A | AC220-240V | 24°/45°/60° | D90*H130mm |
| JST-SMW | 10W | >80/90 | 2700K-5000K | >0.90 | 0.25A | AC220-240V | 24°/45°/60° | D90*H160mm |
| JST-SMW | 12W | >80/90 | 2700K-5000K | >0.90 | 0.30A | AC220-240V | 24°/45°/60° | D110*H150mm |
| JST-SMW | 15W | >80/90 | 2700K-5000K | >0.90 | 0.35A | AC220-240V | 24°/45°/60° | D110*H200mm |
| JST-SMW | 20W | >80/90 | 2700K-5000K | >0.90 | 0.50A | AC220-240V | 24°/45°/60° | D145*H160mm |
| JST-SMW | 25W | >80/90 | 2700K-5000K | >0.90 | 0.60A | AC220-240V | 24°/45°/60° | D145*H200mm |
| JST-SMW | 30W | >80/90 | 2700K-5000K | >0.90 | 0.75A | AC220-240V | 24°/45°/60° | D160*H160mm |
| JST-SMW | 35W | >80/90 | 2700K-5000K | >0.90 | 0.85A | AC220-240V | 24°/45°/60° | D160*H200mm |
| JST-SMW | 40W | >80/90 | 2700K-5000K | >0.90 | 1.00A | AC220-240V | 24°/45°/60° | D180*H160mm |
| JST-SMW | 50W | >80/90 | 2700K-5000K | >0.90 | 1.25A | AC220-240V | 24°/45°/60° | D180*H200mm |
| JST-SMW | 60W | >80/90 | 2700K-5000K | >0.90 | 1.50A | AC220-240V | 24°/45°/60° | D180*H300mm |
| JST-SMW | 70W | >80/90 | 2700K-5000K | >0.90 | 1.75A | AC220-240V | 24°/45°/60° | D200*H200mm |
| JST-SMW | 80W | >80/90 | 2700K-5000K | >0.90 | 2.00A | AC220-240V | 24°/45°/60° | D200*H300mm |

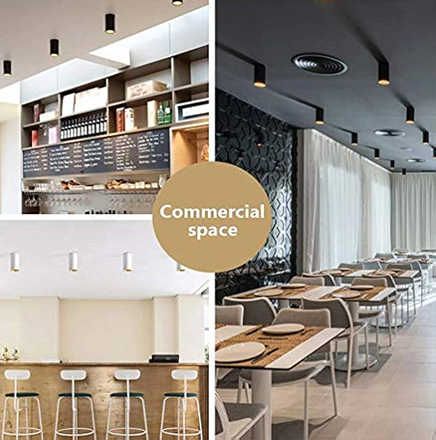

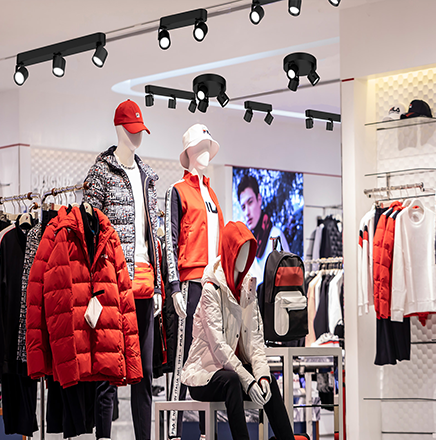

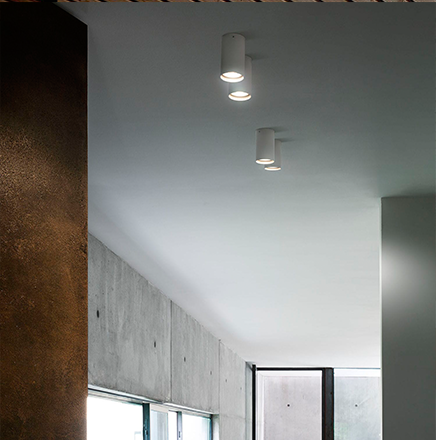

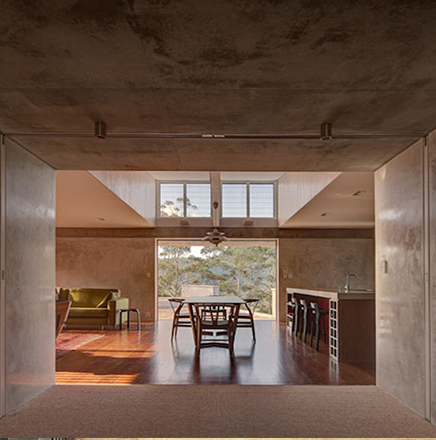

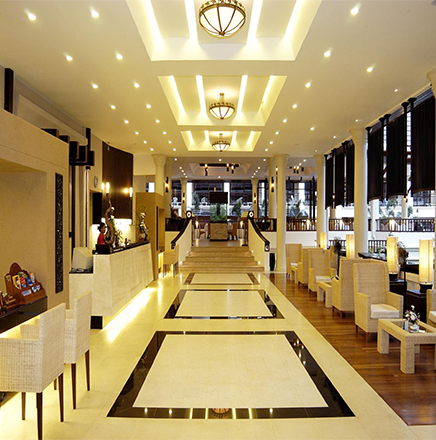

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,Jewelry stores lighting，Banks lighting, Airportlighting, Suppermaket lighting etc.
