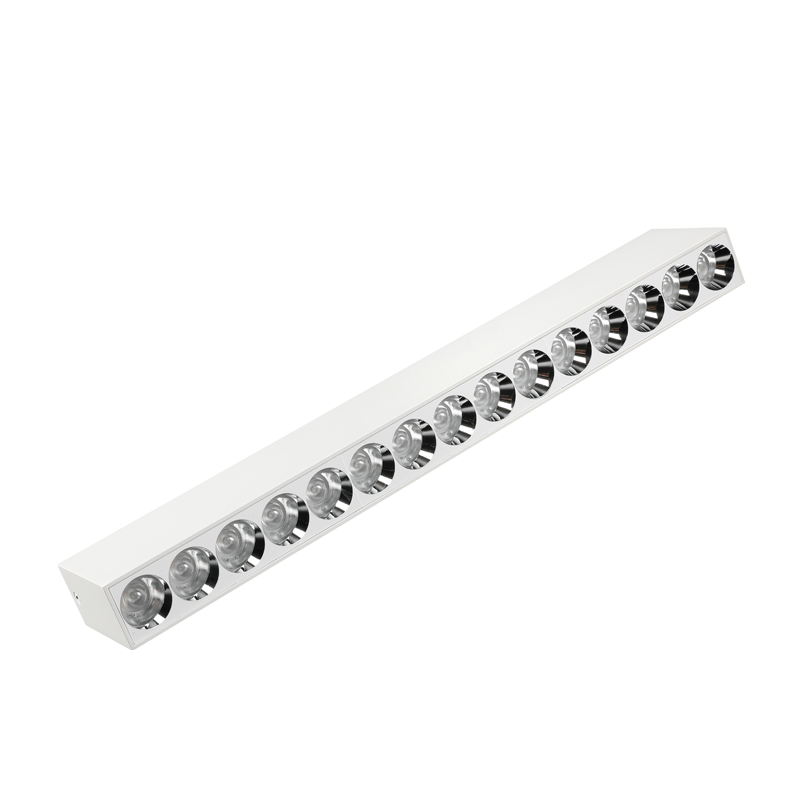

LED Linear Surface Mounted Downlight LMC Series

Model: JST-LHC

Wattage: 6W-12W

LED Chip: CREE/CITIZEN/Philips

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 8°/12°/15°/30°/45°

Size: See below spec.

Cutout: See below spec.


Description

LED Linear spotlights consist of small light LED chip in the same rectangular box-shaped light box. When floating on the ceiling, this line of lights can "showcase" the entire fixture design while emphasizing sharp points

of light that accentuate the space. This feature scores this light series when choose to bring a new look to their living spaces and "update" the aesthetics of living space.


LED linear lights have become increasingly popular in recent years, and they have been widely used in different applications. There are many advantages to using LED linear lights over traditional lighting sources.


One of the most significant advantages is its energy efficiency. LED linear lights consume up to 80% less energy than traditional lighting sources such as incandescent bulbs. This is because they convert almost all the

electricity into light, rather than wasting energy as heat. As a result, LED linear lights can result in significant cost savings on electricity bills over the long term.

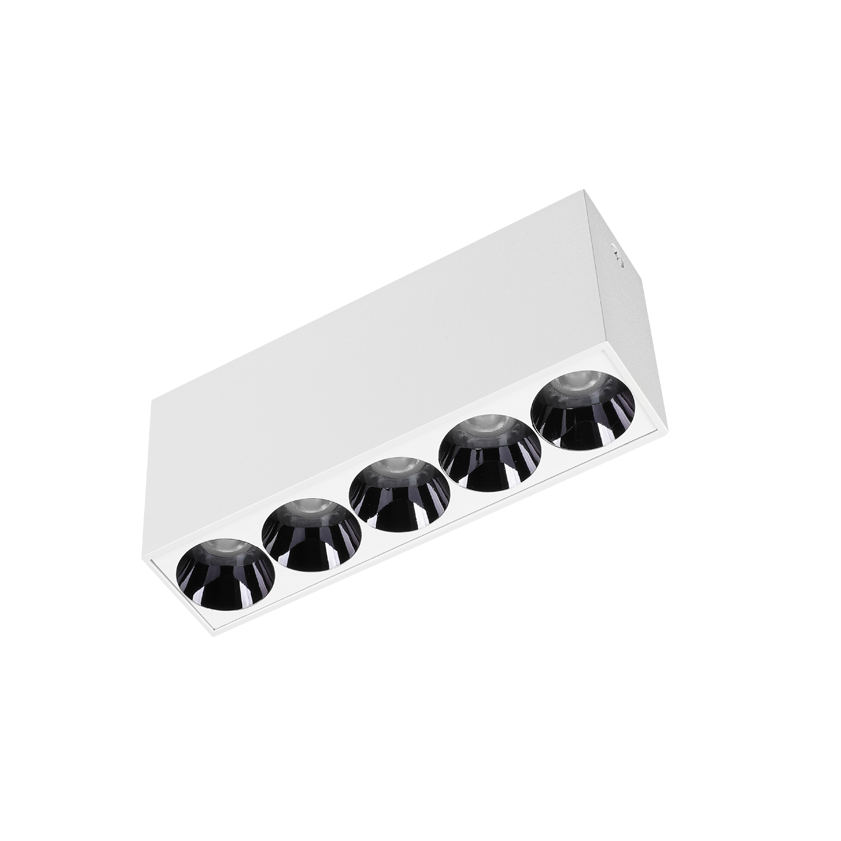

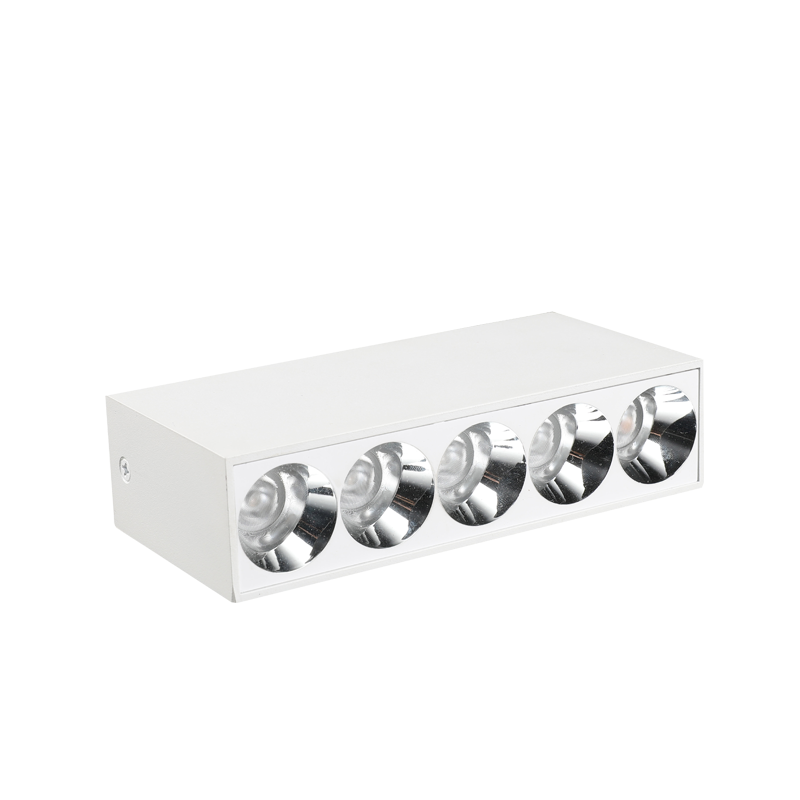

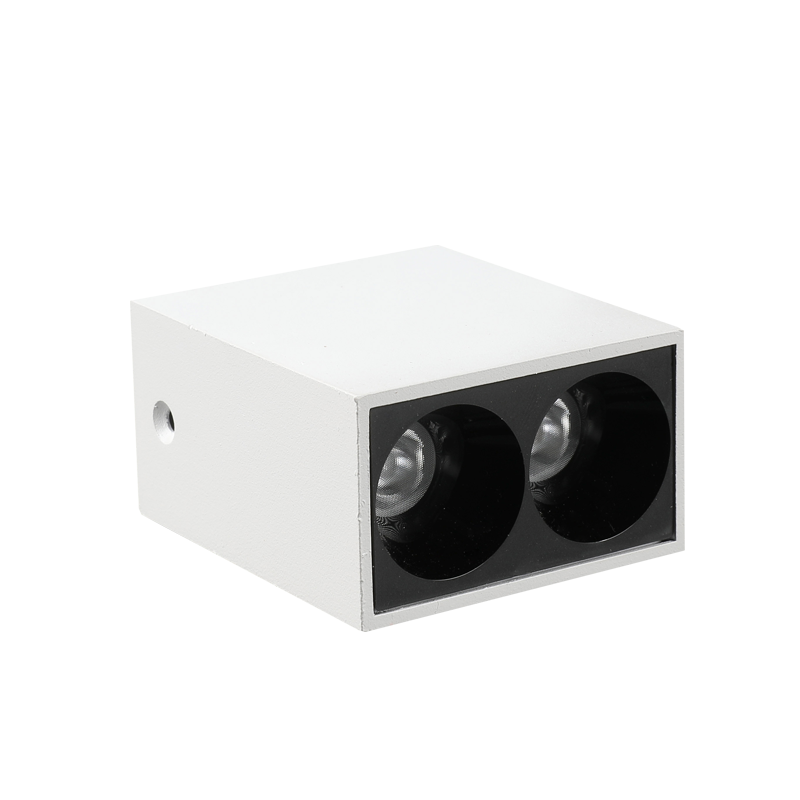

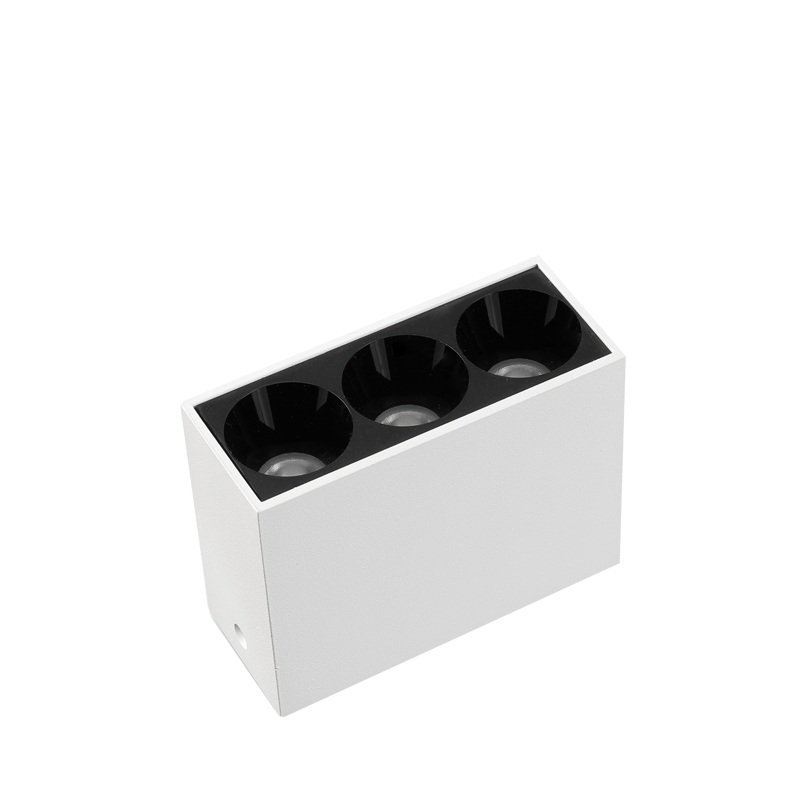

LED linear light LMC series is the surface mounted which can add decoration to a plain ceiling, different wattage with different lengths, 30° fixed beam angle  eliminates the need to choose an Angle. In addition,  LMC

series available in white and black finish color,


Linear surface mounted downlight LMC series are made of aluminum, which is environment-friendly material and no emit harmful substances. The hand is thick, which has a  strong heat dissipation, effectively extend

the service life, the life span is 50000hrs. The light with a high quality chip, deep anti-glare sepalad design, and constant current driver, CRI>80, no flash, soft light, looks comfortable, to create a soft lighting atmosphere, eye protection.


Advantages
  1. Aluminum body has a strong heat dissipation

  2. Use a circular seamless design to make the lamp body more beautiful

  3. Deep anti-glare sepalad design

  4. High quality chip,  no flash, soft light, eye protection

  5. Energy saving and environment-friendly, up to 50000hrs life span

  6. CRI>80,light color looks comfortable, to create a soft lighting atmosphere.


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimension
JST-LMC4W>80/902700K-5000K>0.900.10AAC220-240V

30°

L57*W35*H66mm
JST-LMC6W>80/902700K-5000K>0.900.15AAC220-240V

30°

L84*W35*H66mm
JST-LMC10W>80/902700K-5000K>0.900.25AAC220-240V

30°

L135*W35*H66mm
JST-LMC20W>80/902700K-5000K>0.900.50AAC220-240V

30°

L270*W35*H66mm
JST-LMC30W>80/902700K-5000K>0.900.75AAC220-240V

30°

L402*W35*H66mm


Application

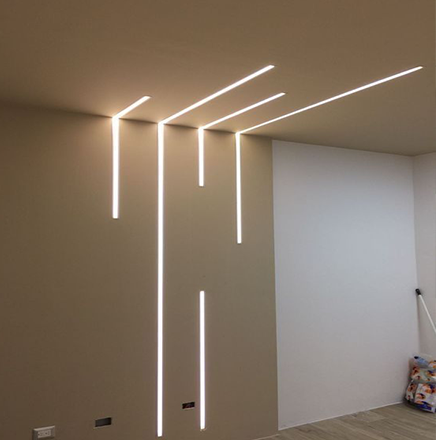

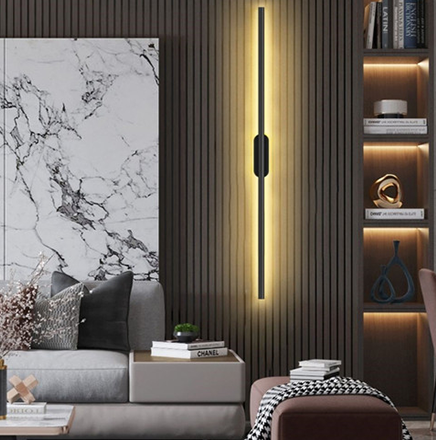

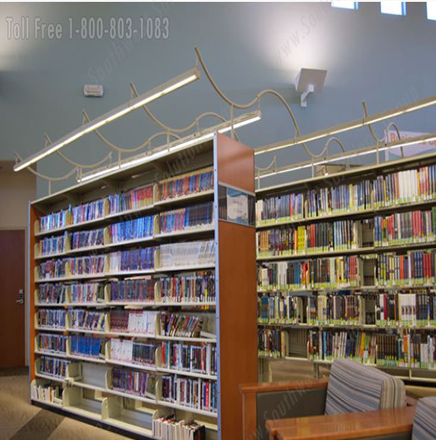

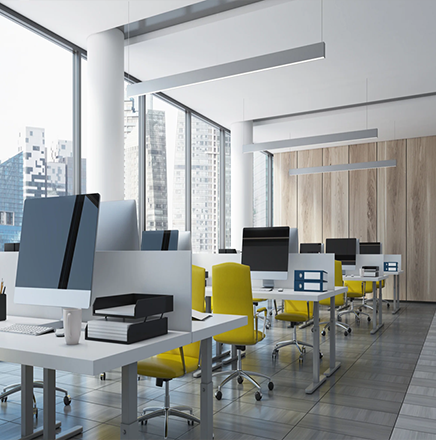

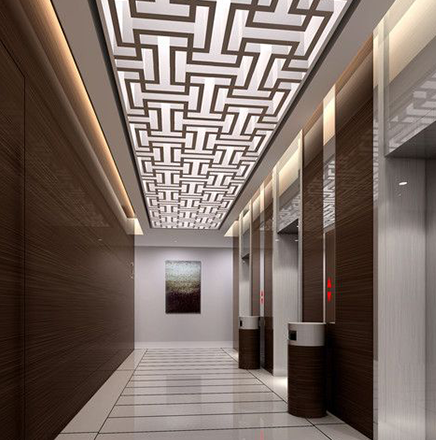

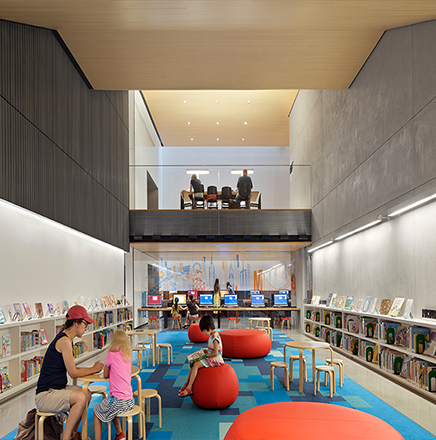

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting, Jewelry stores lighting,Banks lighting, Airport lighting, Suppermaket lighting, Art galleries lighting, Villas lighting, Bars lighting, Exhibition halls lighting etc.
