LED Linear Light

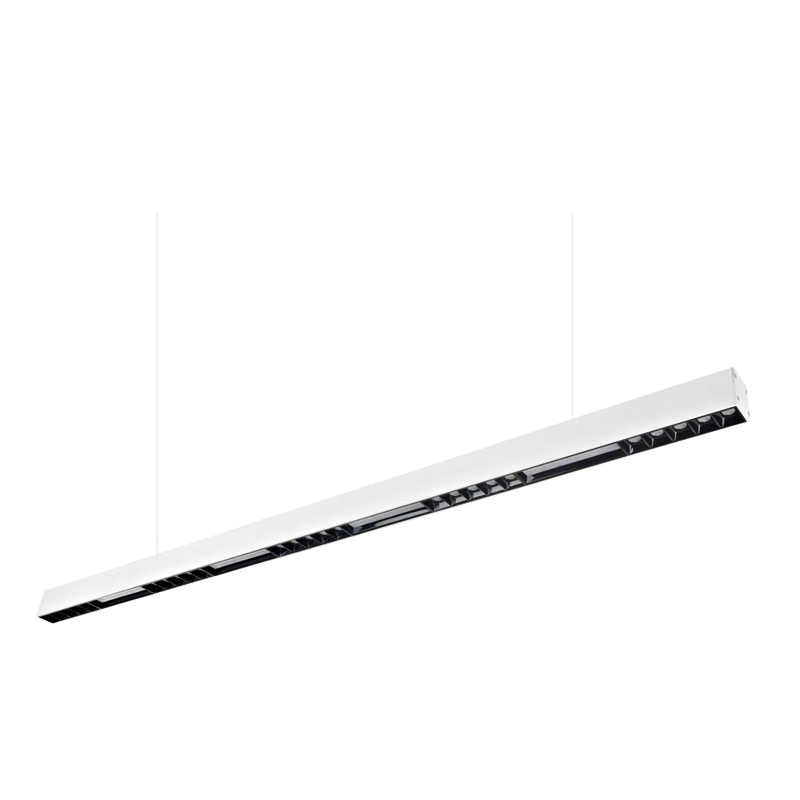

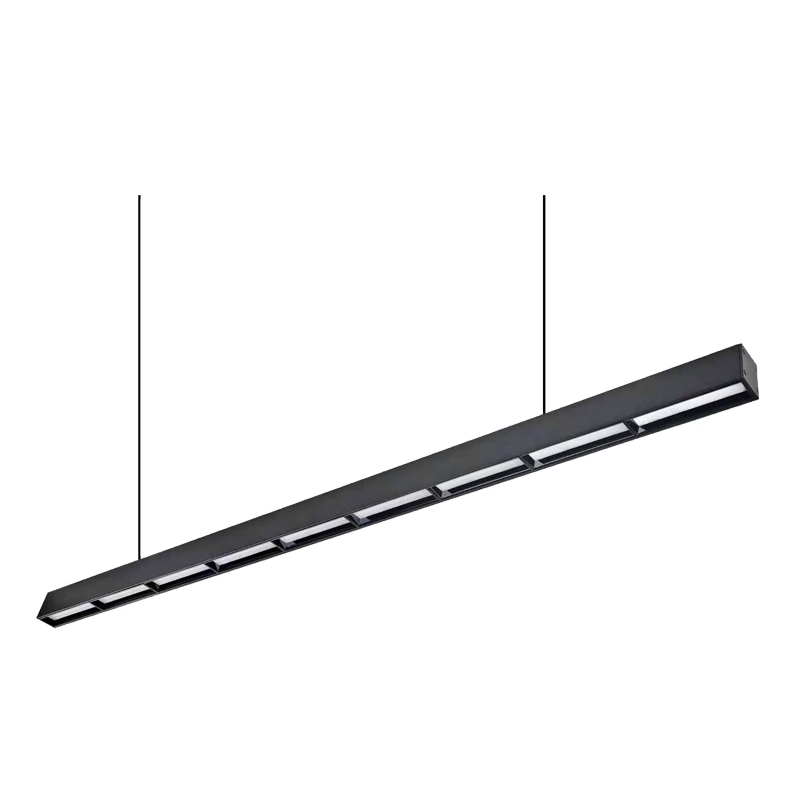

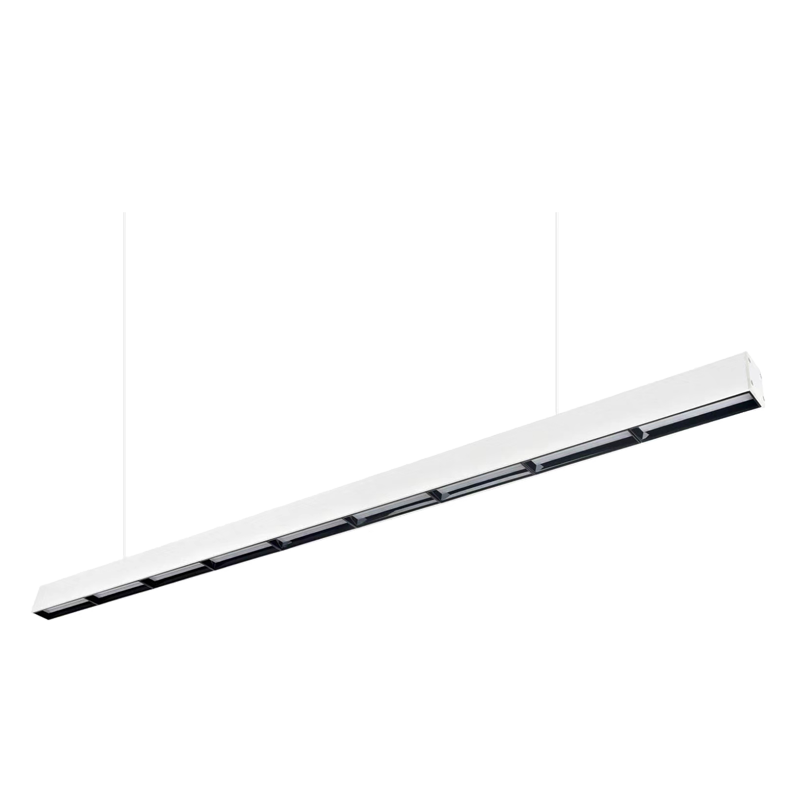

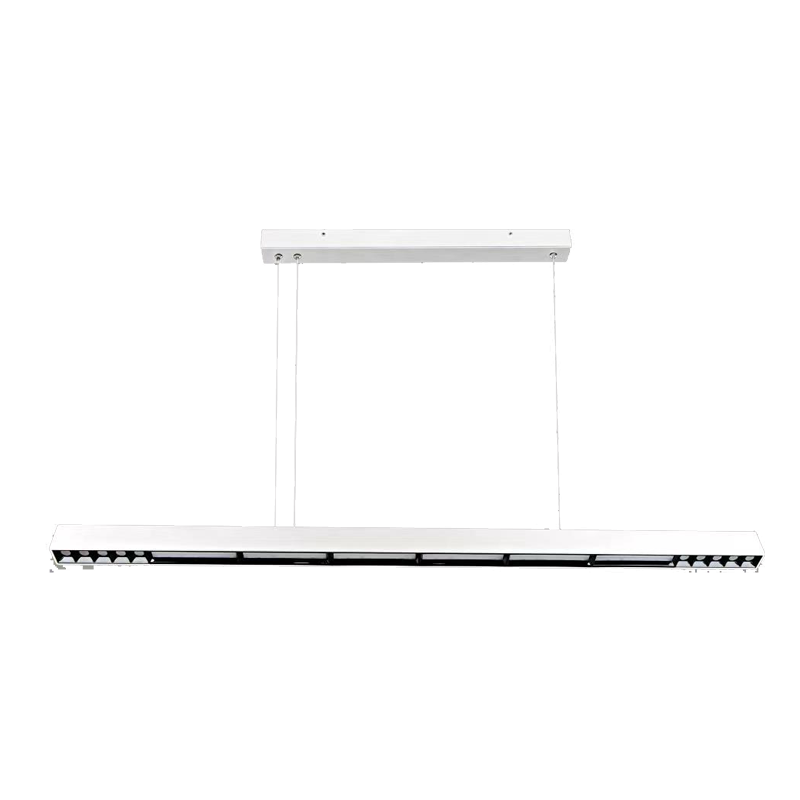

LED Linear Light LL-WC Series

Model: JST-LL-WC

Wattage: 5W-40W

LED Chip: OSRAM3030/Philips3030/Epistar2835

Driver Brand: OSRAM/Philips/Lifud/BOKE

RA: >80/90

Finish Color: White/Black/Customized

Beam Angle: Wall Washer

Size: See below

Installnation: Surface Mounted/Suspendent


Description

A long time ago, the first wall wash lamp was introduced on the market, revolutionizing the method of vertical lighting design. Today, wall washing is still an important lighting technique.


What are the characteristics of the wall washer light

Under identical levels of illuminance, a vertical surface produces a higher impression of brightness than a horizontal surface because walls are in our natural field of vision. Less lighting, and thus energy, is required in

illuminating walls versus the floor for a similar impression of brightness; for example, illuminating walls instead of floors with 100 lux will make a room appear three to five times brighter.


Why wall wash more and more popular with everyone?


Wall washing can fulfill several design needs.:

First, it can provide orientation. When we enter a room, we see the brightest surface first. Wall washing makes clear the axes of architecture and helps us to comprehend different functional areas and spatial transitions.

Lighting thus creates recognizable entrance zones.


Second, wall washing creates brightness.

A room only appears bright when its walls are evenly illuminated. High reflectivity on the wall can significantly increase our impression of brightness.


Next, wall washing can contribute to greater visual comfort in environments like offices.

Light on walls helps reduce the contrast between self-illuminated screens and the visual surroundings. A bright background creates a lighting effect that is pleasant to the eye and prevents fatigue.



Finally, wall washing can help emphasize the texture of finishes, such as stone.

Grazing light highlights surface textures through the high-contrast interplay of light and shadow. Wall washers installed either in the floor or ceiling and positioned close to the wall can achieve this effect.



Advantages


Specification


ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionInstallnation
JST-LL-WC5W>80/902700K-5000K>0.900.13AAC220-240V

Wall Washer

L140*W35/50*H70mm

Surface Mounted/

Suspendent

JST-LL-WC8W>80/902700K-5000K>0.900.16AAC220-240V

Wall Washer

L270*W35/50*H70mm

Surface Mounted/

Suspendent

JST-LL-WC12W>80/902700K-5000K>0.900.75AAC220-240V

Wall Washer

L405*W35/50*H70mm

Surface Mounted/

Suspendent

JST-LL-WC15W>80/902700K-5000K>0.900.75AAC220-240VWall WasherL540*W35/50*H70mm

Surface Mounted/

Suspendent

JST-LL-WC20W>80/902700K-5000K>0.900.50AAC220-240VWall WasherL670*W35/50*H70mm

Surface Mounted/

Suspendent

JST-LL-WC25W>80/902700K-5000K>0.900.60AAC220-240VWall WasherL805*W35/50*H70mm

Surface Mounted/

Suspendent

JST-LL-WC30W>80/902700K-5000K>0.900.75AAC220-240VWall WasherL940*W35/50*H70mm

Surface Mounted/

Suspendent

JST-LL-WC35W>80/902700K-5000K>0.900.85AAC220-240VWall WasherL1070*W35/50*H70mm

Surface Mounted/

Suspendent

JST-LL-WC40W>80/902700K-5000K>0.901.00AAC220-240VWall WasherL1200*W35/50*H70mm

Surface Mounted/

Suspendent



Application

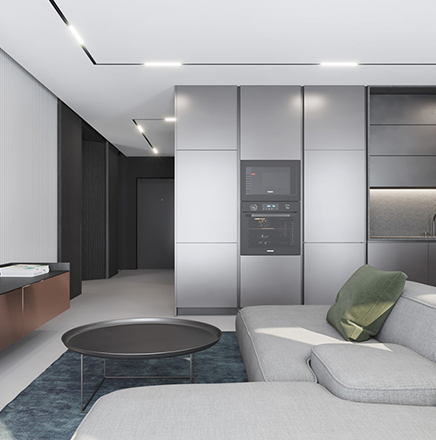

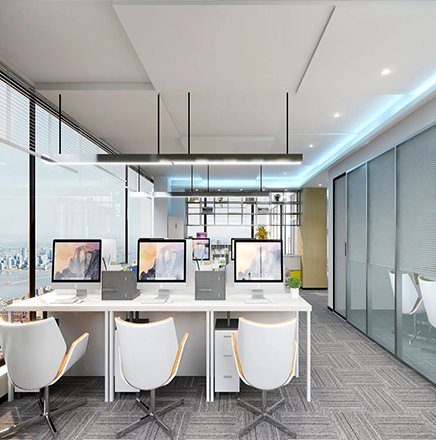

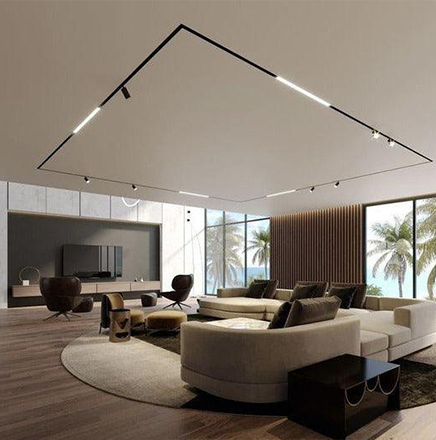

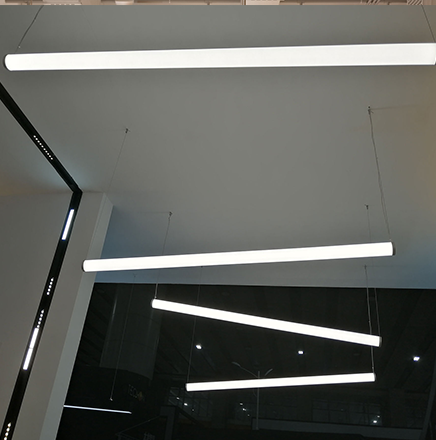

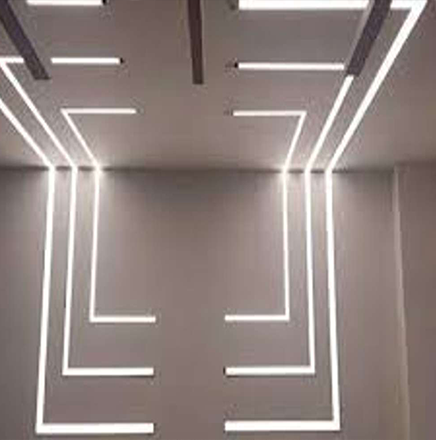

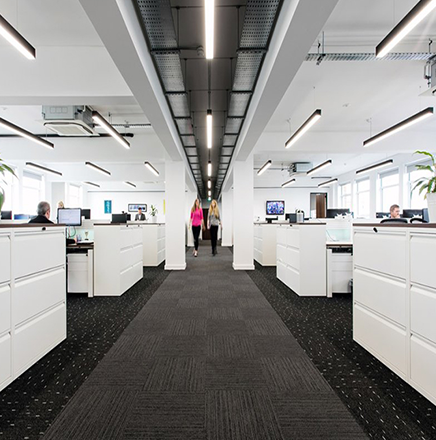

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting, Jewelry stores lighting,Banks lighting, Airport lighting, Suppermaket lighting, Art galleries lighting, Villas lighting, Bars lighting, Exhibition halls lighting etc.
