LED Linear Light

LED Linear Light LL-RC Series

Model: JST-LL-RC

Wattage: 30W-60W

LED Chip: OSRAM3030/Philips3030/Epistar2835

Driver Brand: OSRAM/Philips/Lifud/BOKE

RA: >80/90

Finish Color: White/Black/Customized

Beam Angle: 90°/110°

Diameter: 50mm-220mm

Cut size: 35mm-205mm

Installnation: Recessed

Description

Introducing by JARSTAR the impressive  Low Profile Linear Downlight RC series! Due to the embedded, this modern, sleek design provides a clean and sophisticated look, emitting a soft and inviting glow. Perfect for

those who appreciate a minimalist style!

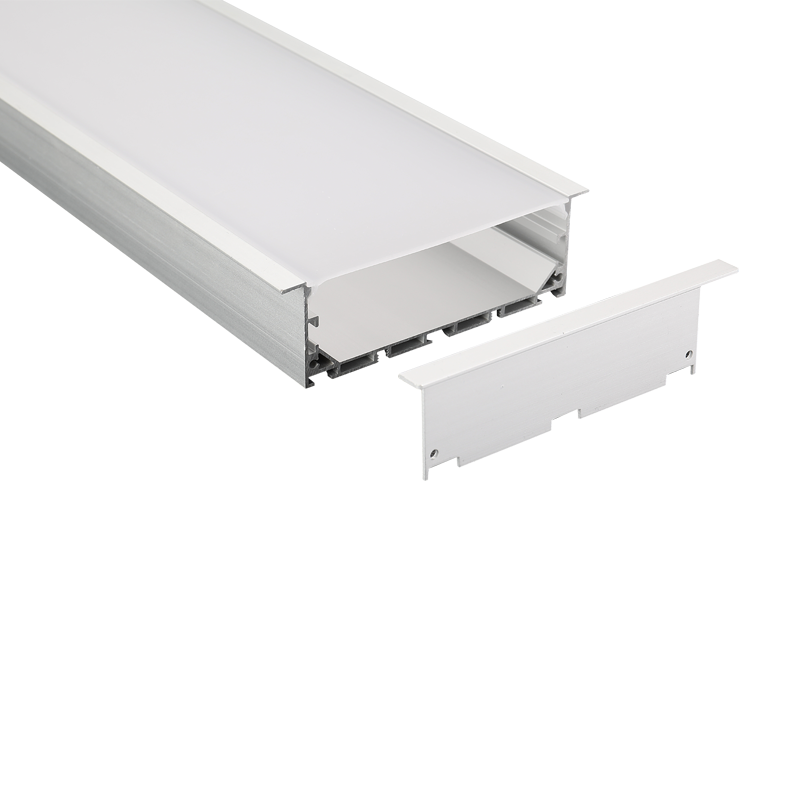

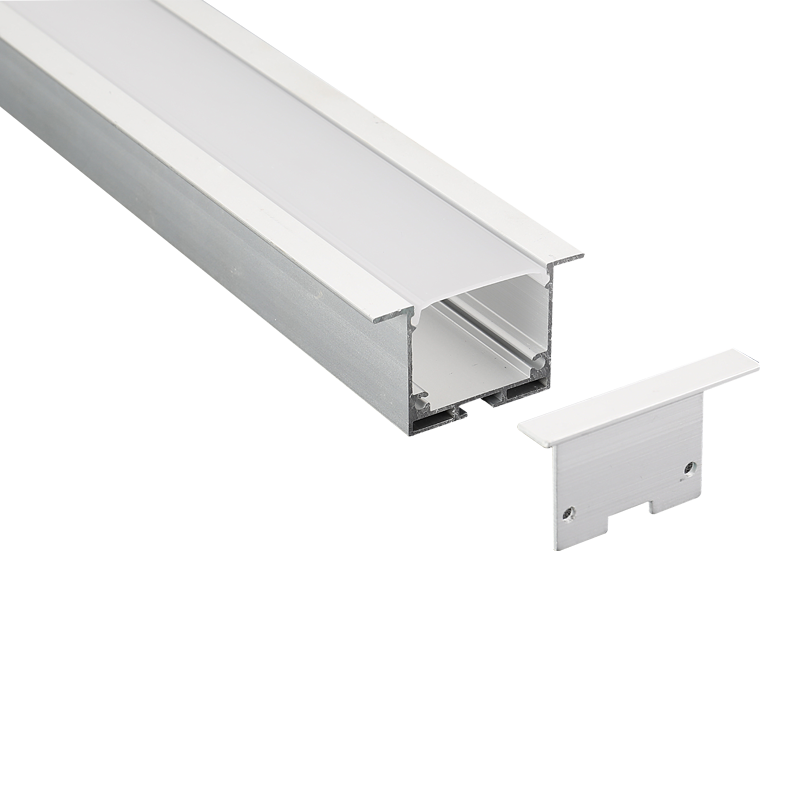

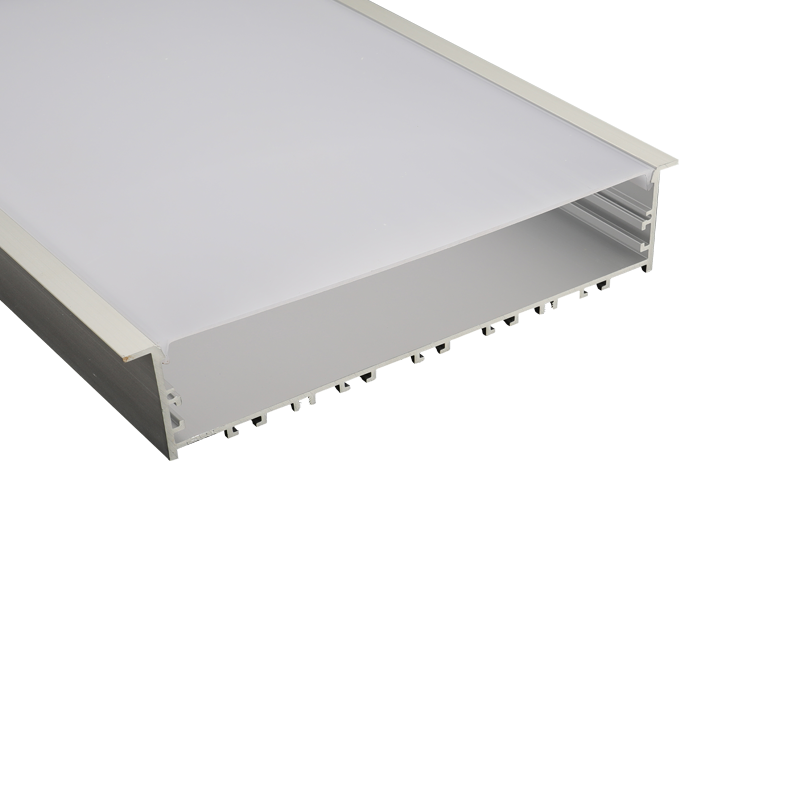

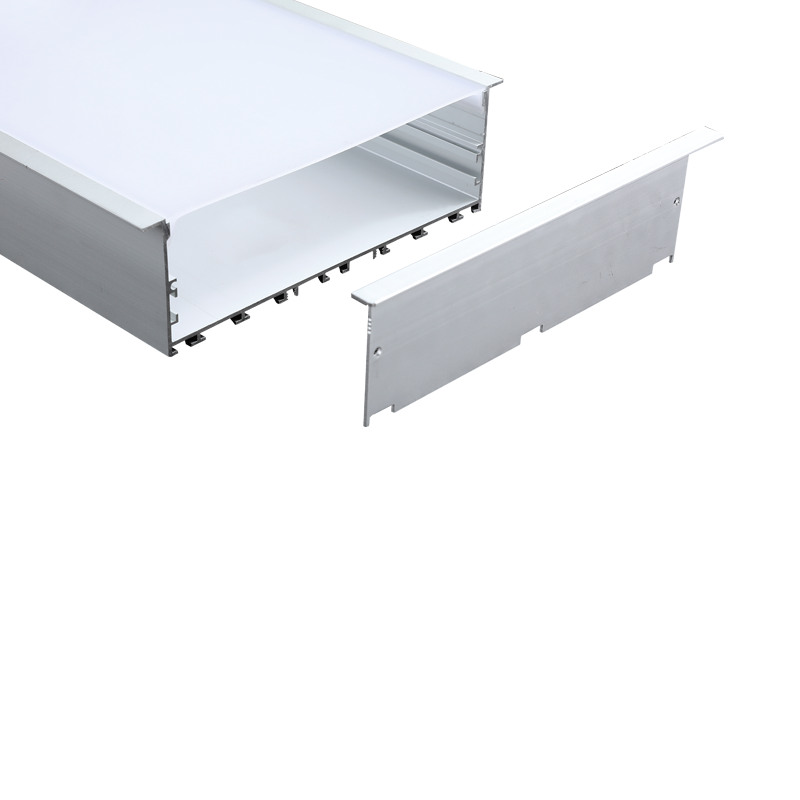

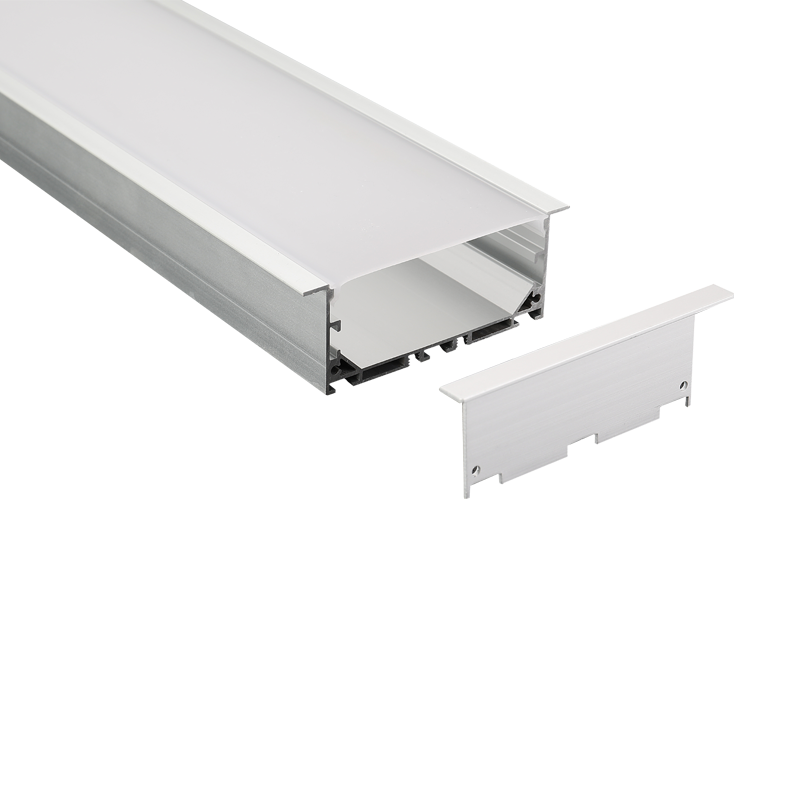

LED Linear Light LL-RC Series the lamp body, in fashionable design,is made of 6063 section aluminum and PC reflector. It is combined LED lighting with building harmoniously. Creat a circle of light from a line of LED

downlights, A narrow line of nano LED linear lights for pure minimalism, hign quality Citizen /Cree COB chip, CRI>80, 3 CCT, brand driver, beam angle 90°/120° option, brilliant quality, more than 50,000 hours life span.


LED Linear Light LL-RC Series is a modern minimalist linear light, fashion,warm and vivacious.  And frosted anti-glare diffuser (PMMA polymethacrylate) that offers homogeneous lighting and reduces visual annoyances.

In addition, JARSTAR Introducing the impressive multiple diffuser plate: honeycomb, prism plate, PC, grille, multiple effective anti-glare.  The length is optional.


LED Linear Light LL-RC Series with a external  dirver, can effectively heat dissipation, prolong the service life, life span 50000hrs. LED linear light LL-RC series flush with the ceiling which provides a clean and sophisticated

look, oozes style perfect for the ultra-modern office as well as providing the perfect light and looks in a traditional office space. They are also designed to fit perfectly in any retail environment where lighting is essential.


Advantages

. Creat a circle of light from a line of LED Downlights

. Aluminum Alloy housing by die-casting for good heat dissipation

. A narrow line of nano LED Downlights for pure minimalism

. Superior glare control for high performance and visual comform

. Different longth and power for OEM design

. Two choices of beam angle 90°/110°

Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCut Size
JST-LL-RC30W>80/902700K-5000K>0.900.75AAC220-240V

90°/110°

L1200*W50*H35mmL1185*W35mm
JST-LL-RC30W>80/902700K-5000K>0.900.75AAC220-240V

90°/120°

L1200*W55*H35mmL1185*W40mm
JST-LL-RC30W>80/902700K-5000K>0.900.75AAC220-240V

90°/120°

L1200*W65*H35mmL1185*W50mm
JST-LL-RC30W>80/902700K-5000K>0.900.75AAC220-240V

90°/120°

L1200*W65*H50mmL1185*W60mm
JST-LL-RC30W>80/902700K-5000K>0.900.75AAC220-240V

90°/120°

L1200*W75*H35mmL1185*W70mm
JST-LL-RC30W>80/902700K-5000K>0.900.75AAC220-240V

90°/120°

L1200*W85*H35mmL1185*W75mm
JST-LL-RC60W>80/902700K-5000K>0.901.50AAC220-240V

90°/120°

L1200*W90*H35mmL1185*W80mm
JST-LL-RC60W>80/902700K-5000K>0.901.50AAC220-240V90°/120°L1200*W95*H35mmL1185*W100mm
JST-LL-RC60W>80/902700K-5000K>0.901.50AAC220-240V90°/120°L1200*W105*H35mmL1185*W120mm
JST-LL-RC60W>80/902700K-5000K>0.901.50AAC220-240V90°/120°L1200*W115*H35mmL1185*W150mm
JST-LL-RC60W>80/902700K-5000K>0.901.50AAC220-240V90°/120°L1200*W115*H50mmL1185*W205mm
JST-LL-RC60W>80/902700K-5000K>0.901.50AAC220-240V90°/120°L1200*W135*H35mmL1185*W205mm
JST-LL-RC60W>80/902700K-5000K>0.901.50AAC220-240V90°/120°L1200*W165*H35mmL1185*W205mm
JST-LL-RC60W>80/902700K-5000K>0.901.50AAC220-240V90°/120°L1200*W165*H50mmL1185*W205mm
JST-LL-RC60W>80/902700K-5000K>0.901.50AAC220-240V90°/120°L1200*W200*H50mmL1185*W205mm
JST-LL-RC60W>80/902700K-5000K>0.901.50AAC220-240V90°/120°L1200*W70*H75mmL1185*W205mm
JST-LL-RC60W>80/902700K-5000K>0.901.50AAC220-240V90°/120°L1200*W90*H75mmL1185*W205mm

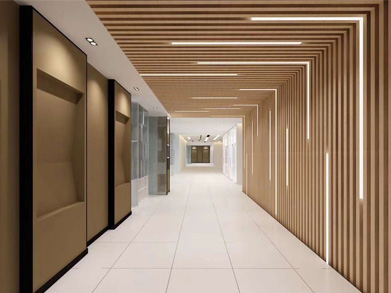

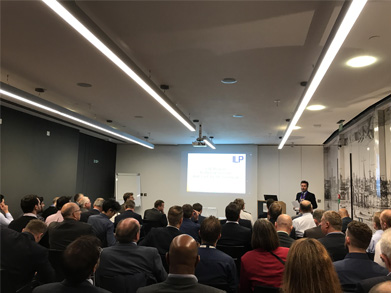

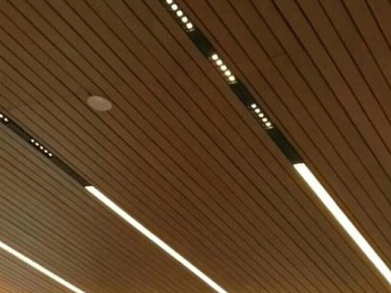

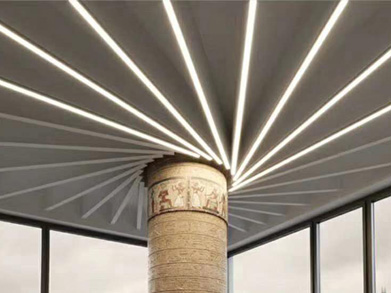

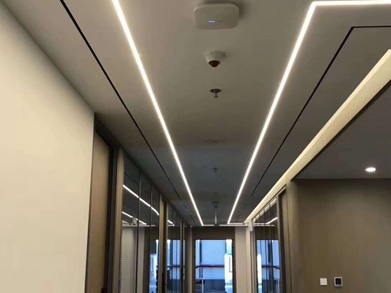

Application

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,Jewelry stores lighting,Banks lighting, Airportlighting, Suppermaket lighting etc.
