LED Linear Light

LED Linear Light Peacock Series

Model: JST-LL-Peacock up-down

Wattage:

LED Chip: OSRAM SMD

Driver Brand: JARSTAR

RA: ≥90

Finish Color: White/Black/Customized

Beam Angle: Up and Down

Size: See below

Description

JARSTAR new products is coming, LL-Peacock series has a unique design that emits light up and down, which can not only illuminate the ceiling, but also not appear so dark, and the lighting range is greatly improved. At the same time, it also uses different connectors, and the gaps are not visible when spliced, making the lamp look more aesthetically pleasing. DIY design can also allow you to stitch into the way you like, no matter which one, I believe you will feel its excellent texture.


What is the difference between linear fluorescent and LED lights?

Fluorescent lamps produce a lot of heat energy, while LED lights convert it into light energy, reducing energy waste.

LED lights do not contain mercury, which reduces pollution to the environment

LED lamps have low energy consumption and long life

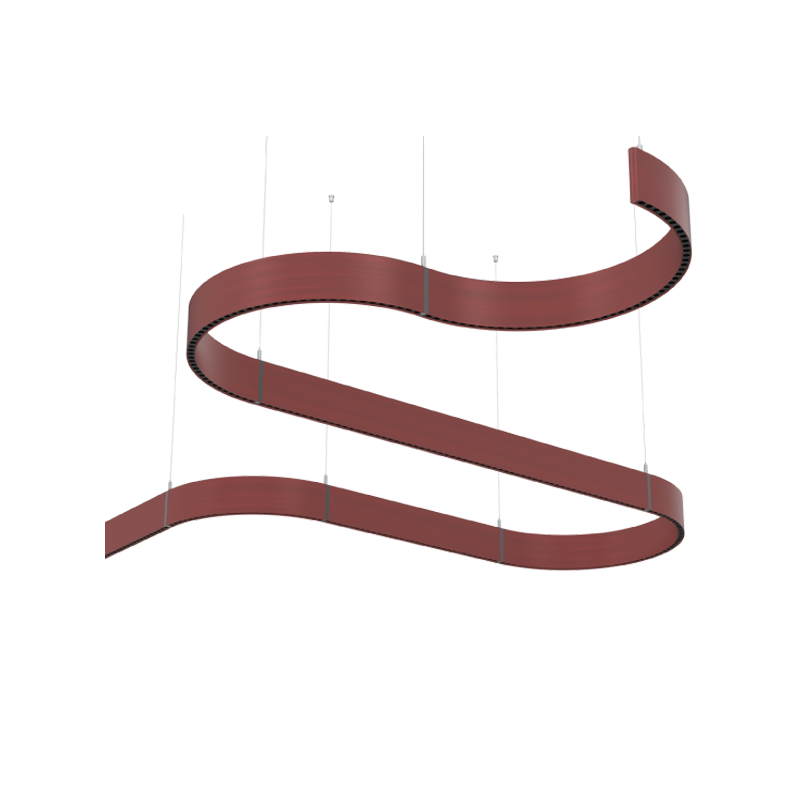

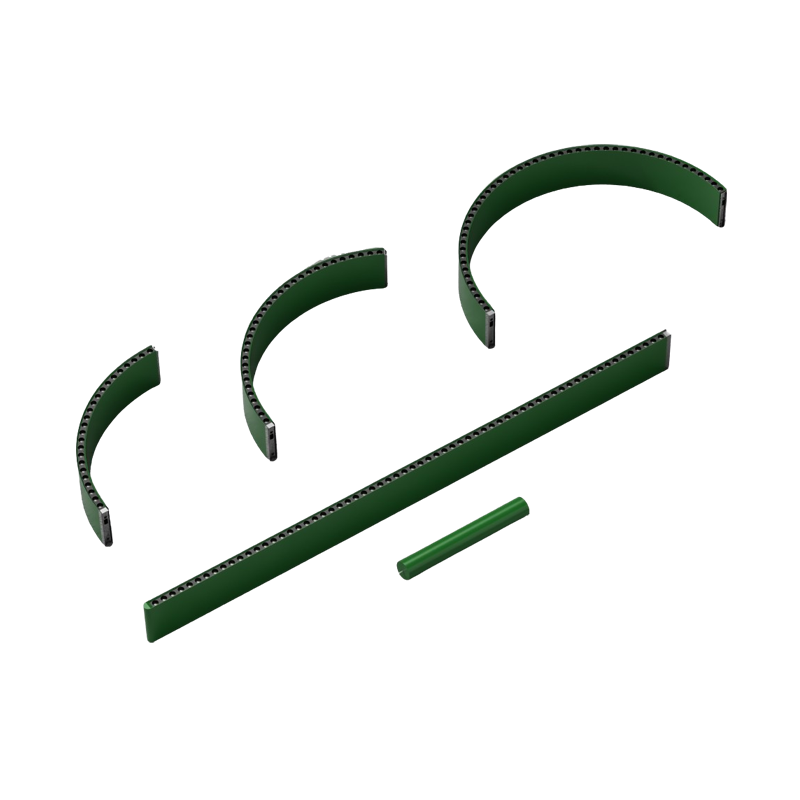

How to splice linear LED lights into curved shapes?

It is bent by punching, folding, or welding.


What are the advantages of up and down lighting?

Up and down lighting creates a three-dimensional lighting space:

The down light illuminates the entire office area, the up light illuminates the suspended ceiling, which make the space more bright, and make people feel more comfortable and relaxed.





Advantages
Specification
Model
Power
CRI
CCTInput VoltageBeam Angle
Dimension
JST-PEACOCK1215- GR 15W+ 30W≥90RA
3000K-4000K
AC220-240V
Up 100° +Down 36° 1215*18*100mm
JST-PEACOCK1215-FL15W+ 30W≥90RA 3000K-4000KAC220-240VUp 100° +Down 90° 1215*18*100mm
JST-PEACOCK-D60048W≥90RA 3000K-4000KAC220-240VUp 100° +Down 36°Ø600xW18xH100mm
JST-PEACOCK-D80064W≥90RA 3000K-4000KAC220-240VUp 100° +Down 36°Ø800xW18xH100mm
JST-PEACOCK-D120096W
≥90RA 3000K-4000KAC220-240VUp 100° +Down 36°Ø1200xW18xH100mm
JST-PEACOCK-A 190W
≥90RA 3000K-4000KAC220-240VUp 100° +Down 36°Ø1386xW18xH100mm
JST-PEACOCK236-60012W+12W
≥90RA 3000K-4000KAC220-240VUp 100° +Down 36°Ø600xL236xW18xH100mm
JST-PEACOCK314-80016W+16W
≥90RA 3000K-4000KAC220-240VUp 100° +Down 36°Ø800xL314xW18xH100mm
JST-PEACOCK-471- 1200 24W+24W
≥90RA 3000K-4000KAC220-240VUp 100° +Down 36°Ø1200xL471xW18xH100mm
JST-PEACOCK-314-600 16W+16W
≥90RA 3000K-4000KAC220-240VUp 100° +Down 36°Ø600xL314xW18xH100mm
JST-PEACOCK-628- 1200 32W+32W
≥90RA 3000K-4000KAC220-240VUp 100° +Down 36°Ø1200xL628xW18xH100m m
JST-PEACOCK-471-60024W+24W
≥90RA 3000K-4000KAC220-240VUp 100° +Down 36°Ø600xL471xW18xH100mm
JST-PEACOCK-628-80032W+32W
≥90RA 3000K-4000KAC220-240VUp 100° +Down 36°Ø800xL628xW18xH100mm
JST-PEACOCK-1885- 120048W+48W
≥90RA 3000K-4000KAC220-240VUp 100° +Down 36°Ø1200xL1885xW18xH100mm
JST-PEACOCK-120932W+32W
≥90RA 3000K-4000KAC220-240VUp 100° +Down 36°L1209xW18xH100mm
JST-PEACOCK-1061 28W+28W
≥90RA 3000K-4000KAC220-240VUp 100° +Down 36°L1061xW18xH100mm
JST-PEACOCK-91324W+24W
≥90RA 3000K-4000KAC220-240VUp 100° +Down 36°L913xW18xH100mm
JST-PEACOCK-765 20W+20W
≥90RA 3000K-4000KAC220-240VUp 100° +Down 36°L765xW18xH100mm
JST-PEACOCK-617 16W+16W≥90RA 3000K-4000KAC220-240VUp 100° +Down 36°L617xW18xH100mm





Application

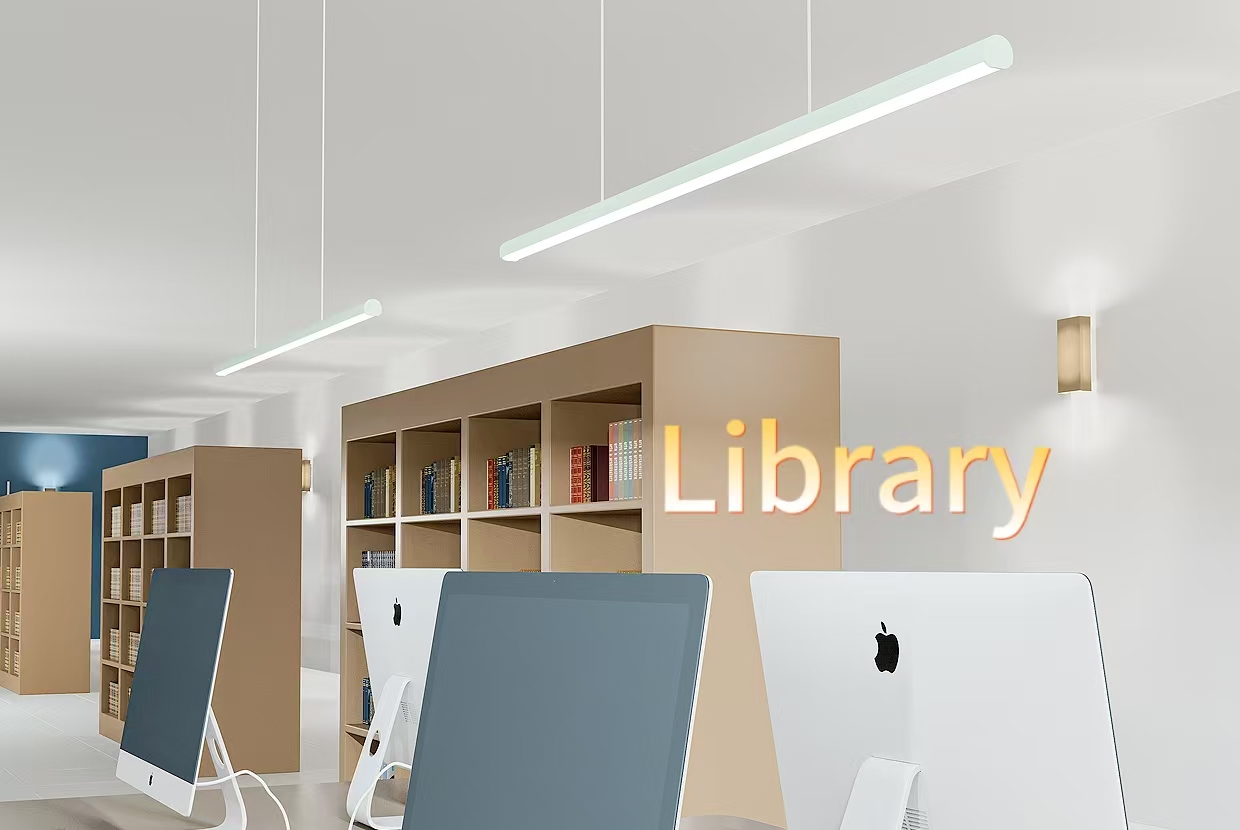

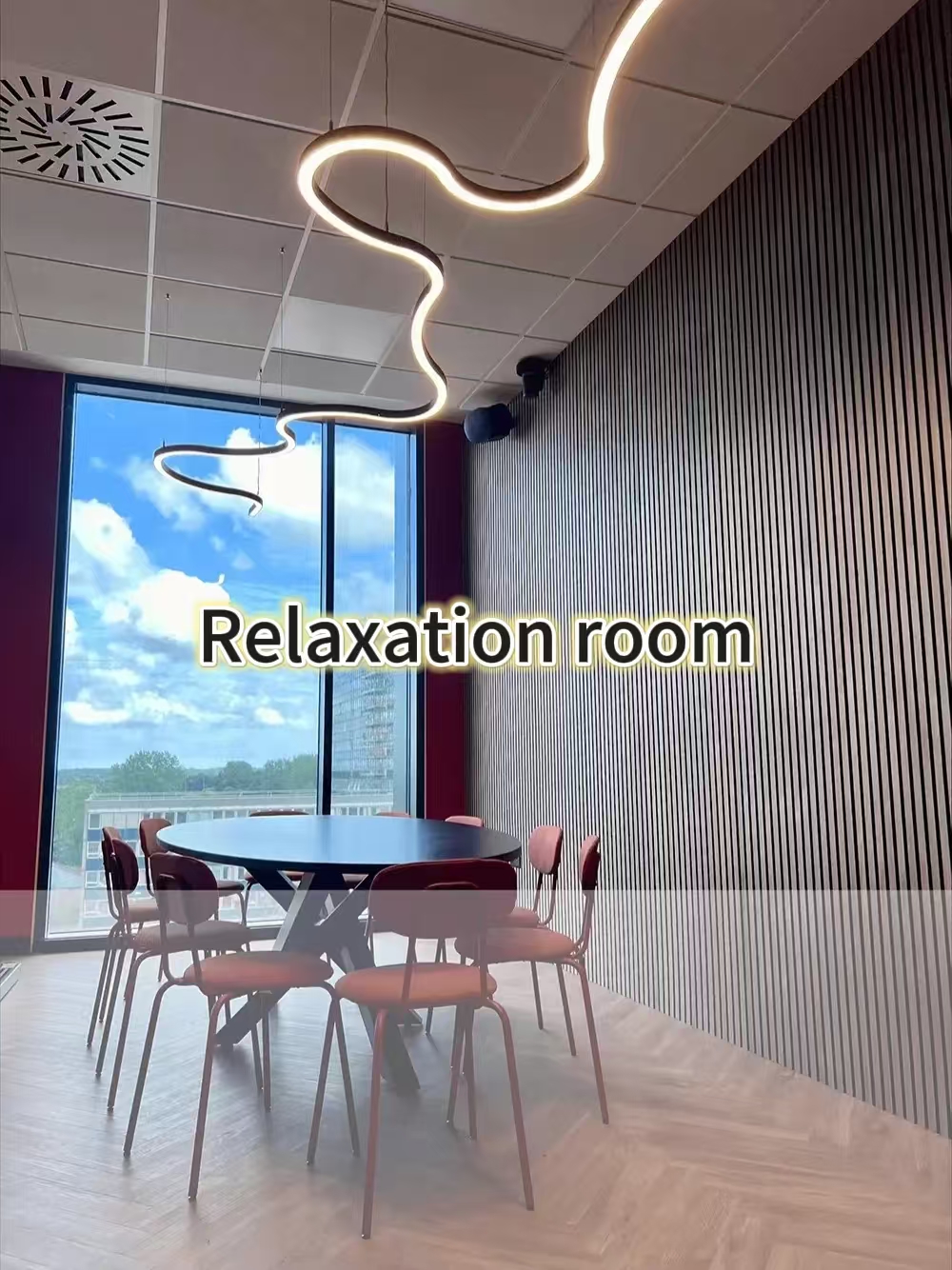

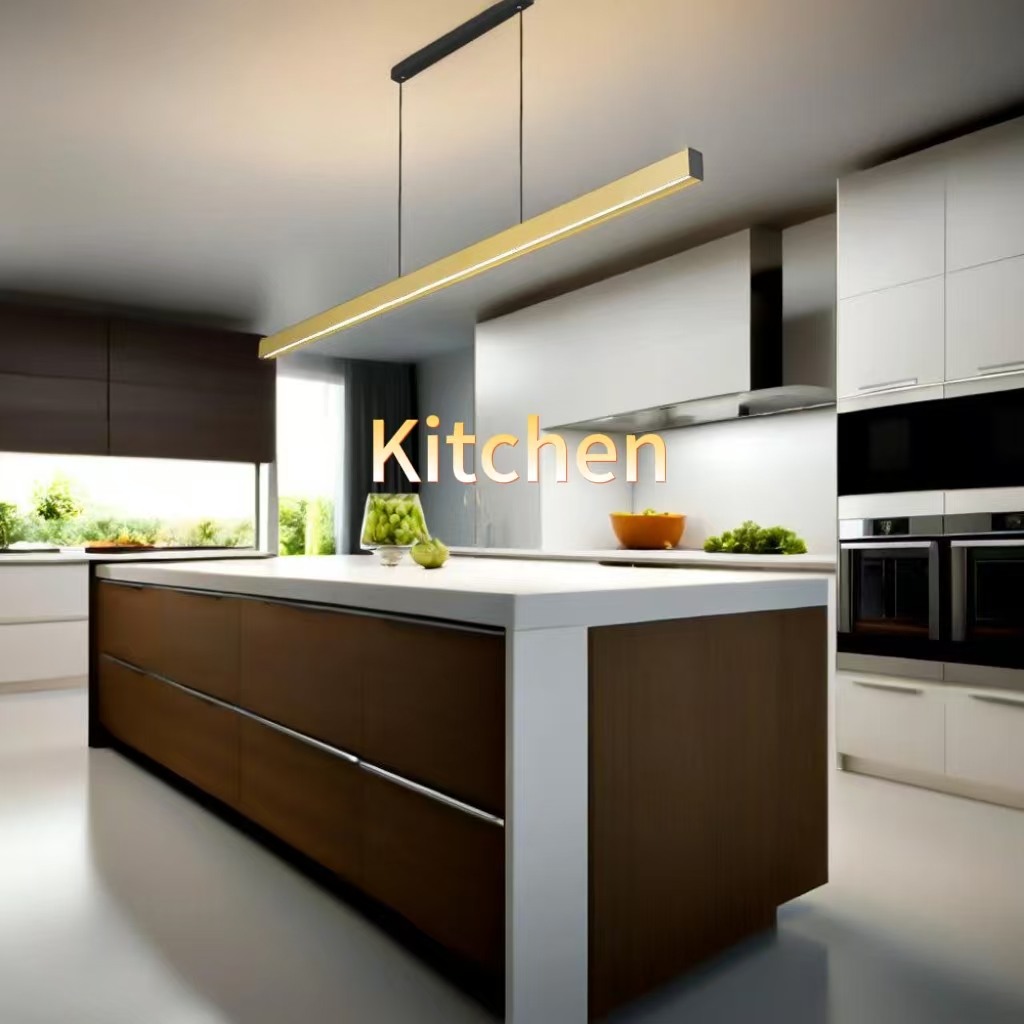

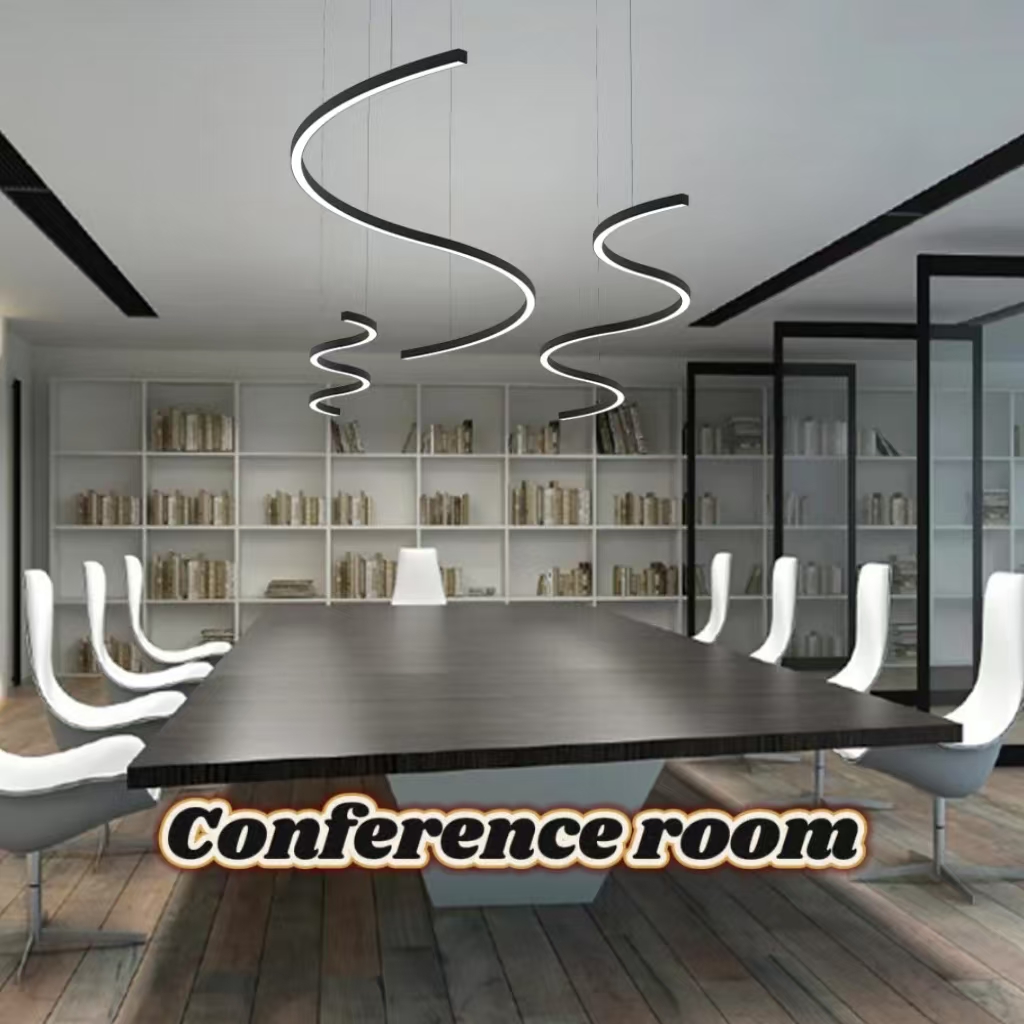

Led linear lighting is suitable for office lighting fields and commercial lighting fields, for example, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting, Jewelry stores lighting,Banks lighting, Airport lighting, Suppermaket lighting, Art galleries lighting, Villas lighting, Bars lighting, Exhibition halls lighting etc.
