LED Linear Light

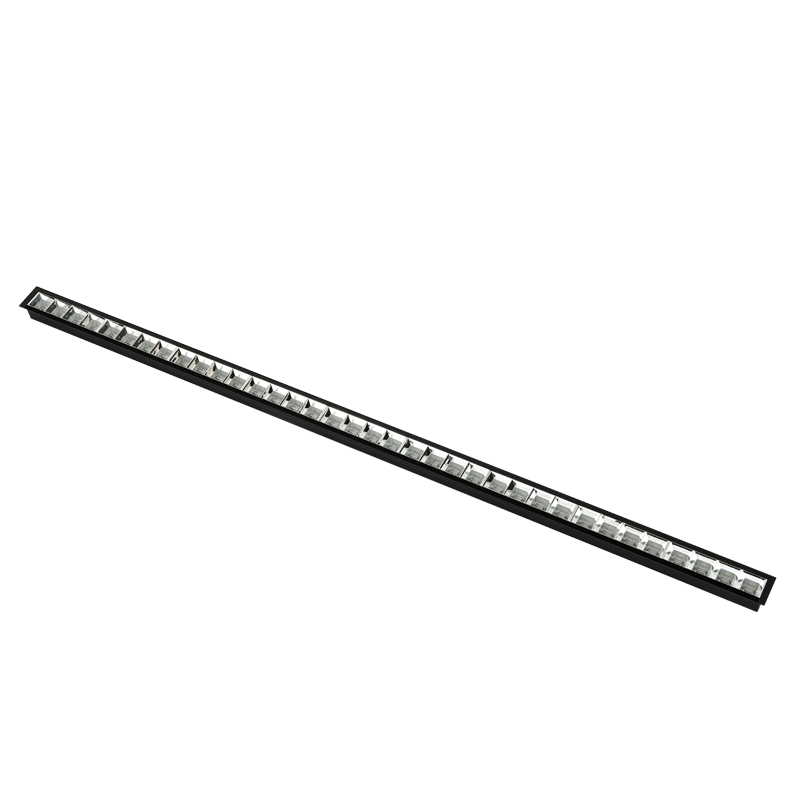

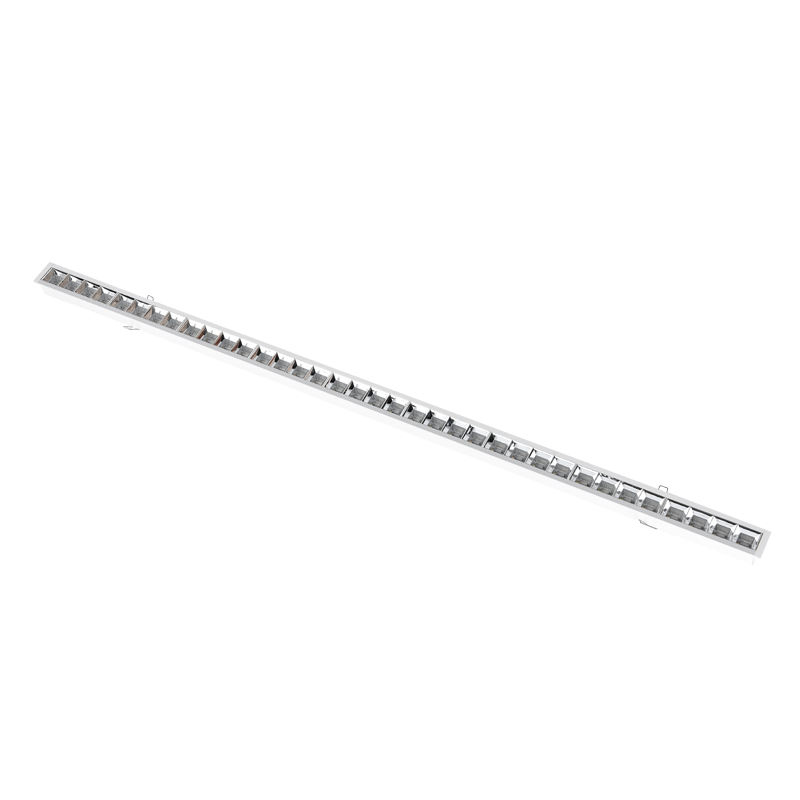

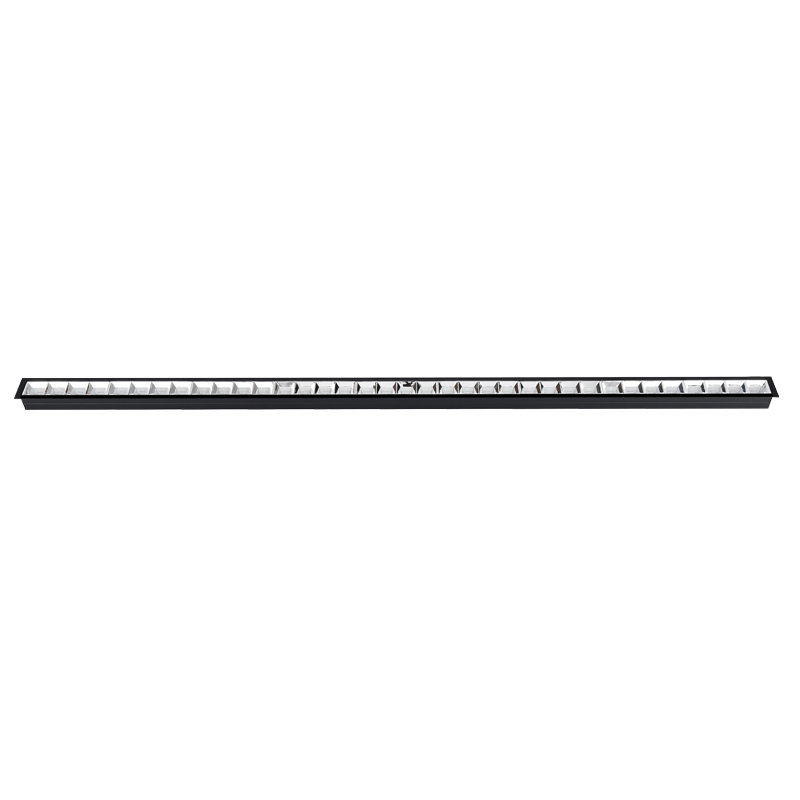

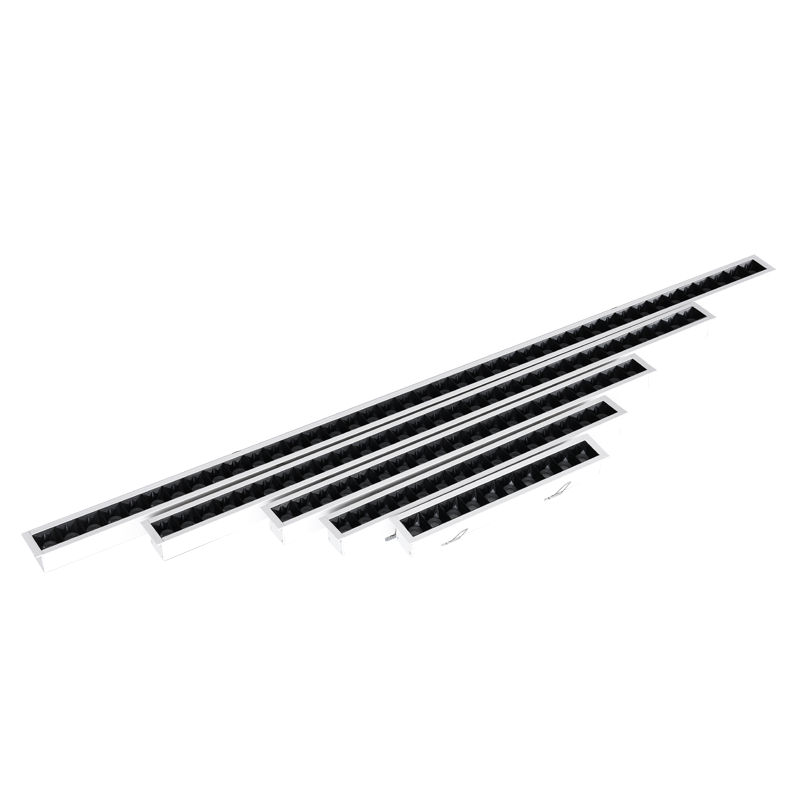

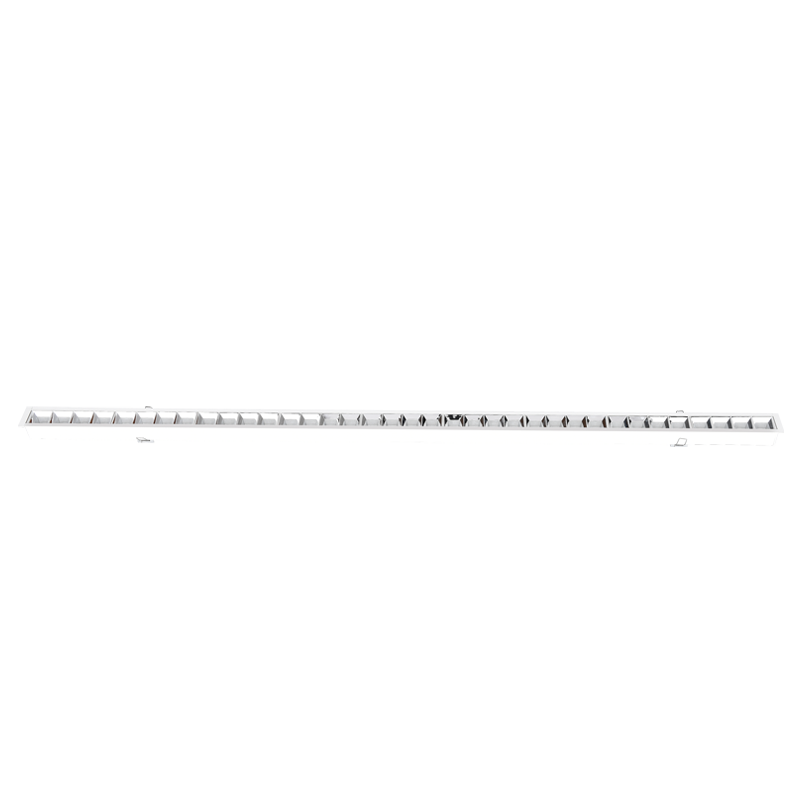

LED Linear Light LL-FC Series

Model: JST-LL-FC

Wattage: 5W-45W

LED Chip: OSRAM3030/Philips3030

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 15°/30°/45°

Diameter: 150mm-1213mm

Cut size: 140mm-1205mm

Installnation: Recessed

Description

 LED Linear lighting refers to those light fixtures arranged in continuous, elongated lines.It is filling dark corners with diffused light to add general brightness. recessed LED Linear light is fitting in the ceiling  which cut

a hold in the ceiling, 'the light is flush with the ceiling. Look neat, simple, and generous.


LED Linear Light LL-FC Series is a recessed light which fitting the ceiling which the light downwards and  provides soft light and general lighting. When it comes to lighting design, color rendering can greatly impact the

overall aesthetic and functionality of a space. The ability of a light source to accurately reveal the colors of objects it lights is essential, whether it’s for retail displays, museum exhibits or residential homes.


Traditionally, the Color Rendering Index (CRI) has been used as the standard for measuring color rendering accuracy. However, with the emergence of new lighting technologies, such as LEDs, demand for a more

comprehensive and accurate evaluation method arose. However, The higher CRI, the higher the color reproduction degree. The LED linear light LL-FC series with CRI>80 for more realistic colors, close to natural color.


The LED linear light LL-FC series with strictly selected aluminum, forging, sheet design, increase the air convection area, enhance the heat dissipation effect, extend the life span. Strict selection of the OSRAM/Philips

chip, reliable performance, good color, brightness, eye protection without strobe, low light decay.


LED Linear Light LL-FC Series can be compare with A variety of reflective anti-glare cups, effective light absorption, filter stray light, ensure the reflectivity of the light source, look up and see the light source. The narrow

edge design is more integrated into the ceiling, thin and compact.


Advantages
  1. High brightness chip, soft light and comfortable

  2. No visual strobe, healthy eye protection,

  3. Easy installation, easy to enjoy light,

  4. Deep anti-glare, eye care,

  5. Preferred aluminum, efficient heat dissipation

  6. Wide range of optics, easy to connect


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCut Size
JST-LL-FC5W>80/902700K-5000K>0.900.13AAC220-240V

15°/30°/45°

L150*W46*H48mmL140*W35mm
JST-LL-FC10W>80/902700K-5000K>0.900.25AAC220-240V

15°/30°/45°

L285*W46*H48mmL275*W35mm
JST-LL-FC15W>80/902700K-5000K>0.900.35AAC220-240V

15°/30°/45°

L415*W46*H48mmL405*W35mm
JST-LL-FC20W>80/902700K-5000K>0.900.50AAC220-240V

15°/30°/45°

L550*W46*H48mmL540*W35mm
JST-LL-FC30W>80/902700K-5000K>0.900.75AAC220-240V

15°/30°/45°

L815*W46*H48mmL805*W35mm
JST-LL-FC40W>80/902700K-5000K>0.901.00AAC220-240V

15°/30°/45°

L1080*W46*H48mmL1070*W35mm
JST-LL-FC45W>80/902700K-5000K>0.901.13AAC220-240V

15°/30°/45°

L1213*W46*H48mmL1205*W35mm

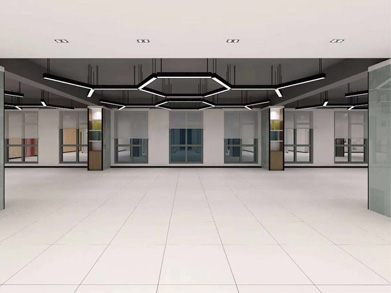

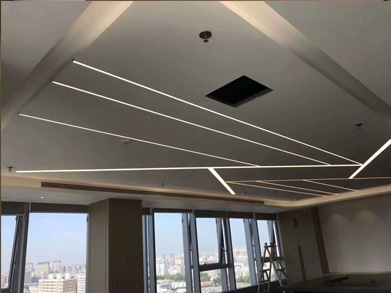

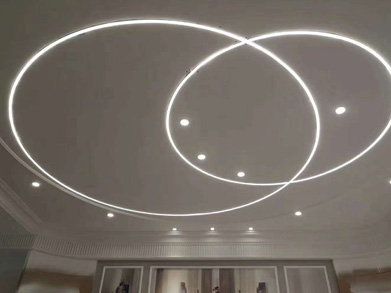

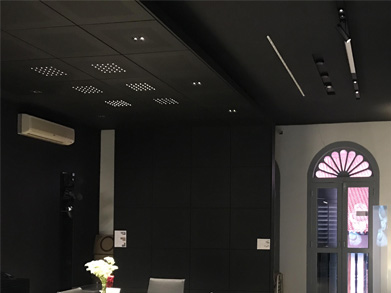

Application

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting, Jewelry stores lighting,Banks lighting, Airport lighting, Suppermaket lighting, Art galleries lighting, Villas lighting, Bars lighting, Exhibition halls lighting etc.

LED Linear Light LL-FC Series LED Linear Light LL-FC Series LED Linear Light LL-FC Series
LED Linear Light LL-FC Series LED Linear Light LL-FC Series LED Linear Light LL-FC Series
