LED Linear Light

LED Linear Light LL-ZC Series

Model: JST-LL-ZC

Wattage: 4W-36W

LED Chip: OSRAM3030/Philips3030

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 40°*70°

Diameter: 137mm-1198mm

Installnation: Surface Mounted/Suspendent

Description

LED linear lighting is commonly found in  office, residence, commercial building or industrial space. The LED linear light is a beautiful lightingand low-energy lighting since they provide a lovely diffused light to

effectively highlight merchandise that is visually comfortable.. It is used to illuminate enormous regions. We have a large selection of linear lights in various wattages and colors to provide you with the product you

desire. As a result, they are an excellent choice for any job.

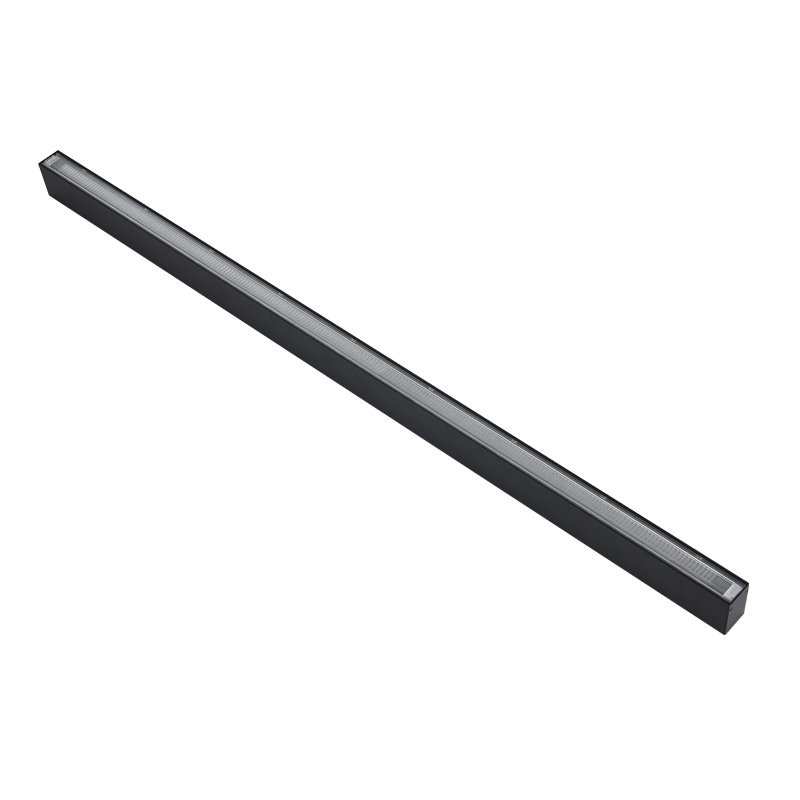

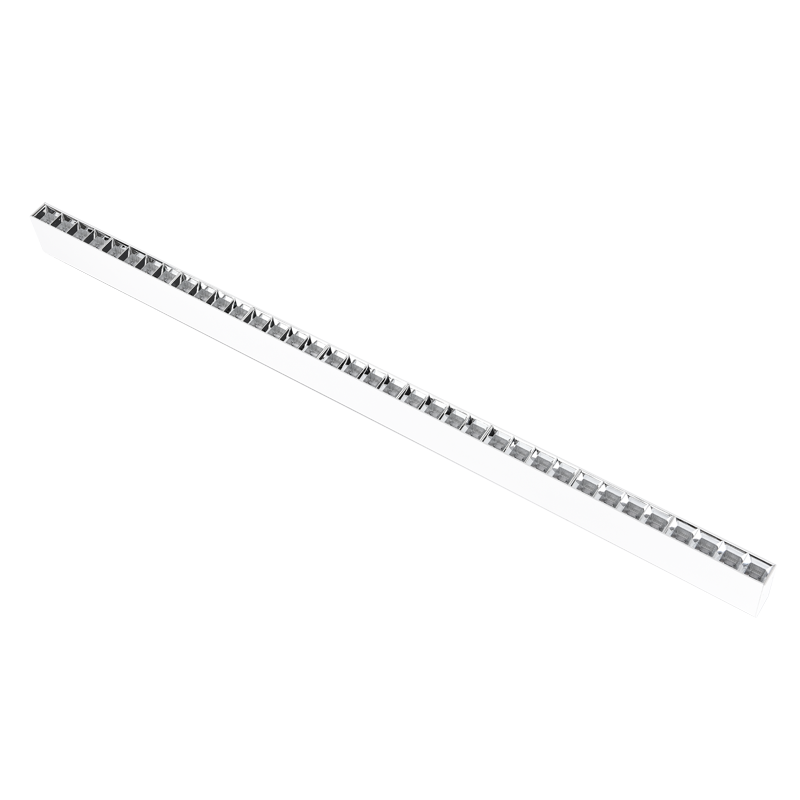

LED Linear Light LL-ZC Series is a creative light. This is a carefully conceived and minimalist shooting light. This light has a modern style, generous and simple. The light body is made of thickened aluminum, which is

sturdy and durable, not easy to deform, and has a long service life. 50000hrs life span. With different diffusion plates, create a different appearance, different lighting effects.


3000K/4000K/5000K, 3 CCT optional, which can be selected to different requirements:


LED Linear Light LL-ZC Series with CRI>90, closer to the natural color, restore the color of object. Which are sleek and versatile lighting fixtures designed for a multitude of spaces. They offer a modern, clean, and

unobtrusive lighting solution that can significantly enhance the ambiance of any room.



Advantages

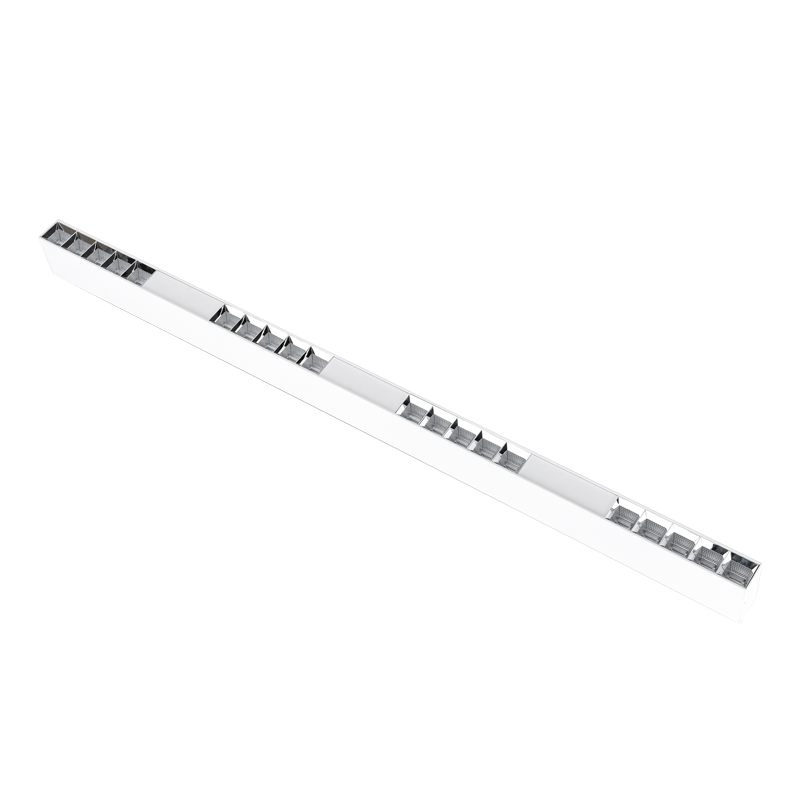

. Rectangular optical reflector offer special light effects

. Creat a circle of light from a line of LED Downlights

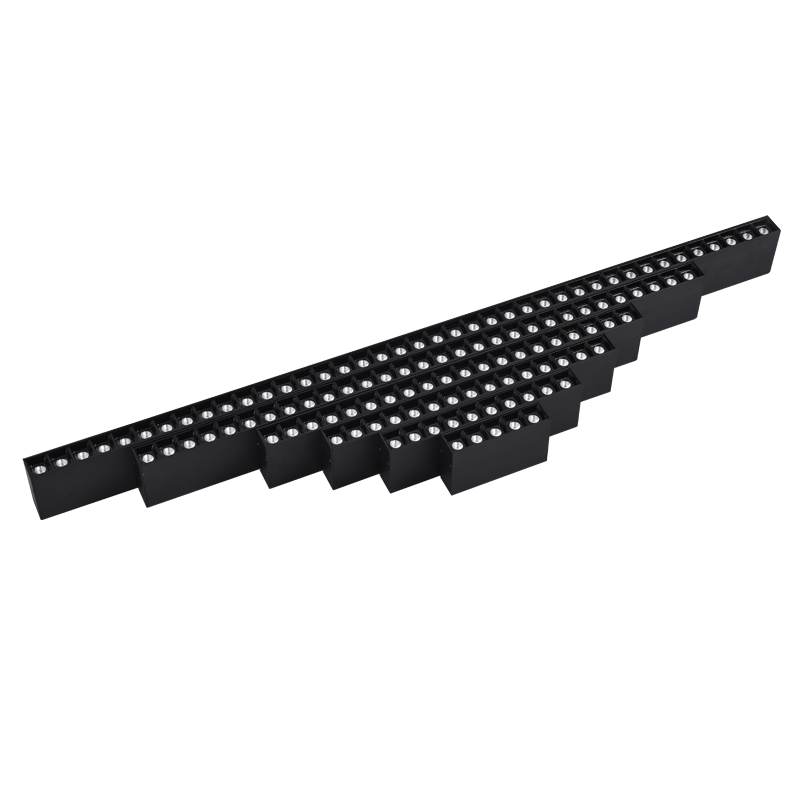

. A narrow line of nano LED Downlights for pure minimalism
. Superior glare control for high performance and visual comfort

. Special beam angle 40°*70°

. Diffused lighting and grid lighting available in one unit.

Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionInstallnation
JST-LL-ZC4W>80/902700K-5000K>0.900.10AAC220-240V

15°/30°/45°

L137*W35*H82mmSurface Mounted
JST-LL-ZC8W>80/902700K-5000K>0.900.20AAC220-240V

15°/30°/45°

L270*W35*H82mmSurface Mounted
JST-LL-ZC12W>80/902700K-5000K>0.900.30AAC220-240V

15°/30°/45°

L420*W35*H82mmSurface Mounted
JST-LL-ZC16W>80/902700K-5000K>0.900.35AAC220-240V

15°/30°/45°

L535*W35*H82mmSurface Mounted
JST-LL-ZC24W>80/902700K-5000K>0.900.60AAC220-240V

15°/30°/45°

L800*W35*H82mmSurface Mounted
JST-LL-ZC32W>80/902700K-5000K>0.900.75AAC220-240V

15°/30°/45°

L1065*W35*H82mmSurface Mounted
JST-LL-ZC36W>80/902700K-5000K>0.900.90AAC220-240V

15°/30°/45°

L1198*W35*H82mmSurface Mounted

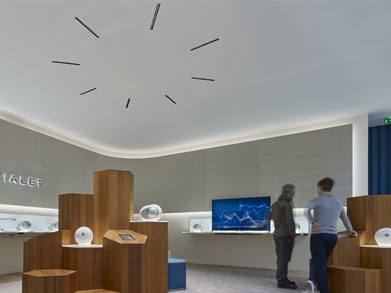

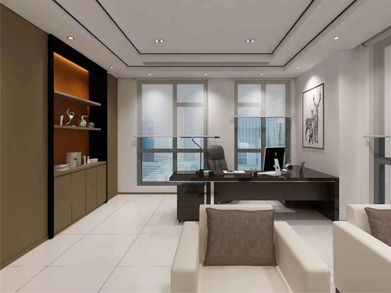

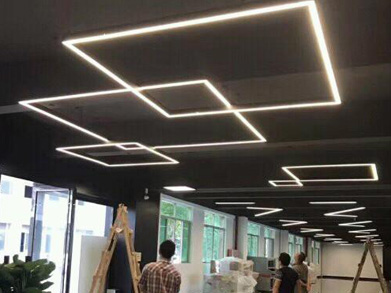

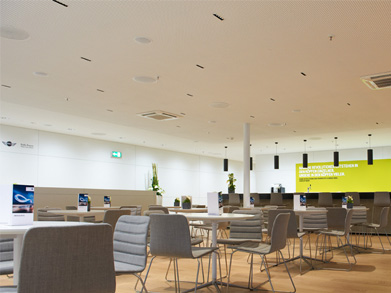

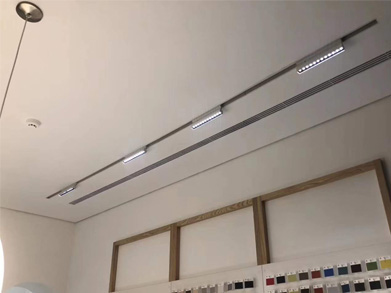

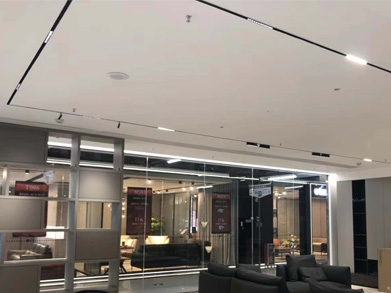

Application

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting, Jewelry stores lighting,Banks lighting, Airport lighting, Suppermaket lighting, Art galleries lighting, Villas lighting, Bars lighting, Exhibition halls lighting etc.

LED Linear Light LL-ZC Series LED Linear Light LL-ZC Series LED Linear Light LL-ZC Series
LED Linear Light LL-ZC Series LED Linear Light LL-ZC Series LED Linear Light LL-ZC Series
