Model: JST-LL-HC Up-Down
Wattage: 30W-80W
LED Chip: OSRAM3030/Philips3030/Epistar2835
Driver Brand: OSRAM/Philips/Lifud/BOKE
RA: >80/90
Finish Color: White/Black/Customized
Beam Angle: 15°/ 30°/ 45°/ 35°*70° / Wall Washer
Size: See below

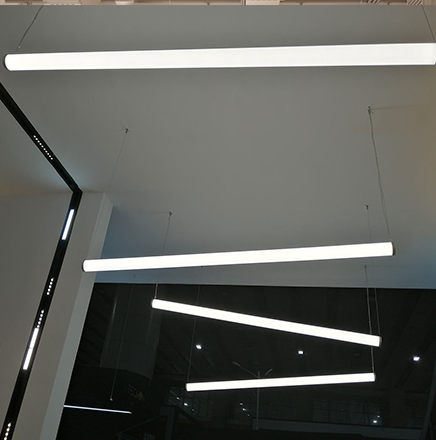

Installnation: Surface Mounted / Suspendent

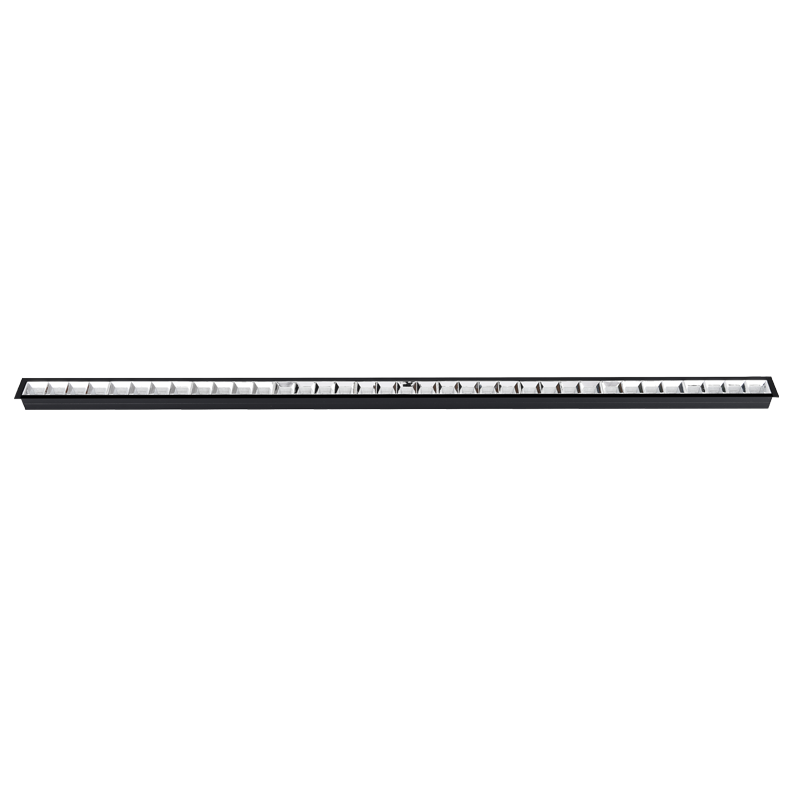

Introducing by JARSTAR the impressive Low Profile Linear Downlight FC series! Due to the embedded, this modern, sleek design provides a clean and sophisticated look, emitting a soft and inviting glow. Perfect for
those who appreciate a minimalist style!
Regarding line lights, we pay attention to its LED chip channels. There are currently two types on the market:
Aluminum Channels
Known for their durability and excellent heat dissipation properties, aluminum channels are a popular choice for both indoor and outdoor applications. They offer a sleek, metallic finish that
complements modern decor styles. The linear light from JARSTAR all are made of aluminum.Thanks to its powerful radiator, the lamp has a lifetime of up to 50,000 hours.
Plastic ChannelsLightweight and versatile, plastic channels are suitable for situations where flexibility is required. They are often used in curved or irregular installations and provide a cost-effective alternative to
aluminum channels.

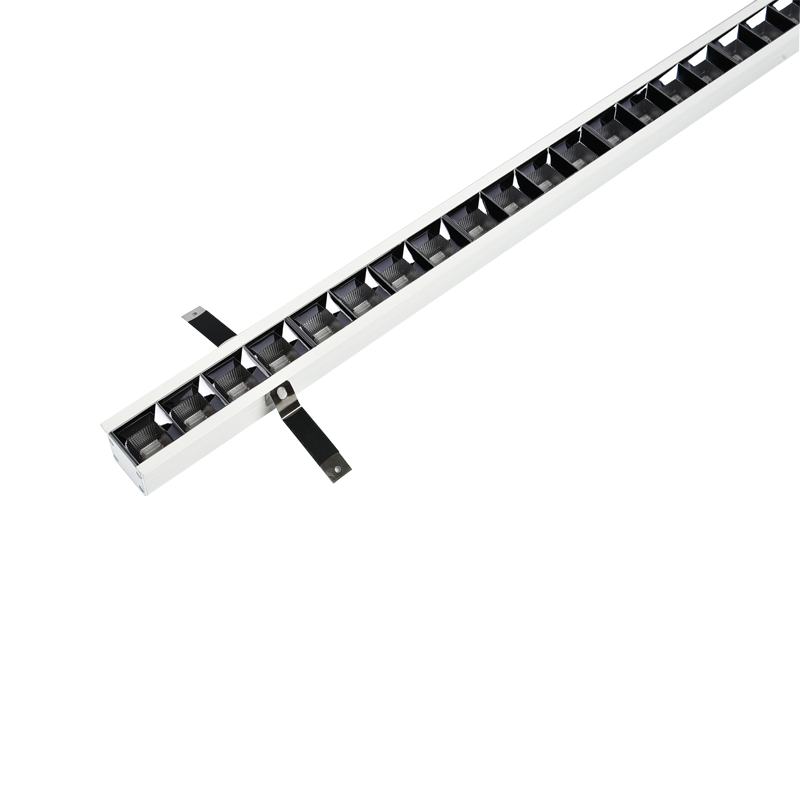

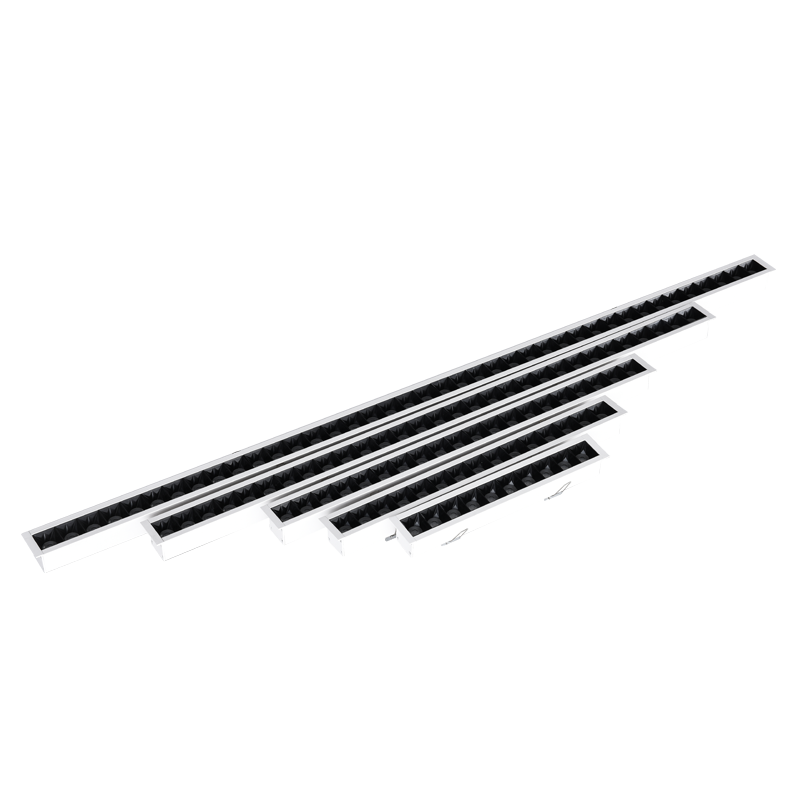

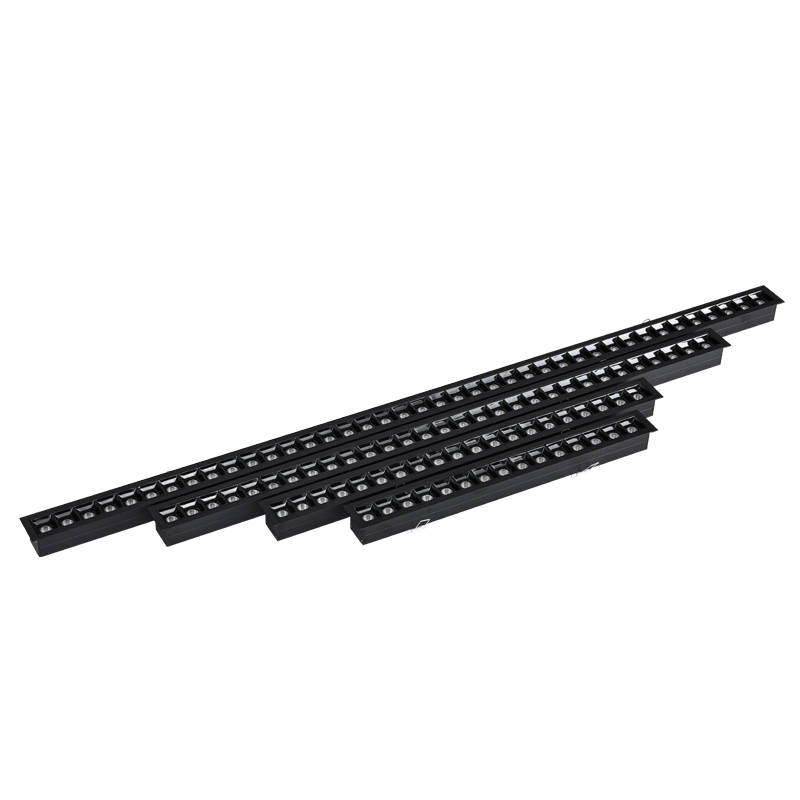

In addition, JARSTAR Introducing the impressive multiple diffuser plate: honeycomb, prism plate, PC, grille, multiple effective anti-glare. The length is optional and different spec to meet different application.
Extruded anodised aluminium housing
Aluminium heat sink
Different spec to meet different application
Multi-diffuser choose
Light source is hidden from normal viewing angles

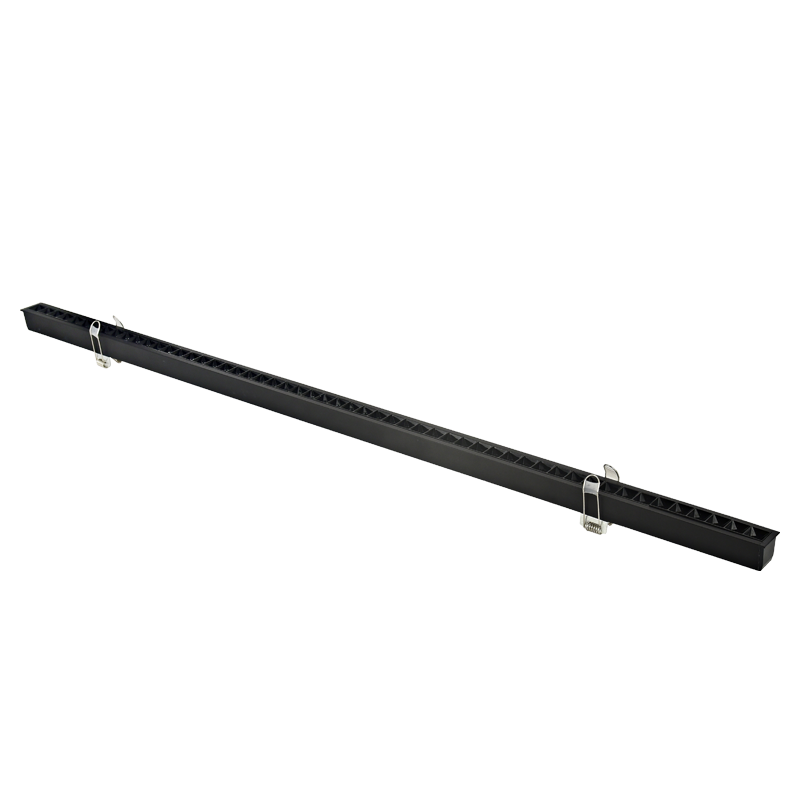

Different mounting way for
Model | Power | CRI | CCT | PF | Current | Input Voltage | Beam Angle | Dimension | Installnation |
JST-LL-FC | 5W | >80/90 | 2700K-5000K | >0.90 | 0.13A | AC220-240V | 15°/ 30°/ 45°/ 35°*70° / Wall Washer | L137*W50*H30mm | Surface Mounted/ Suspendent |
JST-LL-FC | 8W | >80/90 | 2700K-5000K | >0.90 | 0.16A | AC220-240V | 15°/ 30°/ 45°/ 35°*70° / Wall Washer | L272*W50*H30mm | Surface Mounted/ Suspendent |
JST-LL-FC | 12W | >80/90 | 2700K-5000K | >0.90 | 0.30A | AC220-240V | 15°/ 30°/ 45°/ 35°*70° / Wall Washer | L402*W50*H70mm | Surface Mounted/ Suspendent |
JST-LL-FC | 15W | >80/90 | 2700K-5000K | >0.90 | 0.35A | AC220-240V | 15°/ 30°/ 45°/ 35°*70° / Wall Washer | L542*W50*H70mm | Surface Mounted/ Suspendent |
JST-LL-FC | 20W | >80/90 | 2700K-5000K | >0.90 | 0.5A | AC220-240V | 15°/ 30°/ 45°/ 35°*70° / Wall Washer | L677*W50*H70mm | Surface Mounted/ Suspendent |
JST-LL-FC | 25W | >80/90 | 2700K-5000K | >0.90 | 0.60A | AC220-240V | 15°/ 30°/ 45°/ 35°*70° / Wall Washer | L812*W50*H70mm | Surface Mounted/ Suspendent |
JST-LL-FC | 30W | >80/90 | 2700K-5000K | >0.90 | 0.75A | AC220-240V | 15°/ 30°/ 45°/ 35°*70° / Wall Washer | L947*W50*H70mm | Surface Mounted/ Suspendent |
JST-LL-FC | 35W | >80/90 | 2700K-5000K | >0.90 | 0.85A | AC220-240V | 15°/ 30°/ 45°/ 35°*70° / Wall Washer | L1082*W50*H70mm | Surface Mounted/ Suspendent |
JST-LL-FC | 40W | >80/90 | 2700K-5000K | >0.90 | 1.00A | AC220-240V | 15°/ 30°/ 45°/ 35°*70° / Wall Washer | L1202*W50*H70mm | Surface Mounted/ Suspendent |

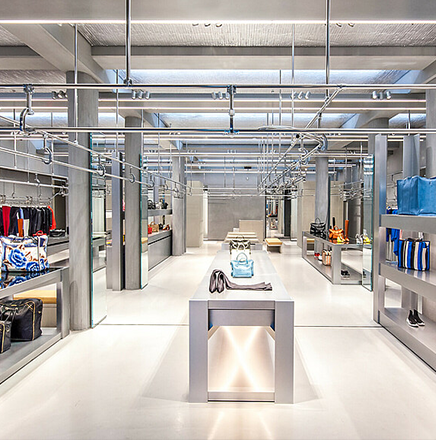

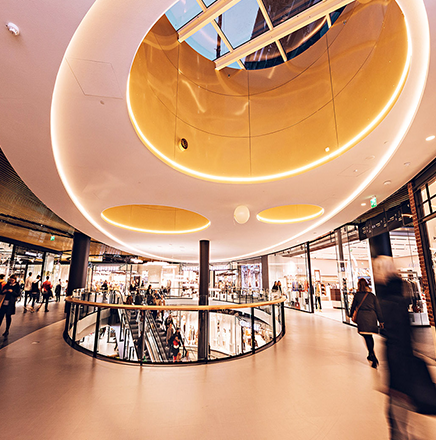

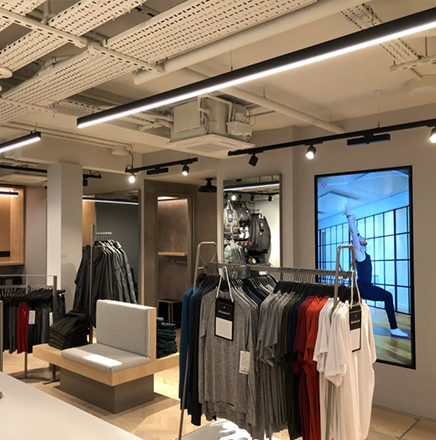

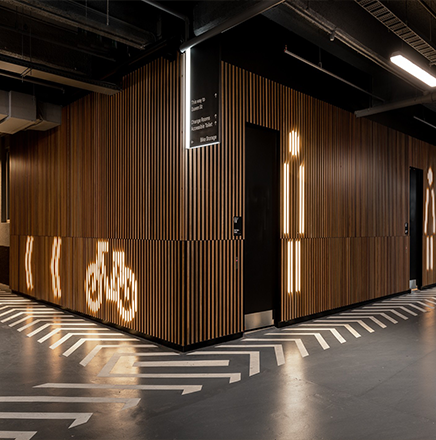

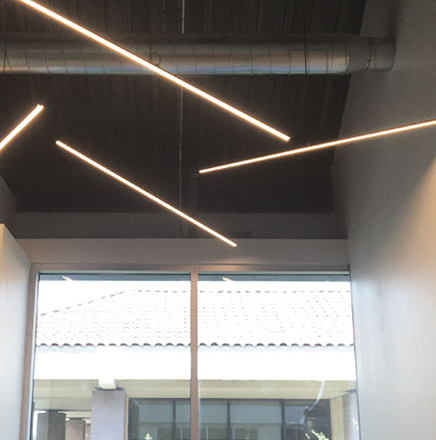

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting, Jewelry stores lighting,Banks lighting, Airport lighting, Suppermaket lighting, Art galleries lighting, Villas lighting, Bars lighting, Exhibition halls lighting etc.
