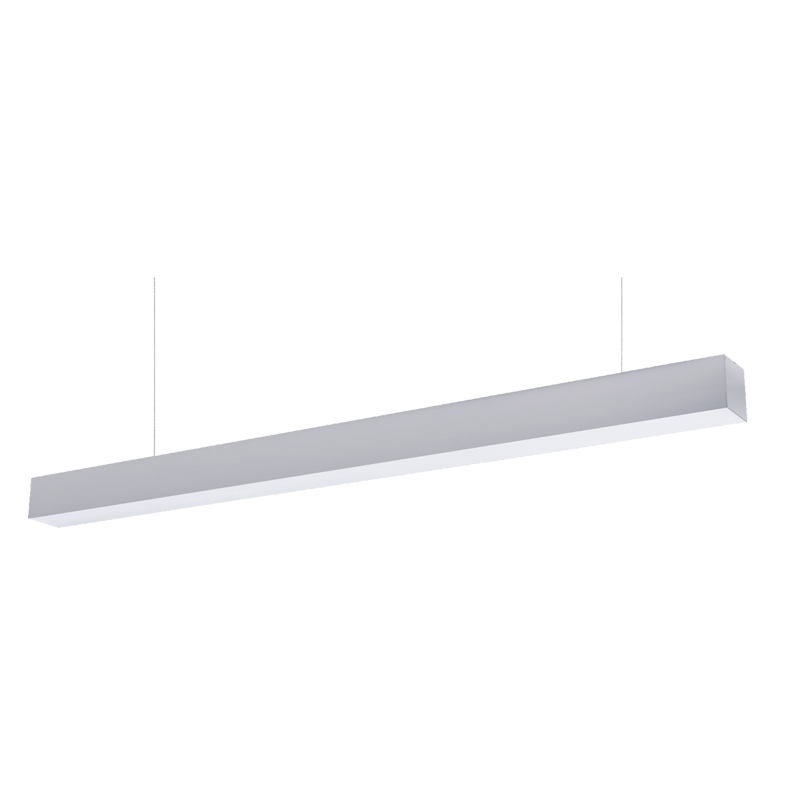

Model: JST-LL-SC Up-Down
Wattage:
LED Chip: OSRAM3030/Philips3030/Epistar2835
Driver Brand: OSRAM/Philips/Lifud/BOKE
RA: >80/90

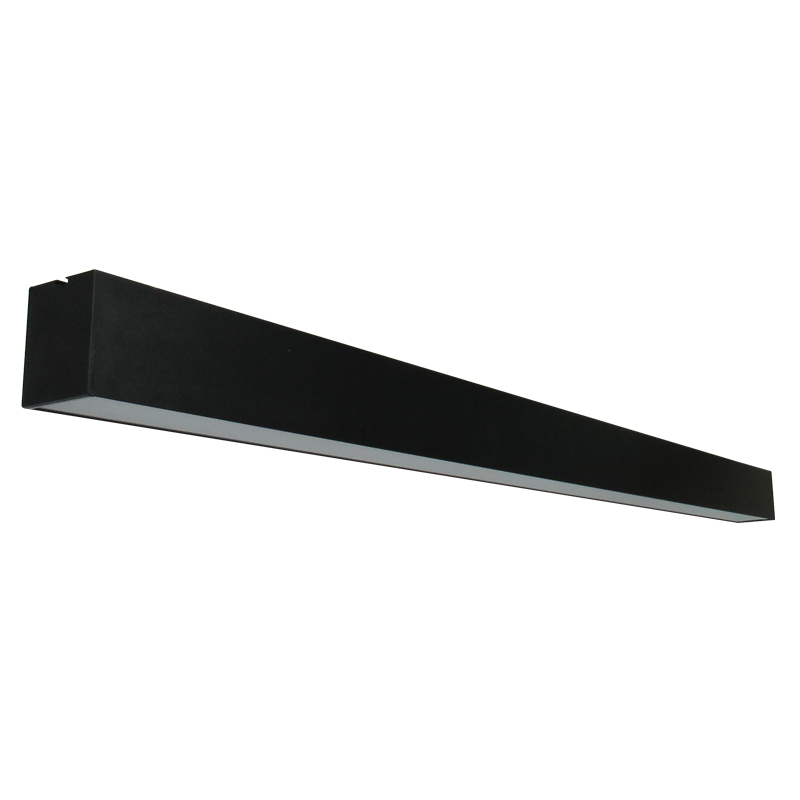

Finish Color: White/Black/Customized
Beam Angle: 90°/110°
Size: See below
Installnation: Suspendent
In the realm of modern lighting design, LED linear light have become in achieving superior aesthetics and functional efficiency. From adding a warm glow to your living room to illuminating commercial spaces with
dynamic lighting, the possibilities are endless.
What is LED linear light?
LED Linear lighting is simply the use of many 'Light-emitting diodes' packaged together in a long, narrow housing to create a strip of light. This simple concept revolutionised the way we light spaces.
What are LED linear lights made of?
Diffuser: Diffusers are designed to spread the light from LED strips evenly, reducing glare and eliminating hotspots. This creates a more aesthetically pleasing and comfortable lighting environment.Beyond improving
light quality, diffusers also provide a layer of protection, preventing dust and minor physical contact from damaging the LED PC board.
LED chip PC board

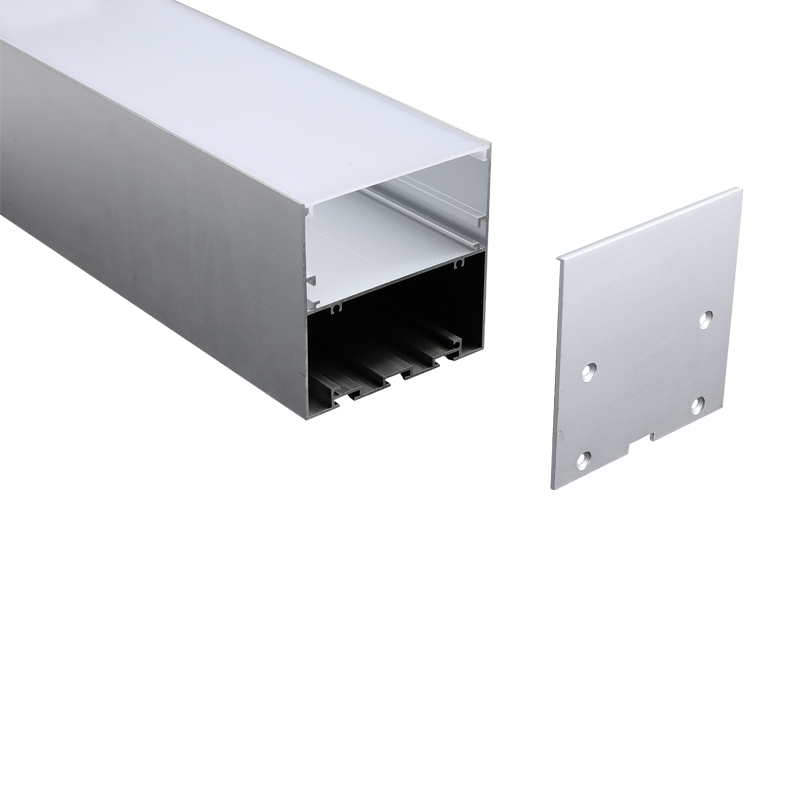

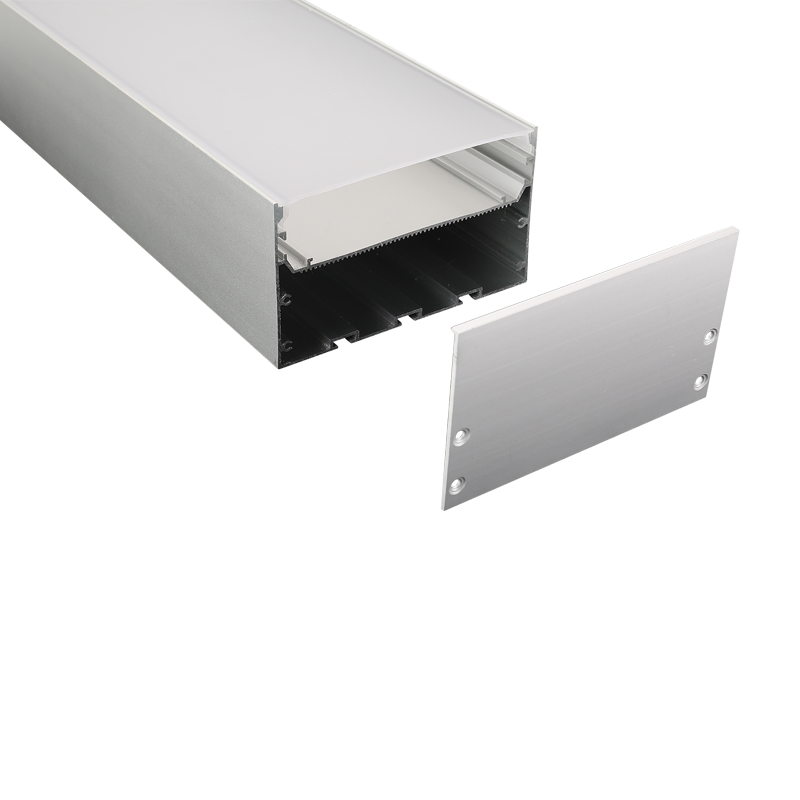

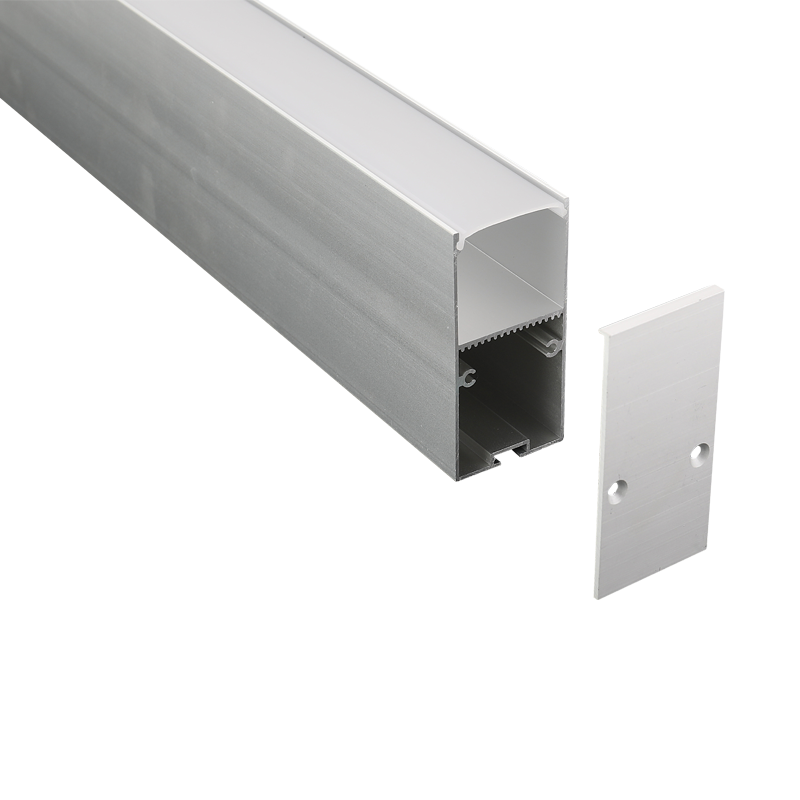

LED linear channels: also called LED profiles or extrusions, hold LED PC board. They protect the lights and also make them look better and
End caps: Available in screw and screwless versions. End caps give your LED linear light installation a finished look by covering the open ends of the strip channels. This not only enhances the appearance but also
keeps the installation neat and tidy.
Delicate And Beautiful,
Made Of High Quality Aluminum Material, Which Has Good Texture, Efficient Heat Dissipation.
High Brightness, Anti Glare Design
High Quality Chip, Providing Natural And Comfortable Light Effect, Soft And Not Dazzling.
Can Be Customized To Different Patterns
5 Year Warranty
Model | Power | CRI | CCT | PF | Current | Input Voltage | Beam Angle | Dimension | Installnation |
JST-LL-SC | 30W | >80/90 | 2700K-5000K | >0.90 | 0.75A | AC220-240V | 90°/110° | L1200*W35*H70mm | Surface Mounted/ Suspendent |
JST-LL-SC | 30W | >80/90 | 2700K-5000K | >0.90 | 0.75A | AC220-240V | 90°/110° | L1200*W35*H100mm | Surface Mounted/ Suspendent |
JST-LL-SC | 30W | >80/90 | 2700K-5000K | >0.90 | 0.75A | AC220-240V | 90°/110° | L1200*W40*H60mm | Surface Mounted/ Suspendent |
JST-LL-SC | 30W | >80/90 | 2700K-5000K | >0.90 | 0.75A | AC220-240V | 90°/110° | L1200*W40*H70mm | Surface Mounted/ Suspendent |
JST-LL-SC | 30W | >80/90 | 2700K-5000K | >0.90 | 0.75A | AC220-240V | 90°/110° | L1200*W50*H50mm | Surface Mounted/ Suspendent |
JST-LL-SC | 30W | >80/90 | 2700K-5000K | >0.90 | 0.75A | AC220-240V | 90°/110° | L1200*W50*H70mm | Surface Mounted/ Suspendent |
JST-LL-SC | 30W | >80/90 | 2700K-5000K | >0.90 | 0.75A | AC220-240V | 90°/110° | L1200*W50*H100mm | Surface Mounted/ Suspendent |
JST-LL-SC | 30W | >80/90 | 2700K-5000K | >0.90 | 0.75A | AC220-240V | 90°/110° | L1200*W60*H60mm | Surface Mounted/ Suspendent |
JST-LL-SC | 30W | >80/90 | 2700K-5000K | >0.90 | 0.75A | AC220-240V | 90°/110° | L1200*W60*H70mm | Surface Mounted/ Suspendent |
JST-LL-SC | 30W | >80/90 | 2700K-5000K | >0.90 | 0.75A | AC220-240V | 90°/110° | L1200*W60*H85mm | Surface Mounted/ Suspendent |
JST-LL-SC | 30W | >80/90 | 2700K-5000K | >0.90 | 0.75A | AC220-240V | 90°/110° | L1200*W70*H70mm | Surface Mounted/ Suspendent |
JST-LL-SC | 30W | >80/90 | 2700K-5000K | >0.90 | 0.75A | AC220-240V | 90°/110° | L1200*W70*H80mm | Surface Mounted/ Suspendent |
JST-LL-SC | 30W | >80/90 | 2700K-5000K | >0.90 | 0.75A | AC220-240V | 90°/110° | L1200*W70*H100mm | Surface Mounted/ Suspendent |
JST-LL-SC | 30W | >80/90 | 2700K-5000K | >0.90 | 0.75A | AC220-240V | 90°/110° | L1200*W75*H75mm | Surface Mounted/ Suspendent |
JST-LL-SC | 30W | >80/90 | 2700K-5000K | >0.90 | 0.75A | AC220-240V | 90°/110° | L1200*W80*H70mm | Surface Mounted/ Suspendent |
JST-LL-SC | 30W | >80/90 | 2700K-5000K | >0.90 | 0.75A | AC220-240V | 90°/110° | L1200*W80*H85mm | Surface Mounted/ Suspendent |
JST-LL-SC | 60W | >80/90 | 2700K-5000K | >0.90 | 1.50A | AC220-240V | 90°/110° | L1200*W90*H70mm | Surface Mounted/ Suspendent |
JST-LL-SC | 60W | >80/90 | 2700K-5000K | >0.90 | 1.50A | AC220-240V | 90°/110° | L1200*W90*H80mm | Surface Mounted/ Suspendent |
JST-LL-SC | 60W | >80/90 | 2700K-5000K | >0.90 | 1.50A | AC220-240V | 90°/110° | L1200*W100*H50mm | Surface Mounted/ Suspendent |
JST-LL-SC | 60W | >80/90 | 2700K-5000K | >0.90 | 1.50A | AC220-240V | 90°/110° | L1200*W100*H70mm | Surface Mounted/ Suspendent |
JST-LL-SC | 60W | >80/90 | 2700K-5000K | >0.90 | 1.50A | AC220-240V | 90°/110° | L1200*W100*H100mm | Surface Mounted/ Suspendent |
JST-LL-SC | 60W | >80/90 | 2700K-5000K | >0.90 | 1.50A | AC220-240V | 90°/110° | L1200*W120*H70mm | Surface Mounted/ Suspendent |
JST-LL-SC | 60W | >80/90 | 2700K-5000K | >0.90 | 1.50A | AC220-240V | 90°/110° | L1200*W120*H80mm | Surface Mounted/ Suspendent |
JST-LL-SC | 60W | >80/90 | 2700K-5000K | >0.90 | 1.50A | AC220-240V | 90°/110° | L1200*W150*H80mm | Surface Mounted/ Suspendent |

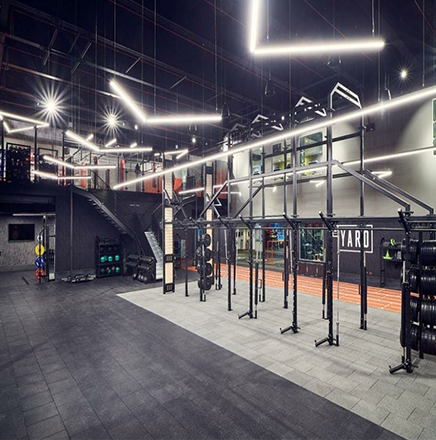

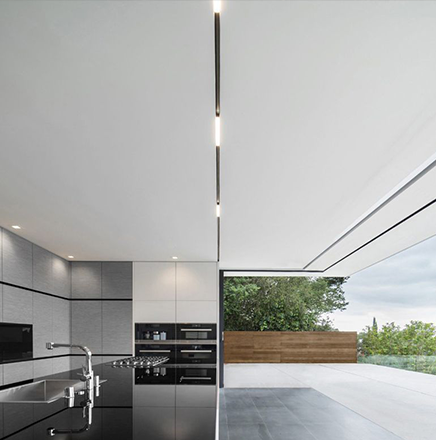

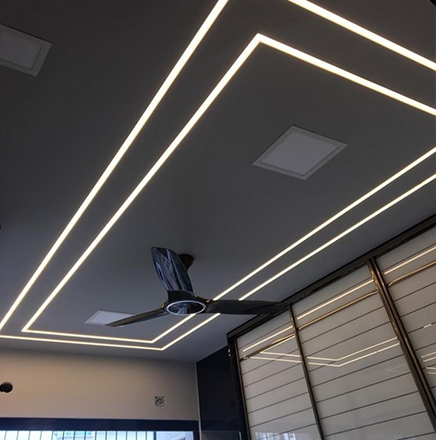

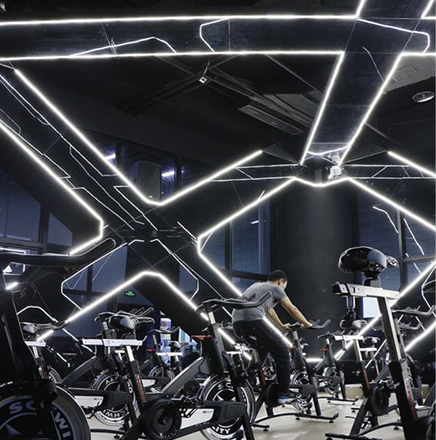

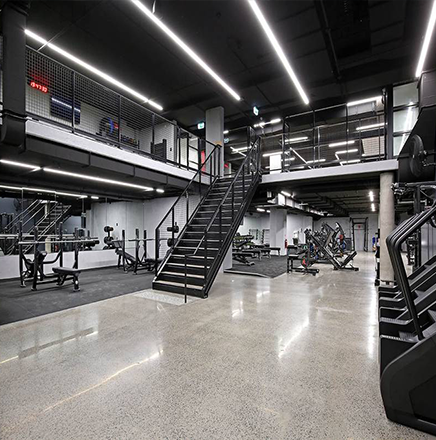

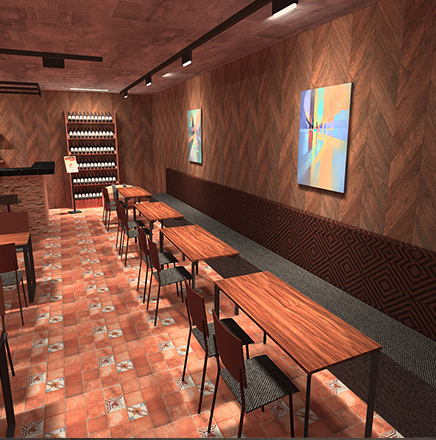

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting, Jewelry stores lighting,Banks lighting, Airport lighting, Suppermaket lighting, Art galleries lighting, Villas lighting, Bars lighting, Exhibition halls lighting etc.
