Model: JST-HTC-Square
Wattage: 7W-40W
LED Chip: CREE/Citizen
Driver Brand: OSRAM/Philips/Lifud
RA: >90
Finish Color: White/Black/Customized
Beam Angle: 15°/24°/38°
Diameter: 70mm-170mm
Cutout: 55mm-150mm
LED downlights are also called spotlights. They are lights embedded in the ceiling. The accessories are set into the surface of the ceiling, which makes them more discreet than old-fashioned spotlights or other light
fixtures.

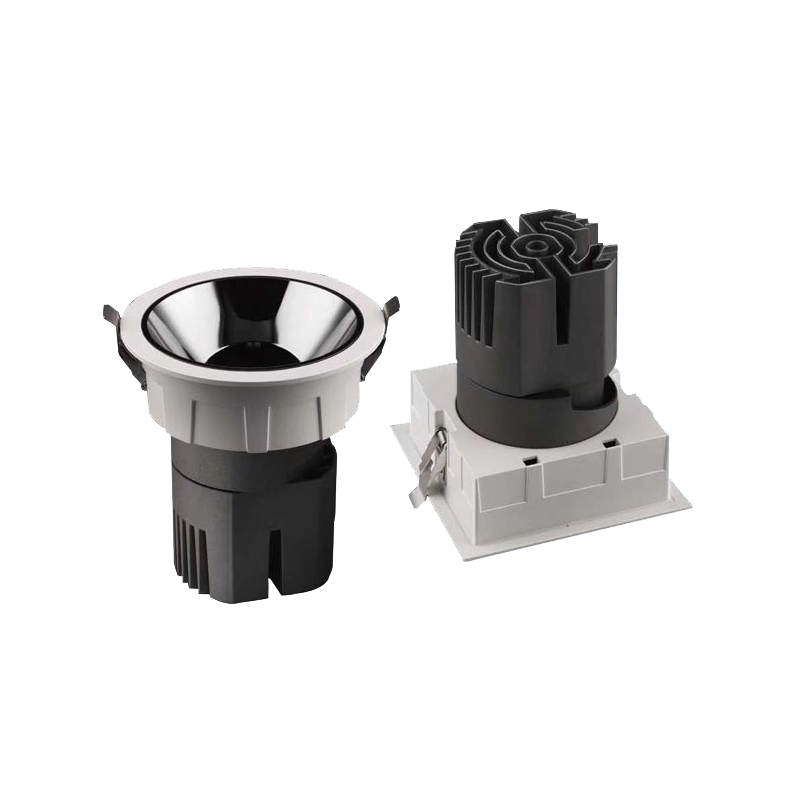

Designed by well-known lighting designers based on deep anti-glare lighting performance and applications, HTC can achieve UGR<10. Modular design, quickly assemble and disassemble. Different reflector shapes for
options. The frame shapes include round, square, fixed, universal, and trimless.
HTC is also an adjustable downlight that can rotate 30 degrees vertically and 355 degrees horizontally to meet different applications. Because of its various optional, it is warmly welcomed in the market. Not only was
made of the die-casing aluminum, it is corrosion-resistant, rust-proof, oxidation-resistant, strong and durable. Reinforced high-elastic card, strong spring elasticity, strong pressure resistance without deformation, built-
in decorative ring, high safety. Easy to install without using any tools.
The light source of HTC series is deeply hidden, deep anti-glare, 30mm deep, deep concave design, the light is softer, you don't the light source when you look up the lamp, and no glare, not dazzling, effective eye
protection
The HTC series hotel spot downlight with COB LED chips, uniform light, a good radiator, CRI>80, which are known for their high efficiency and long lifespan. LED downlights produce less heat, use less energy and more effective at guiding light to its intended destination than other traditional lighting technologies such as incandescent. Since LEDs have a longer lifespan, you'll save on maintenance costs over time.
High quality CITIZEN/CREE COB, CRI>90, SDCM<3, high efficiency and long lifespan.
Deep cup with fog glass, the light spot is even and not dazzling, which is more eye-friendly
Anti-glare design with various free replacement accessories
30 swiveling at vertical, horizontal rotaion 355°, meet with differemt applicationms

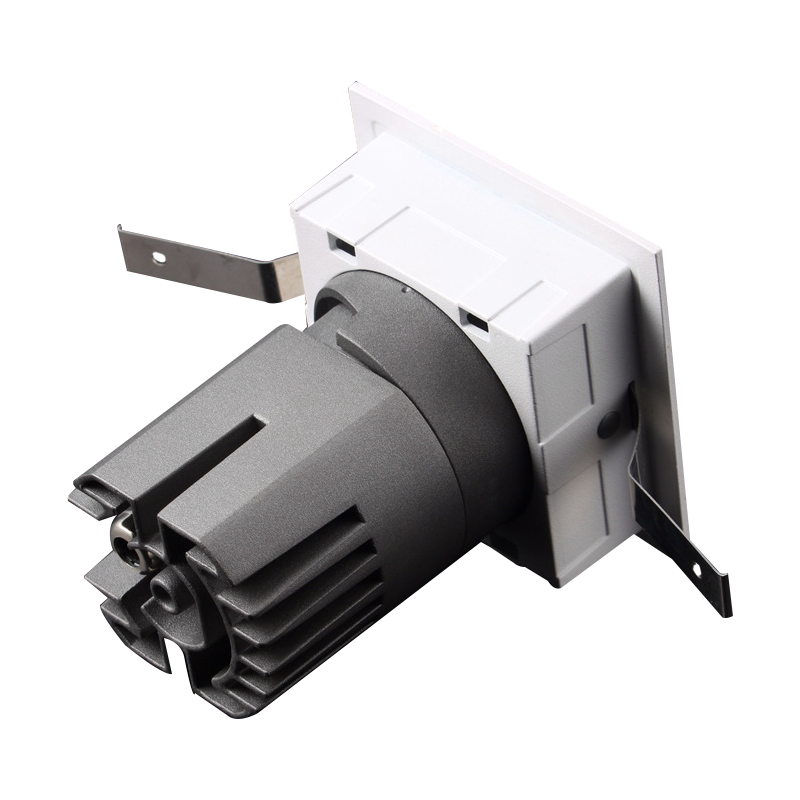

Modularity structure, easier to assemble, install and disassemble, no damage to the ceiling floor
Family structure appearance design to meet with the uniform aesthetic requirement

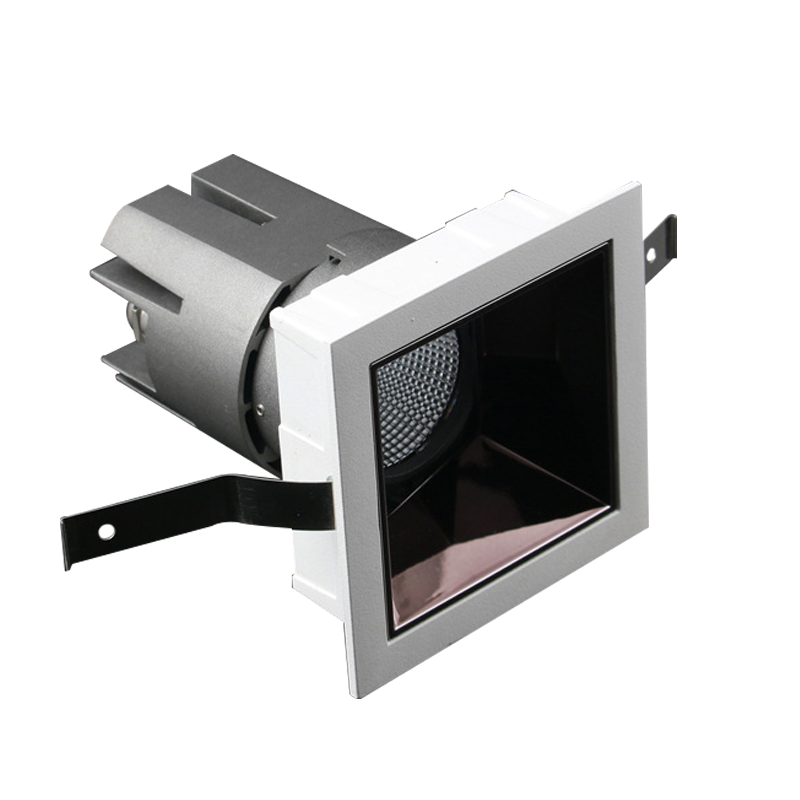

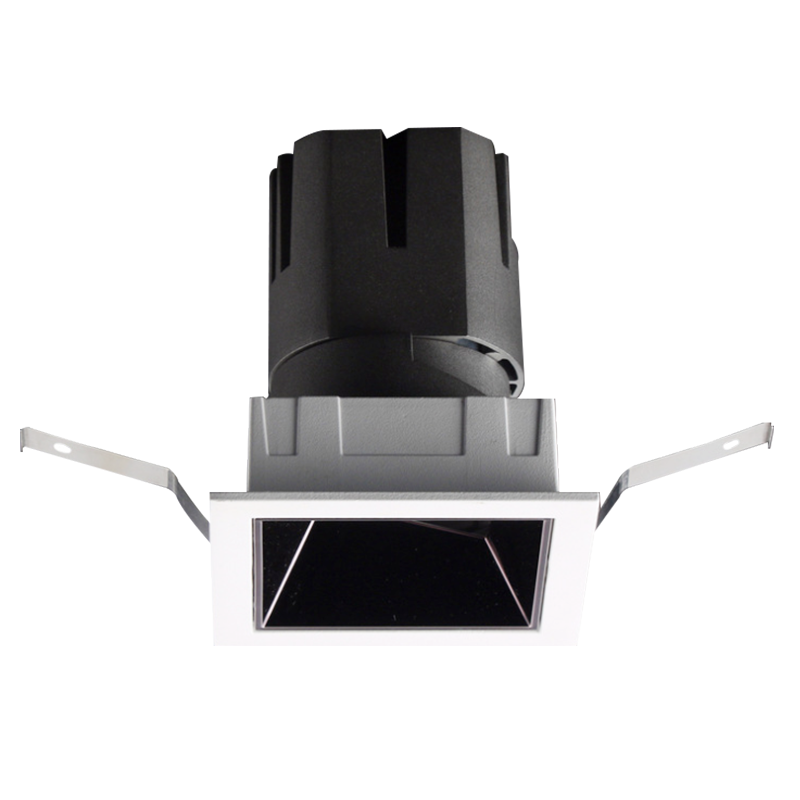

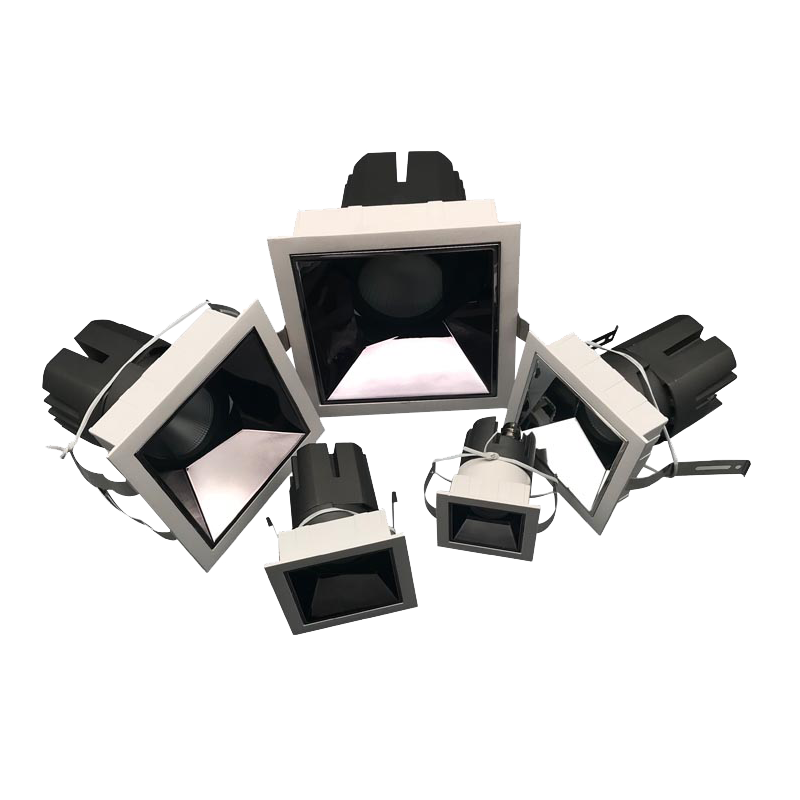

Trim square shape
Model | Power | CRI | CCT | PF | Current | Input Voltage | Beam Angle | Dimension | Cutout |
JST-HTC | 7W | >80/90 | 2700K-5000K | >0.90 | 0.16A | AC220-240V | 15°/24°/38° | D70*H80mm | 55mm |
JST-HTC | 12W | >80/90 | 2700K-5000K | >0.90 | 0.30A | AC220-240V | 15°/24°/38° | D85*H105mm | 75mm |
JST-HTC | 20W | >80/90 | 2700K-5000K | >0.90 | 0.50A | AC220-240V | 15°/24°/38° | D110*H130mm | 95mm |
JST-HTC | 30W | >80/90 | 2700K-5000K | >0.90 | 0.75A | AC220-240V | 15°/24°/38° | D140*H150mm | 125mm |
JST-HTC | 40W | >80/90 | 2700K-5000K | >0.90 | 1.00A | AC220-240V | 15°/24°/38° | D170*H180mm | 150mm |

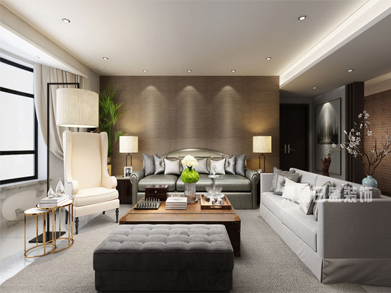

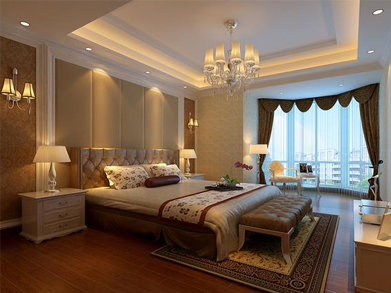

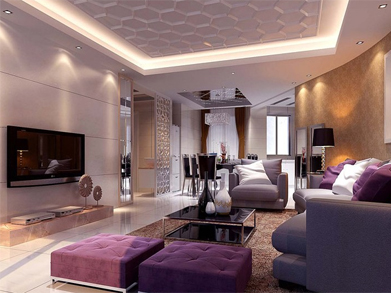

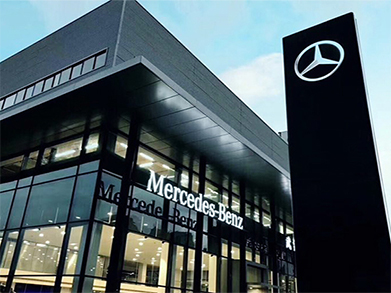

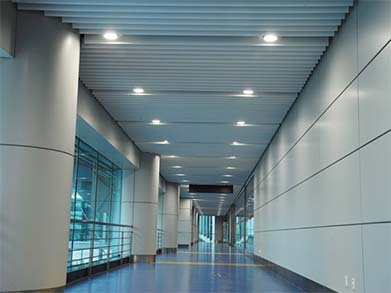

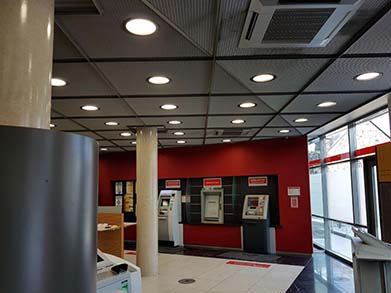

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting, Jewelry stores lighting,Banks lighting, Airport lighting, Suppermaket lighting etc.
