Model: JST-STH
Wattage: 7W-24W
LED Chip: Citizen/Cree
Driver Brand: OSRAM/Philips/Lifud
RA: >90
Finish Color: White/Black/Customized
Beam Angle: 15°/24°/38°/60°
Diameter: 80-175mm
Cutout: 75-155mm

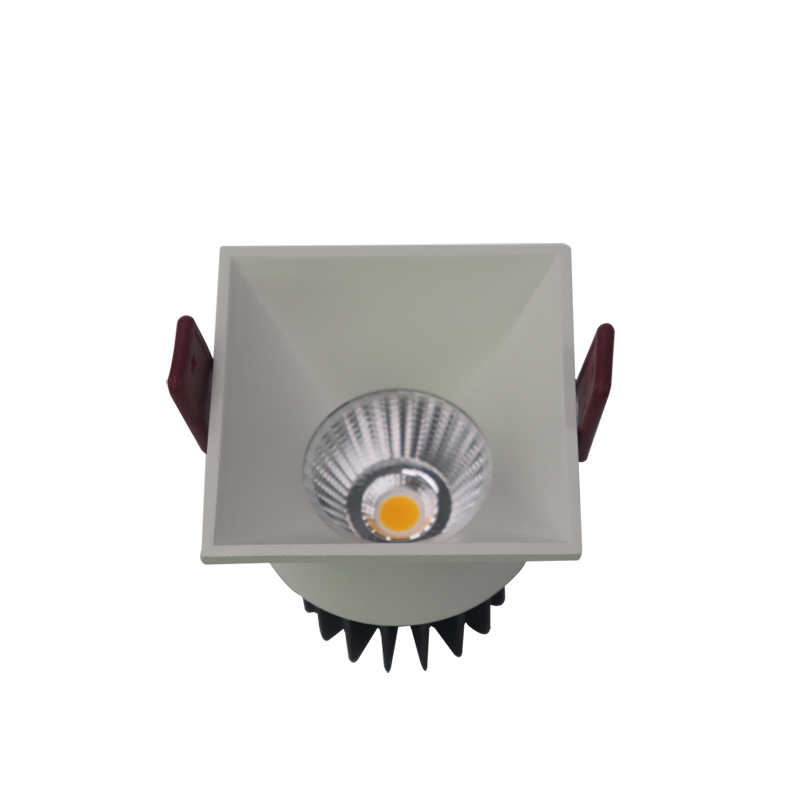

Configured with one, two or three light sources, Led Grille downlight is a LED downlight luminary, with adjustable beams with remarkable performance and exquisite design. These lights are ideal for applications that
require maximum directionability and outstanding luminous flux especially for brand Chain stores.
Why Use LED Downlights?
LED Downlights offer two main benefits: energy efficiency and aesthetic appeal.
When it comes to energy efficiency, LED downlights are a great choice because they use less electricity than traditional light bulbs. They also last longer, which translates in longer operation and less frequent
replacement.
Aesthetically, downlights can brighten up and improve the ambiance of any space. They create a warm, inviting overall atmosphere and can also be fitted to highlight specific areas of a room.

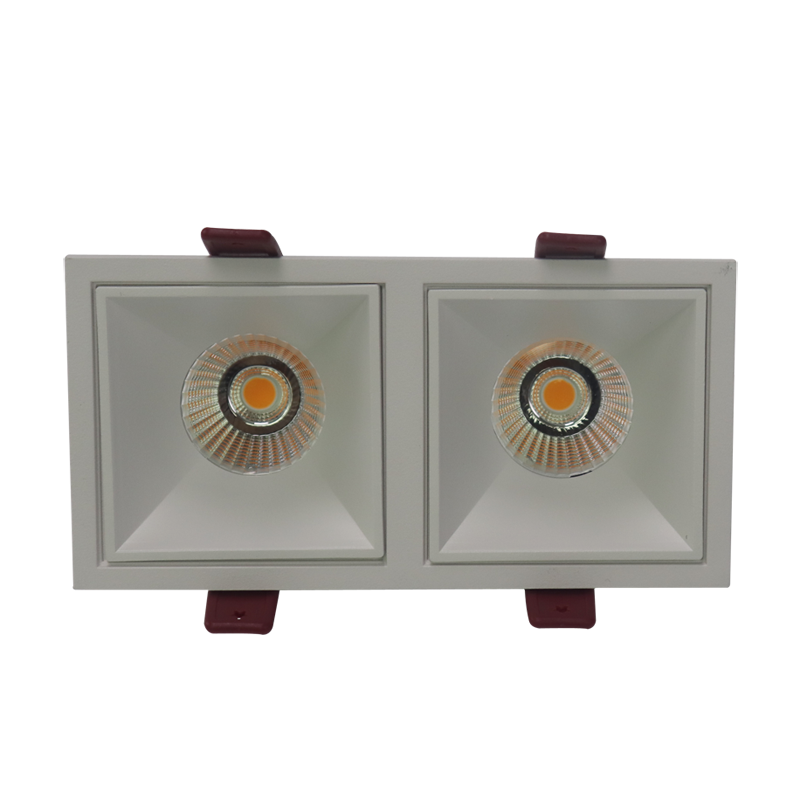

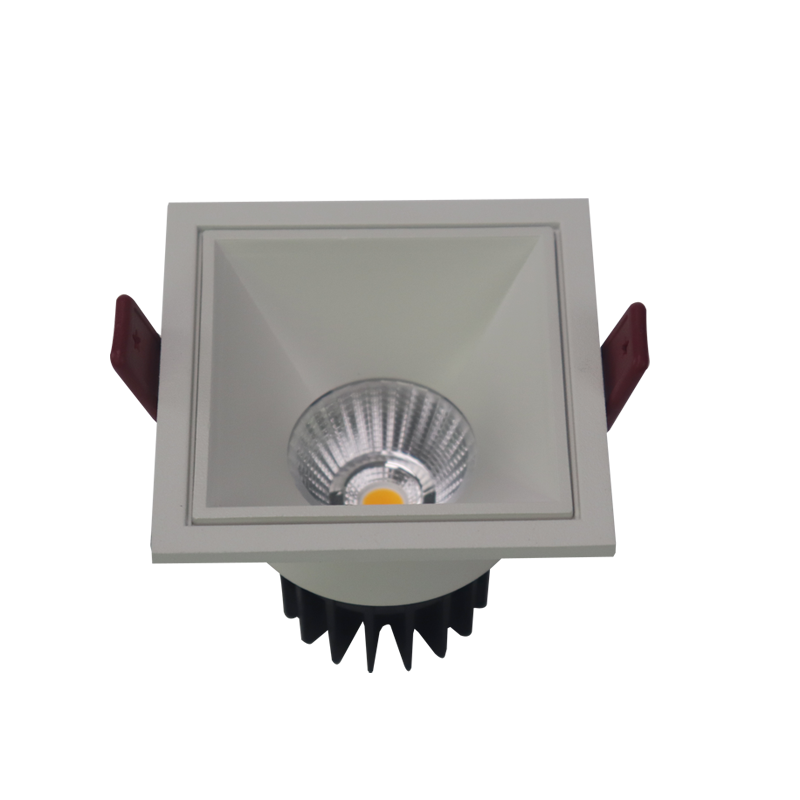

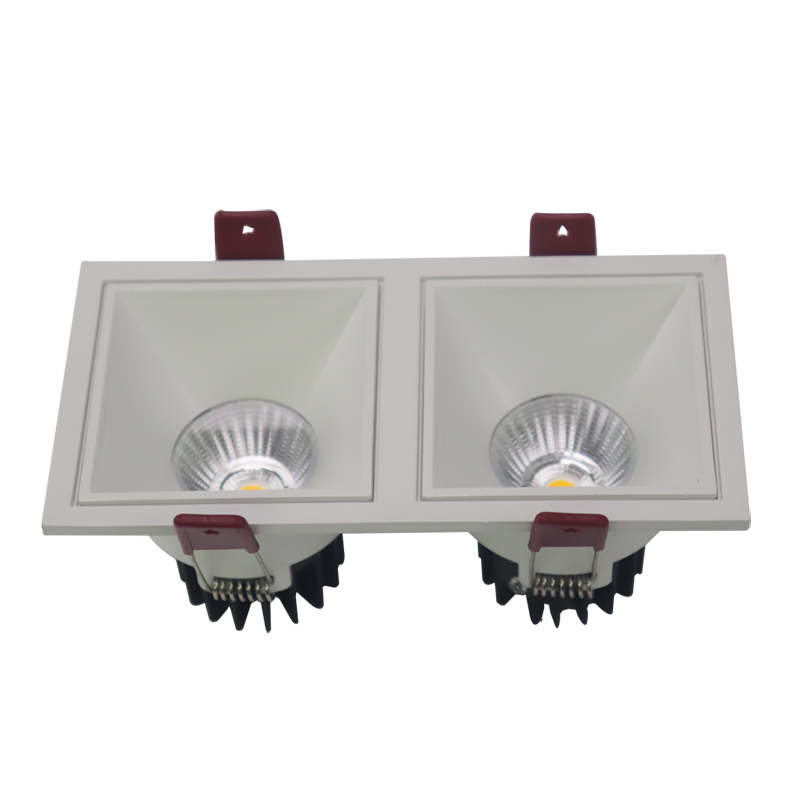

STH series are available in different optaional: single head with frame or without frame, double heads for grille light. CRI>80 LED chip, the STH range of downlights renders colour with outstanding accuracy and clarity.

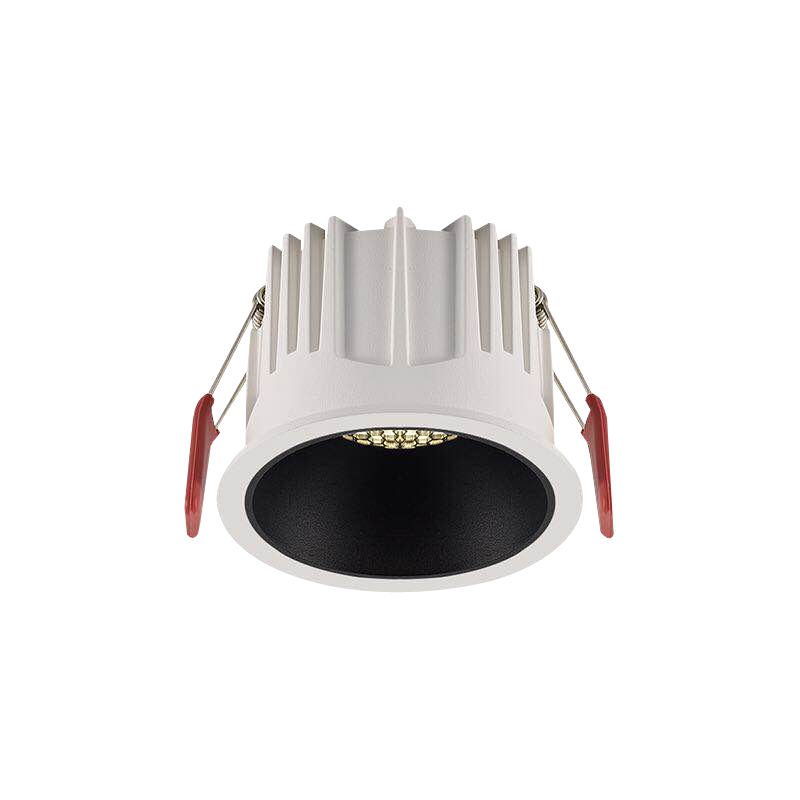

With deep anti-glare cup to reduce the visible glare.

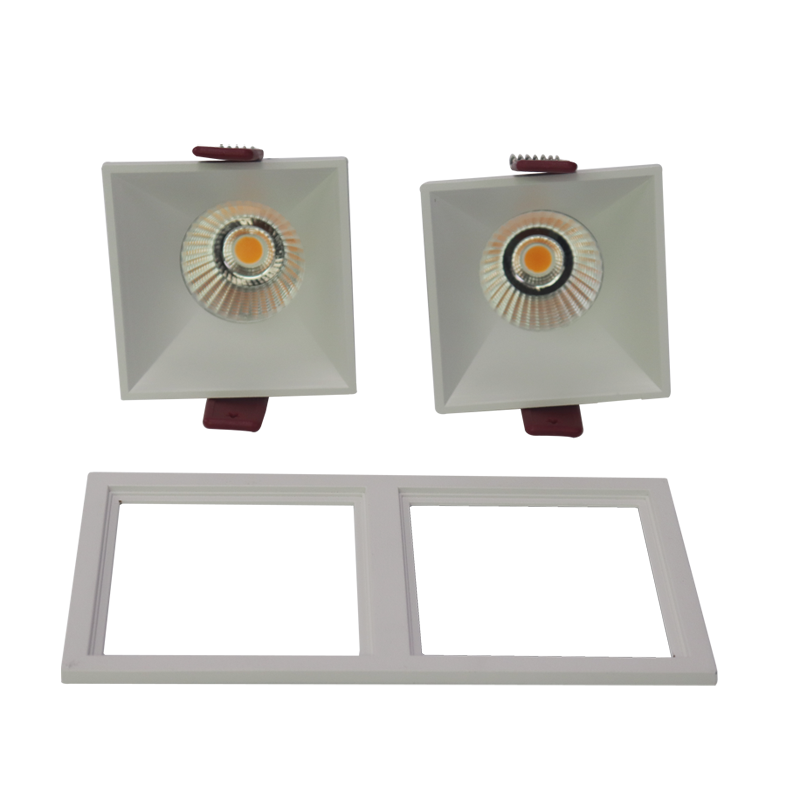

It's simple to remove the LED downlight from the frame, making maintenance easy. Choose a 15º or 36º beam angle depending on whether a narrow or wider spread of light is needed. Die-cast aluminium housing.

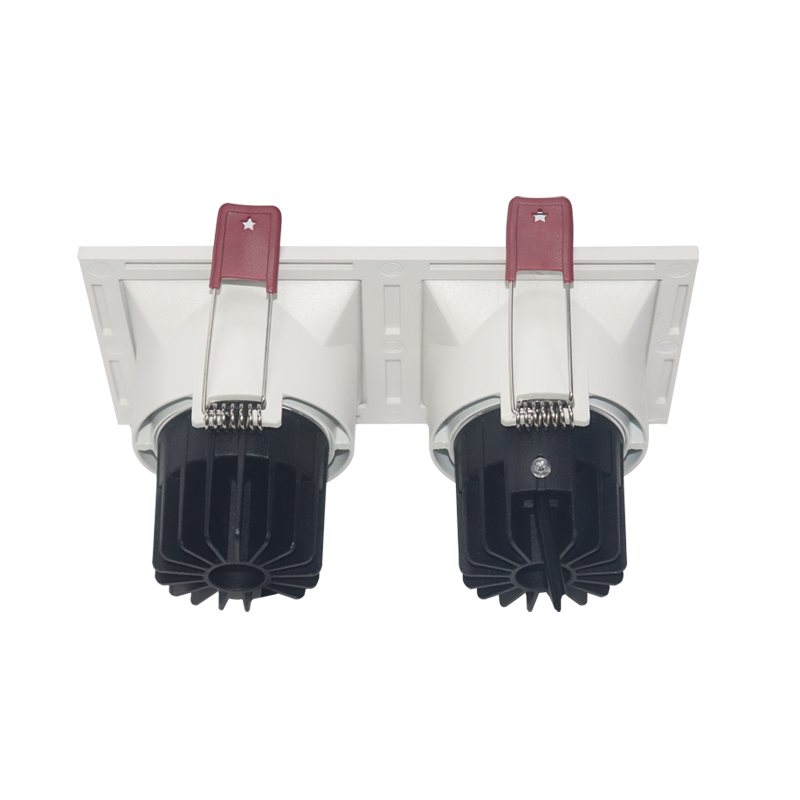

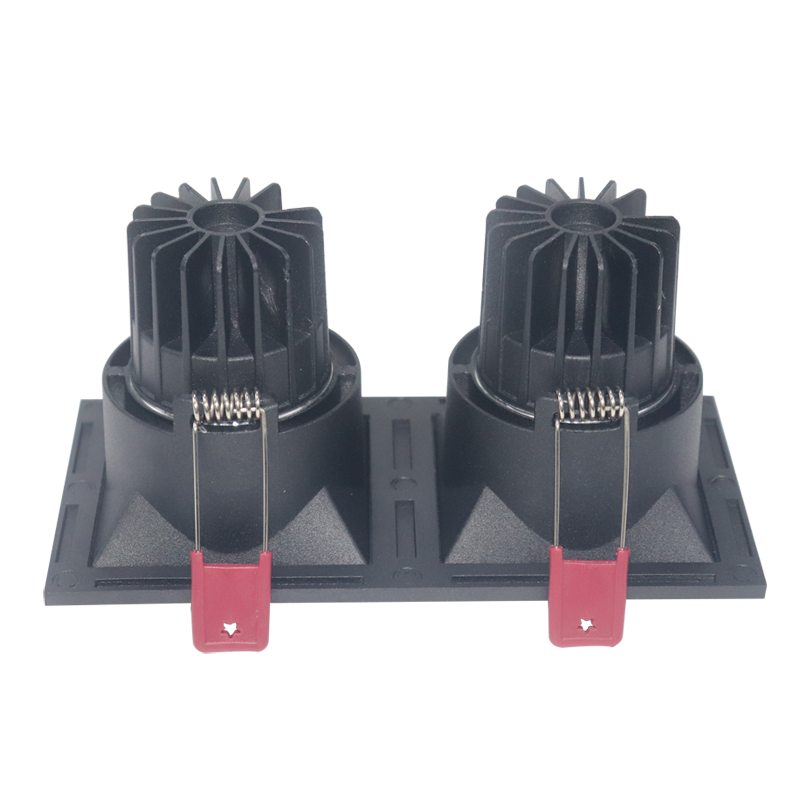

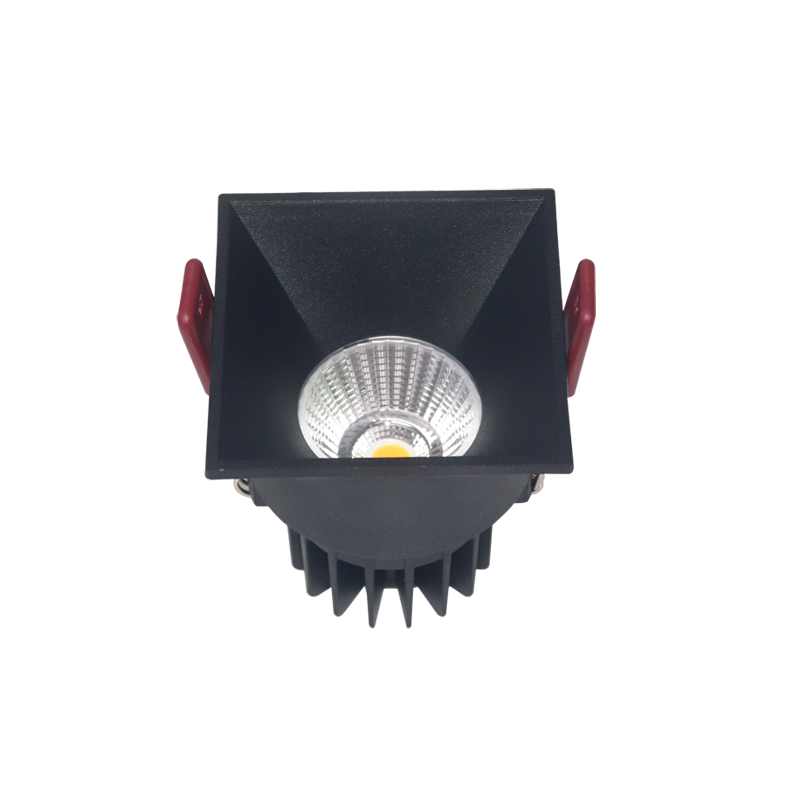

Heat sink in forged aluminium for optimum heat dissipation. Reflector in plastic PC. Bezel ring in white or black finish with an inner black baffle.
High quality aluminum body, no rust, no fading, durable
4-6cm slim body, specially designed for narrow sandwich ceiling
Super bright LED design, energy saving, low heat, low power consumption, long service life, high light efficiency
high brightness, simple, no flicker, no noise, 99.9% energy saving
No flickering occurs, better protection your eyes
High quality, >90Ra (High Color Rendering Index), colorful
Model | Power | CRI | CCT | PF | Current | Input Voltage | Beam Angle | Dimension | Cutout |
JST-STH | 7W | >80/90 | 2700K-5000K | >0.90 | 0.16A | AC220-240V | 15°/24°/36° | D80/90*H85mm | 75mm |
JST-STH | 12W | >80/90 | 2700K-5000K | >0.90 | 0.30A | AC220-240V | 15°/24°/36° | D80/90*H85mm | 75mm |
JST-STH | 7W*2 | >80/90 | 2700K-5000K | >0.90 | 0.30A | AC220-240V | 15°/24°/36° | D175*H90mm | 155*75mm |
JST-STH | 12W*2 | >80/90 | 2700K-5000K | >0.90 | 0.20A | AC220-240V | 15°/24°/36° | D175*H90mm | 155*75mm |

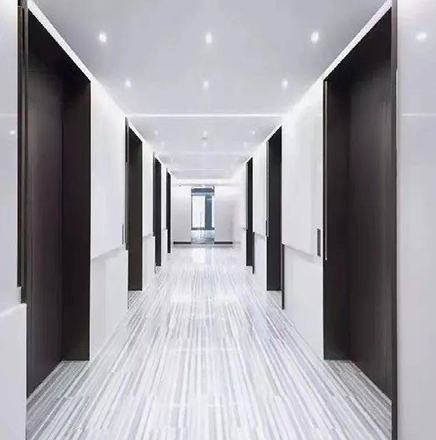

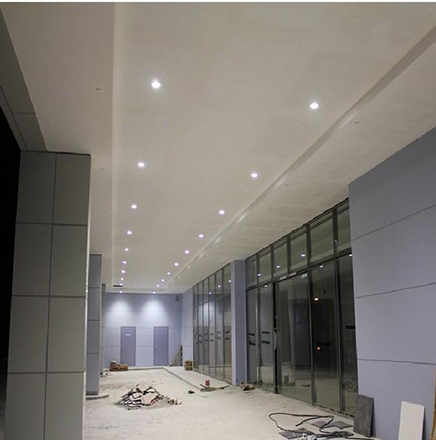

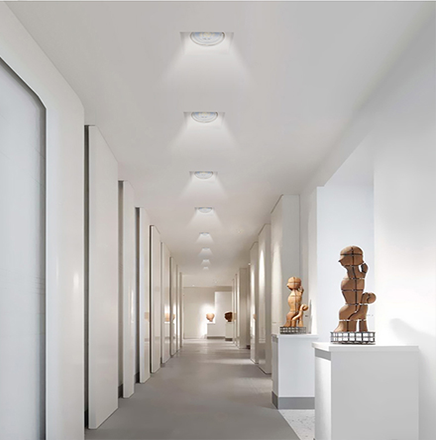

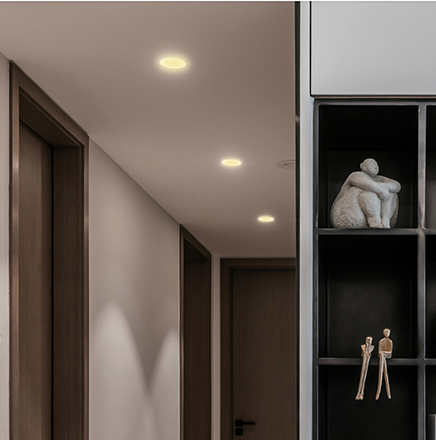

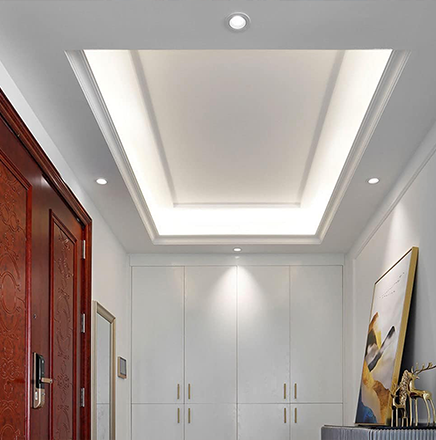

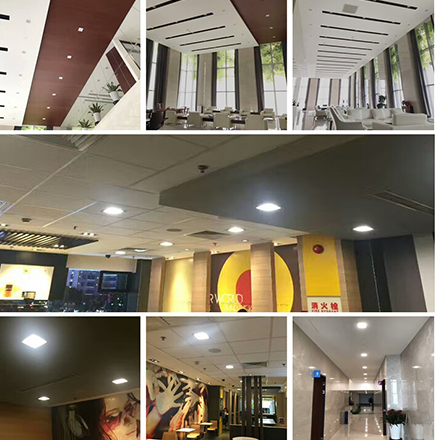

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting, Jewelry stores lighting, Banks lighting, Airport lighting, Suppermaket lighting, Art galleries lighting, Villas lighting, Bars lighting, Exhibition halls lighting etc.
