LED Hotel Downlight

LED Spot Light STM-F Series

Model: JST-STM-F

Wattage: 7W-20W

LED Chip: Citizen/Cree

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 15°/24°/38°/60°

Diameter: 64-105mm

Cutout: 60-100mm


Description

In modern times, lighting plays an important role in house design, whether because of its importance in decoration and environmental creation, or because of the electricity bill at the end of the month.


LED light: a great ally

It is well known that LED lights reduce consumption by up to 85% compared to incandescent or halogen lights. If we want to reduce consumption while maintaining the intensity of illumination, we do not have to look

at the watts (W) of a bulb, but at its lumens (Lm). The watts correspond to the energy consumption, while the lumens are the amount of light that a bulb can generate


With the development of LED technology, now LED lamps, lumens up to 100lm/W, and even up to 180lm/w, so we can choose the lamps whihigh lumens, low power wattage


Not all Spaces have to be bright enough. Over light in space is simply not comfortable. It can have a negative effect on our emotions. Therefore,  different spaces should choose different lighting, which will not

annoying or conveys a sense of chaos, also saves energy,  such as the read room, bedroom, hall, office, station.


In addition, they have the advantage of a longer life span. Because In addition, they have the advantage of a longer useful life. Because The lamp body is made of all aluminum, and the aluminum radiator can

effectively dissipate heat, and it is equipped with high-quality constant current driver and high-quality COB chip, up to 50000hrs life span,  lower replacement, it's means the maintenance expenses also decrease!


Advantages


Specification


Model

PowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout
JST-STM-F7W>80/902700K-5000K>0.900.16AAC220-240V15°/24°/38°/60°D64*H73mm60mm
JST-STM-F12W>80/902700K-5000K>0.900.30AAC220-240V15°/24°/38°/60°D85*H88mm80mm
JST-STM-F12W-S>80/902700K-5000K>0.900.30AAC220-240V15°/24°/38°/60°D85*H88mm80mm
JST-STM-F20W
>80/902700K-5000K>0.900.50AAC220-240V15°/24°/38°/60°D105*H117mm100mm



Application

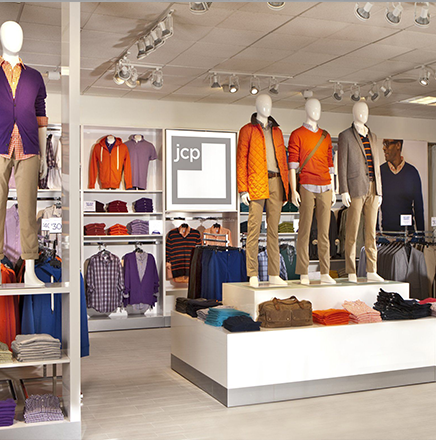

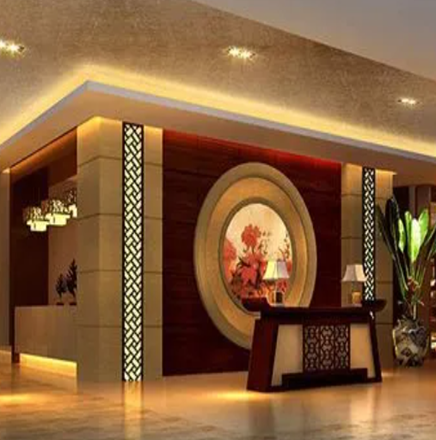

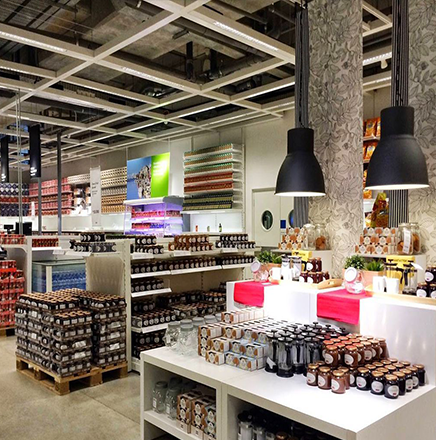

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting, Jewelry stores lighting, Banks lighting, Airport lighting, Suppermaket lighting, Art galleries lighting, Villas lighting, Bars lighting, Exhibition halls lighting etc.

LED Spot Light STM-F Series LED Spot Light STM-F Series LED Spot Light STM-F Series
LED Spot Light STM-F Series LED Spot Light STM-F Series LED Spot Light STM-F Series
