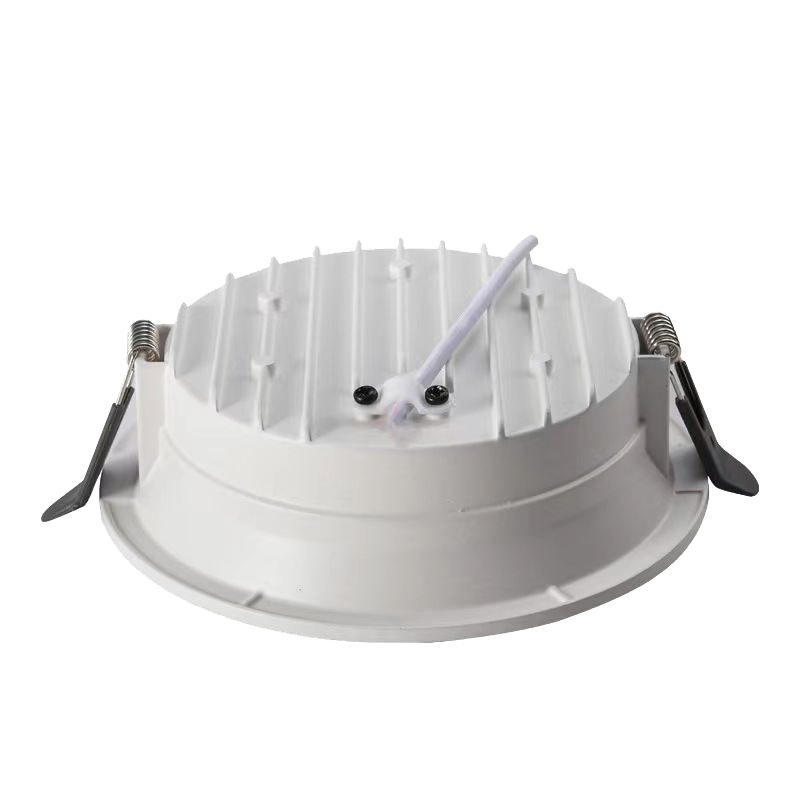

LED Hotel Downlight

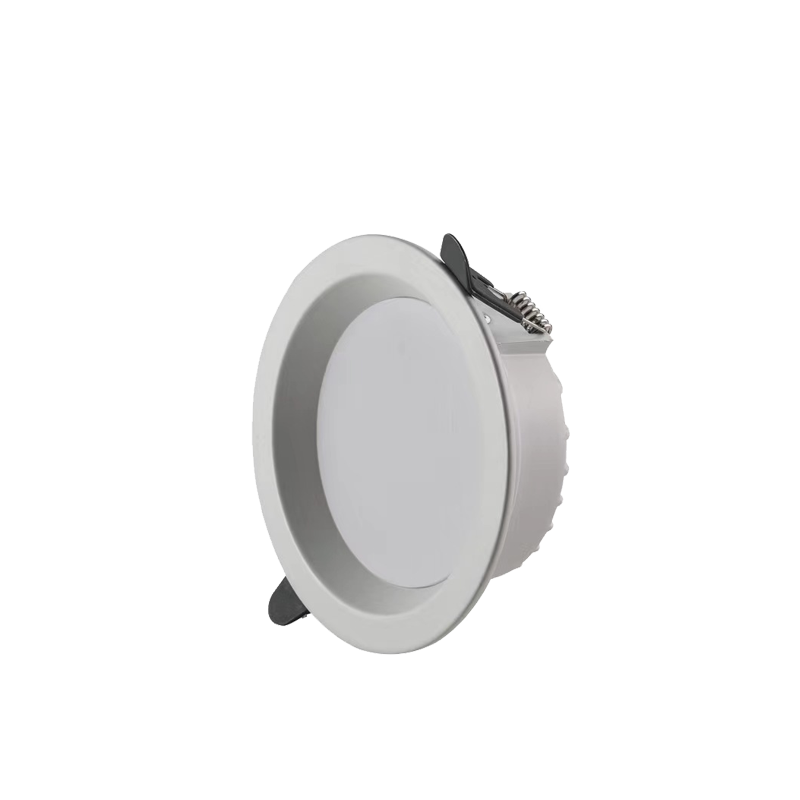

LED Hotel Downlight HTM Series With SMD

Model: JST-HTM

Wattage: 7W-20W

LED Chip: CREE/CITIZEN

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 110°

Diameter: 90mm-225mm

Cutout: 75mm-205mm



Description

LED downlights, also known as recessed lights, are lamps placed in hollow holes in the ceiling. When placed, it appears to have light coming from a hole in the ceiling, focusing the light downward. Often found in many

residential lighting systems. They add a touch of sophistication and style to any room they're in.There are currently two types of chips used in downlights, one is SMD, and the other is the COB.


What is SMD downlight?

The smd downlight is a type of downlight constructed with multiple LED chips. The multiple LED chips are typically mounted on the surface of a circuit board.


SMDs are more efficient than COBs because the light source produces higher lumens per watt, which means they produce more light with lower wattage.They produce a wider beam of light that extends over a larger

area. This means that less material is needed for the heat sink, which in turn means they are cheaper.   SMD downlights are covered with a frosted reflector that hides the LED chipset and diffuses light evenly.


Hotel downlight HTM series is one of the SMD downlight which with SMD chips for smooth, evenly distributed light without any annoying glare or buzz. covered by acrylic plate, solid state, shockproo, anti-Glare.

Perfect for warm and comfortable general lighting. A good heat sink and a separate driver (not in-built), which dissipates heat better and faster than downlights with in-built drivers on the back, which increase of

service life, 50,000 hrs life span.

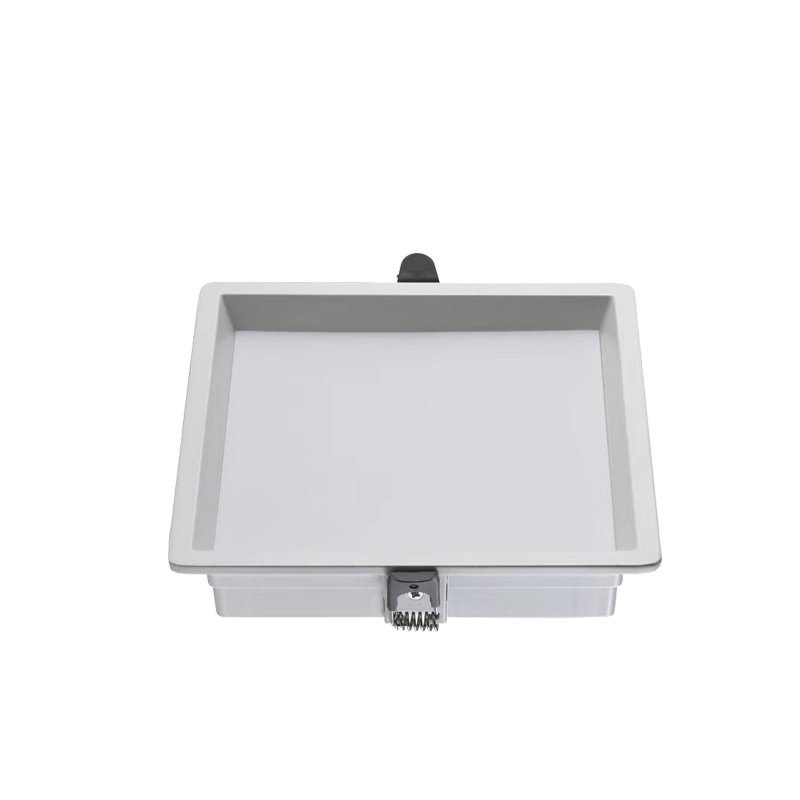

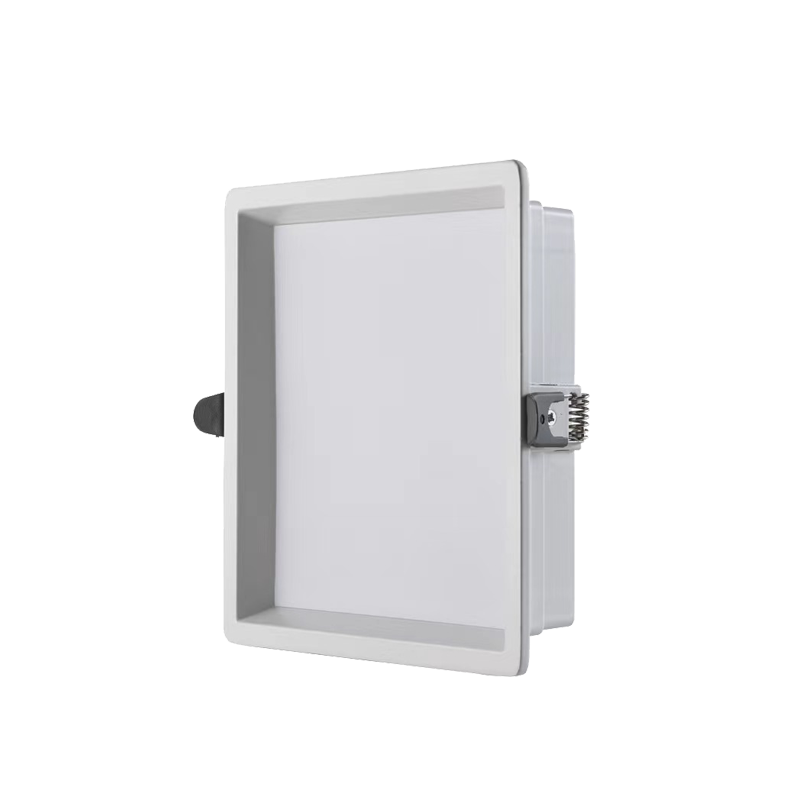

Hotel downlight HTM series also is a Ultra-thin recessed downlight, 1.5" Ultra-thin height can adapt to a variety of space is not enough. In addition, the HTM series has Square and Round, you can hoose square or

round options to match the mood of the space.


Advantages
  1. Ultra-thin design - 40mm height for all sizes

  2. Large flat panel illuminates

  3. Fixed angle 110°

  4. Distributes light evenly

  5. Round/square optional

  6. Blurred lenses anti-glare


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout
JST-HTM-R/S10W>80/902700K-5000K>0.900.25AAC220-240V110°D90*H40mm75mm
JST-HTM12W>80/902700K-5000K>0.900.30AAC220-240V110°D120*H40mm105mm
JST-HTM-R/S15W>80/902700K-5000K>0.900.35AAC220-240V110°D140*H40mm125mm
JST-HTM-R/S20W>80/902700K-5000K>0.900.50AAC220-240V110°D170*H40mm155mm
JST-HTM-R/S30W>80/902700K-5000K>0.900.75AAC220-240V110°D225*H40mm205mm

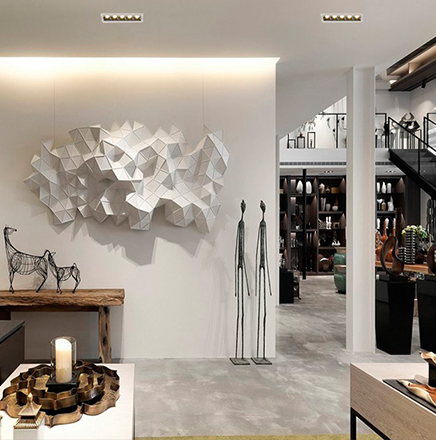

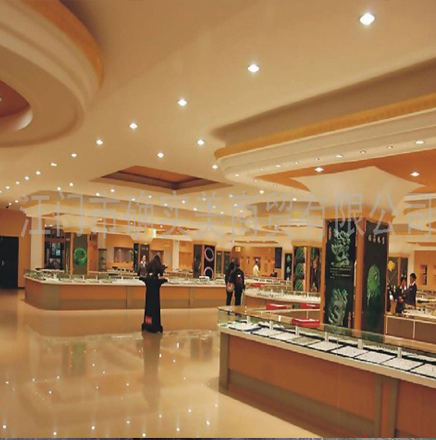

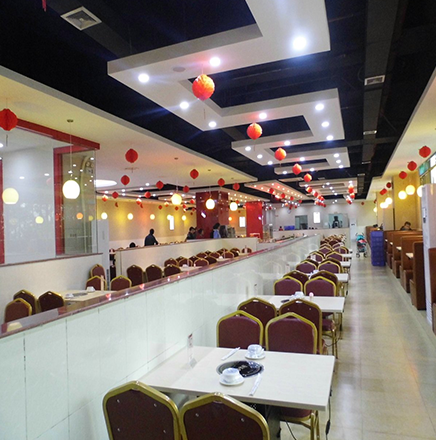

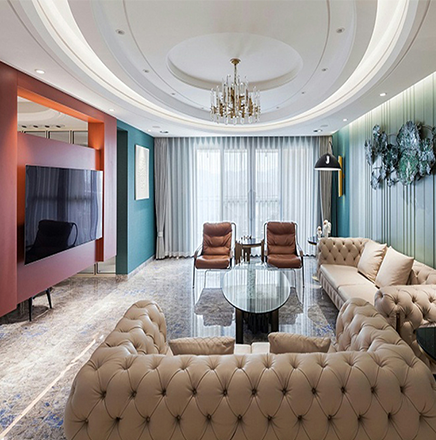

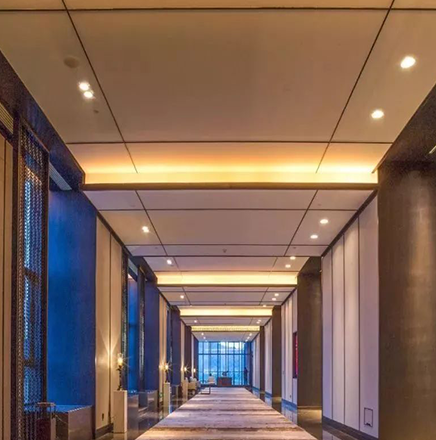

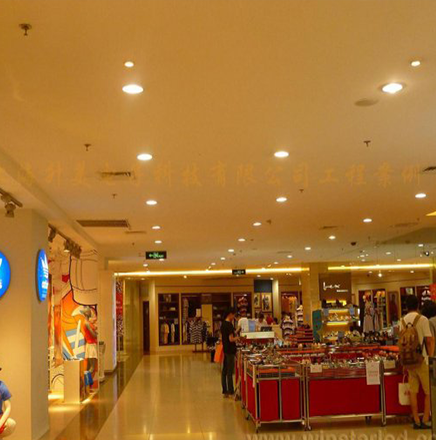

Application

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,Jewelry stores lighting,Banks lighting, Airportlighting, Suppermaket lighting etc.
