Model: JST-HTC-Trimless-Square
Wattage: 12W/20W
LED Chip: CREE/Citizen
Driver Brand: OSRAM/Philips/Lifud
RA: >90
Finish Color: White/Black/Customized
Beam Angle: 15°/24°/38°
Diameter: 85mm/110mm
Cutout: 75mm/95mm
LED downlights are called spotlights. They are embedded in the ceiling,which makes them more hidden than older spotlights or other light fixtures. HTC series is one of them which Square and Round.The square
shape has clear lines, and the space looks more three-dimensional and modern. The trimless design is closely integrated with the ceiling to better maintain the overall sense and simplicity of the ceiling.
HTC series hotel downlight is an adjustable downlight that can rotate 30° vertically and 355° horizontally to meet different applications. At the same time, it also has a special accessory - trimless frame.
What istrimless recessed lighting?
The trimless recessed lighting fitting is a plastered-in fitting, a light fitting that has “no trim” because it is “buried” in the ceiling or wall, shedding light in a seamless way without any round / square edge around it.
HTC seies trimless with adjustable: it have tilt or swivel capabilities. This allows for precise lighting control, allowing users to direct light exactly where it is needed, highlighting specific areas or objects within a
space.
Enhanced aesthetics: By removing visible trim, HTC series trimless downlights makes the installation look neater. They blend seamlessly with the ceiling, the light source are not prominent and visually expands the
space.
Easy to maintain: Edgeless recessed lighting greatly reduces the damage rate of the ceiling. You only need to remove the snap-in middle light body for repair, without destroying the embedded frame installation of
the ceiling, and you can continue to maintain the integrity of the ceiling.
A trimless recessed lighting solution is the way to go if you are aiming for a minimalistic design and want to give the overall impression of seamlessness and quality. Trimless recessed lighting are perse the designer’s
and the perfectionist’s choice.
High quality CITIZEN/CREE COB, CRI>90, SDCM<3, high efficiency and long lifespan.
Deep cup with fog glass, the light spot is even and not dazzling, which is more eye-friendly
Anti-glare design with various free replacement accessories
30 swiveling at vertical, horizontal rotaion 355°, meet with differemt applicationms
Modularity structure, easier to assemble, install and disassemble, no damage to the ceiling floor
Family structure appearance design to meet with the uniform aesthetic requirement

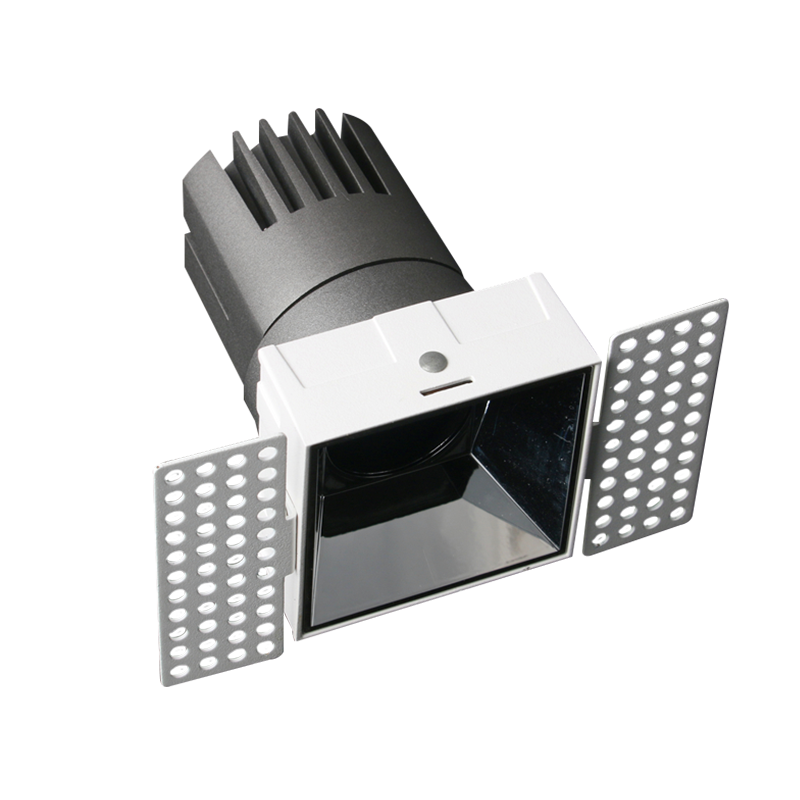

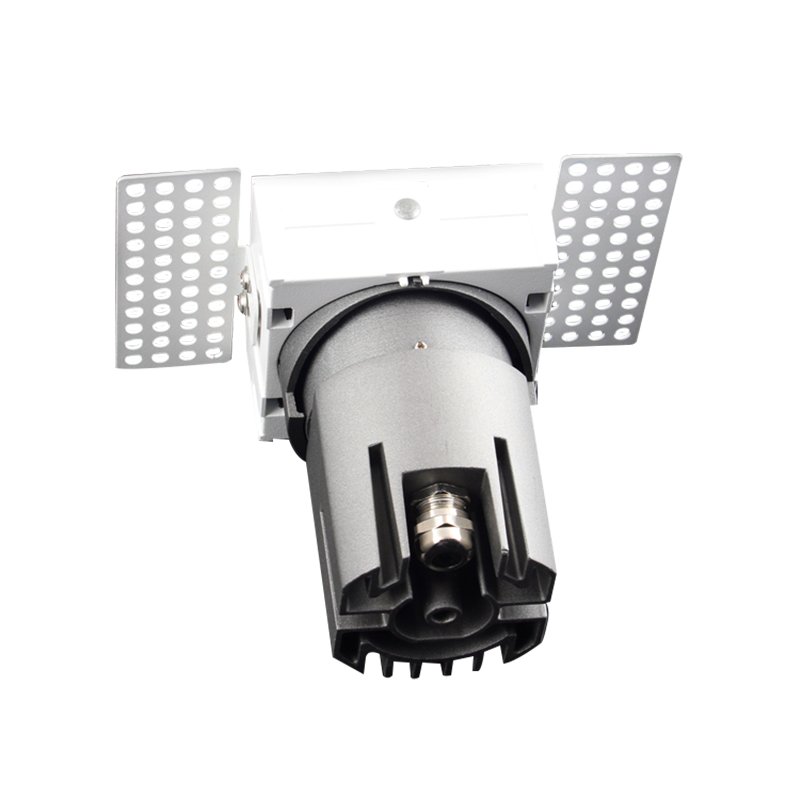

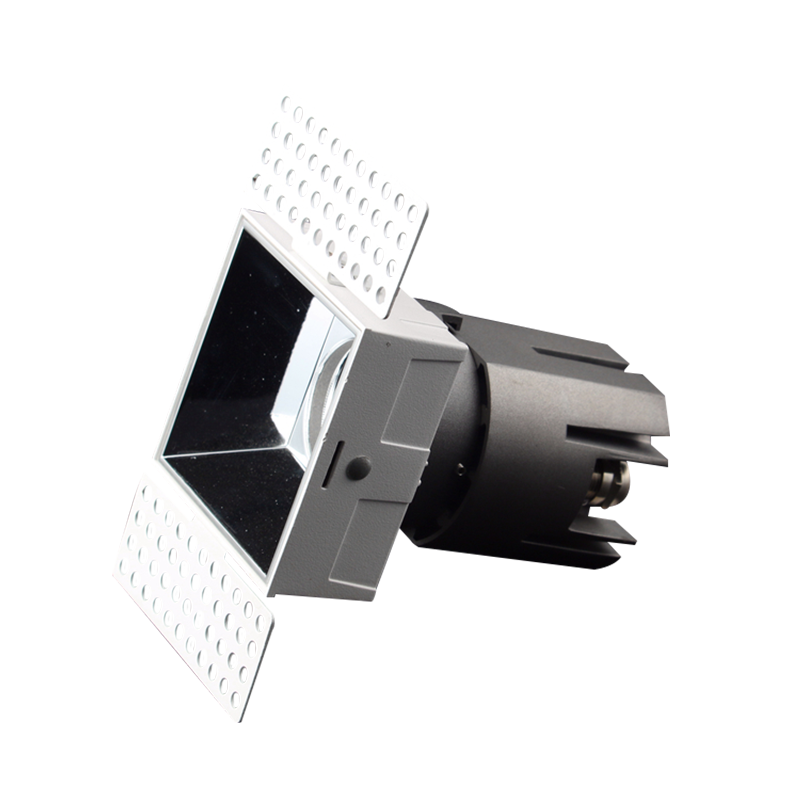

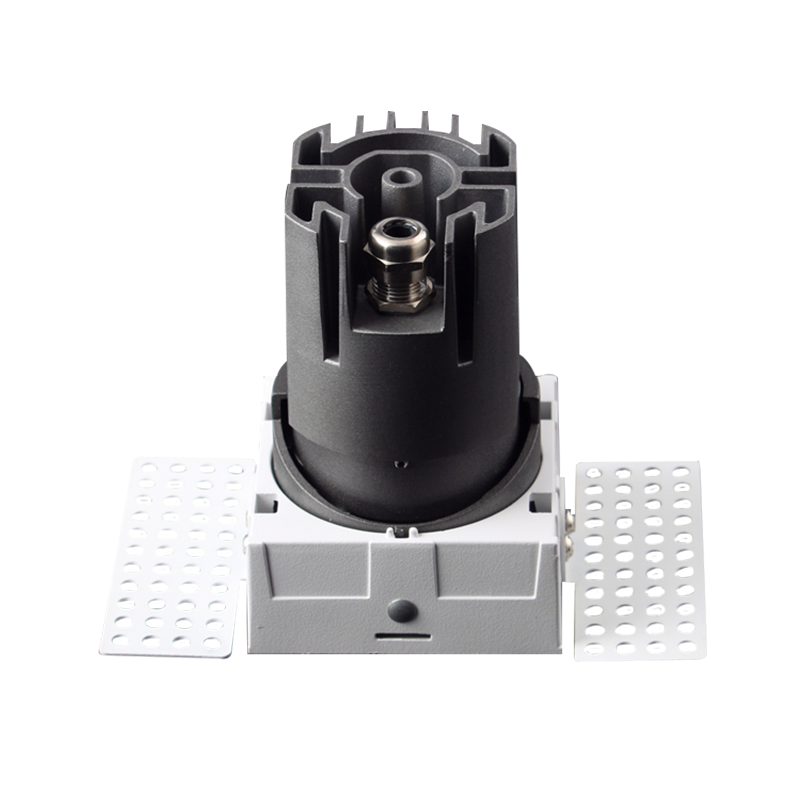

Trimless square shape
Model | Power | CRI | CCT | PF | Current | Input Voltage | Beam Angle | Dimension | Cutout |
JST-HTC-trimless square | 12W | >80/90 | 2700K-5000K | >0.90 | 0.30A | AC220-240V | 15°/24°/38° | D85*H105mm | 75mm |
JST-HTC-trimless square | 20W | >80/90 | 2700K-5000K | >0.90 | 0.50A | AC220-240V | 15°/24°/38° | D110*H130mm | 95mm |

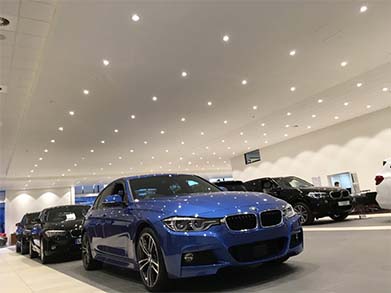

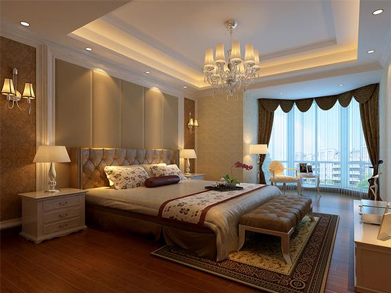

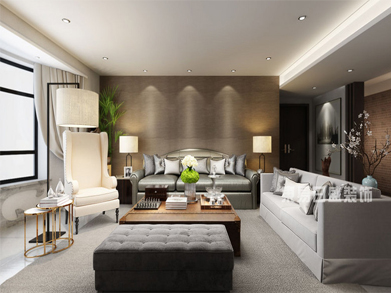

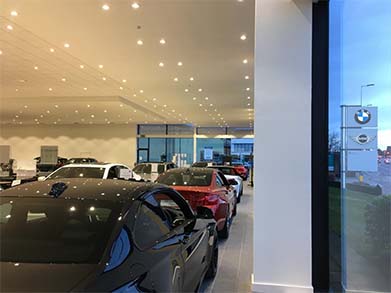

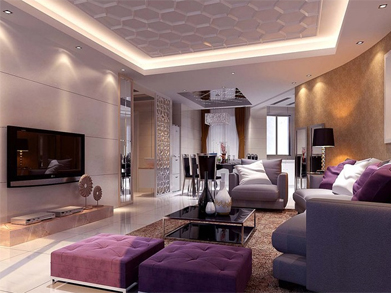

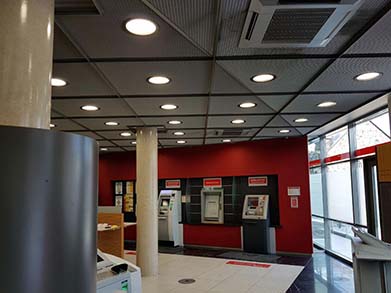

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting, Jewelry stores lighting,Banks lighting, Airport lighting, Suppermaket lighting etc.
