LED Hotel Downlight

LED Hotel Downlight Square HTW Series

Model: JST-HTW

Wattage: 10W-35W

LED Chip: CREE/Citizen

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 15°/24°/38°

Diameter: 65mm-135mm

Cutout: 55mm-125mm


Description

LED lights have changed the face of the lighting industry in recent years. With our light’s ability to create vibrant colours and a huge range of lighting effects, these lights have become more popular and preferred

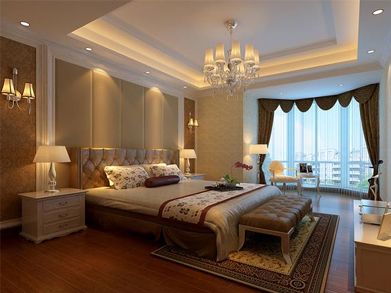

among customers. In hotel lighting, more attention needs to be paid to atmosphere and ambience. Some elements contribute to the ambienc. When stepping into this special lighting design, it contributes more to the

desired mood for the customers and guests.


LED Hotel Downlight series were designed by well-known lighting designers according to the deep anti-glare lighting perfermance and applacation which could archieve UGR<9. Elegant & Modular design, quickly

assemble and disassemble. Reduce maintenance means save costs. Different reflector shapes for options. The shape for fittings include Round, Square, Fixed, Gimbal, Parallel and Convex.


HTW series downlights  is a high-lumen, yet infinitely flexible,well-focused LED downlight offers unmatched performance for general, task and accent lighting.  Equiped with high-quality Idiffuser and reflectors and can

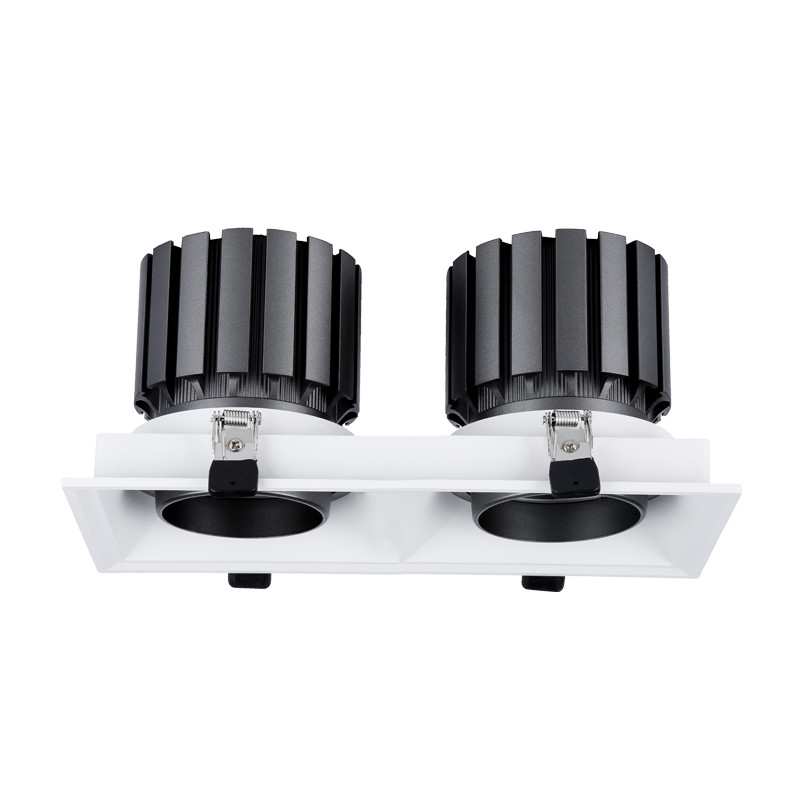

be specified for use with different frame. Round, Square, Double head optinals. Deep hidden light source desigh, let you see the light but can not see the light source , at the same time. The deep anti-glare design,  no

glare, no flicker, beneficial eye protection.



Advantages
  1. High quality CITIZEN COB, CRI>90, SDCM<3

  2. Anti-glare design with various free replacement accessories

  3. Triac, 0-10V and DALI dimming are available

  4. Modularity structure, easier to assemble, install and disassemble, no damage to the ceiling floor

  5. Family structure appearance design to meet with the uniform aesthetic requirement

  6. Distinctive square design


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout
JST-HTW10W>80/902700K-5000K>0.900.25AAC220-240V15°/24°/38°D65*H86mm55mm
JST-HTW15W>80/902700K-5000K>0.900.35AAC220-240V15°/24°/38°D85*H105mm75mm
JST-HTW25W>80/902700K-5000K>0.90

0.60A

AC220-240V15°/24°/38°D105*H132mm95mm
JST-HTW35W>80/902700K-5000K>0.900.85AAC220-240V15°/24°/38°D135*H125mm125mm

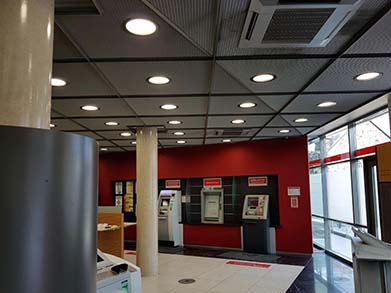

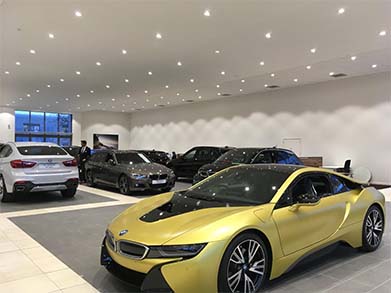

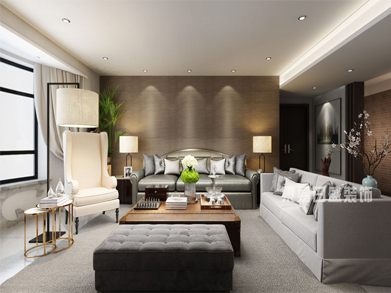

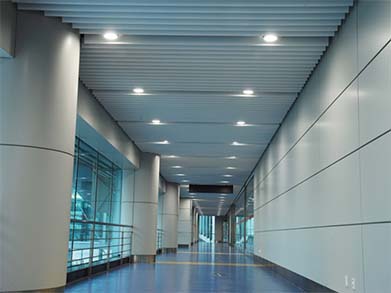

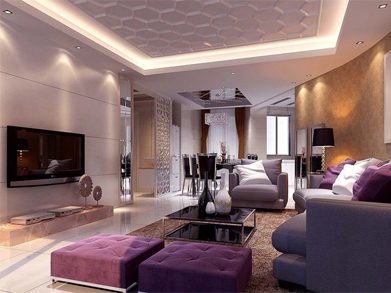

Application

Fashion stores lighting, Stationsli ghting, Hotels lighting, Offices kighting, Shopping malls lighting, Clubs lighting, Supermarkets lighting etc.
