Model: JST-HTA series
Wattage: 1W/3W/5W/7W/10W
LED Chip: OSRAM3030/CREE
Driver Brand: OSRAM/Philips/Lifud
RA: >90
Finish Color: White/Black/Customized
Beam Angle: 10°/24°/36°

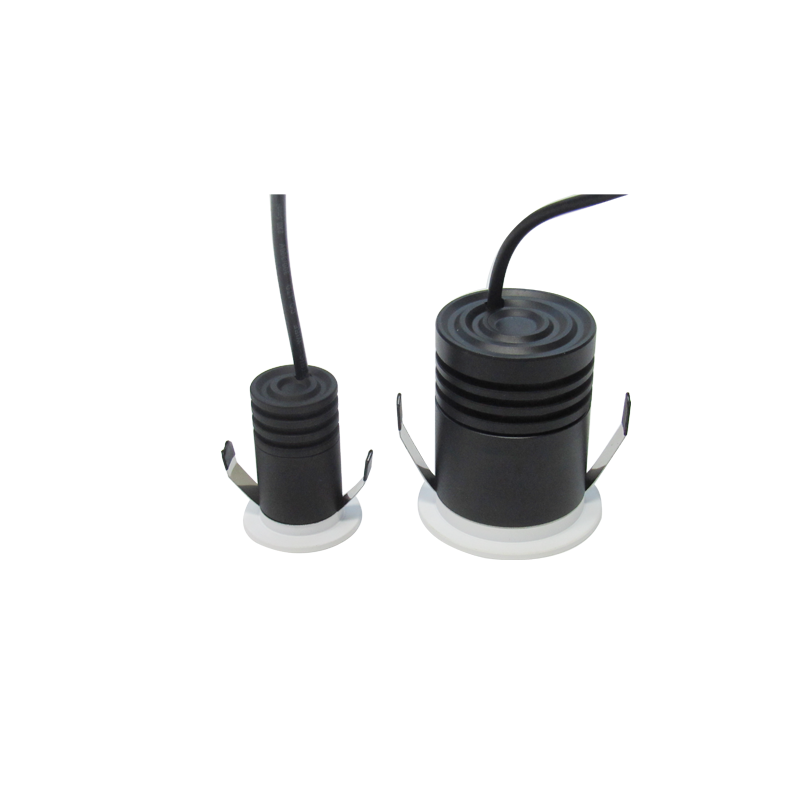

Diameter: 37mm/45mm/57mm/68mm
Cutout: 30mm/40mm/50mm/60mm
If you want a clean, open space with adequate lighting, LED downlights are the best lighting solution. It brings a modern touch to the room and creates an inviting atmosphere. Since it sits flush with your ceiling, there
won't be any obstructions to your vertical space, giving you more options for your interior design.
Mini downlights are famous for their small size and low power. They aren't usually used for accent lighting. As auxiliary lights, they add different colors to the space. Mini downlight series were designed by well-known
lighting designers according to the deep anti-glare lighting perfermance and applacation which could archieve UGR<10. HTA is one of them:
Ideal for Display Lighting & Cabinets
Small, Discrete Hole Sizes
Tiny, Bright & Dimmable Available

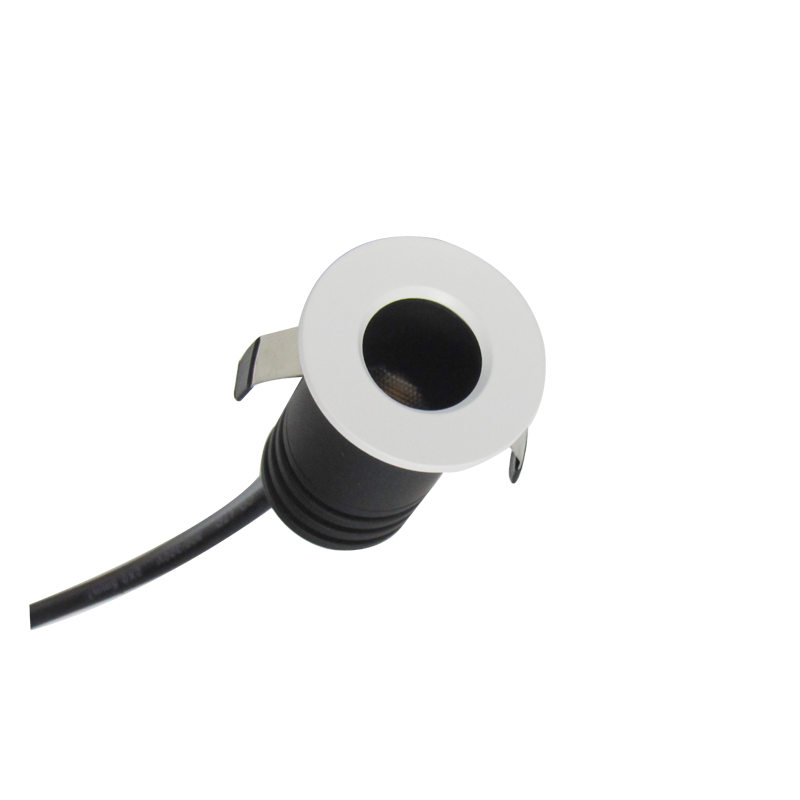

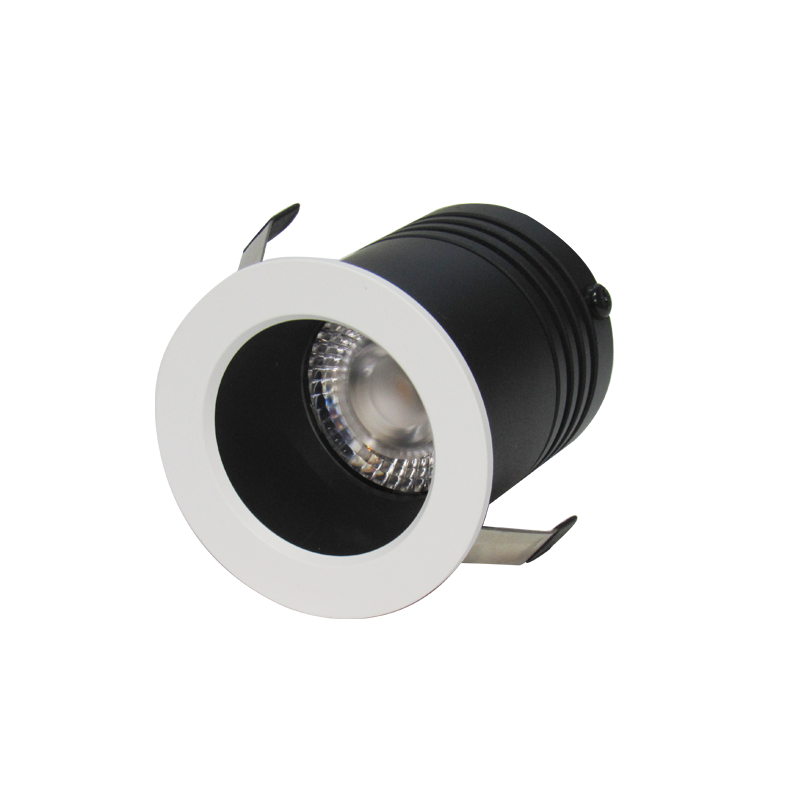

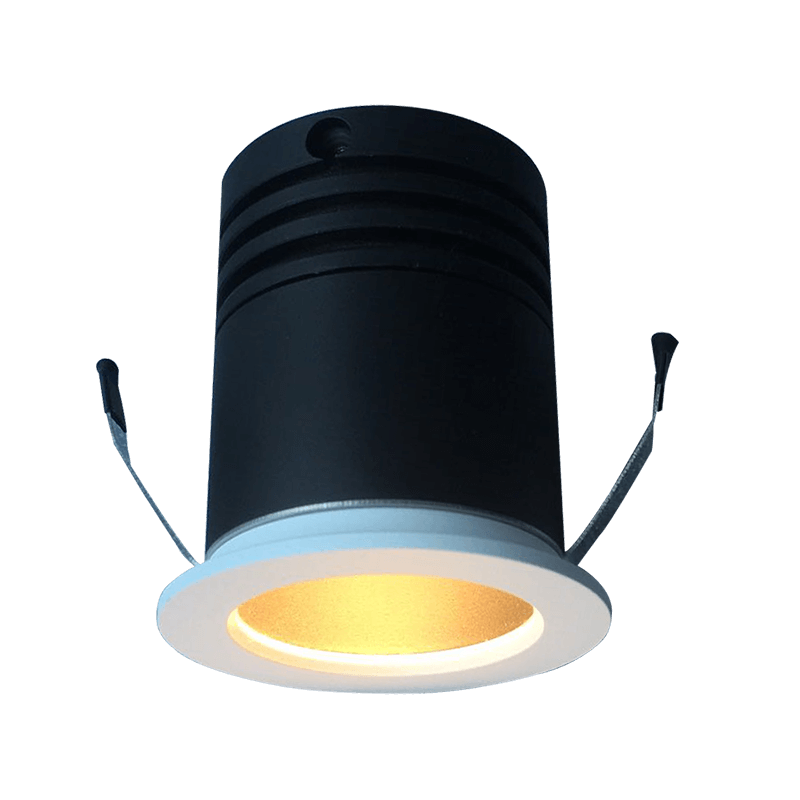

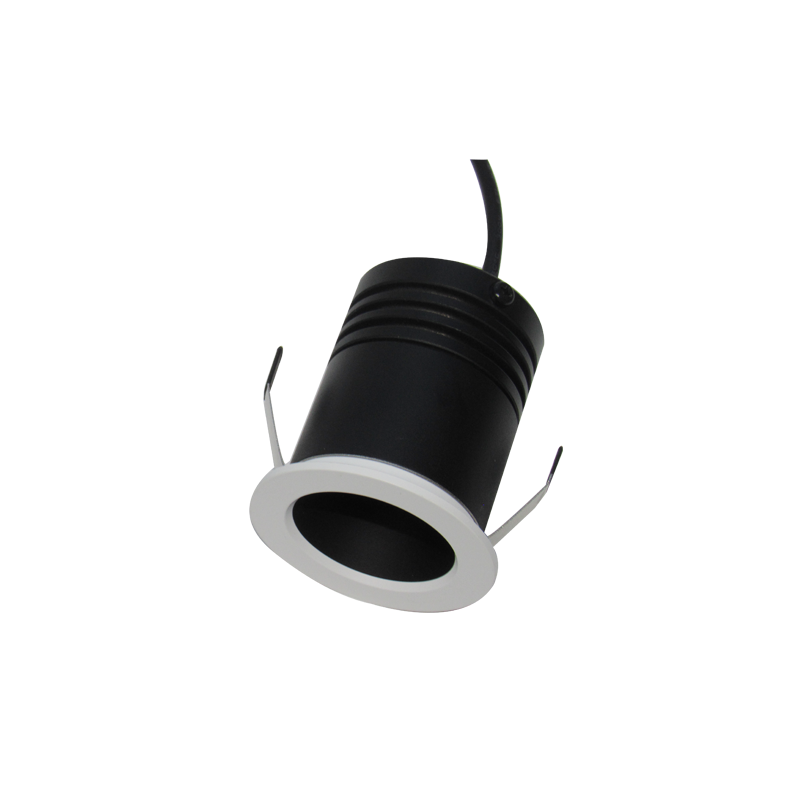

HTA series hotel recessed spotlights are made of high-quality aluminum shell, anti-corrosion and anti-rust, aluminum radiator, high thermal conductivity material, good heat dissipation performance and long lifespan.
With a modern and functional design, it emits the necessary light to focus on the desired product or environment.
HTA series hotel recessed spotlights adopt new generation LED chips and technology, 1-10W, up to 1000 lumens, equivalent to 100W halogen lamps, saving you up to 90% of energy costs. CRI>90 and LIFUD, OSRAM
drives. Excellent LED light quality and small enough to be mounted in tight spaces where other lighting options might not work, ideal for creating a pleasant atmosphere in a space.
· High quality CITIZEN COB, CRI>90, SDCM<3
· Anti-glare design with various free replacement accessories
· Triac, 0-10V and DALI dimming are available
· Modularity structure, easier to assemble, install and disassemble, no damage to the ceiling floor
· Family structure appearance design to meet with the uniform aesthetic requirement
Model | Power | CRI | CCT | PF | Current | Input Voltage | Beam Angle | Dimension | Cutout |
JST-HTA | 1W | >80/90 | 2700K-5000K | >0.65 | 0.03A | AC220-240V | 10°/24°/36° | D37*H40mm | 30mm |
JST-HTA | 3W | >80/90 | 2700K-5000K | >0.90 | 0.07A | AC220-240V | 10°/24°/36° | D37*H40mm | 30mm |
JST-HTA | 5W | >80/90 | 2700K-5000K | >0.90 | 0.13A | AC220-240V | 10°/24°/36° | D45*H50mm | 40mm |
JST-HTA | 7W | >80/90 | 2700K-5000K | >0.90 | 0.16A | AC220-240V | 10°/24°/36° | D57*H62mm | 50mm |
JST-HTA | 10W | >80/90 | 2700K-5000K | >0.90 | 0.25A | AC220-240V | 10°/24°/36° | D68*H78mm | 60mm |

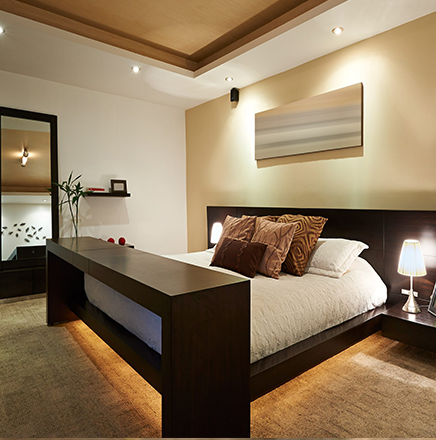

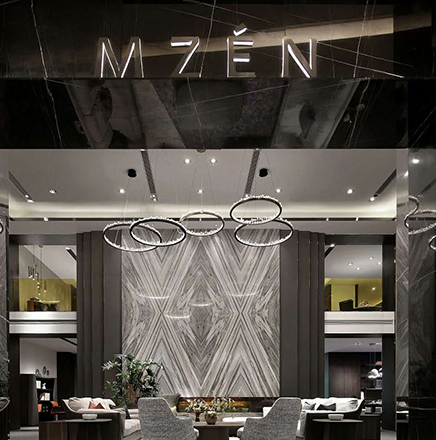

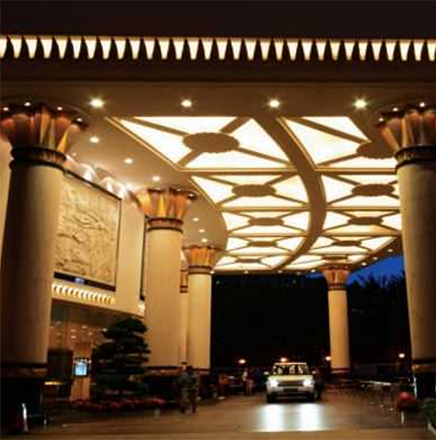

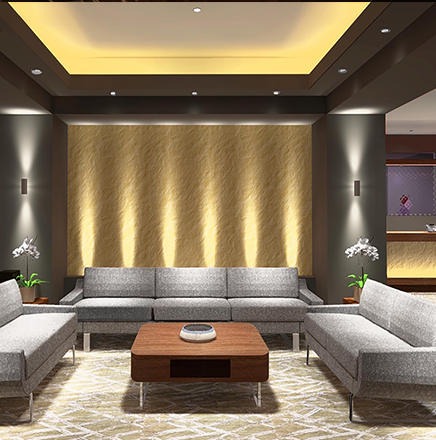

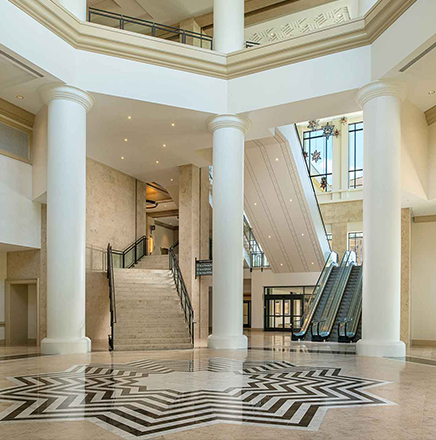

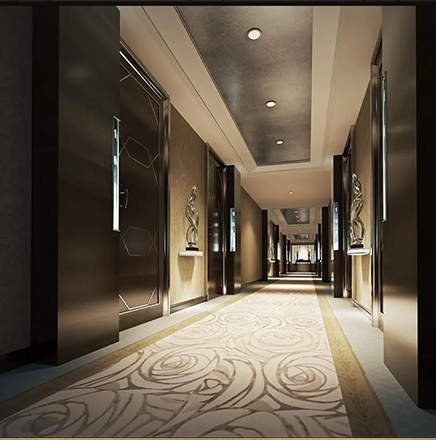

Hotels lighting, Villas lighting, Cludes lighting, Cinemas lighting, Offices lighting, resturants lighting, Fashion stores lighting, Stations lighting, Shopping malls lighting, Supermarkets lighting etc.
