Model: JST-HTW
Wattage: 10W-35W
LED Chip: CREE/Citizen
Driver Brand: OSRAM/Philips/Lifud
RA: >90
Finish Color: White/Black/Customized
Beam Angle: 15°/24°/38°
Diameter: 65mm-135mm
Cutout: 55mm-125mm
LED lights have changed the face of the lighting industry in recent years. With our light’s ability to create vibrant colours and a huge range of lighting effects, these lights have become more popular and preferred
among customers. In hotel lighting, more attention needs to be paid to atmosphere and ambience. Some elements contribute to the ambienc. When stepping into this special lighting design, it contributes more to the
desired mood for the customers and guests.
LED Hotel Downlight series were designed by well-known lighting designers according to the deep anti-glare lighting perfermance and applacation which could archieve UGR<9. Elegant & Modular design, quickly

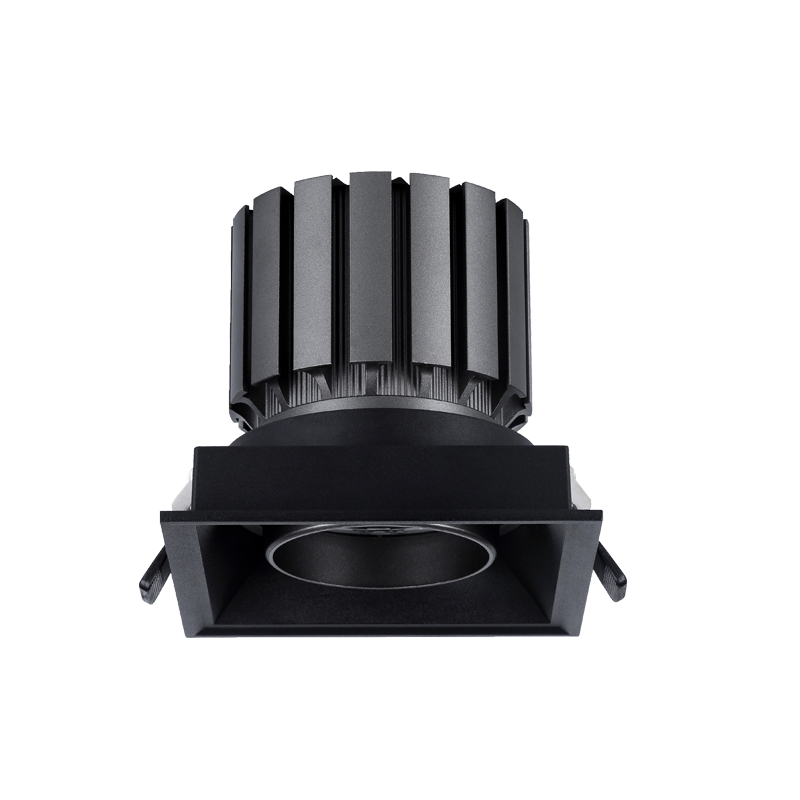

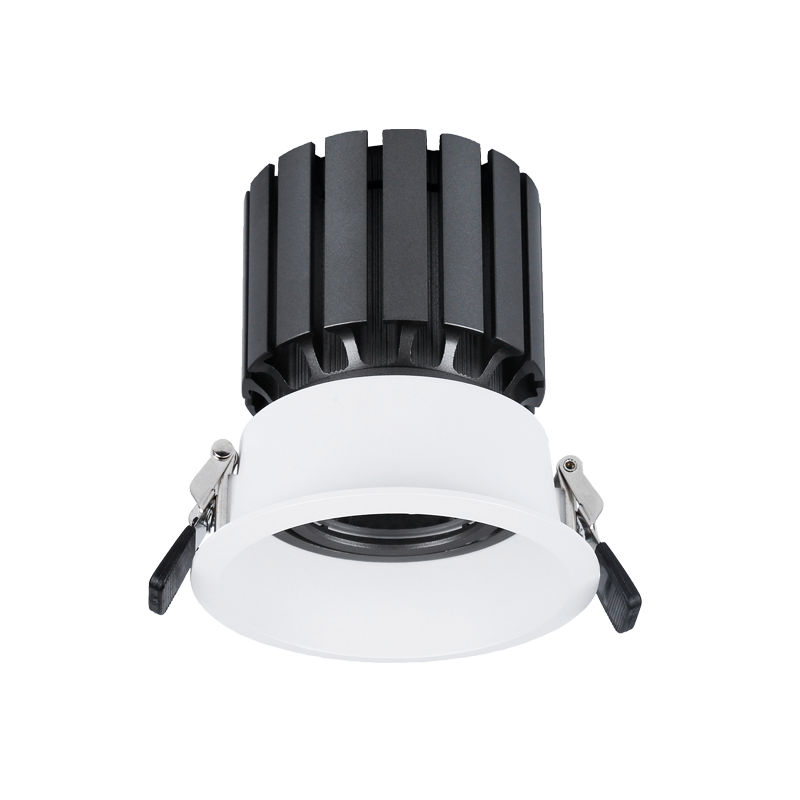

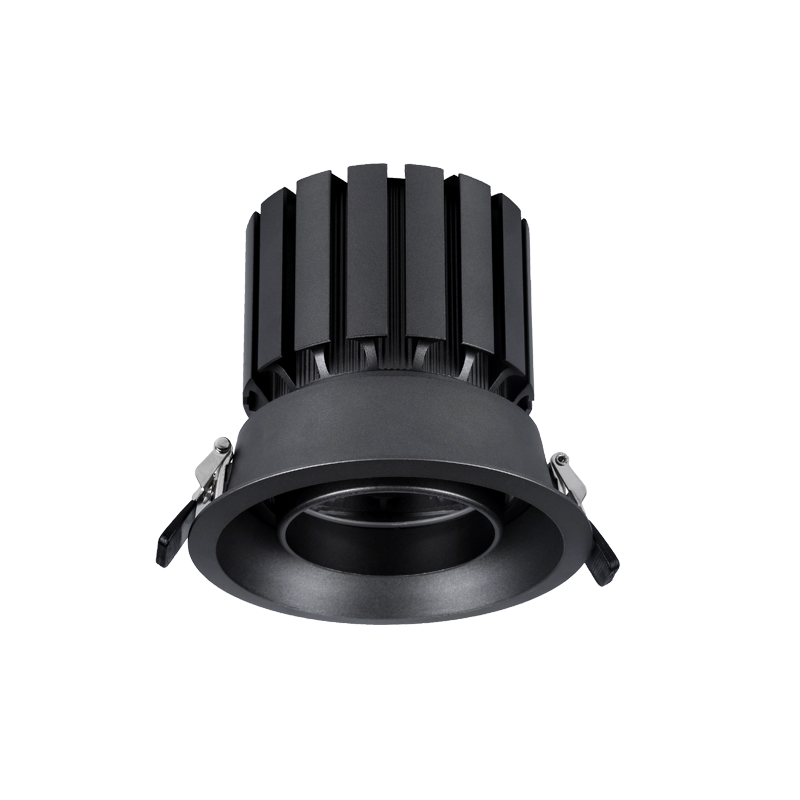

assemble and disassemble. Reduce maintenance means save costs. Different reflector shapes for options. The shape for fittings include Round, Square, Fixed, Gimbal, Parallel and Convex.
HTW series downlights is a high-lumen, yet infinitely flexible,well-focused LED downlight offers unmatched performance for general, task and accent lighting. Equiped with high-quality Idiffuser and reflectors and can

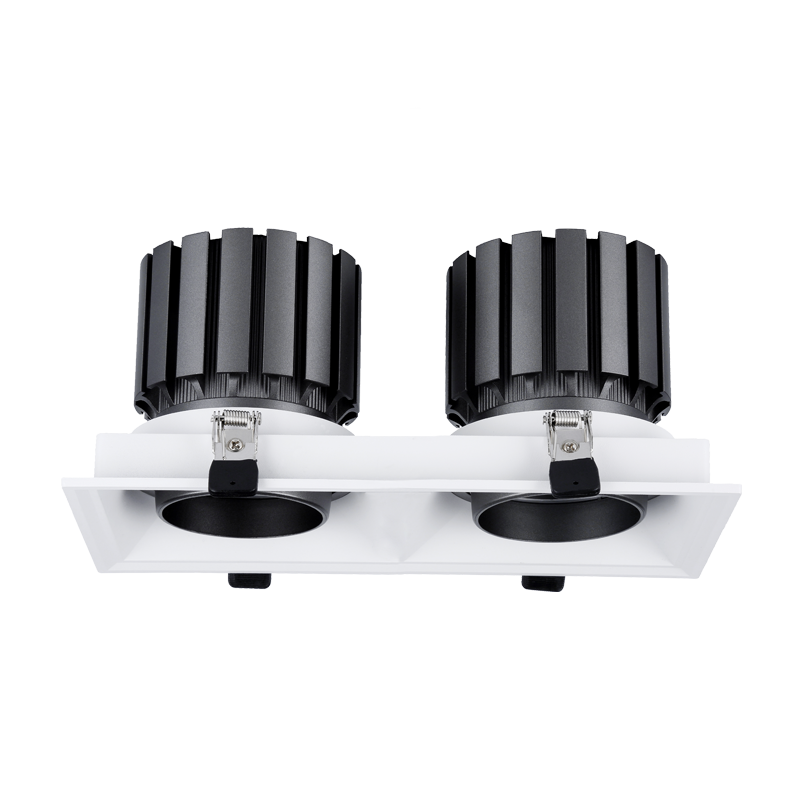

be specified for use with different frame. Round, Square, Double head optinals. Deep hidden light source desigh, let you see the light but can not see the light source , at the same time. The deep anti-glare design, no
glare, no flicker, beneficial eye protection.
HTW series spotlights can be used for stage lighting, art gallery lighting, museum lighting to highlight the illuminated object area. These lights are often used to provide accent lighting or task lighting in a room, and
add drama and dimension to any outdoor space.
To add to its adaptability, the downlight can be further customized by choosing from a range of baffle and trim finishes, drivers, beam angle(15°/24°/38°) and CCT(2700K/3000K/4000K/5000K). This customization
allows users to create a unique downlight that fits their specific requirements and style preferences.
· High quality CITIZEN COB, CRI>90, SDCM<3, licker free
· Anti-glare design with various free replacement accessories
· Die-cast aluminum heat, perfect heat slink design
· Triac, 0-10V and DALI dimming are available
· Modularity structure, easier to assemble, install and disassemble, no damage to the ceiling floor
· Family structure appearance design to meet with the uniform aesthetic requirement
Model | Power | CRI | CCT | PF | Current | Input Voltage | Beam Angle | Dimension | Cutout |
JST-HTW | 10W | >80/90 | 2700K-5000K | >0.90 | 0.25A | AC220-240V | 15°/24°/38° | D65*H86mm | 55mm |
JST-HTW | 15W | >80/90 | 2700K-5000K | >0.90 | 0.35A | AC220-240V | 15°/24°/38° | D85*H105mm | 75mm |
JST-HTW | 25W | >80/90 | 2700K-5000K | >0.90 | 0.65A | AC220-240V | 15°/24°/38° | D105*H132mm | 95mm |
JST-HTW | 35W | >80/90 | 2700K-5000K | >0.90 | 0.85A | AC220-240V | 15°/24°/38° | D135*H125mm | 125mm |
Fashion stores lighting, Stationsli ghting, Hotels lighting, Offices kighting, Shopping malls lighting, Clubs lighting, Supermarkets lighting etc.
