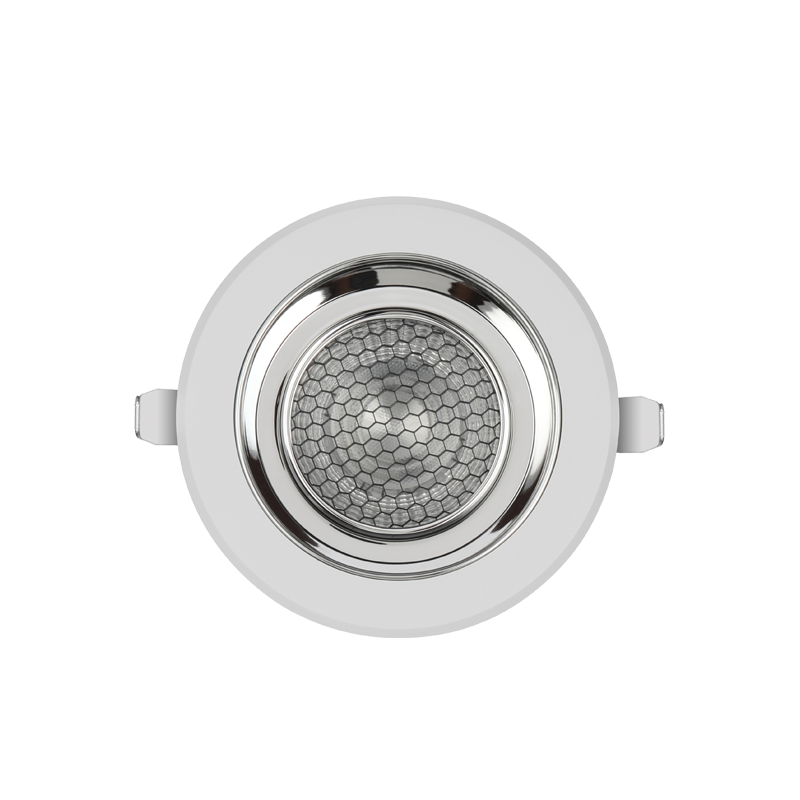

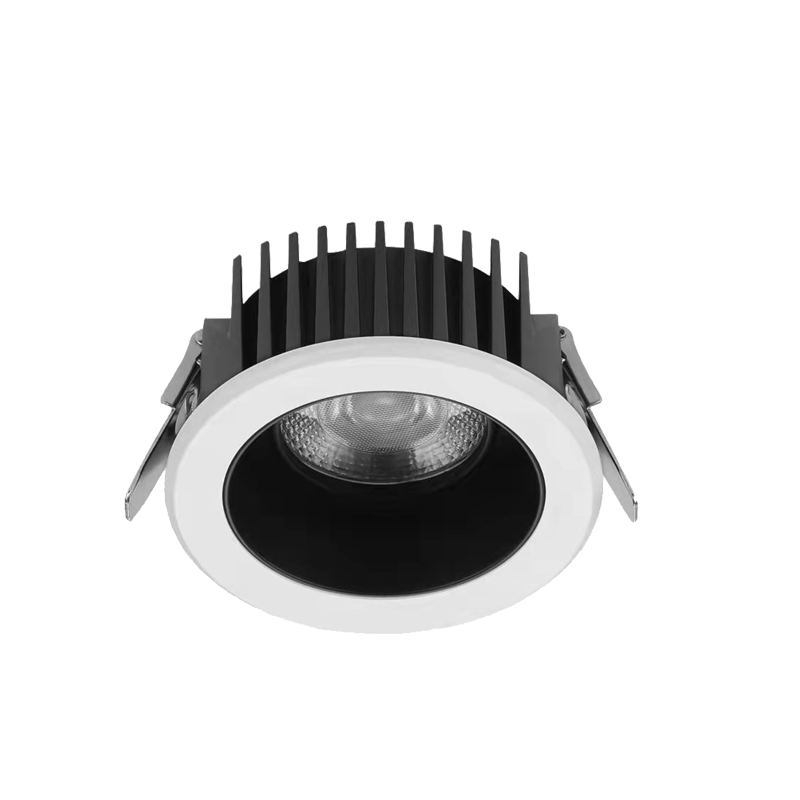

LED Hotel Downlight

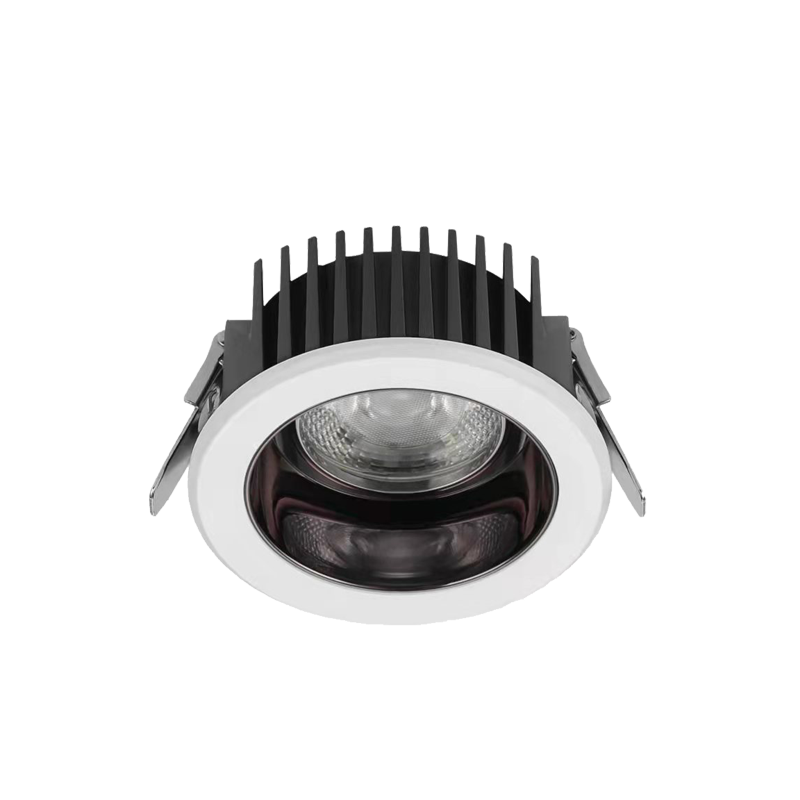

LED Hotel Downlight HTP Series

Model: JST-HTP

Wattage: 12W-25W

LED Chip: CREE/CITIZEN

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 15°/24°/38°/50°

Diameter: 84mm-128mm

Cutout: 75mm-120mm


Description

A downlight is a light fitting that is mostly out of sight, hidden in or above the ceiling. The only visible part of the light fitting is the decorative rim, and the diffuser in the middle. Everything else is held in place in the

ceiling by spring clips that stop the whole thing giving in to gravity and falling out.


In both residential and commercial Settings, downlights are becoming popular, because they give space a modern look and do not take up space. HTP series downlights are used in the most prestigious projects. Its

versatility is sought after by designers and electricians alike.vailable with the flexibility of 4 beam angles (15°/24°/38°/50°) and a range of compatible mounting rings Stylish, sleek recessed spaces fill your space with

warm vision.


HTP series mainly use COB LED Chips as the light source which  energy-saving and efficient. It directly encapsulates low-power chips on an aluminum substrate for rapid heat dissipation. The chip area is small and the

heat dissipation efficiency is high. It can better control the smaller light-emitting surface. At the same time, the CRI of COB chips has basically reached above 90 which provides true color rendering and consistency

close to daylight throughout your space, displaying natural colors more vividly. The light and shadow of the object illuminated by the light with a COB light source are three-dimensional and clear.

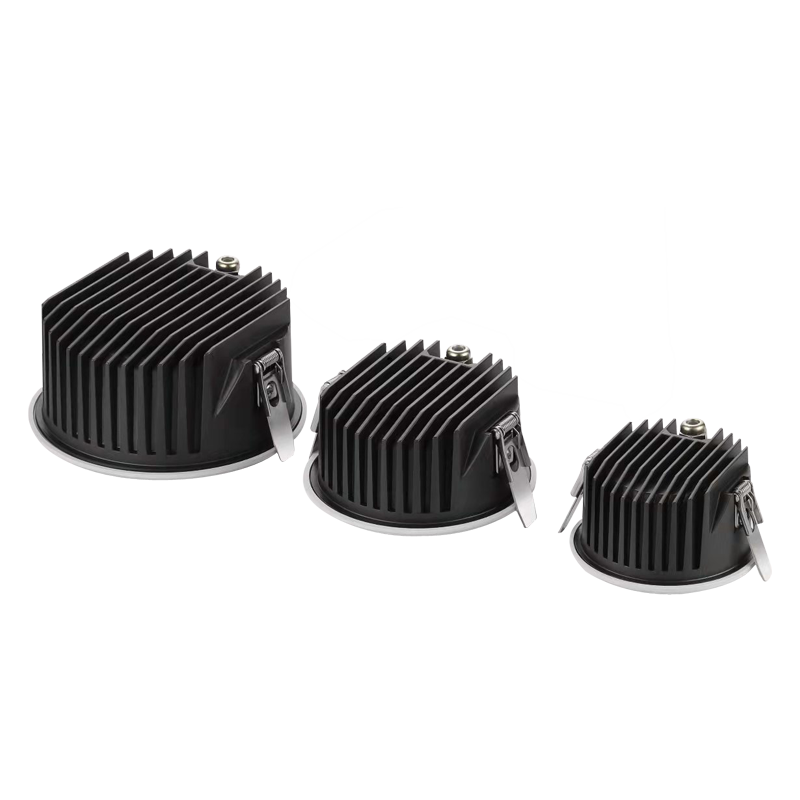

In addition, HTP series with die-cast aluminum housing which is durable, with multiple sawn blades expand the heat dissipation area,  improves thermal management, thus making the use of lamps more lasting,

lifespan is up to 50,000+ hours.


Advantages
  1. CITIZEN/CREE chip, high efficiency, super bright

  2. Anti-glare,eye friendly,

  3. Aluminium alloy housing, radiate fast, long life span

  4. Lightweight and shock resistant

  5. A variety of anti-glare cup colors are available, black, white, chrome, gold

  6. Embedded design, easy installation


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout
JST-HTP12W>80/902700K-5000K>0.900.30AAC220-240V15°/24°/38°/50°D84*H47mm75mm
JST-HTP15W>80/902700K-5000K>0.900.35AAC220-240V15°/24°/38°/50°D104*H50mm95mm
JST-HTP20W>80/902700K-5000K>0.900.50AAC220-240V15°/24°/38°/50°D128*H58mm120mm
JST-HTP25W>80/902700K-5000K>0.900.60AAC220-240V15°/24°/38°/50°D128*H158mm120mm

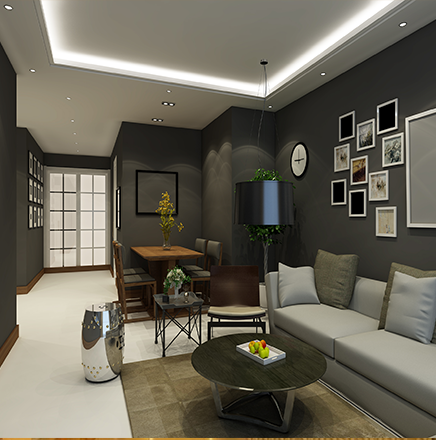

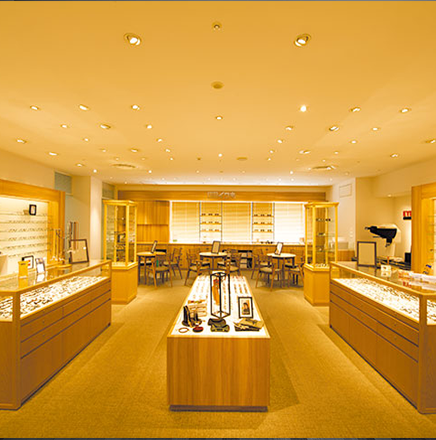

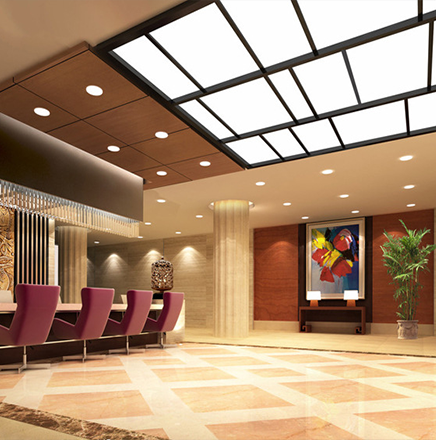

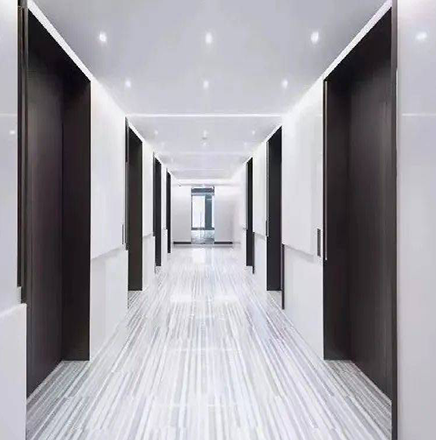

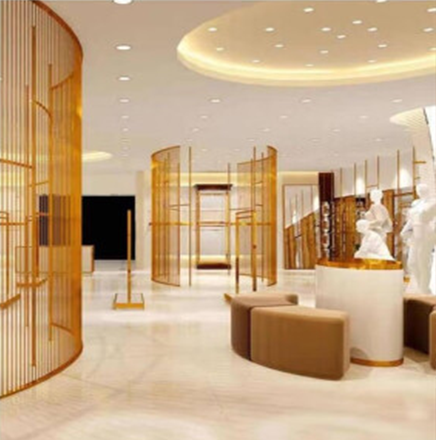

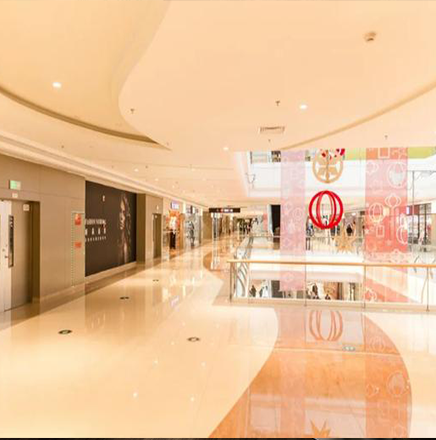

Application

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,Jewelry stores lighting,Banks lighting, Airportlighting, Suppermaket lighting etc.
