LED Hotel Downlight

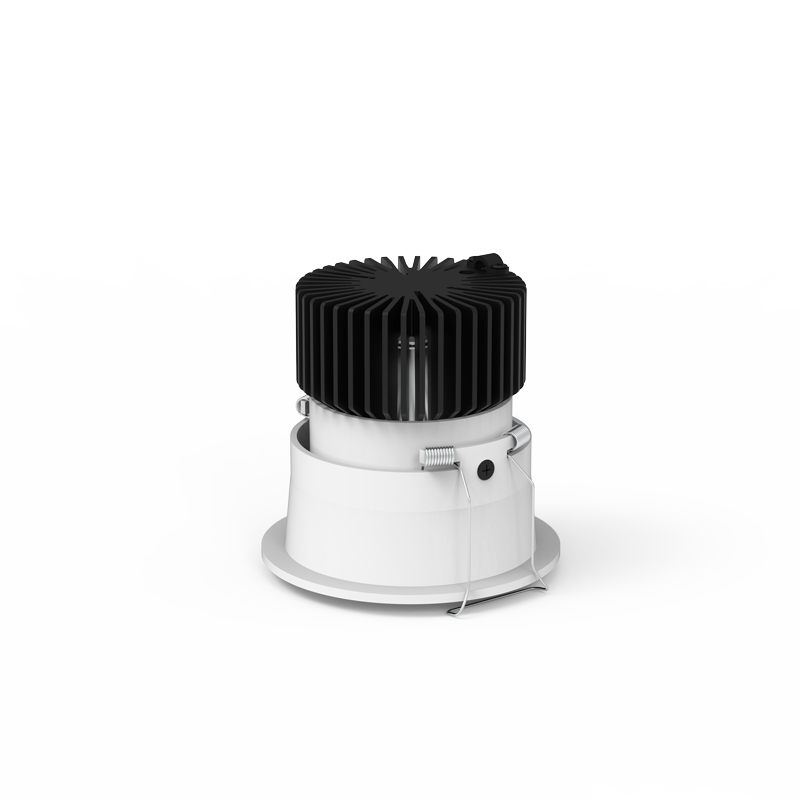

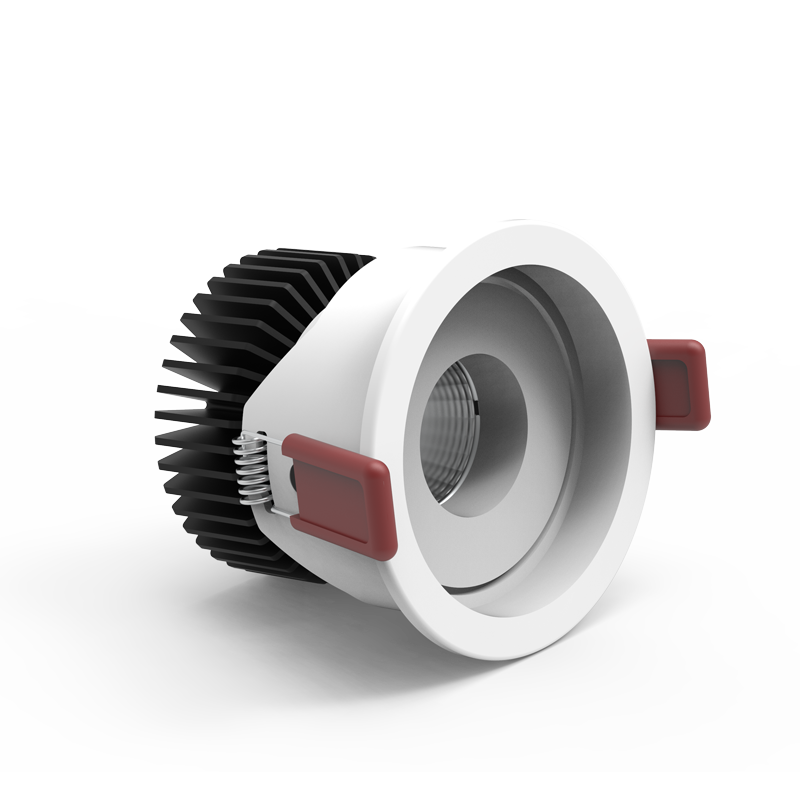

LED Hotel Downlight HTJ Series

Model: JST-HTG-A(fited)/B(adjust)

Wattage: 7W-20W

LED Chip: CREE/CITIZEN

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 15°/24°/38°

Diameter: 70mm-112mm

Cutout: 70mm-95mm


Description

HTJ series spotlights are typical modern lighting fixtures with no main light and no fixed scale. They can create an indoor lighting atmosphere. If a row of spotlights are combined, the light can change into wonderful

patterns because the adjustable spotlights can change their angles freely. Effect combination lighting is also variable.


HTJ series is not limited to meeting basic lighting requirements, collocate with the key lighting, which integrates light into the space through contrast between light and dark, uses the conversion of light and shadow to

highlight the temperament and cultural temperament of the hotel, and creates an elegant and comfortable atmosphere.

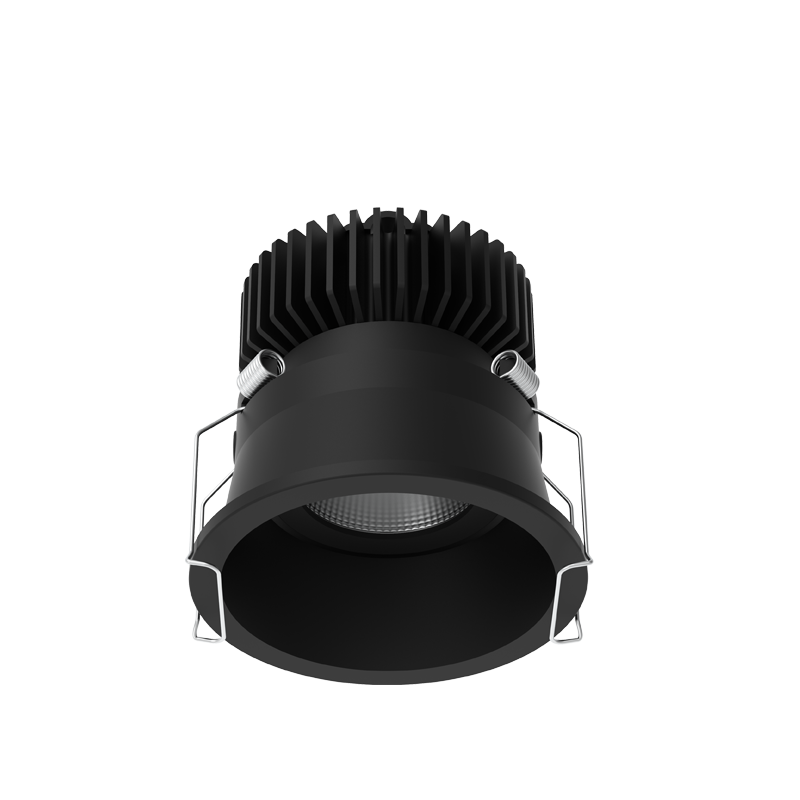

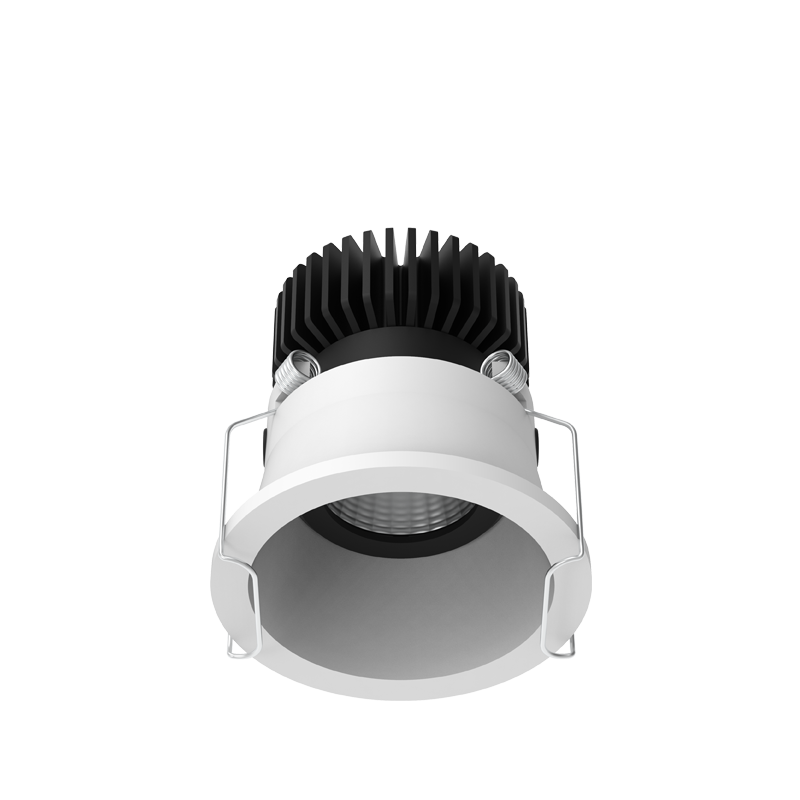

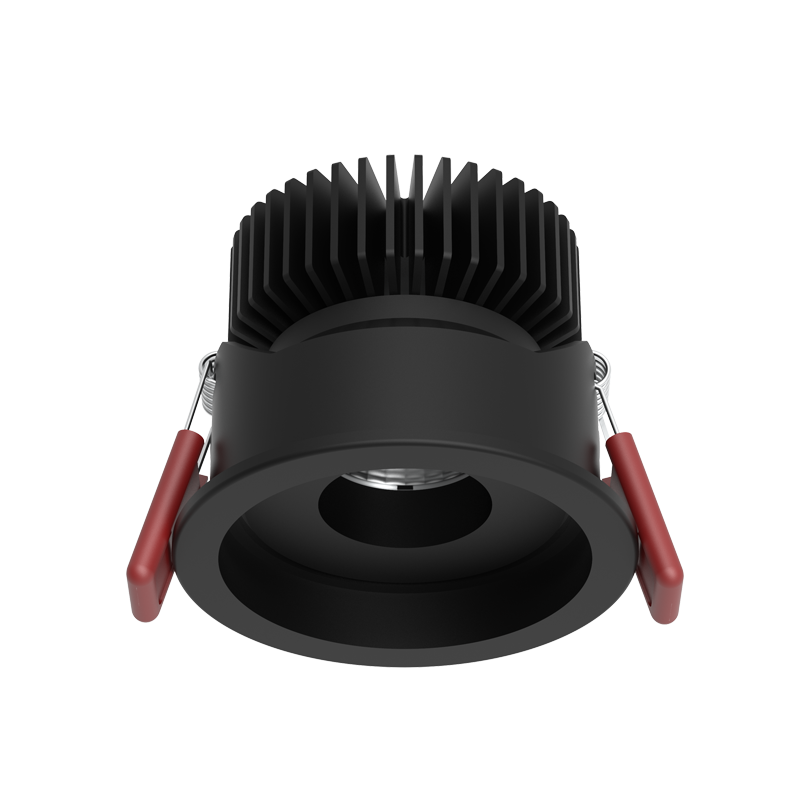

HTJ seies have fixted and adjustable optional,  A is fixed type and B is adjustable type to meet different needs. The beam angle have 15°/24°/38° optional, power 5-20W,  diameter is 70-112mm. The distance between

the light source and the lamp holder is deeper, and the light source is hidden deeper, so that it will not be dazzling and can better protect people's eyes. Due to the smal size and low power, which plays an important

role in auxiliary lighting.


The HTJ series with die-casing aluminum which has the characteristics of impact resistance, high temperature resistance, and rust resistance, eco-friendly. No UV or IR radiation, no flicker, no mercury, no lead. Suitable

for ceiling lamp decoration in homes, hotels, lobby,supermarkets, restaurants, etc.


Advantages
  1. Two shapes, A for fixed, B for adjustable

  2. light source is deeply hidden,anti-glare

  3. impact resistance, high temperature resistance and rust prevention

  4. Triac, 0-10V and DALI dimming are available

  5. Modularity structure, easier to assemble, install and disassemble, no damage to the ceiling floor

  6. Family structure appearance design to meet with the uniform aesthetic requirement


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout
JST-HTJ-A/B7W>80/902700K-5000K>0.900.16AAC220-240V15°/24°/38°D70*H69mm70mm
JST-HTJ-A/B12W>80/902700K-5000K>0.900.30AAC220-240V15°/24°/38°D90*H78mm75mm
JST-HTJ-A/B15W>80/902700K-5000K>0.900.35AAC220-240V15°/24°/38°D112*H116mm95mm
JST-HTJ-A/B20W>80/902700K-5000K>0.900.50AAC220-240V15°/24°/38°D112*H116mm95mm


Application

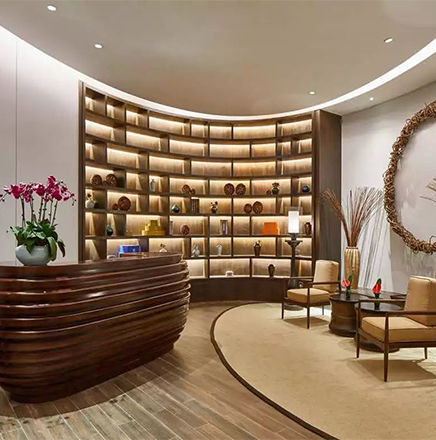

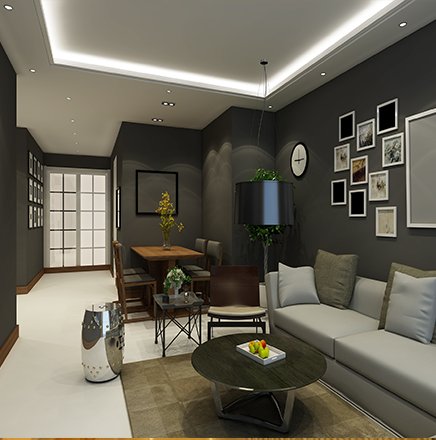

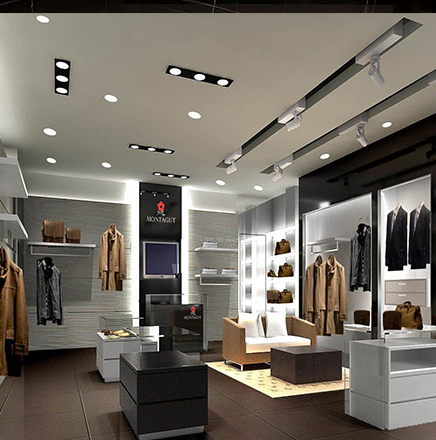

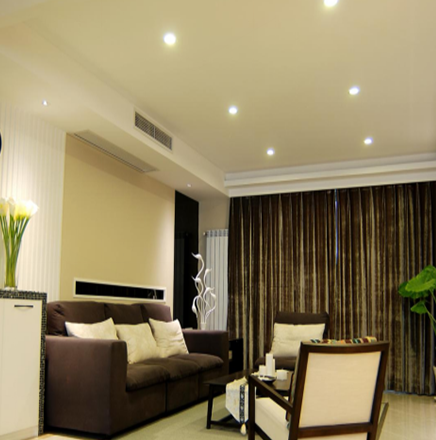

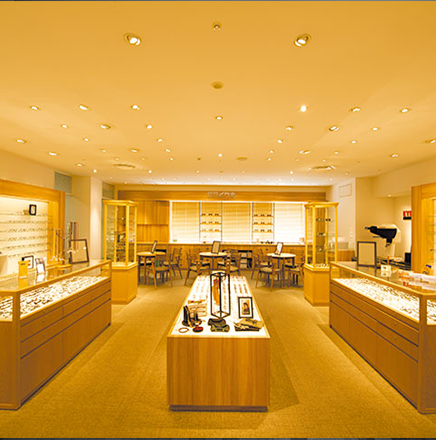

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,Jewelry stores lighting,Banks lighting, Airportlighting, Suppermaket lighting etc.

LED Hotel Downlight HTJ Series LED Hotel Downlight HTJ Series LED Hotel Downlight HTJ Series
LED Hotel Downlight HTJ Series LED Hotel Downlight HTJ Series LED Hotel Downlight HTJ Series
