Model: JST-HTQ
Wattage: 7W-48W
LED Chip: CREE/CITIZEN
Driver Brand: OSRAM/Philips/Lifud
RA: ＞90
Finish Color: White/Black/Customized
Beam Angle: 15°/24°/36°
Diameter: see the below product specification sheet
Cutout: see the below product specification sheet
Modern, practical, with incredible light effects and a unique atmosphere in every space. These are the LED downlights we can see in homes and public places. Apart from the usual advantages of LED lighting, such as
low power consumption and long life, downlights provide numerous benefits, mainly related to creating the appearance desired for a space quickly and easily. With LED downlights you can highlight particular features
in your home or room without any problem.ARSTAR LED Downlights are the most popular new type of lighting. Placing LED downlights carefully in ceiling allows for even and bright lighting with very low running costs.
When choosing LED downlights, you should also pay attention to the glare problem. If a lamp does not have an anti-glare device, the light will directly enter your eyes, causing eye fatigue or injury. Our HTQ series
downlights will not occurs these problem:

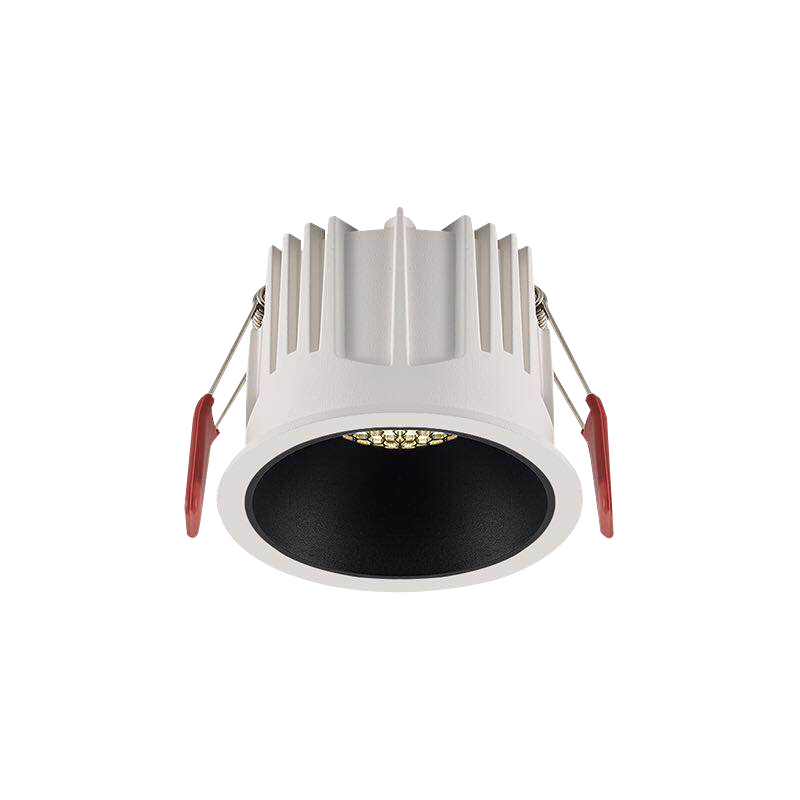

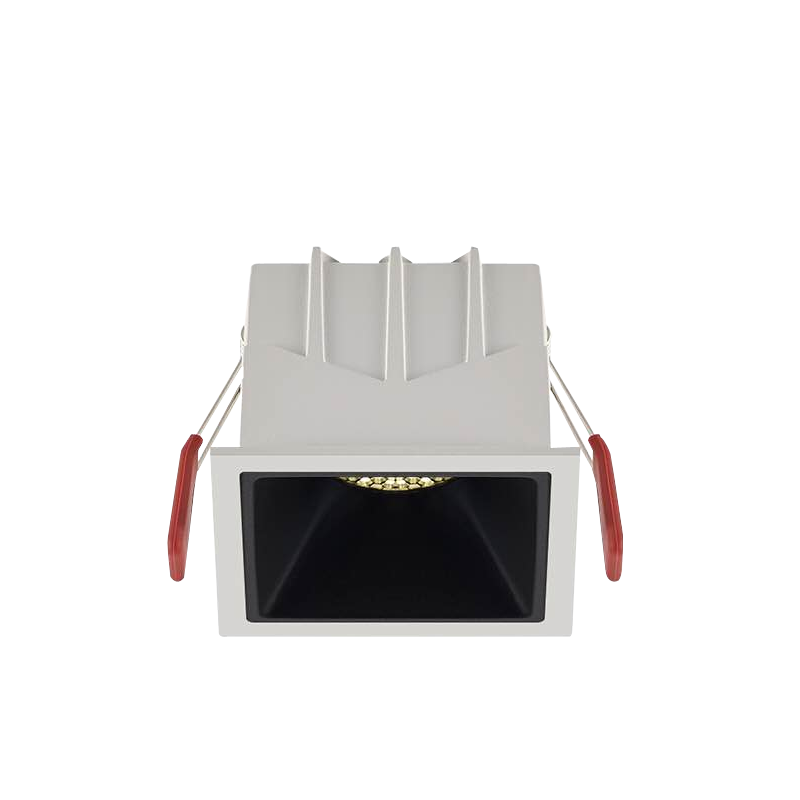

It is equipped with a deep anti-glare cup, which effectively anti- glare.
On the basis of the deep anti-glare cup, a honeycomb is also added, the honeycomb can softens the light to minimize glare.
CRI 85+ can retain true colors, which can truly restore the color of the illuminated object, allowing you to clearly see the wonderful pictures in life.

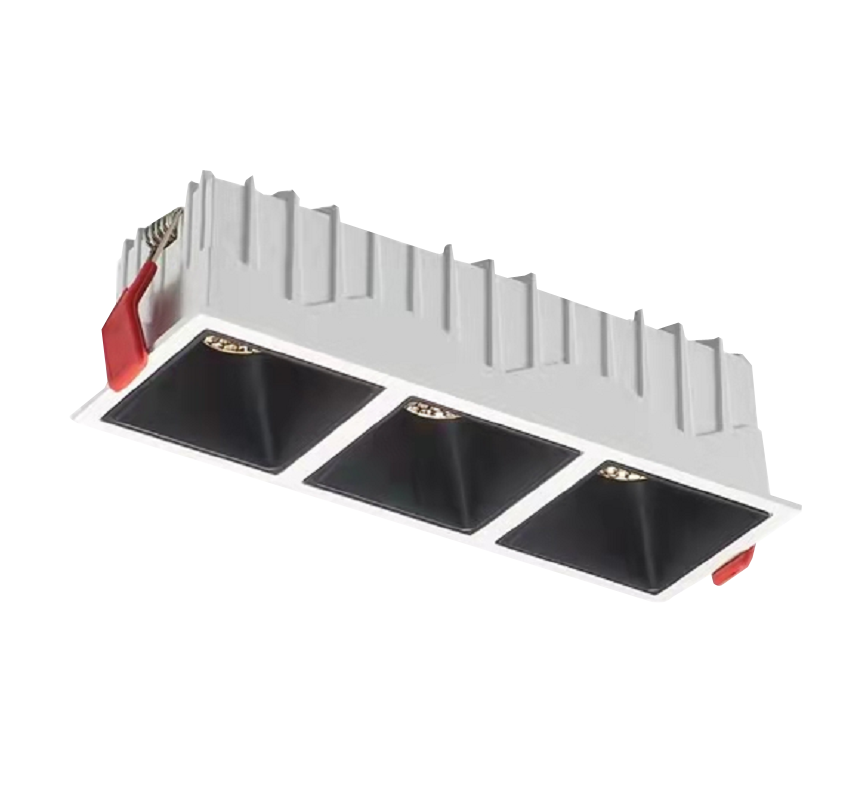

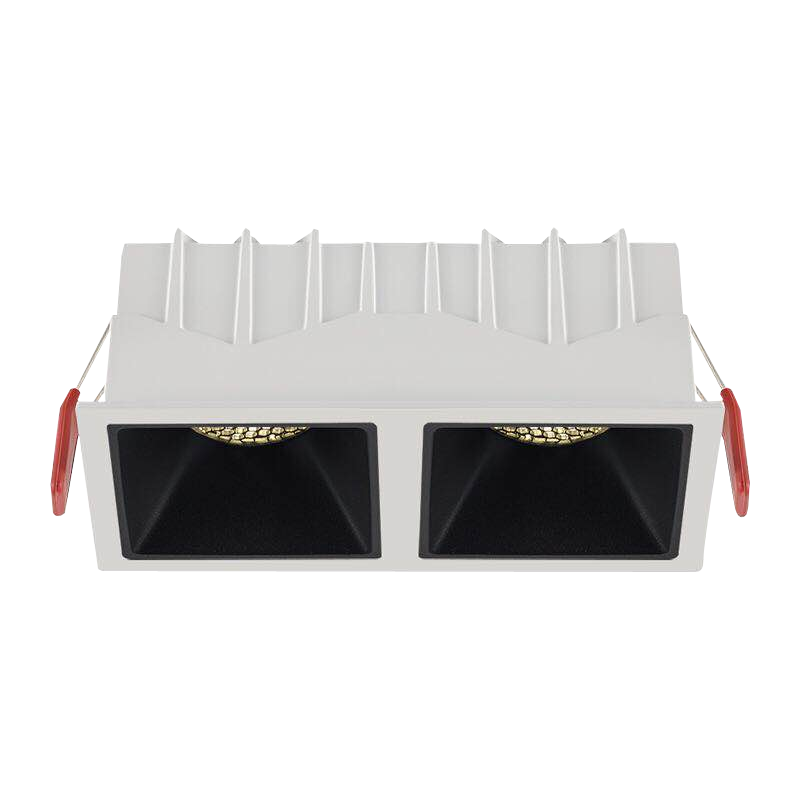

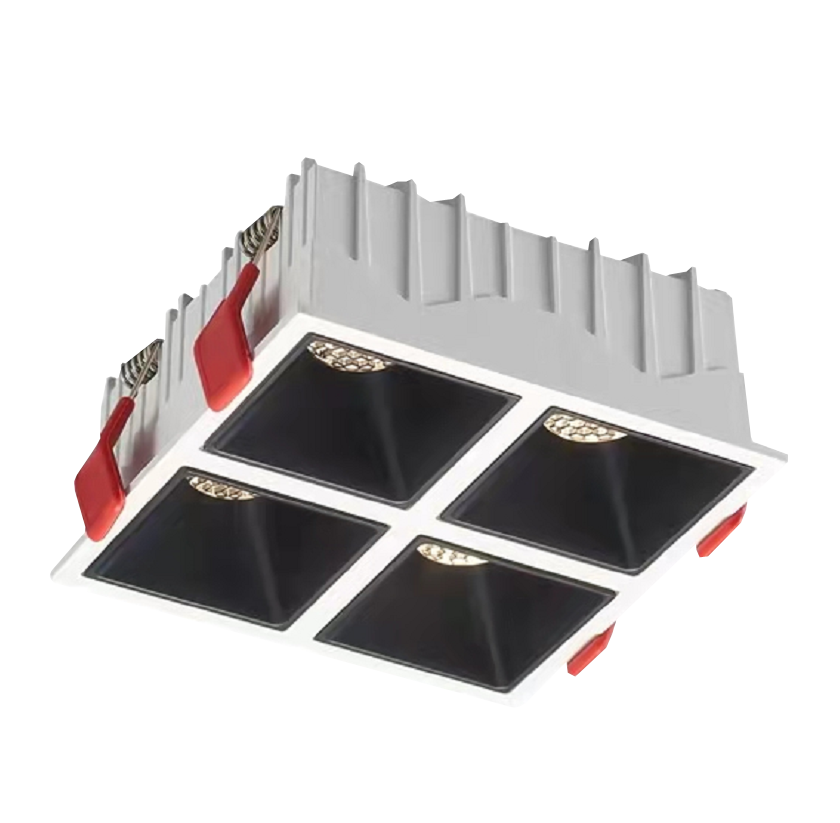

In addition, HTQ series is a modular combination which have Single head/ Double heads/ Three heads/ Four heads optional, if uese more than two heads is combined to form a grille light, maybe form a linear light, it
is multiple choice.
CITIZEN/CREE COB chip, high efficiency
Honeycomb mesh, effective anti-glare
Flicker-free
Simple style and decoration
Can be turned into a grille light
Easy and convenient installation
| Model | Power | CRI | CCT | PF | Current | Input Voltage | Beam Angle | Dimension | Cutout |
| JST-HTQ-R/S | 7W | >80/90 | 2700K-5000K | >0.90 | 0.16A | AC220-240V | 15°/24°/36° | D65*H52mm | 55mm |
| JST-HTQ-R/S | 12W | >80/90 | 2700K-5000K | >0.90 | 0.30A | AC220-240V | 15°/24°/36° | D85*H63mm | 75mm |
| JST-HTQ-R/S | 20W | >80/90 | 2700K-5000K | >0.90 | 0.50A | AC220-240V | 15°/24°/36° | D105*H77mm | 95mm |
| JST-HTQ-7W*2 | 7W*2 | >80/90 | 2700K-5000K | >0.90 | 0.33A | AC220-240V | 15°/24°/36° | D65*H126mm | 55*115mm |
| JST-HTQ-12W*2 | 12W*2 | >80/90 | 2700K-5000K | >0.90 | 0.60A | AC220-240V | 15°/24°/36° | D85*H165mm | 75*160mm |
| JST-HTQ-20W*2 | 20W*2 | >80/90 | 2700K-5000K | >0.90 | 1.00A | AC220-240V | 15°/24°/36° | D105*H208mm | 95*195mm |
| JST-HTQ-7W*3 | 7W *3 | >80/90 | 2700K-5000K | >0.90 | 0.50A | AC220-240V | 15°/24°/36° | D65*H187mm | 55*175mm |
| JST-HTQ-12W*3 | 12W*3 | >80/90 | 2700K-5000K | >0.90 | 0.90A | AC220-240V | 15°/24°/36° | D85*H250mm | 75*240mm |
| JST-HTQ-7W*4 | 7W*4 | >80/90 | 2700K-5000K | >0.90 | 0.70A | AC220-240V | 15°/24°/36° | D126*H126mm | 115*115mm |
| JST-HTQ-12W*4 | 12W*4 | >80/90 | 2700K-5000K | >0.90 | 1.20A | AC220-240V | 15°/24°/36° | D165*H165mm | 150*150mm |

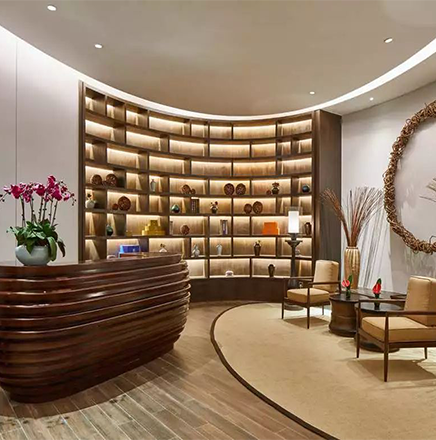

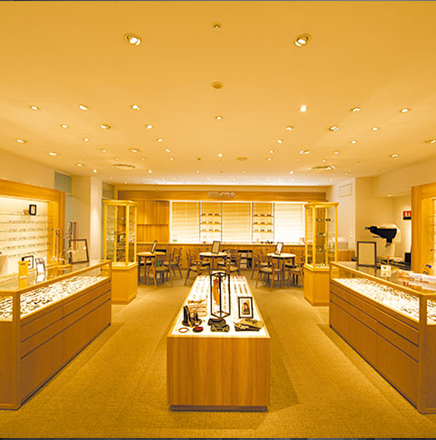

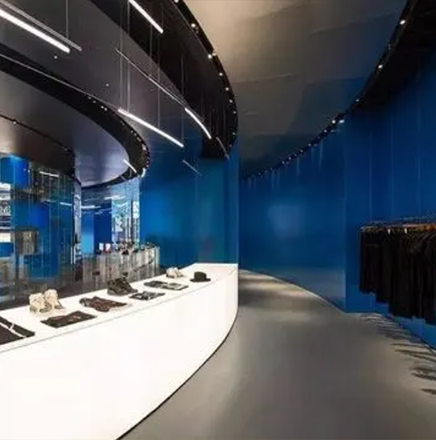

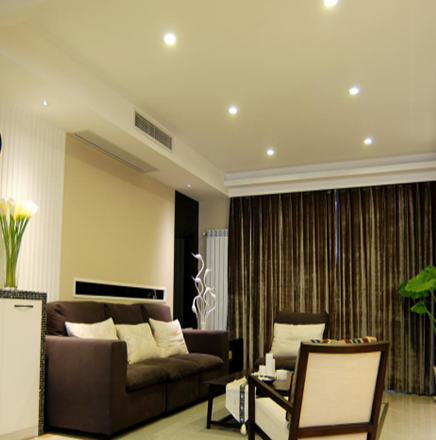

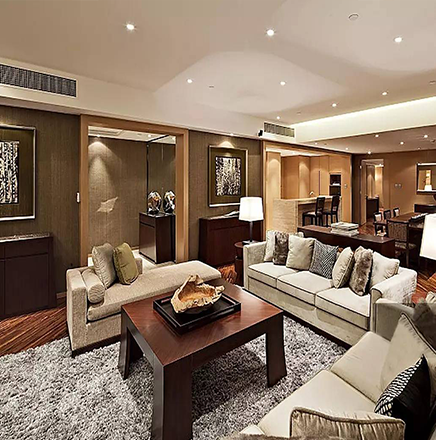

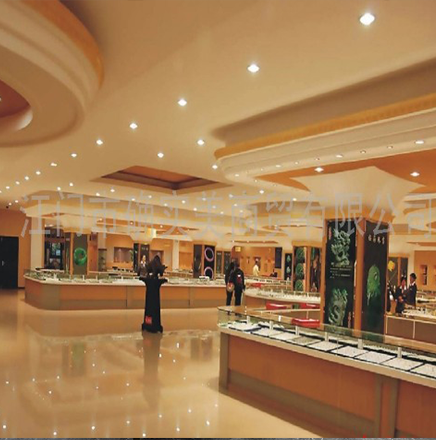

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,Jewelry stores lighting，Banks lighting, Airportlighting, Suppermaket lighting etc.
