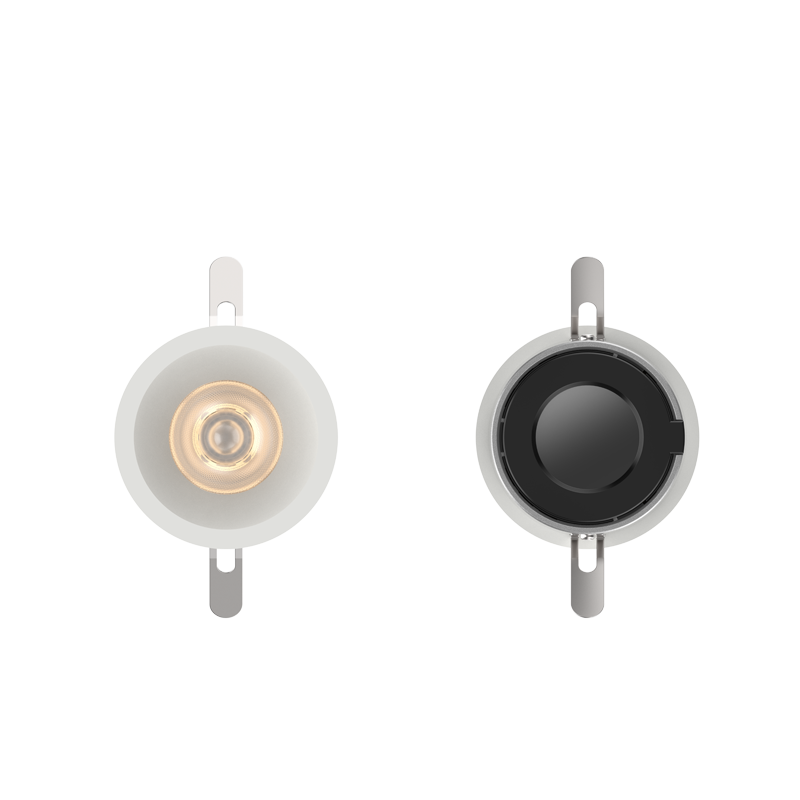

LED Hotel Downlight

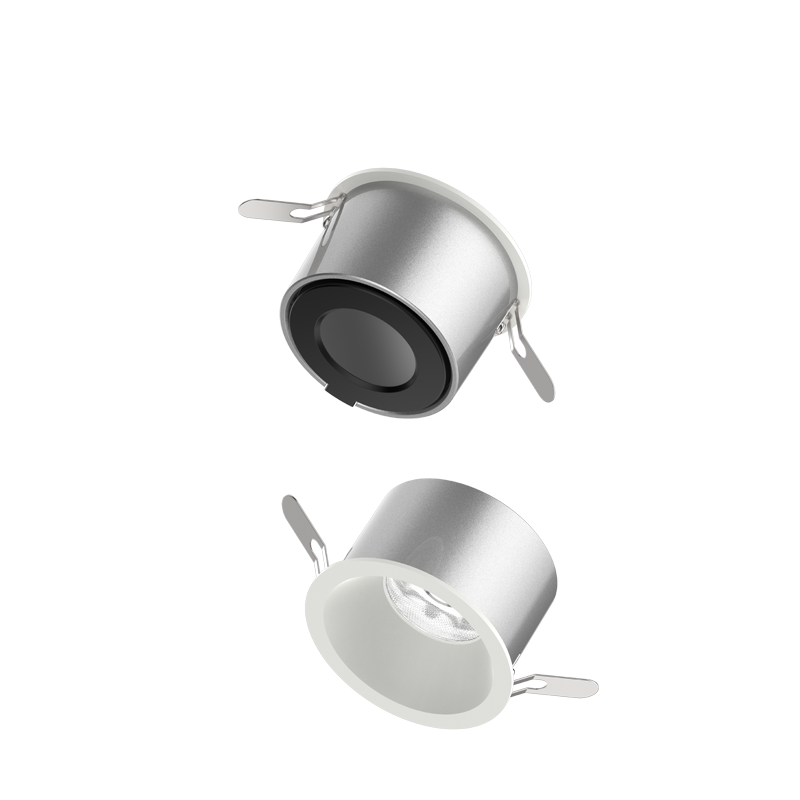

LED Hotel Downlight HTL Series

Model: JST-HTL

Wattage: 7W-20W

LED Chip: CREE/CITIZEN

Driver Brand: OSRAM/Philips/Lifud

RA: >90

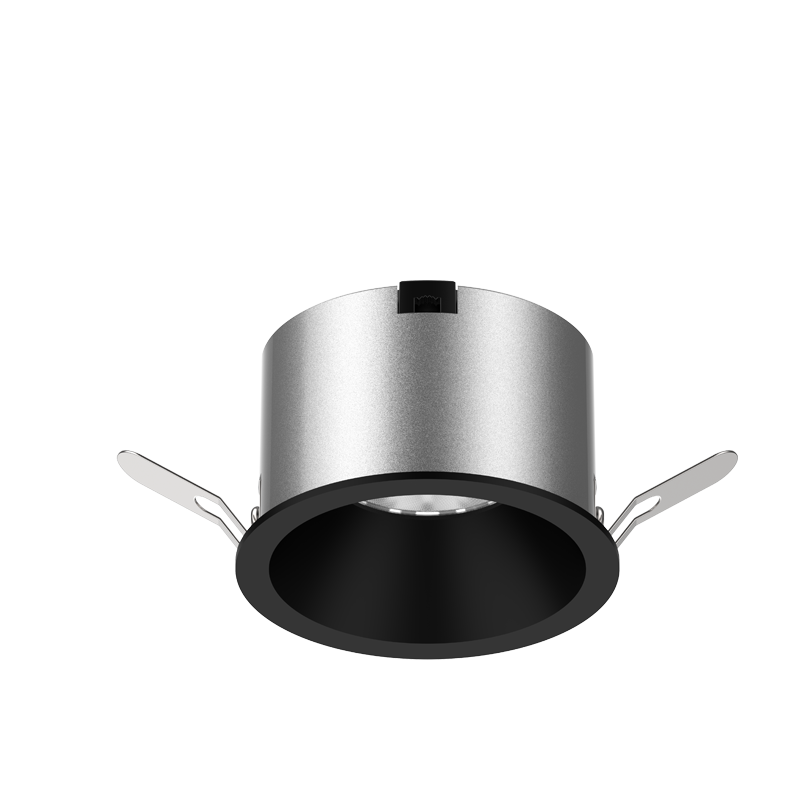

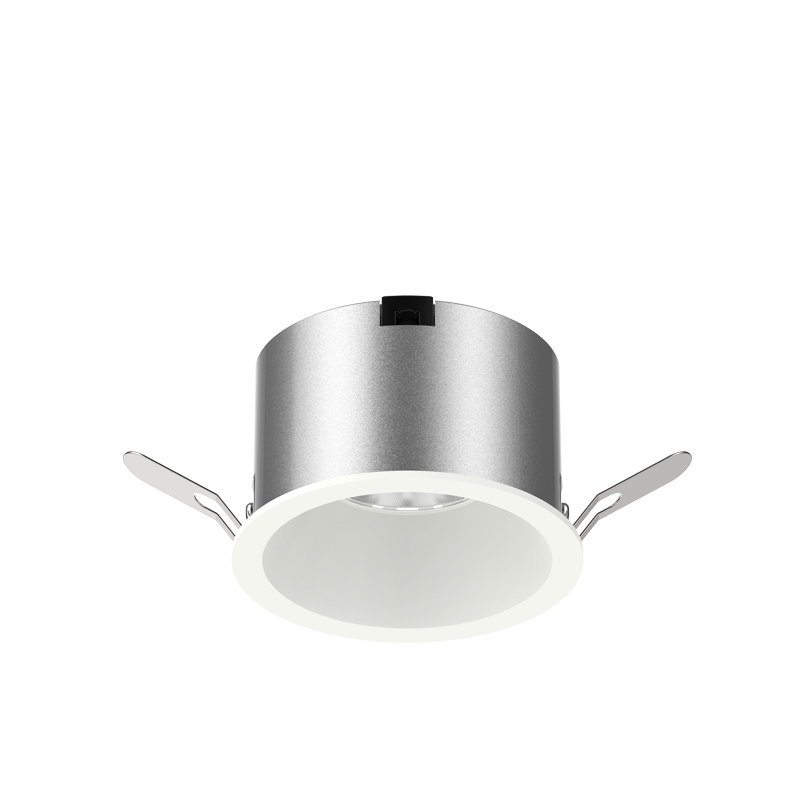

Finish Color: White/Black/Customized

Beam Angle: 15°/24°/38°/55°

Diameter: 60mm-100mm

Cutout: 55mm-95mm



Description

LED Downlight, commonly known as recessed LED lighting, are excellent luminaires with low energy consumption. As a directional illumination which provide brightly focused luminosity and are made to serve a wide

range of purposes.   As a spotlight to highlight specific areas. Many lighting professionals and designers consider downlighters in their outdoor and indoor lighting systems to level up the ambience without comprising

the quality of illumination. These luminaires are versatile to be installed in varied spaces, such as hotel, offices, banks, hospitals and retail shops, etc.


Meanwhele safety is among the top factors people consider while choosing luminaires. Unsafe conditions can hurt the workforce and other occupants. Poor fixtures and improper luminosity can cause accidents. Not to

mention, they can hamper one’s health and have a drastic effect on their eyesight. HTL series can do thoes, it is safe LED downlight.

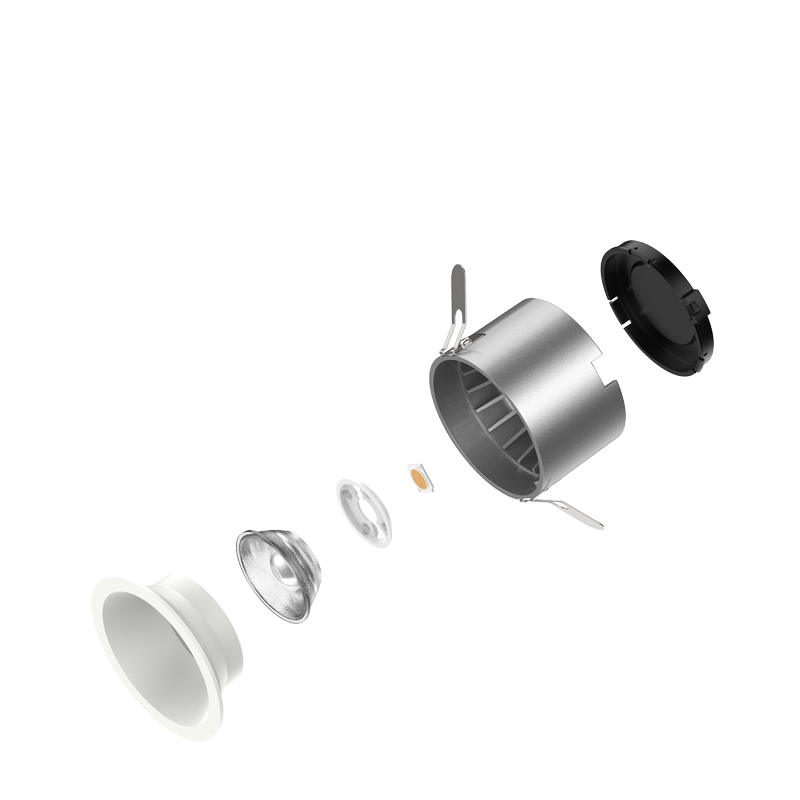

Hotel downlight HTL series uses high-quality aluminum with high heat dissipation, rust and corrosion resistance, easy care, solid state, shockproof, greatly reducing carbon emissions,  no mercury,lead,UV and thermal

radiation, Eco-friendly. CRI>80 which can truly restore the true color of the object. The light is uniform, not dazzling, and effectively protects the eyes.


Unlike traditional bulbs, HTL series are more reliable and can emit light for about 50,000 hours. The installation of high-efficacy CITIZEN/ CREE COB chip with transmissivity diffusers in the downlights enables them to

function for a long time.  People don’t have to change them every few months, means less maintenance and cost savings . Power: 7W,10W,15W,20w input voltage: AC 220V. Ultra-bright cob design, energy saving, low

heat, low power consumption, long life and high light efficiency.


Advantages
  1. Low energy consumption

  2. Hight quality chip and high brightness

  3. Enviromental protection

  4. Anti-glare

  5. Smooth outlook

  6. A wide of application


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout
JST-HTK7W>80/902700K-5000K>0.900.16AAC220-240V15°/24°/38°/55°D60*H42mm55mm
JST-HTK10W>80/902700K-5000K>0.900.25AAC220-240V15°/24°/38°/55°D80*H50mm75mm
JST-HTK15W>80/902700K-5000K>0.900.35AAC220-240V15°/24°/38°/55°D100*H62mm95mm
JST-HTK20W>80/902700K-5000K>0.900.50AAC220-240V15°/24°/38°/55°D100*H62mm95mm

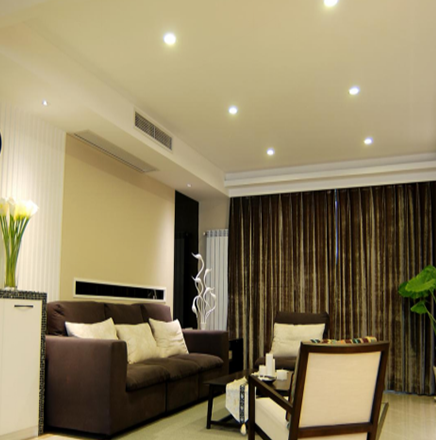

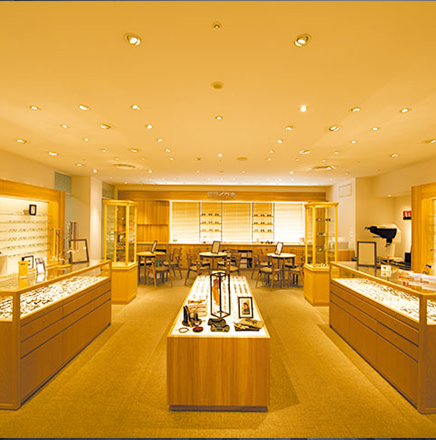

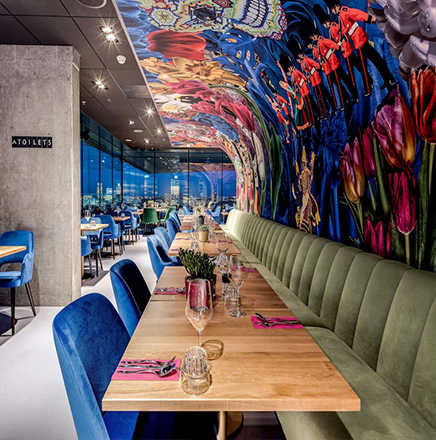

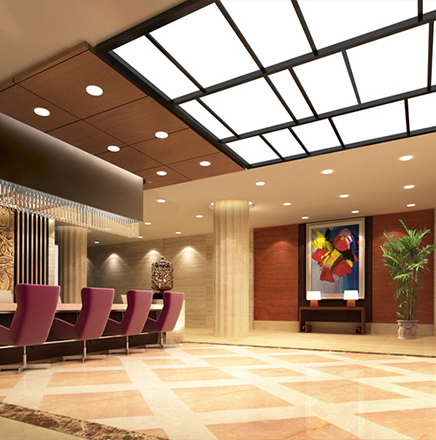

Application

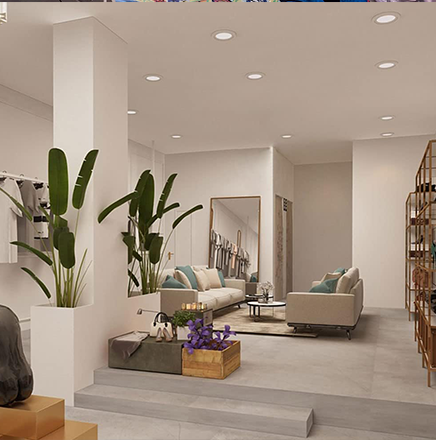

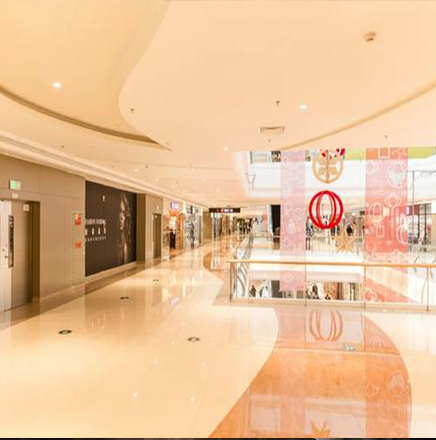

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,Jewelry stores lighting,Banks lighting, Airportlighting, Suppermaket lighting etc.
