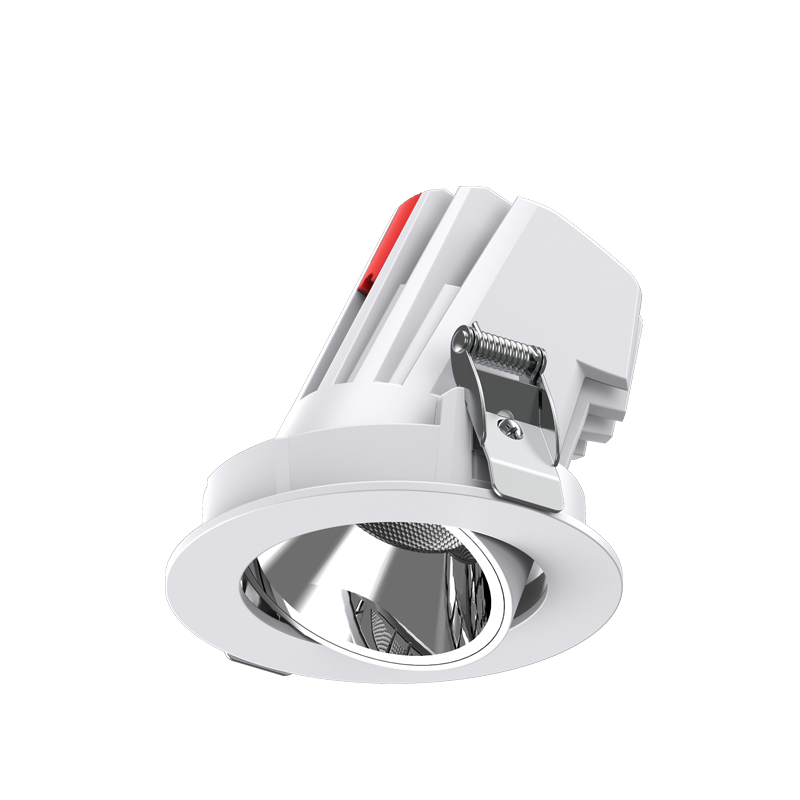

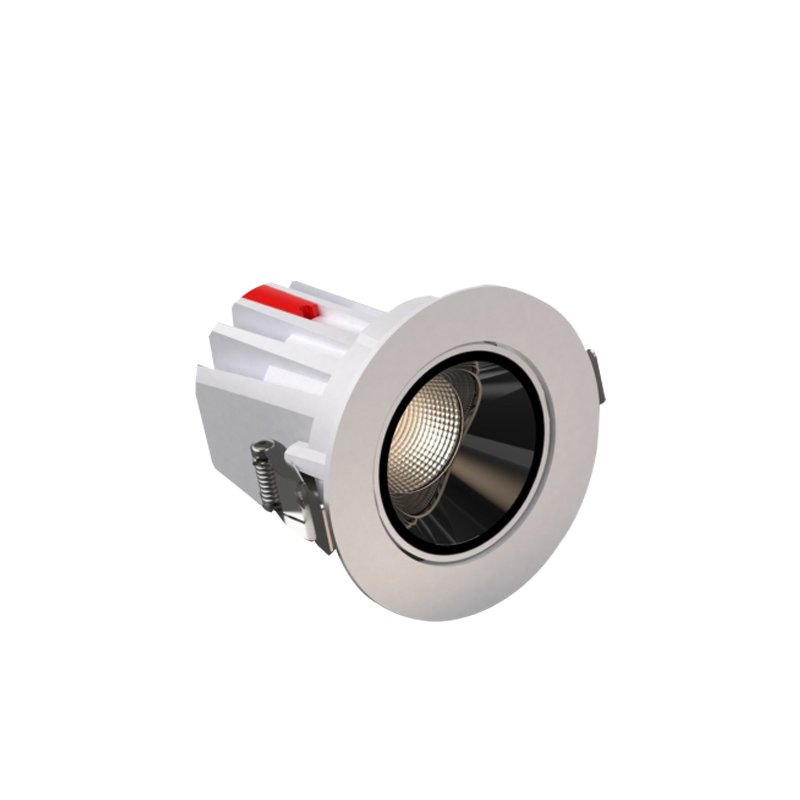

LED Hotel Downlight

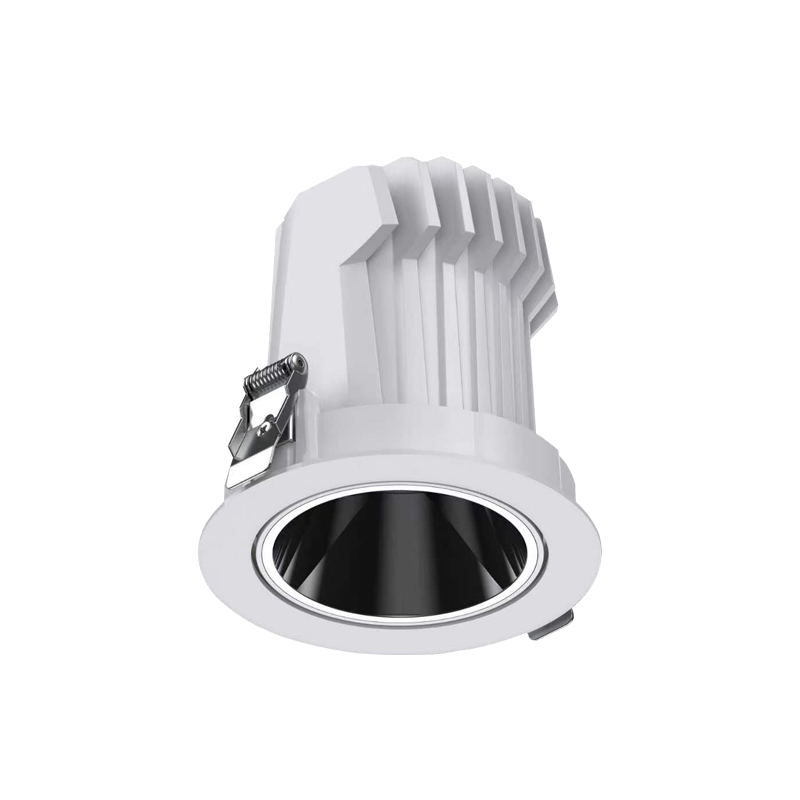

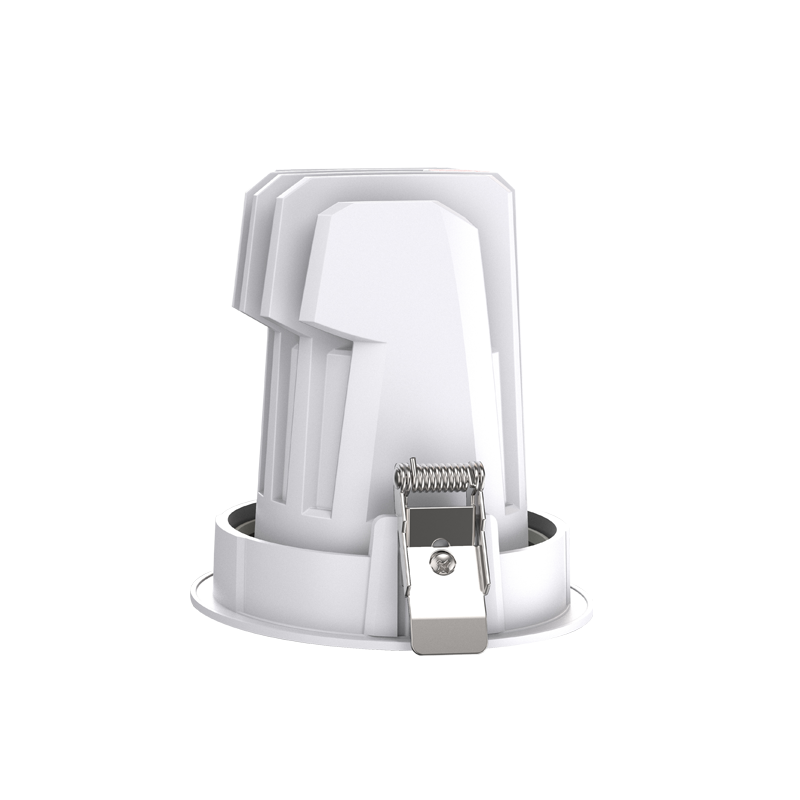

LED Hotel Downlight HTI Series

Model: JST-HTI

Wattage: 10W-30W

LED Chip: CREE/CITIZEN

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 15°/ 24°/36°

Diameter: 80mm-132mm

Cutout: 75mm-125mm


Description

Hotel lighting design is not limited to meeting basic lighting requirements, but also integrates light into the space through contrast between light and dark, uses the conversion of light and shadow to highlight the

temperament and cultural temperament of the hotel, and creates an elegant and comfortable atmosphere for customers and employees. The beam angle plays a part.


Beam angle is one of the most effective ways to create light layering in the guest room space. When it comes to beam angle, it has a narrow beam, medium narrow beam, medium beam, medium wide beam, and wide

beam. For traditional Halogen light sources or fluorescent lights, the main beam angels are 10°, 24°, 36°, 45°, and 60°. But in the LED lighting era, beam angles are diversified. As far as the hospitality light fixture is

concerned, we recommend using medium narrow 15-18°, medium beam 22-25°, and medium wide 28-30°.  Different beam angles are used for different areas since they create different light effects.Generally, beam

angles <20° are narrow beams, while beam angles between 20° and 40° are medium beams, and beam angles >40° are considered wide beams. The HTI series is available in 15°/24°/36°.


The Hotel Downlight HTI Series also is an adjustable downlight that that is designed to direct light in a specific direction. 30°  vertically and 360° horizon.  It is tilts within the luminaire, producing no protrusion below

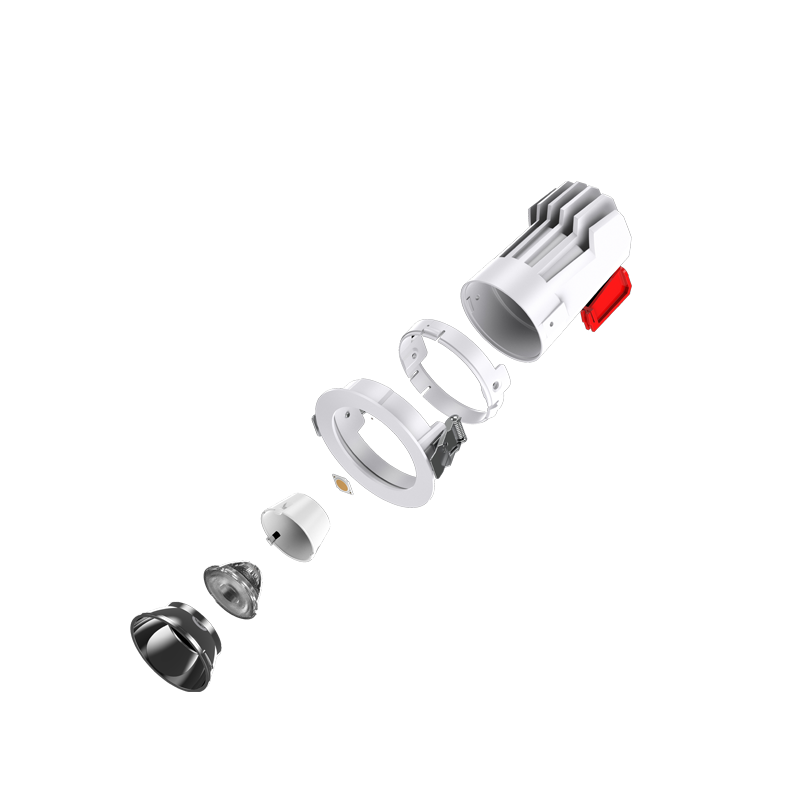

the ceiling. This ensures that the lighting solution is not only functional but also enhances the overall beauty of the space. Made from high-quality die-cast aluminum. It is a luxurious and elegant European-style

recessed downlight/LED ceiling light/headlight. Features a new cooler design to dissipate heat quickly and extend its service life. Perfect for hallways, living rooms, kitchens, hotels, clubs, museums, bedrooms,

restaurants, offices and more commercial or residential applications.



Advantages
  1. COB chip, light soft and brightness

  2. Die- caset aluminum lamp body, fast heat dissipation

  3. Fog reflector for pertect eye

  4. Anti-dazzle eye protection lampshade

  5. Angle Adjustable Freely

  6. Tiltable frame


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout
JST-HTI10W>80/902700K-5000K>0.900.25AAC220-240V15°/ 24°/36°D80*H85mm75mm
JST-HTI15W>80/902700K-5000K>0.900.35AAC220-240V15°/ 24°/36°D105*H108mm95mm
JST-HTI20W>80/902700K-5000K>0.900.50AAC220-240V15°/ 24°/36°D105*H108mm95mm
JST-HTI25W>80/902700K-5000K>0.900.60AAC220-240V15°/ 24°/36°D132*H127mm125mm
JST-HTI30W>80/902700K-5000K>0.900.75AAC220-240V15°/ 24°/36°D132*H127mm125mm


Application

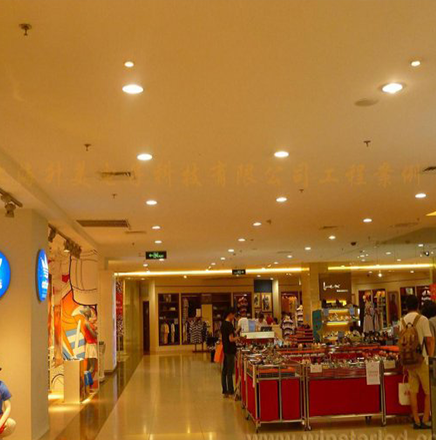

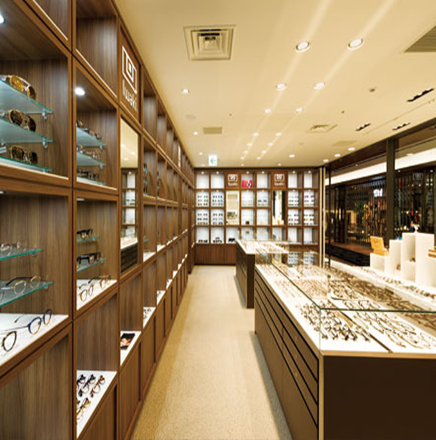

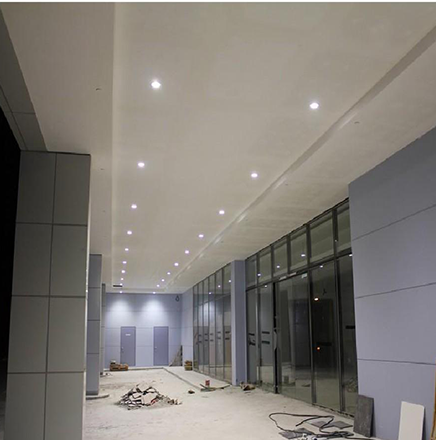

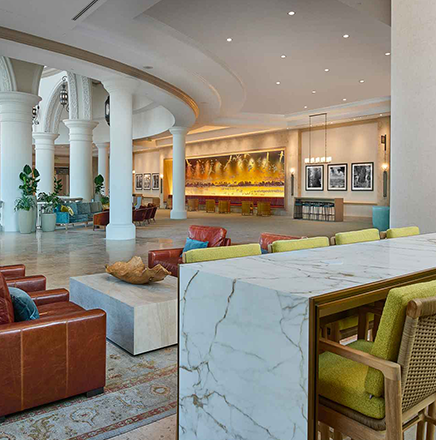

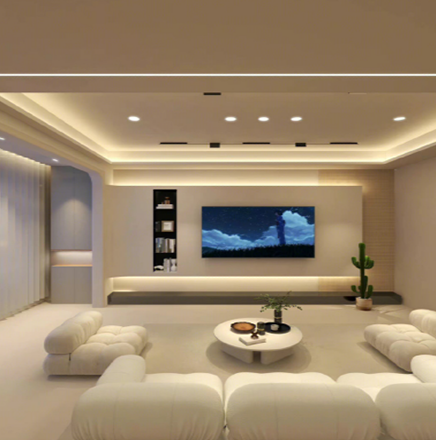

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,Jewelry stores lighting,Banks lighting, Airportlighting, Suppermaket lighting etc.

LED Hotel Downlight HTI Series LED Hotel Downlight HTI Series LED Hotel Downlight HTI Series
LED Hotel Downlight HTI Series LED Hotel Downlight HTI Series LED Hotel Downlight HTI Series
