LED Hotel Downlight

LED Spot Light STA Series

Model: JST-STA

Wattage: 1W-15W

LED Chip: Citizen/Cree

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 15°/24°

Diameter: 55mm

Cutout: 40mm


Description

JARSTAR offers lighting solutions for both commercial and residential use. This compact and popular essential LED light for cabinets, wardrobes, and carpentry is  recessed versions, giving you the flexibility of however

you require it.


LED spot light STA series cabinet and delicateis highly recommended as it achieve better dot matrix application and diversified decoration style,, it's energy-saving and essential in any home or commercial renovation

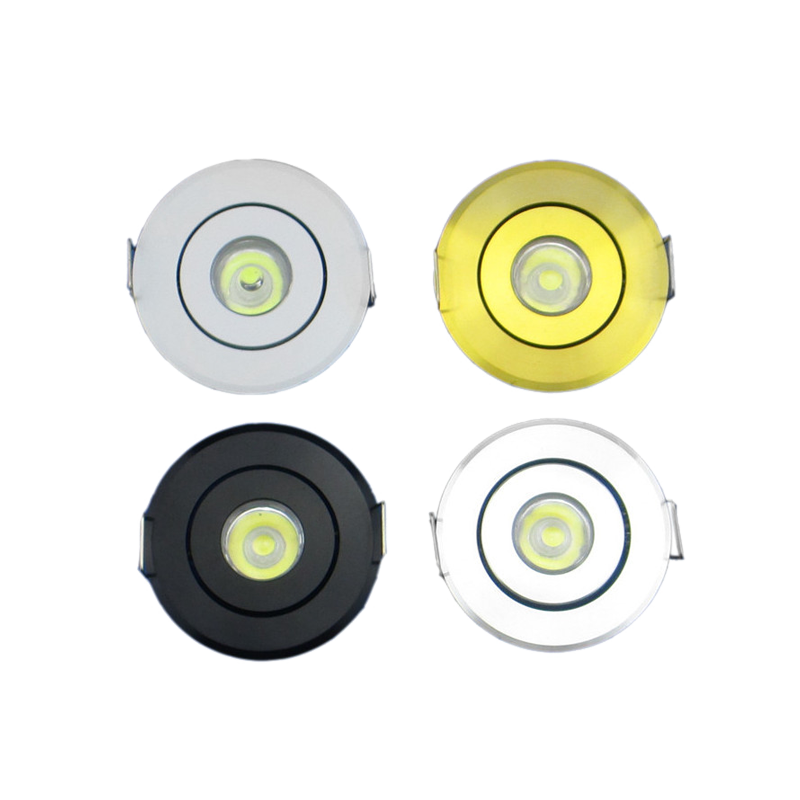

project. This mini light comes in white or black or customised chrome or gold, allowing it to effortlessly blend into a variety of interior settings. It can be used as a direct lighting source in display cabinets, but can also

be installed in a variety of places given its simple and versatile design.


They’re safe to use in these spaces because they don’t get at hot as conventional or halogen bulbs, so there’s no need to worry that they’ll damage your surface, discolouring or deforming the wood or plastic.

 Even after hours of use, the lights stay cool whilst keeping a constant level of illumination. And because they don’t emit as much heat as other bulbs, they are more energy-efficient.


The mini swivel downlight STA series  is one of our most powerful and efficient recessed fixtures. It is a fully recessed LED light that adds brightness and focused illumination to any space. without the heat and UV

effects.


Due to the small size, STA can fits into tight spaces, such as walls, ceilings, cabinetry, under countertops, bars, display cases, home entertainment centers, and retail window displays. It is adjustable as a spotlight and

can swivel to the beam directions desired

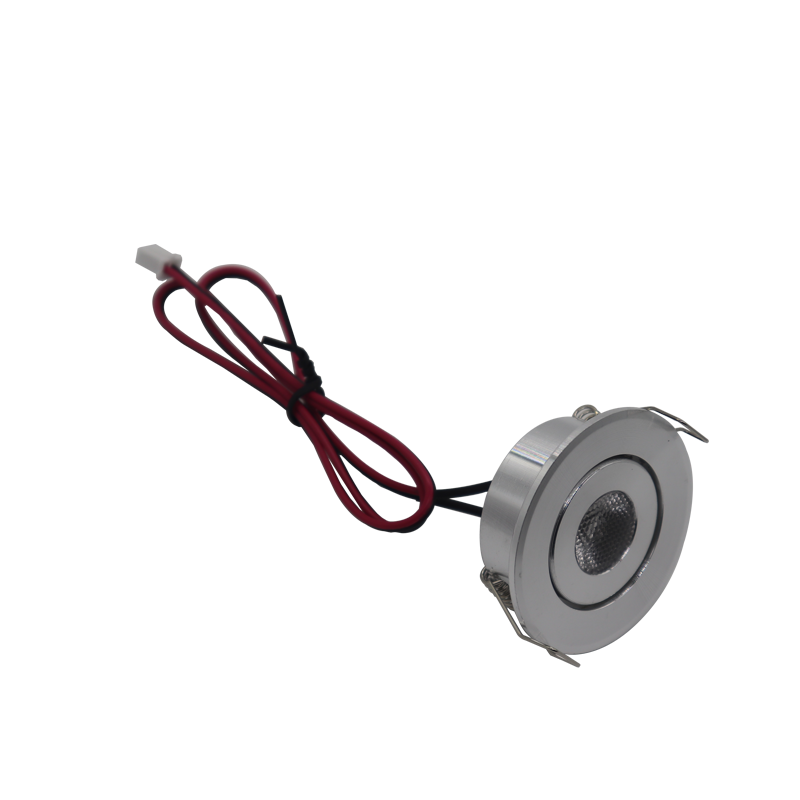

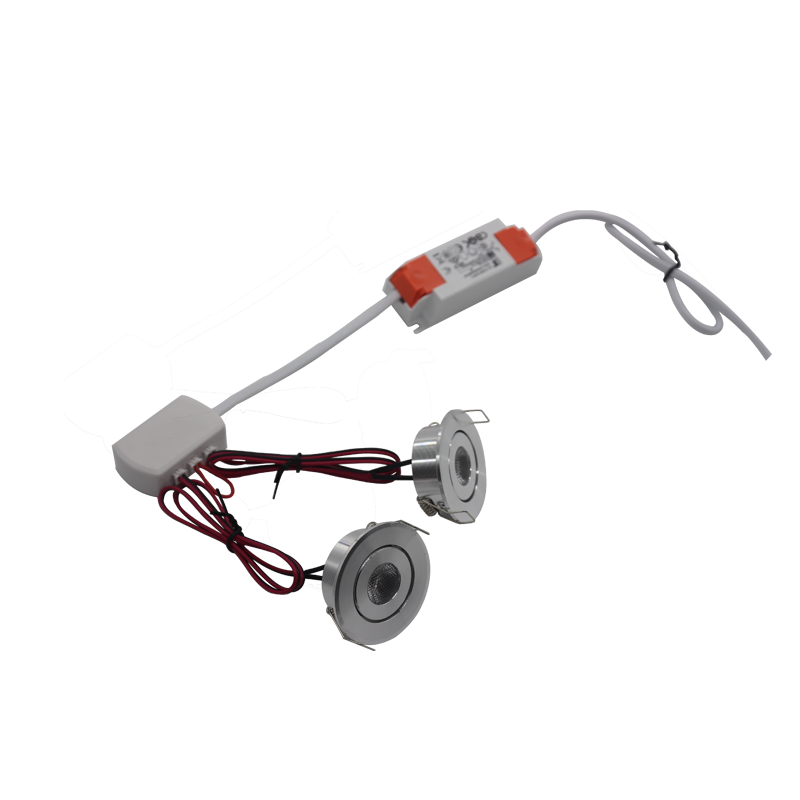

The mini swivel downlight STA series is made of cast aluminum and features an adjustable gimbal design for directed lighting with 15° swivels. Connect up to six light fixtures using our connection block, and fasten

lead from the connection block into a power supply for easy set-up.



Advantages
  1. 3000K warm white, 4000K white, 5000K coldwhite optional,

  2. CRI>80, 50,000 hours rated life

  3. NON-Dimmable, Triac dimmable, 0-10V dimmable, DALI dimmable optional

  4. Recess mount design with 30-degree axial swivel

  5. Die cast aluminum alloy light housing with aluminum heat sink keeps LEDs cool for lasting performance

  6. Save energy


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout
JST-STA1W>80/902700K-5000K>0.900.02AAC220-240V15°/24°D55*H25mm40mm
JST-STA3W>80/902700K-5000K>0.900.07AAC220-240V15°/24°D55*H25mm40mm
JST-STA3W*2>80/902700K-5000K>0.900.13AAC220-240V15°/24°D55*H25mm40mm
JST-STA3W*3>80/902700K-5000K>0.900.25AAC220-240V15°/24°D55*H25mm40mm



Application

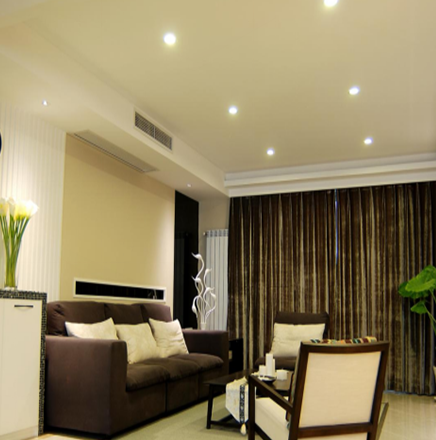

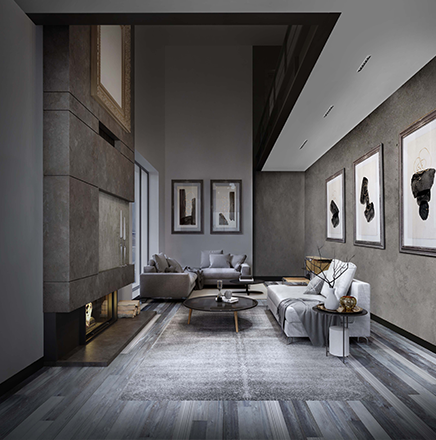

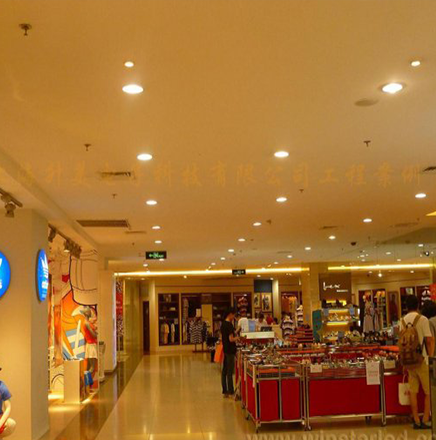

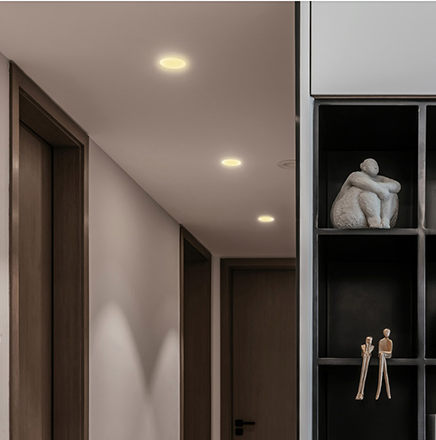

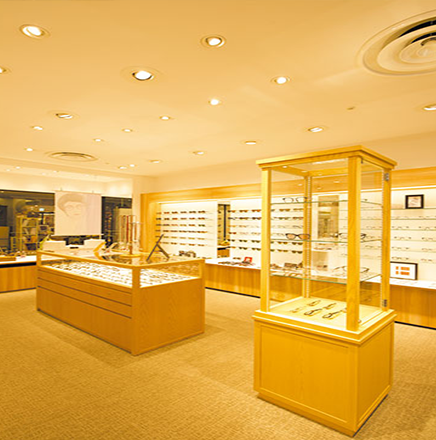

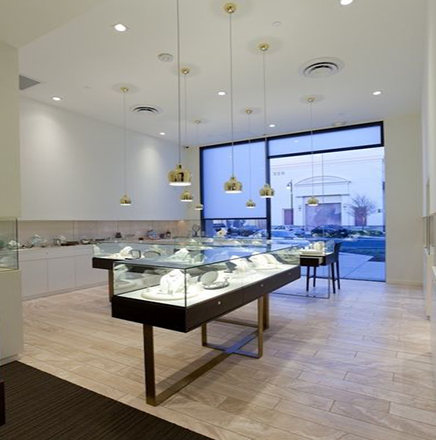

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,jewelry stores lighting,banks lighting, airport,lighting, suppermaket lighting etc.

LED Spot Light STA Series LED Spot Light STA Series LED Spot Light STA Series
LED Spot Light STA Series LED Spot Light STA Series LED Spot Light STA Series
