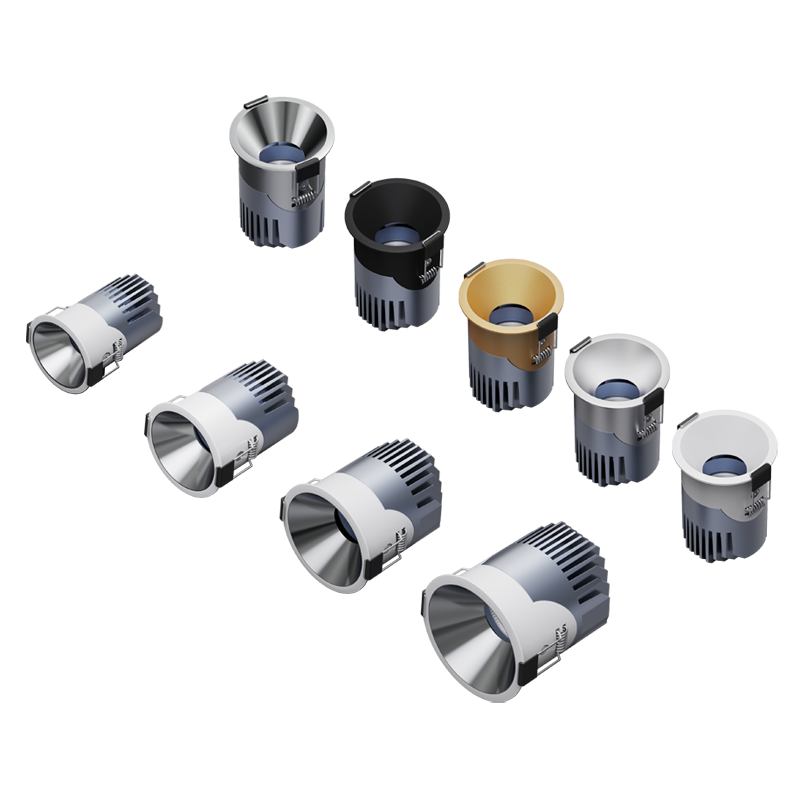

Model: JST-STN
Wattage: 6W-30W
LED Chip: Citizen/Cree
Driver Brand: OSRAM/Philips/Lifud
RA: >90
IP: 65
Finish Color: White/Black/Customized
Beam Angle: 15°/24°/38°/55°
Diameter: 52-130mm
Cutout: 45-120mm
A downlight is a recessed light fitting popular for its subtle appearance and versatility. Downlights can be used to provide general lighting in n the ceiling around the living room, bedroom, and bathroom. This type of
lamp hidden in the ceiling projects all the light downwards, belonging to direct light distribution. Different reflectors, lenses, blinds can be used to achieve different light effects. Downlights do not occupy space and
can add a soft atmosphere to the space. If you want to create a warm feeling, you can try installing multiple downlights to reduce space pressure.
What are the advantages of LED downlights?
1. Compact, high luminous flux The power consumption is one-third of that of incandescent lamps, but the service life is six times that of incandescent lamps.
2. There are two types of reflective plates: mirror and frosted Mirror reflective panels can bring a flickering sensation, while frosted reflective panels are used to moderate the brightness of the ceiling.
3. Strong spring fasteners grip the ceiling tightly for easy disassembly during maintenance.
4. Multiple choices of CCT, There are types: 2700K, 3000K, 4000K, 5000K, 6000Kand the most suitable lamp can be selected according to different purposes.

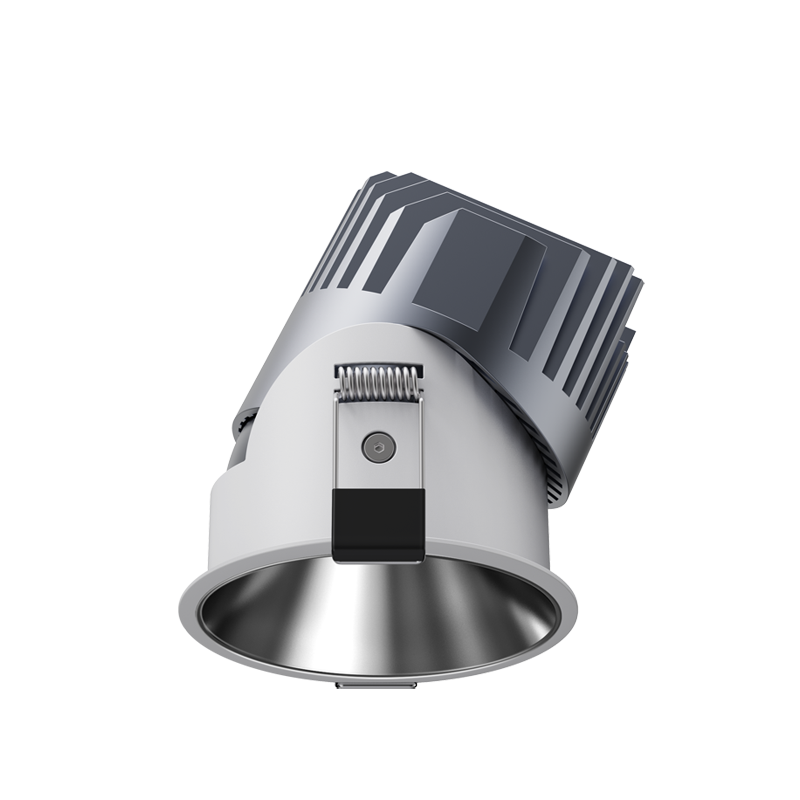

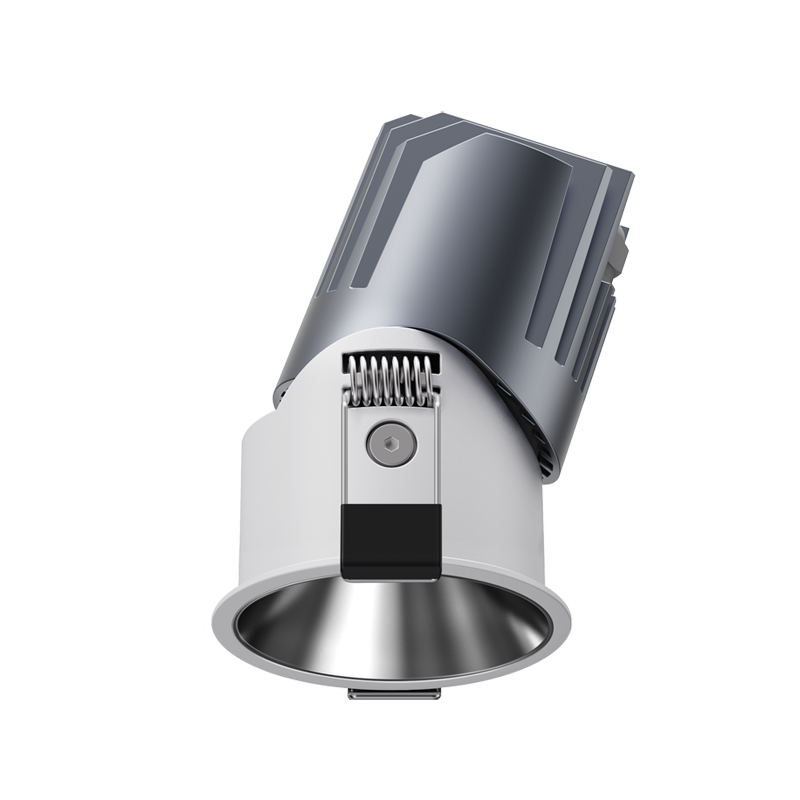

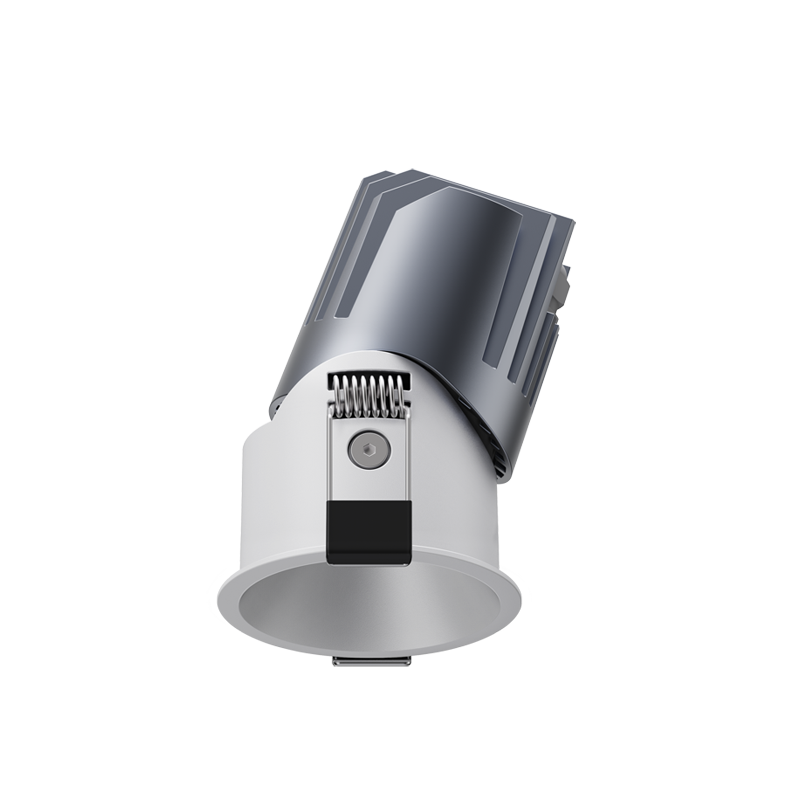

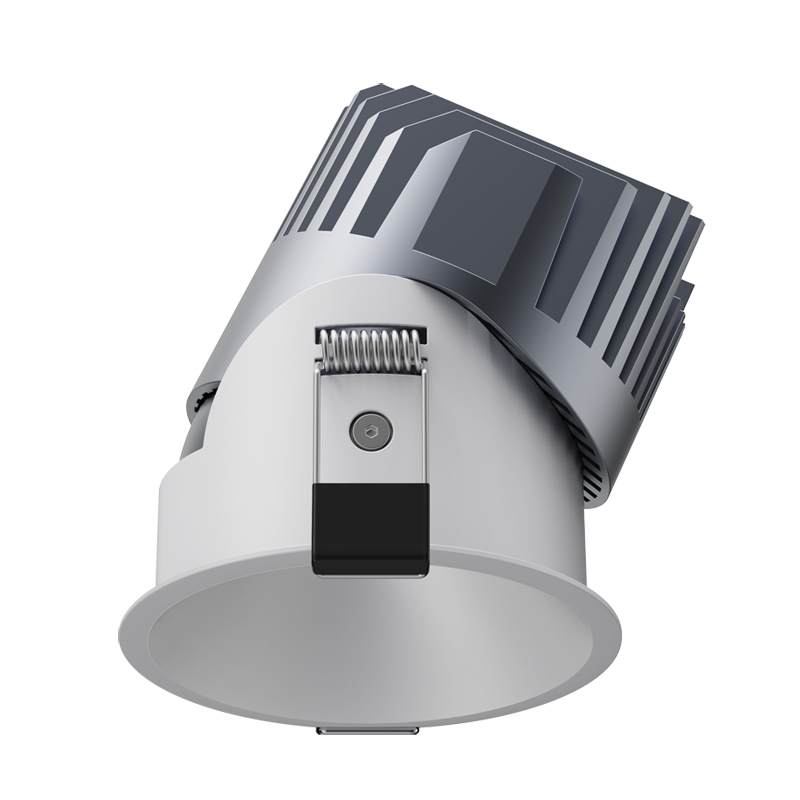

5. Allows to change the direction of the light. This makes them a versatile choice for task lighting or highlighting specific features or areas. Because it is pivoting downlights, gimbal ring downlights, tilt downlights or
swivel downlights, have a movable head.
6. IP65 downlight are rated for protection against water jets and dust ingress which means they are most commonly installed in a zone 1 area of a bathroom. This is because regulations stipulate that IP65 is the
minimum requirement for this zone, which includes above a bath and shower.
Die-casing aluminium housing, powerful radiator or effective heat dissipation
Allows to change the direction of the light
Built-in high quality COB chip, no flicker
High CRI, CRI>80, display Natural color
IP 65, ideal for indoor, outdoor or wet place
Up to 50000hrs lifespan
Model | Power | CRI | CCT | PF | Current | Input Voltage | Beam Angle | Dimension | Cutout |
JST-STN | 6W | >80/90 | 2700K-5000K | >0.90 | 0.13A | AC220-240V | 15°/24°/38°/55° | D52*H75mm | 45mm |
JST-STN | 8W | >80/90 | 2700K-5000K | >0.90 | 0.16A | AC220-240V | 15°/24°/38°/55° | D62*H77mm | 55mm |
JST-STN | 10W | >80/90 | 2700K-5000K | >0.90 | 0.25A | AC220-240V | 15°/24°/38°/55° | D73*H80mm | 65mm |
JST-STN | 12W | >80/90 | 2700K-5000K | >0.90 | 0.30A | AC220-240V | 15°/24°/36°/55° | D84*H85mm | 75mm |
JST-STN | 20W | >80/90 | 2700K-5000K | >0.90 | 0.50A | AC220-240V | 15°/24°/36°/55° | D103*H110mm | 95mm |
JST-STN | 30W | >80/90 | 2700K-5000K | >0.90 | 0.75A | AC220-240V | 15°/24°/36°/55° | D130*H135mm | 120mm |

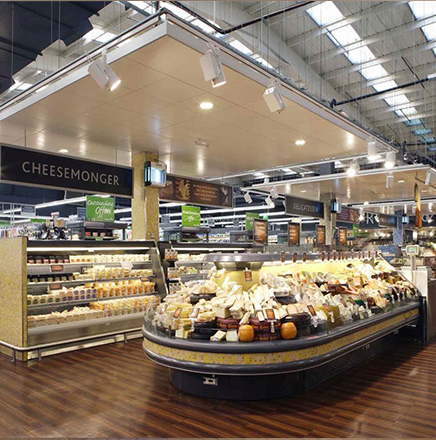

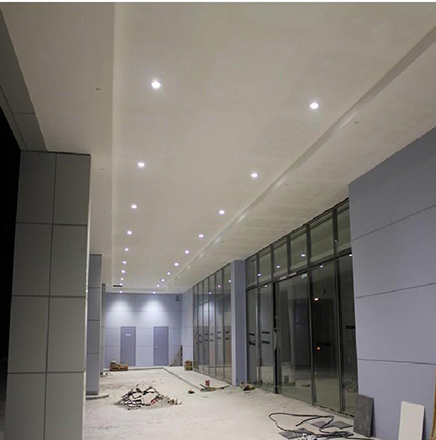

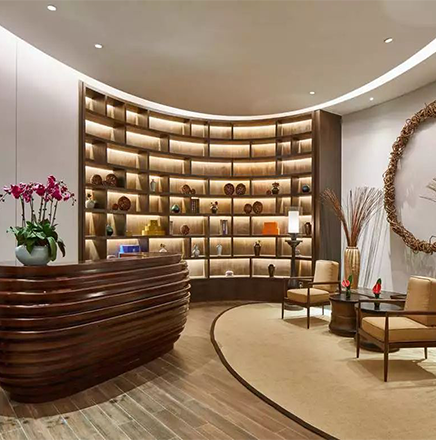

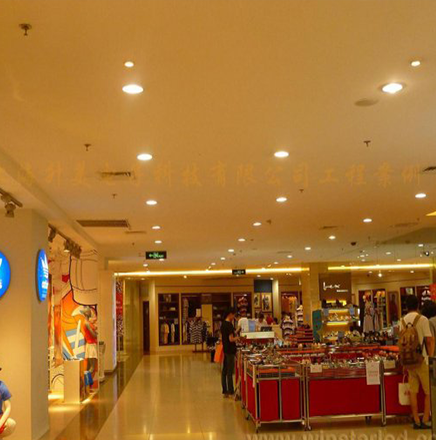

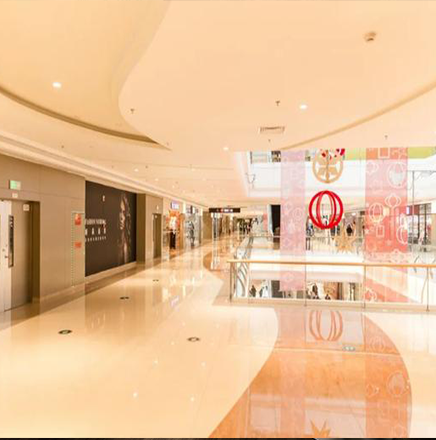

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting, Jewelry stores lighting, Banks lighting, Airport lighting, Suppermaket lighting, Art galleries lighting, Villas lighting, Bars lighting, Exhibition halls lighting, Outdoor ceiling areas lighting, Under canopies lighting etc.
