LED Grille Downlight

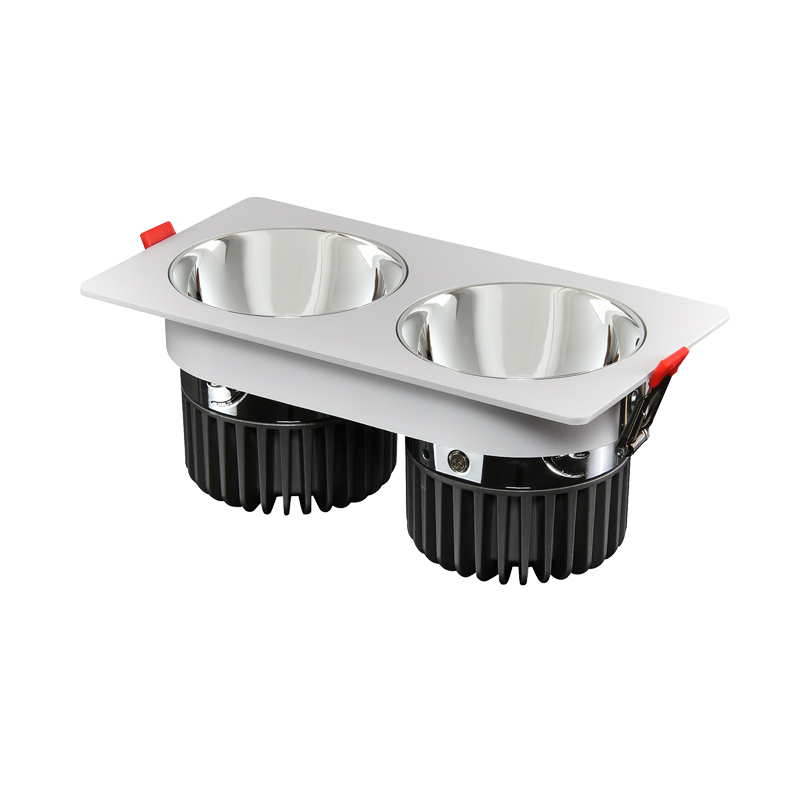

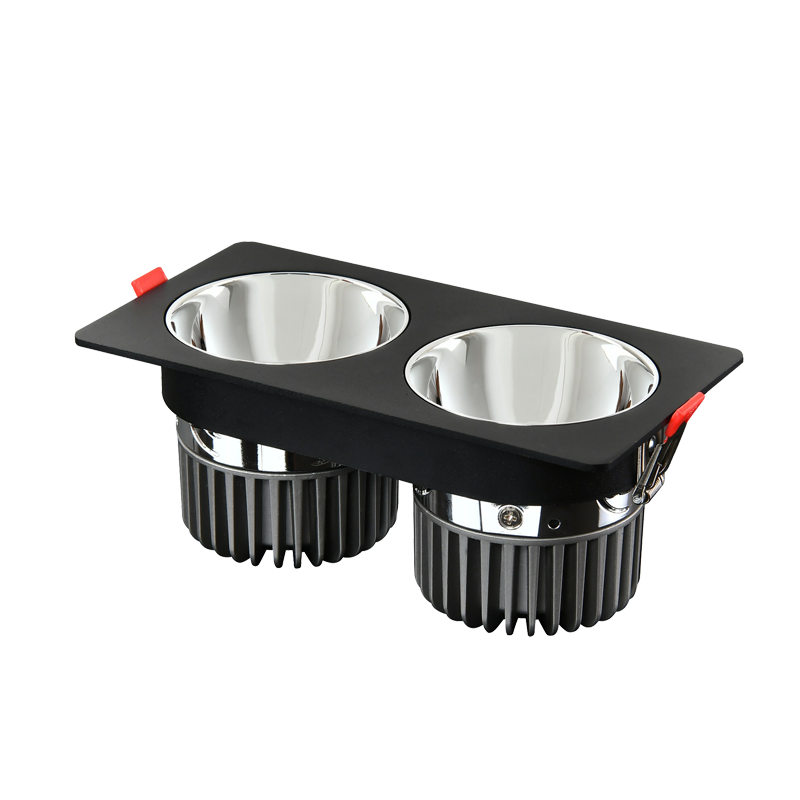

LED Grille downlight RP series-two heads

Model: JST-RP-TWO HEAD

Wattage: 24W-40W

LED Chip: Citizen/Cree/Epistar

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 15°/24°/36°

Size:  168*88mm / 216*116mm

Cutout: 160*75mm / 200*95mm


Description

Downlights are a popular type of lighting  fixture which  installed into the ceiling and provide a directional and focused beam of light that can be used for general and accent lighting. The widely used in residential and

commercial spaces. They are stylish and practical lighting solutions that add a toch of elegance to any room. LED downlight are available in  various designs, sizes and  styles, making them easy to find the perfect fit for

any space.


The feature of adjustability are adjustable downlights. there lights can be angled to direct the light n a specific direction, making them ideal for accent lighting or highlighting specific features in a room. they are

commonly used in art galleries, museums, and other commercial spaces where the lighting needs to be adjustable to create a specific ambience. The Grille downlight RH series is one of it.


Grille downlight RP series with die-cast aluminum  which is small in size and light in weight. It allows the light to change from a point light source to a surface light source in an effective space, increasing the luminous

area, preventing glare and visual fatigue.


RP series grille downlight adopte CREE/CITIZEN COB LED Chips, which has higher lumen and lower power consumption. It can save you up to 90% of energy costs, anti-glare and anti-scratch.


CRI>80 provides high-quality lighting that is close to sunlight, so that your home presents true colors and consistency, and more vividly displays natural colors.


Series design for Grille downlight RP series which are available in single head/ double heads/ three heads/ four heads. Easy to install,Use the spring clip to firmly fix the embedded LED lamp on the ceiling, which can

be easily installed without any tools.


Advantages
  1. Die-cast aluminum heat sink, Black painted. In-directional(adjustable) structure.

  2. High RA, high lumens COB chip

  3. A variety of colors reflector

  4. Simple design

  5. LED energy saving

  6. Comfortable lighting


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout
JST-RP12W*2>80/902700K-5000K>0.900.60AAC220-240V15°/24°/36°L168*W88mm160*75mm
JST-RP20W*2>80/902700K-5000K>0.900.10AAC220-240V15°/24°/36°L216*W116mm200*95mm

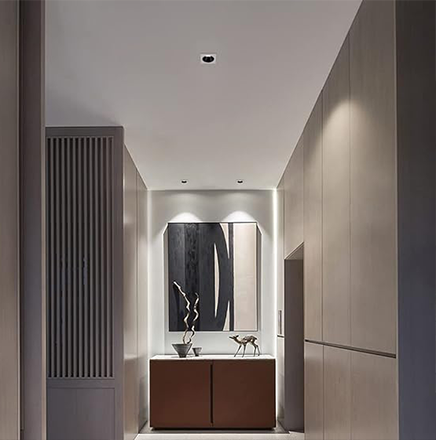

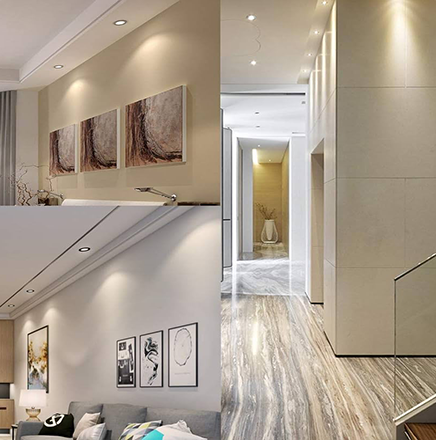

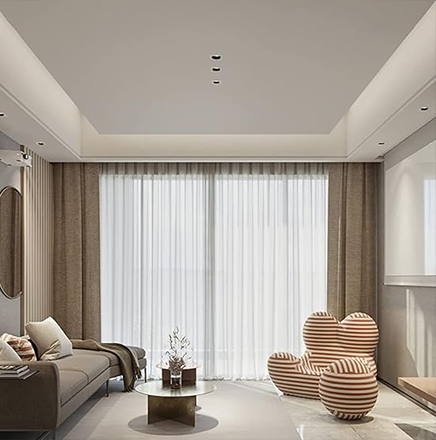

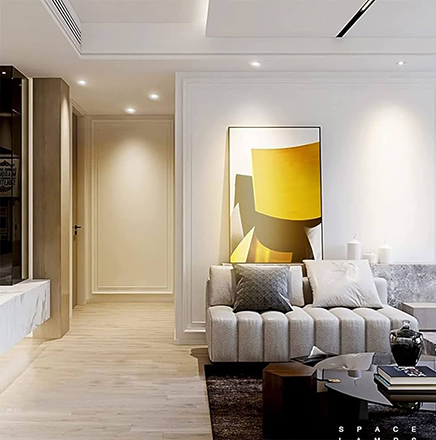

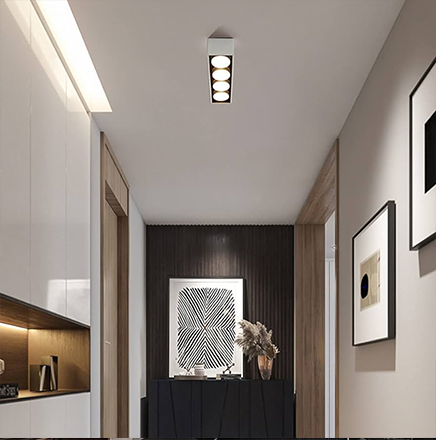

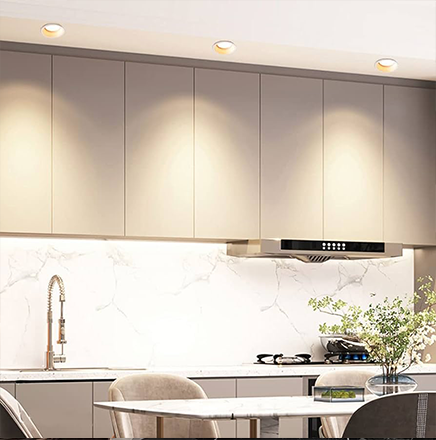

Application

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,Jewelry stores lighting, Banks lighting, Airportlighting, Suppermaket lighting etc.

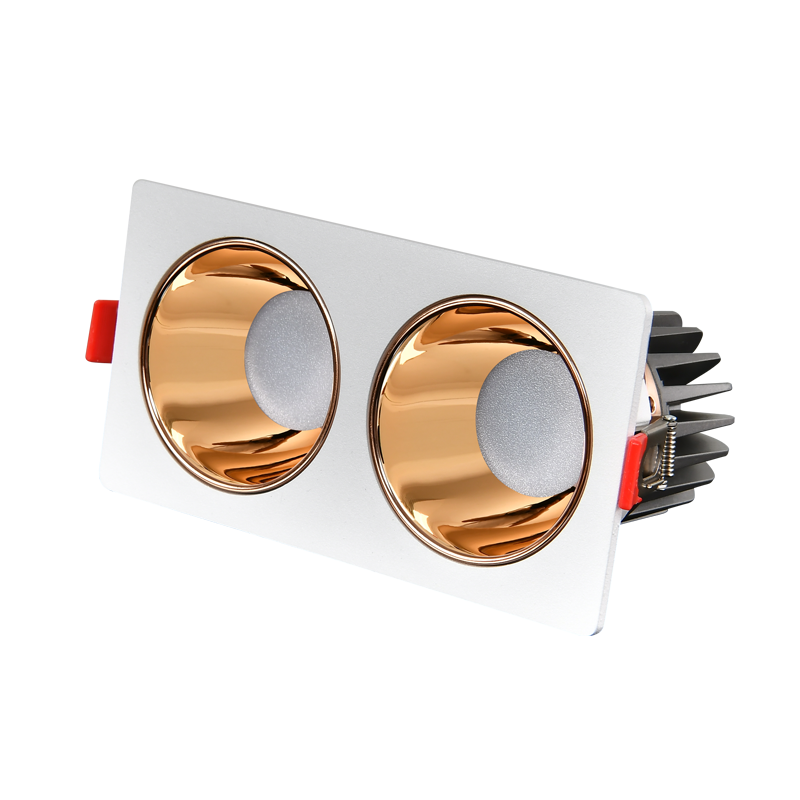

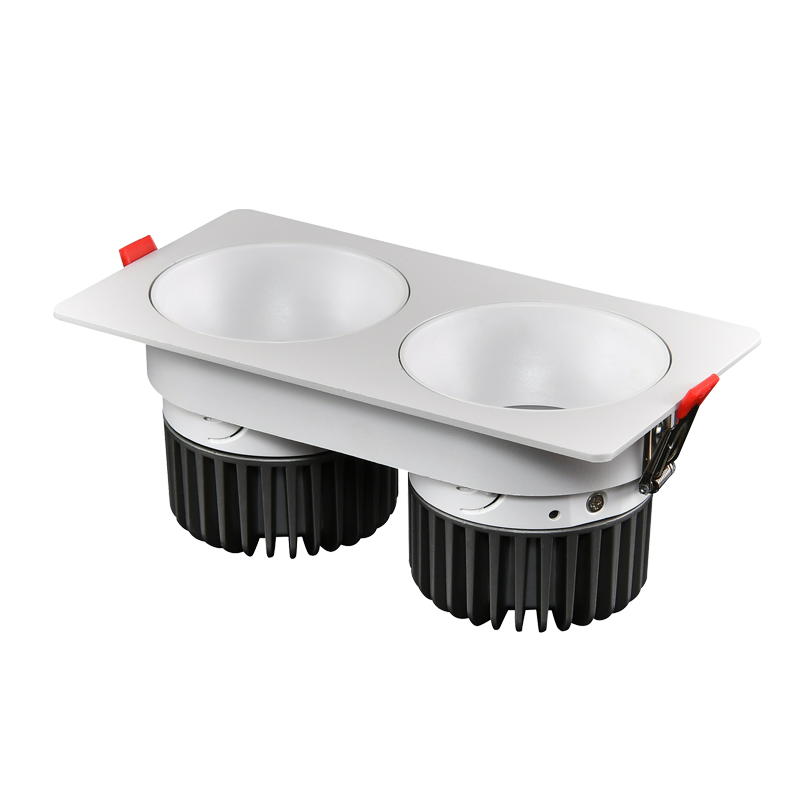

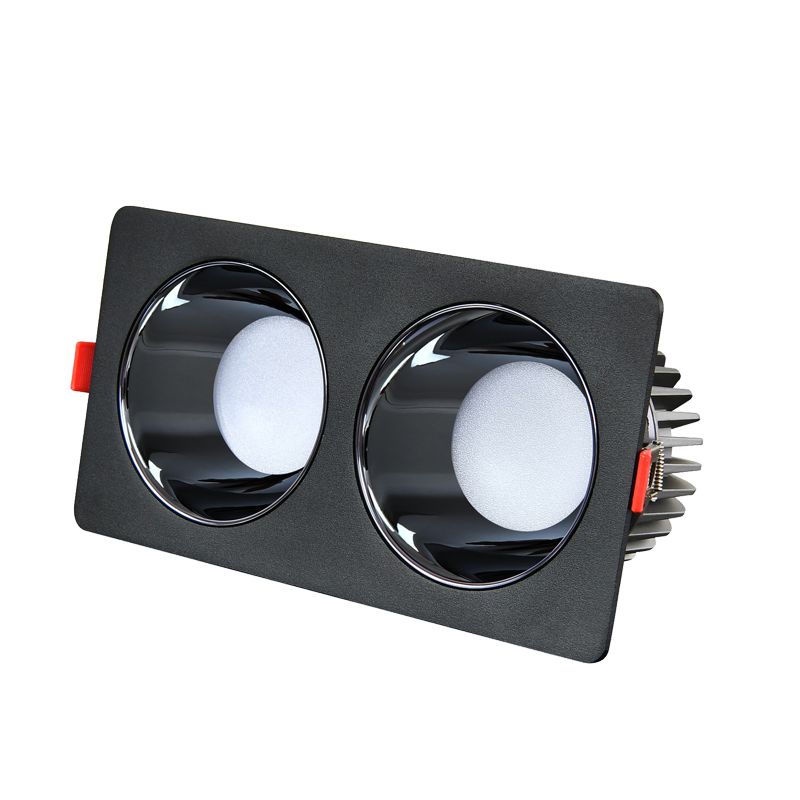

LED Grille downlight RP series-two heads LED Grille downlight RP series-two heads LED Grille downlight RP series-two heads
