LED Grille Downlight

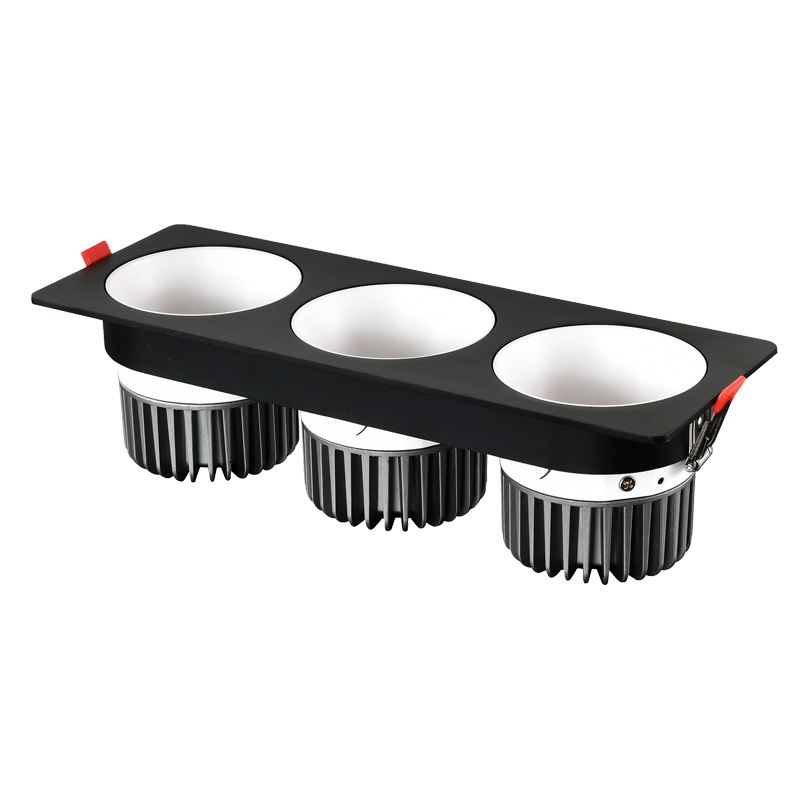

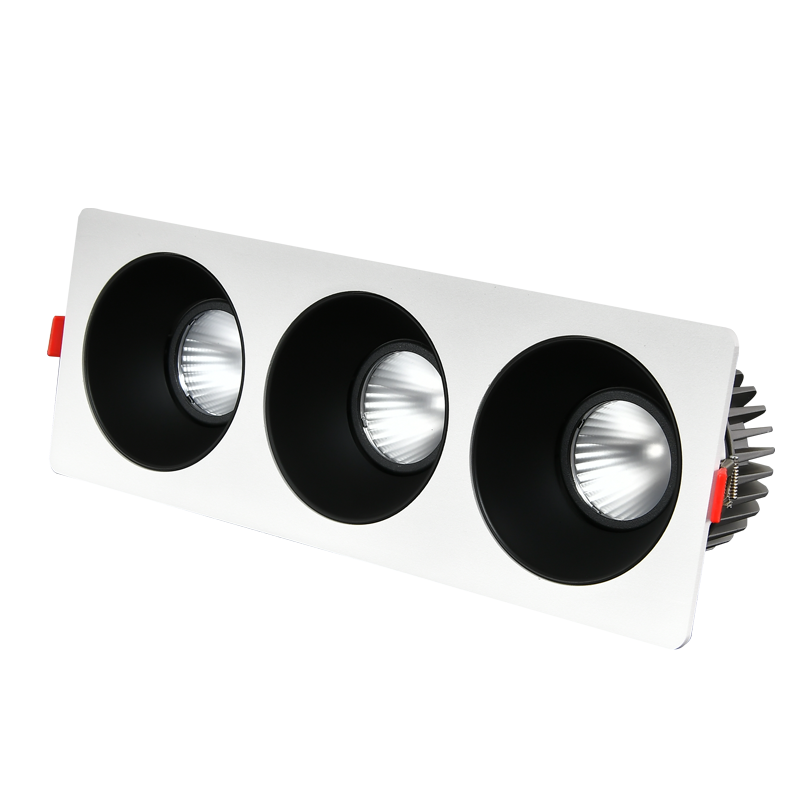

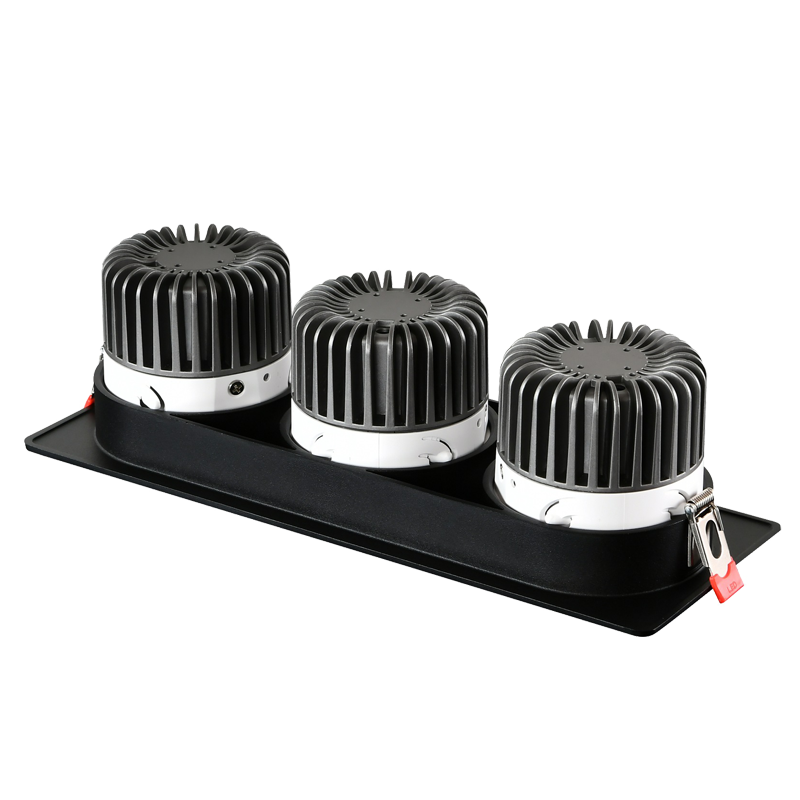

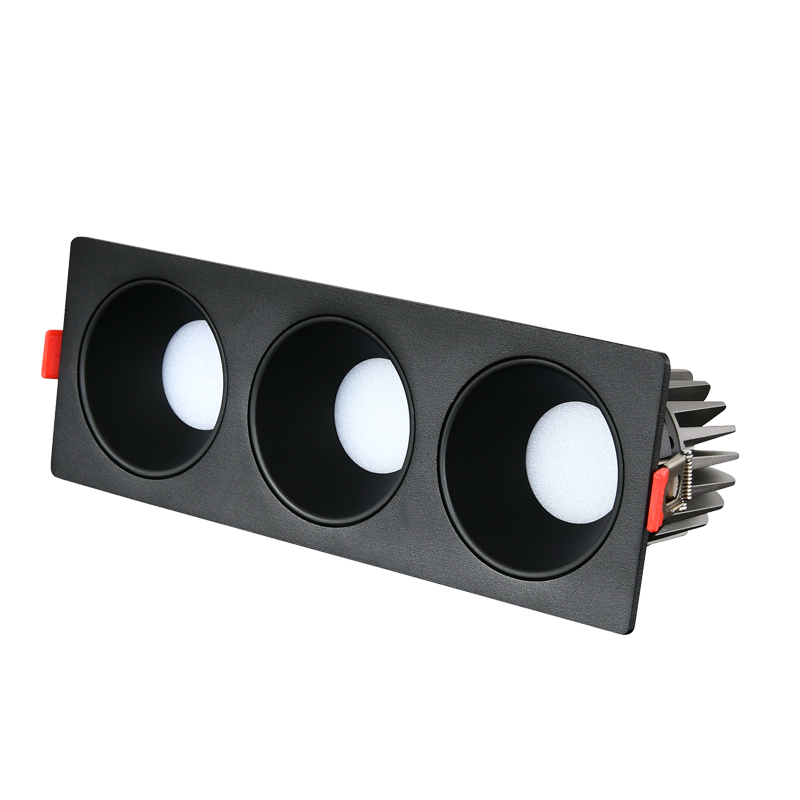

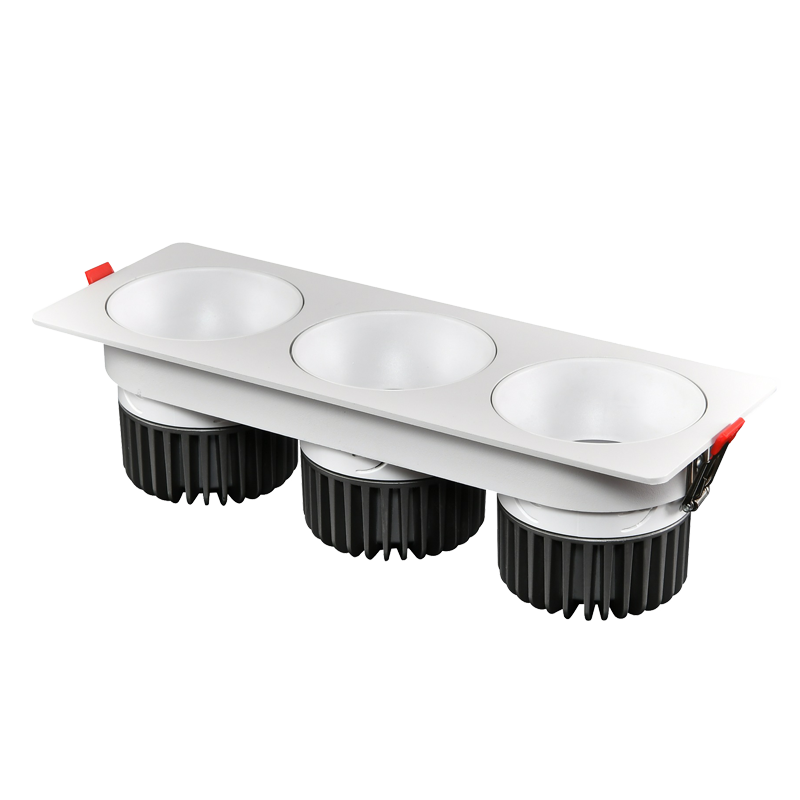

LED Grille downlight RP series-three heads

Model: JST-RP-THREE HEAD

Wattage: 36W-60W

LED Chip: Citizen/Cree/Epistar

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 15°/24°/36°

Size:  250*88mm / 318*115mm

Cutout: 240*75mm /300*95mm


Description

Downlights are a popular type of lighting  fixture which  installed into the ceiling and provide a directional and focused beam of light that can be used for general and accent lighting. The widely used in residential and

commercial spaces. They are stylish and practical lighting solutions that add a toch of elegance to any room. LED downlight are available in  various designs, sizes and  styles, making them easy to find the perfect fit for

any space.


The feature of adjustability are adjustable downlights. there lights can be angled to direct the light n a specific direction, making them ideal for accent lighting or highlighting specific features in a room. they are

commonly used in art galleries, museums, and other commercial spaces where the lighting needs to be adjustable to create a specific ambience. The Grille downlight RH series is one of it.


Grille downlight RP series are made of high temperature resistant aluminum alloy both with good heat dissipation, more secure, guarantees good protection against deformation and corrosion which is small in size

and light in weight. CRI≥90Ra, high ability of revealing the colors of various objects faithfully and protect your eyes. There are three color temperatures 3000K (Warm White), 4000K (Natural White), 6000K (Cool White)

are available to meet your different lighting needs.


RP series grille downlight adopte CREE/CITIZEN COB LED Chips, the higher lumen and lower power consumption which allows the light to change from a point light source to a surface light source in an effective space,

increasing the luminous area, preventing glare and visual fatigue.  It can save you up to 90% of energy costs, anti-glare and anti-scratch.


Series design for Grille downlight RP series which are available in single head/ double heads/ three heads/ four heads, colors reflector. Easy to install,Use the spring clip to firmly fix the embedded LED lamp on the

ceiling, which can be easily installed without any tools.


Advantages
  1. Multiple Three Head Downlight

  2. The aluminum alloy casing provides great cooling performance for these led downlights.

  3. high brightness, Uniform light colour, no UV rays, no eye irritation, better eye protection.

  4. Working environment -20 centigrade ~+55 centigrade, suitable for unusual climate

  5. No VU and IR radiation. Does not contain lead, mercury and other pollution elements.

  6. Long lifespan , 50,000 hrs.


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout
JST-RP12W*3>80/902700K-5000K>0.900.85AAC220-240V15°/24°/36°L250*W88mm240*75mm
JST-RP20W*3>80/902700K-5000K>0.901.50AAC220-240V15°/24°/36°L318*W115mm300*95mm

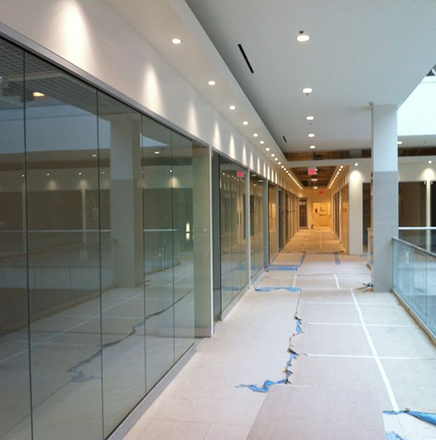

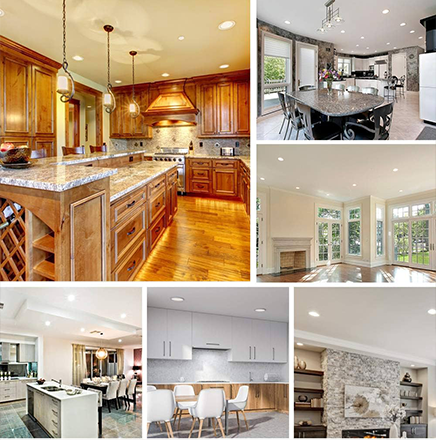

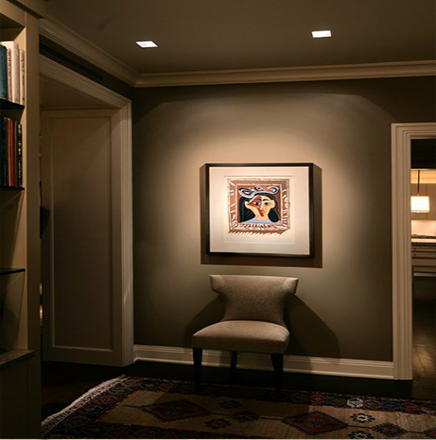

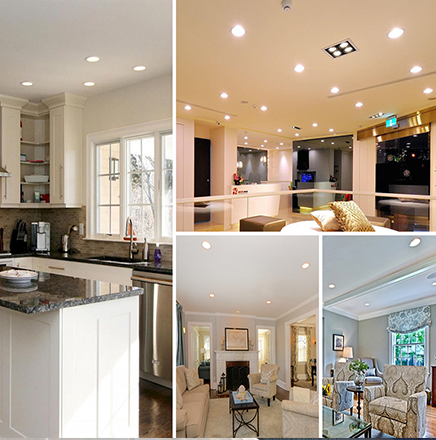

Application

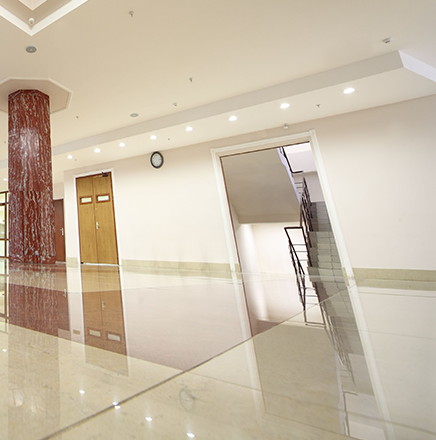

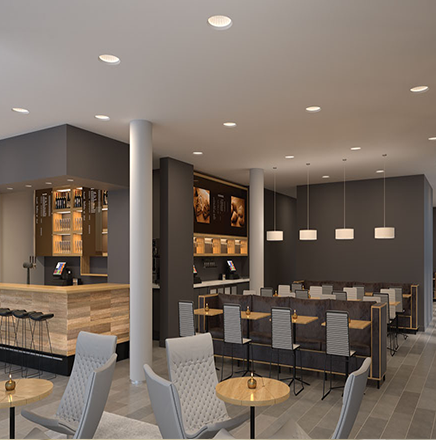

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,Jewelry stores lighting,Banks lighting, Airportlighting, Suppermaket lighting etc.

LED Grille downlight RP series-three heads LED Grille downlight RP series-three heads LED Grille downlight RP series-three heads
LED Grille downlight RP series-three heads LED Grille downlight RP series-three heads LED Grille downlight RP series-three heads

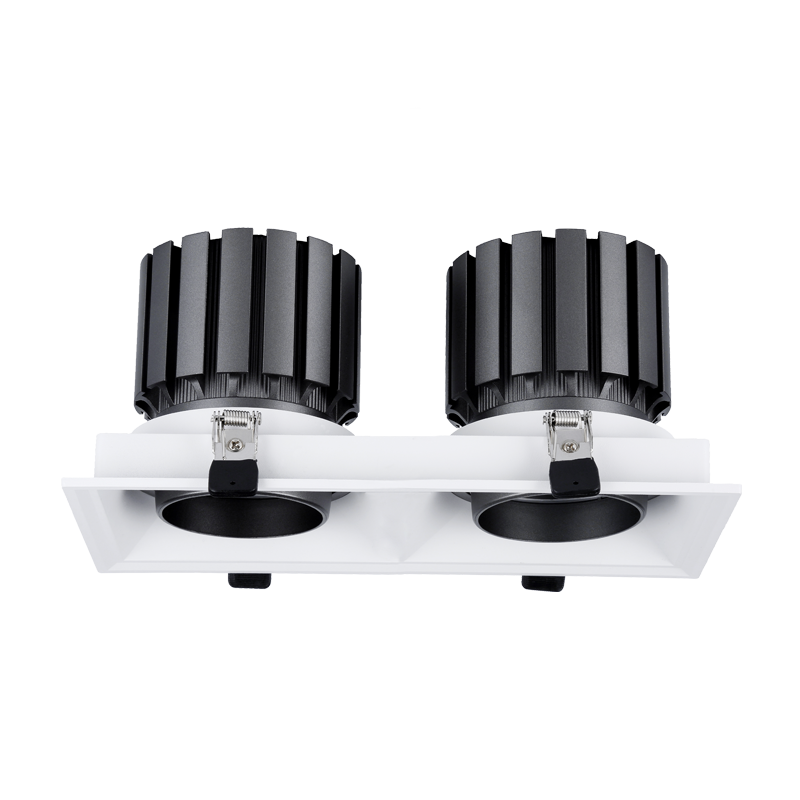

Related Products
