LED Grille Downlight

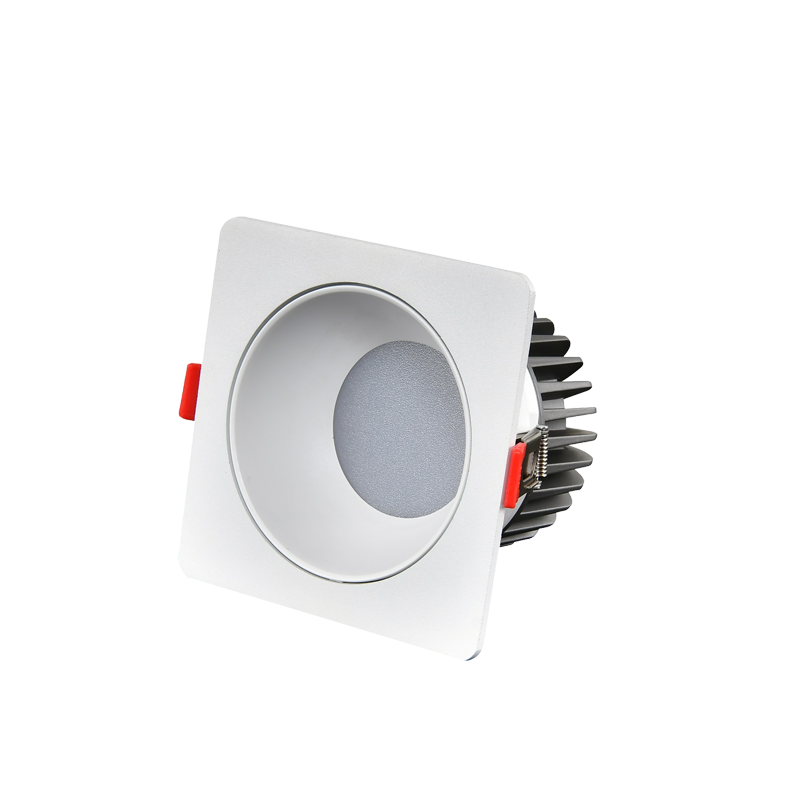

LED Grille downlight RP series-one head

Model: JST-RP-ONE HEAD

Wattage: 12W-20W

LED Chip: Citizen/Cree/Epistar

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 15°/24°/36°

Size:  88-115mm

Cutout: 75-95mm


Description

Downlights are a popular type of lighting  fixture which  installed into the ceiling and provide a directional and focused beam of light that can be used for general and accent lighting. They are stylish and practical

lighting solutions that add a toch of elegance to any room. LED downlight are available in  various designs, sizes and  styles, making them easy to find the perfect fit for any space.


The feature of adjustability are adjustable downlights. there lights can be angled to direct the light n a specific direction, making them ideal for accent lighting or highlighting specific features in a room. they are

commonly used in art galleries, museums, and other commercial spaces where the lighting needs to be adjustable to create a specific ambience. The Grille downlight RH series is one of it.


Grille donwlight RP series recessed multiple led downlights include square and rectangle recessed luminaire with single head, double heads, triple heads, and four heads. The light source module can be separated from

the outer ring. The light source can be easily replaced without disassembling the entire lamp, and the light source module can be adjusted at 30°. At the same time, a deep reflector is used to achieve a perfect

anti-glare effect. The widely used in residential and commercial spaces.


Grille donwlight RP series are made of high temperature resistant aluminum alloy both with good heat dissipation, more secure, guarantees good protection against deformation and corrosion which is small in size

and light in weight. CRI≥90Ra, high ability of revealing the colors of various objects faithfully and protect your eyes. There are three color temperatures 3000K (Warm White), 4000K (Natural White), 6000K (Cool White)

are available to meet your different lighting needs.


RP series grille downlight adopte CREE/CITIZEN COB LED Chips, the higher lumen and lower power consumption which allows the light to change from a point light source to a surface light source in an effective space,

increasing the luminous area, preventing glare and visual fatigue.  It can save you up to 90% of energy costs, anti-glare and anti-scratch.


Advantages

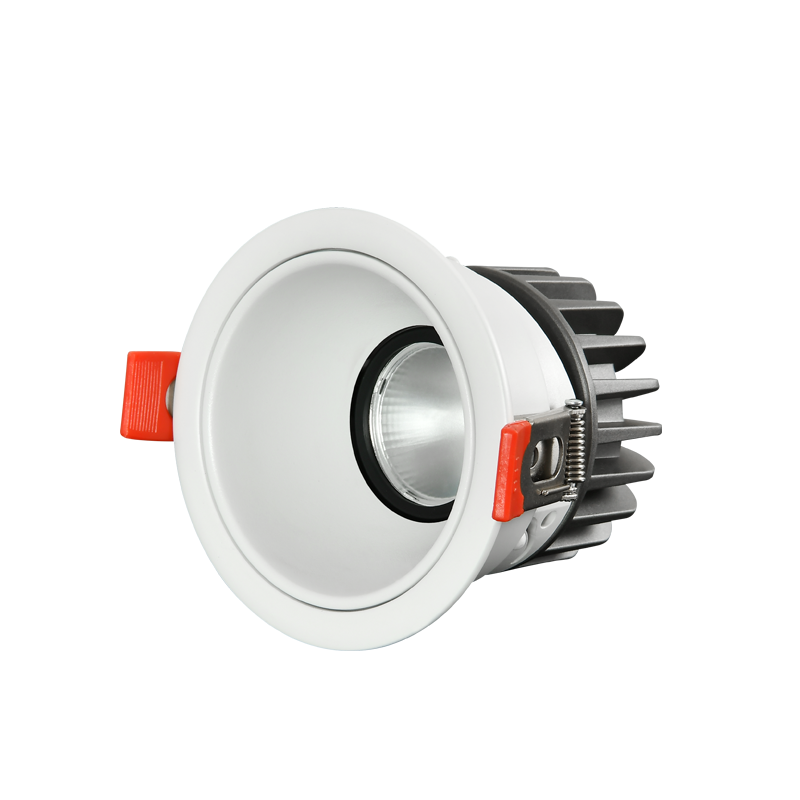

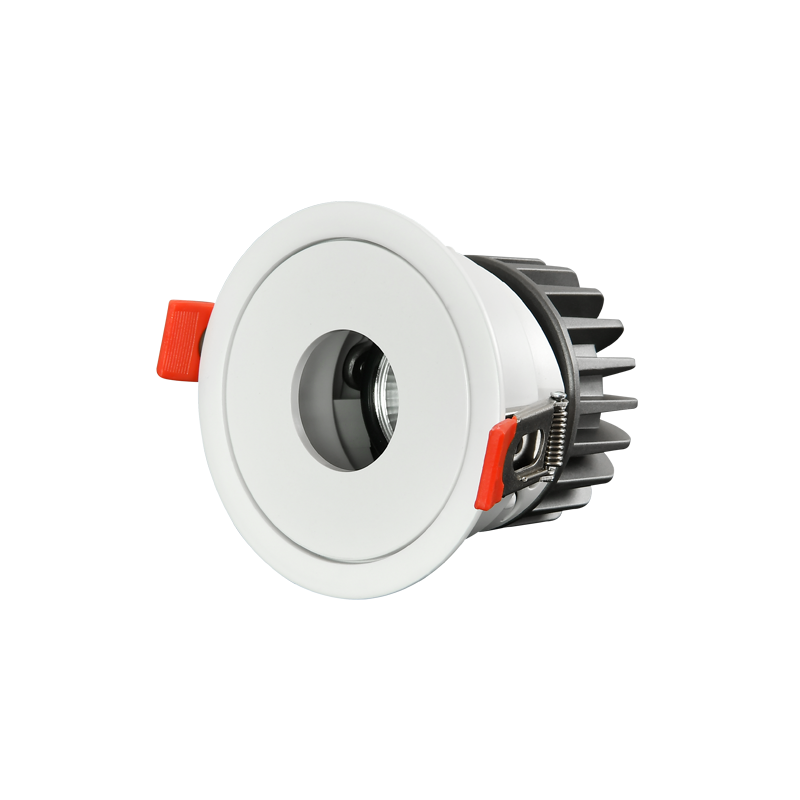

  1. Heat sink: Die-cast aluminum, matt black finished. Rotate 360° horizontally, and adjust 30° vertical.

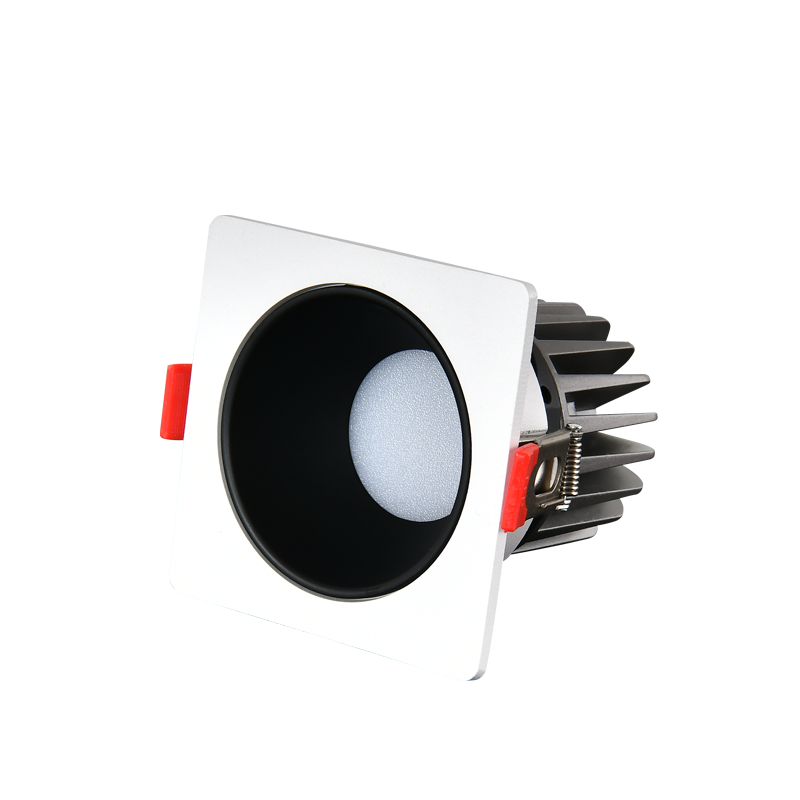

  2. Outer frame: Round shape, square shape, aluminum trim, white powder coated.

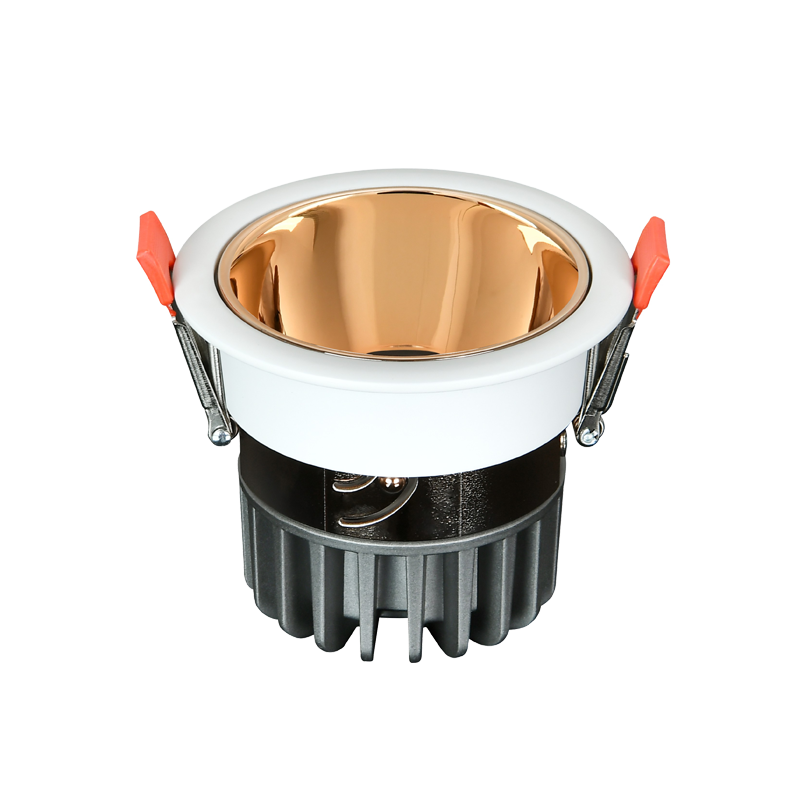

  3. Reflector: High-temperature resistant reflector cup, a variety of colors are available (white, bright black, gold, silver).

  4. LED Chips: CREE/CITIZEN COB LED Chips, high RA, high lumens.

  5. Recessed clips: Strong metal springs, easy to do the embedded installation into the ceiling.

  6. Lens: Different lens optionals


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout
JST-RP-R/S12W>80/902700K-5000K>0.900.30AAC220-240V15°/24°/36°L88*W88mm75*75mm
JST-RP-R/S20W>80/902700K-5000K>0.900.50AAC220-240V15°/24°/36°L115*W115mm95*95mm

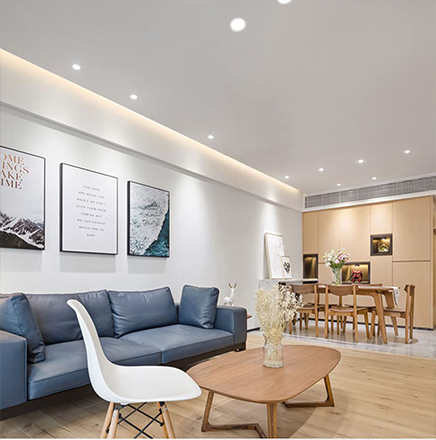

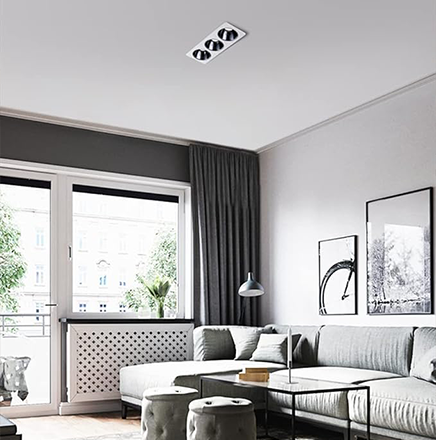

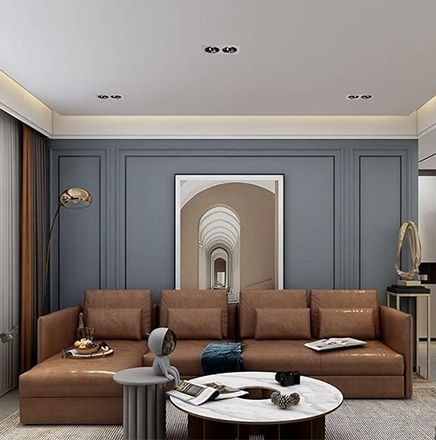

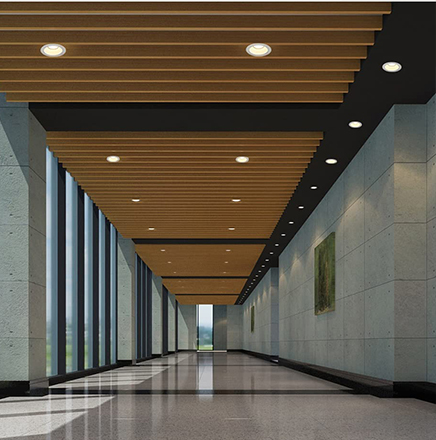

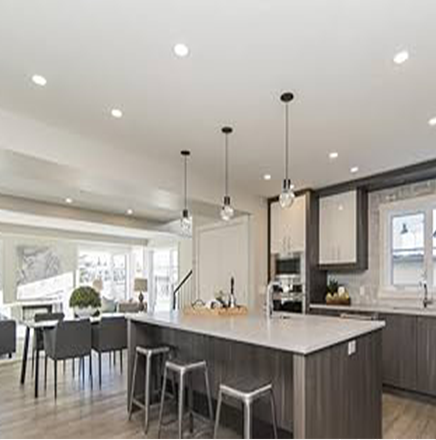

Application

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,Jewelry stores lighting,Banks lighting, Airportlighting, Suppermaket lighting etc.

LED Grille downlight RP series-one head LED Grille downlight RP series-one head LED Grille downlight RP series-one head
LED Grille downlight RP series-one head LED Grille downlight RP series-one head LED Grille downlight RP series-one head
