LED Downlight

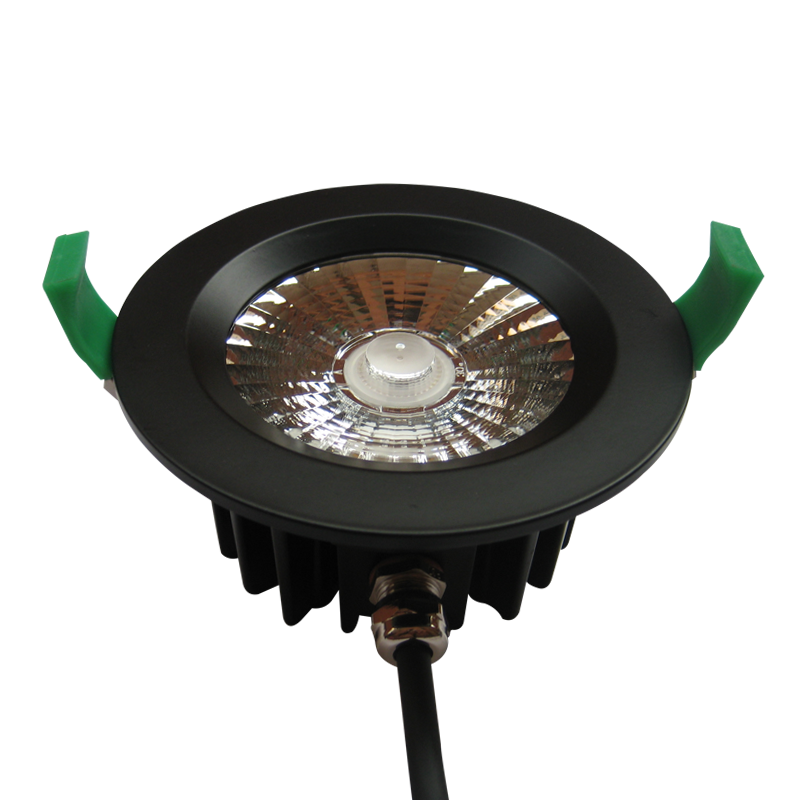

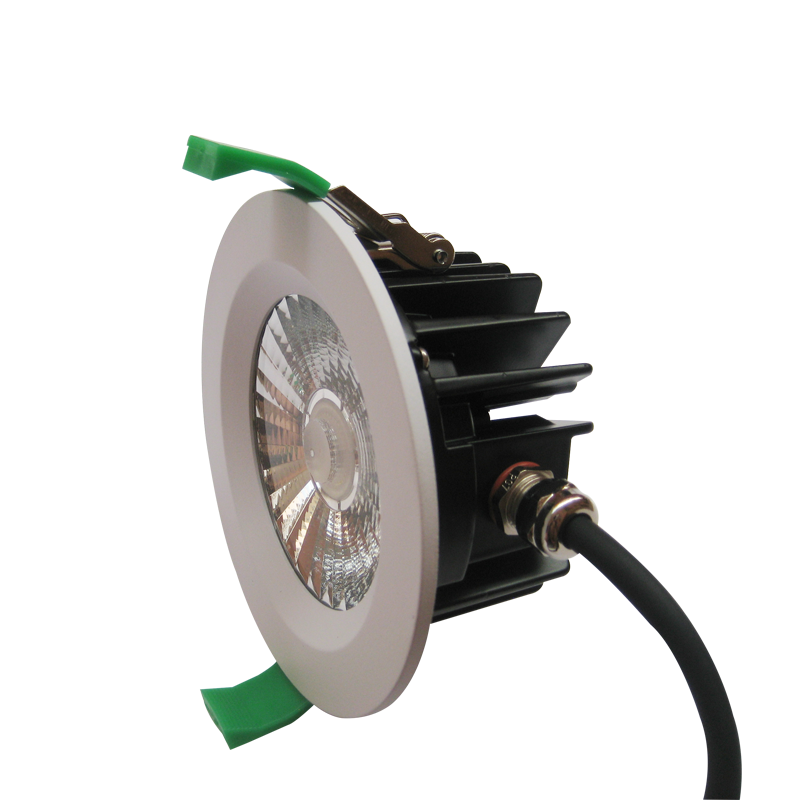

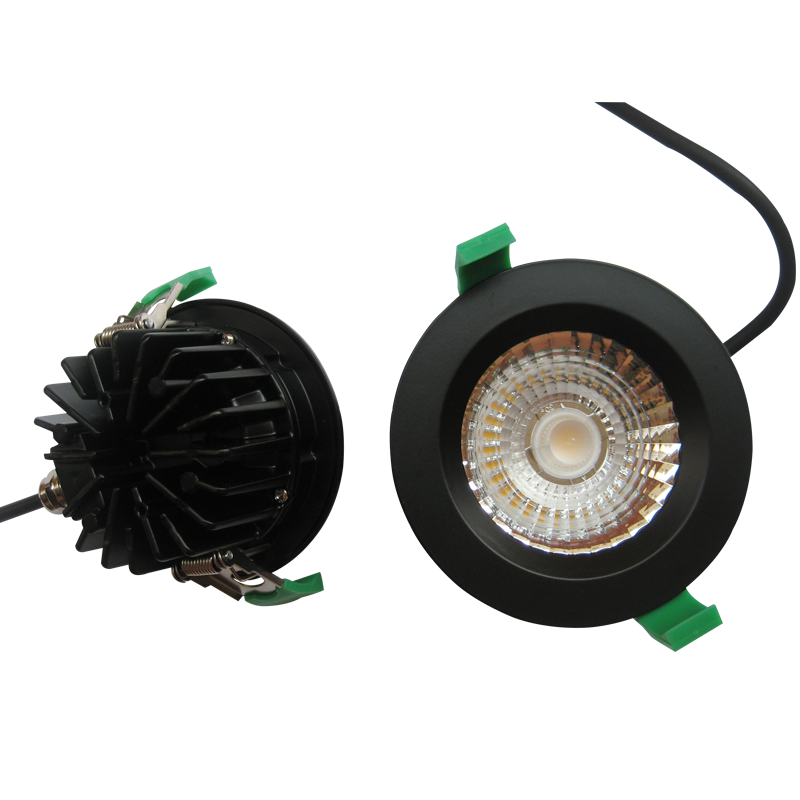

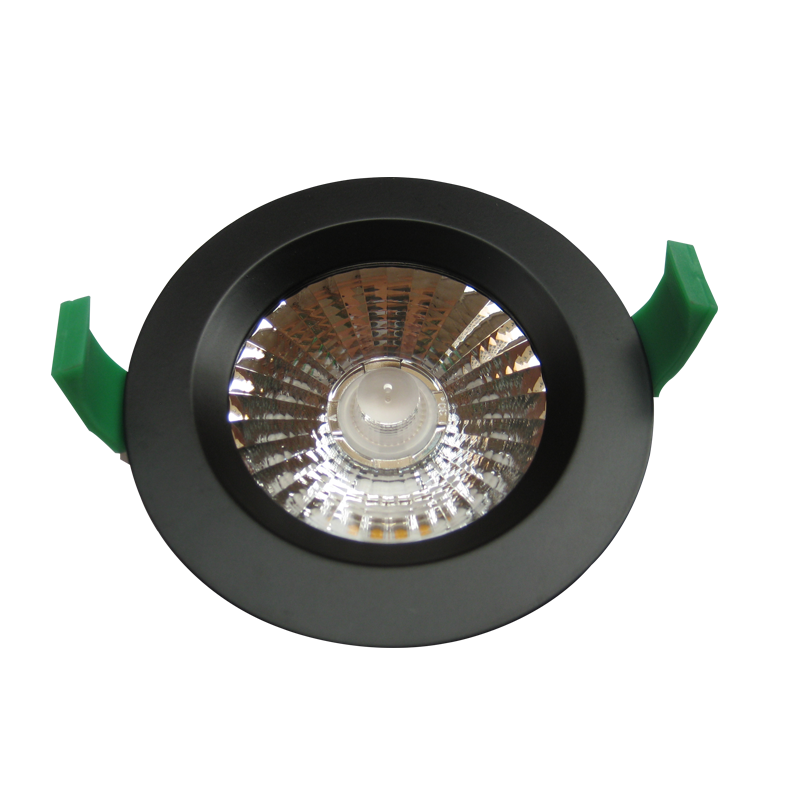

IP65 LED DOWNLIGHT DTE-COB Series

Model: JST-DTE-COB

Wattage: 10W-25W

LED Chip: CREE/CITIZEN COB

Driver Brand: MEANWELL/SOSEN

RA: >90

IP Rate: IP65

Finish Color: White/Black/Customized

Beam Angle: 10°/30°/9

Diameter: 95mm-155mm

Cutout: 80mm-130mm

Description

Is your bathroom always been dull and dark? Well, it's time to change it up and make your space more brightness functional by choosing our high-performance IP65 LED DTE downlights!


How to choose right bathroom lights? -What you need to know about your bathroom lighting regulations

The most important thing to consider when choosing bathroom lights is whether they are safe. Bathroom lighting does have special needs to keep in mind – of course, we all know water and electricity aren’t a good

combination!


To help you decide which lights can be used in your bathroom, each fixture has an IP rating - IP20/IP44/IP65. These ratings are used around the world and refer to how well a lighting fixture prevents water or dust/small

particles from entering it.


When picking out your bathroom lights you'll want to make sure you choose the correct IP rating for the area , and our IP65 DTE range of downlights are waterproof and dustproof, so you can install them directly

above the shower in your bathroom - Zone 1. Don't worry it will get wet from splashes and water jets because it's designed to withstand the elements!


Since these IP65 LED DTE series downlights are fixed downlight types, that is, the direction of the beam shines downward, their position needs to be determined before installation. DTE have COB chip/SMD chip

optioanl. NON-Dim, Triac Dimming, 0-10V Dimming, DALI Dimming, 4 different drivers to choose from, so having a dimmable light allows you to customize the ambience of your space to match your mood. If you

want to relax in the bathtub, dim the downlights to create a relaxing and cozy atmosphere. Or when you're busy in the morning, you can dim the lights to give you a clear view and wake you up while you're sleeping!




Advantages
Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout
JST-DTE10W>80/902700K-5000K>0.900.25AAC220-240V10/30/90D95*H51mm80mm
JST-DTE15W>80/902700K-5000K>0.900.35AAC220-240V10/30/90D115*H55mm90mm
JST-DTE20W>80/902700K-5000K>0.900.50AAC220-240V10/30/90D155*H67mm130mm
JST-DTE25W>80/902700K-5000K>0.900.60AAC220-240V10/30/90D155*H67mm130mm

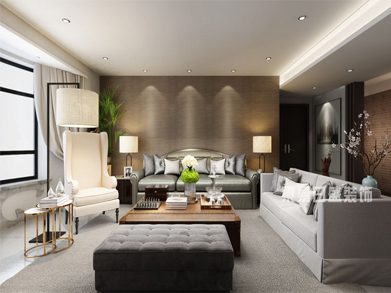

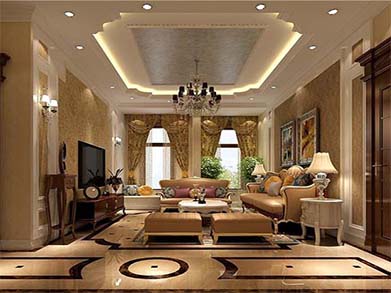

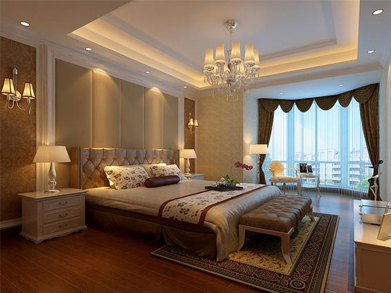

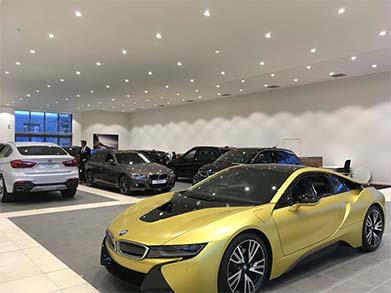

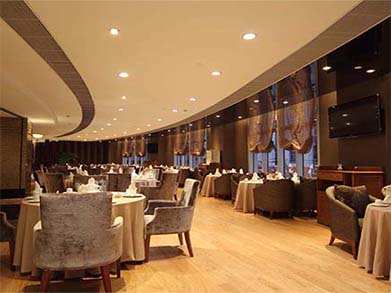

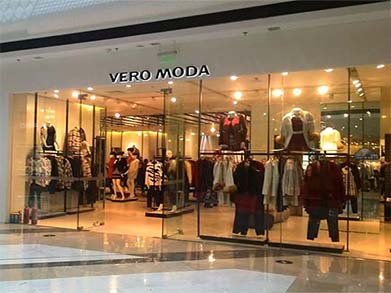

Application

Shopping malls lighting, offices lighting, schools lighting, hotels lighting, restaurants lighting, bathroom lighting, outdoor ceiling areas lighting, under canopies lighting,bathroom lighting etc.

IP65 LED DOWNLIGHT DTE-COB Series IP65 LED DOWNLIGHT DTE-COB Series IP65 LED DOWNLIGHT DTE-COB Series
IP65 LED DOWNLIGHT DTE-COB Series IP65 LED DOWNLIGHT DTE-COB Series IP65 LED DOWNLIGHT DTE-COB Series
