LED Downlight

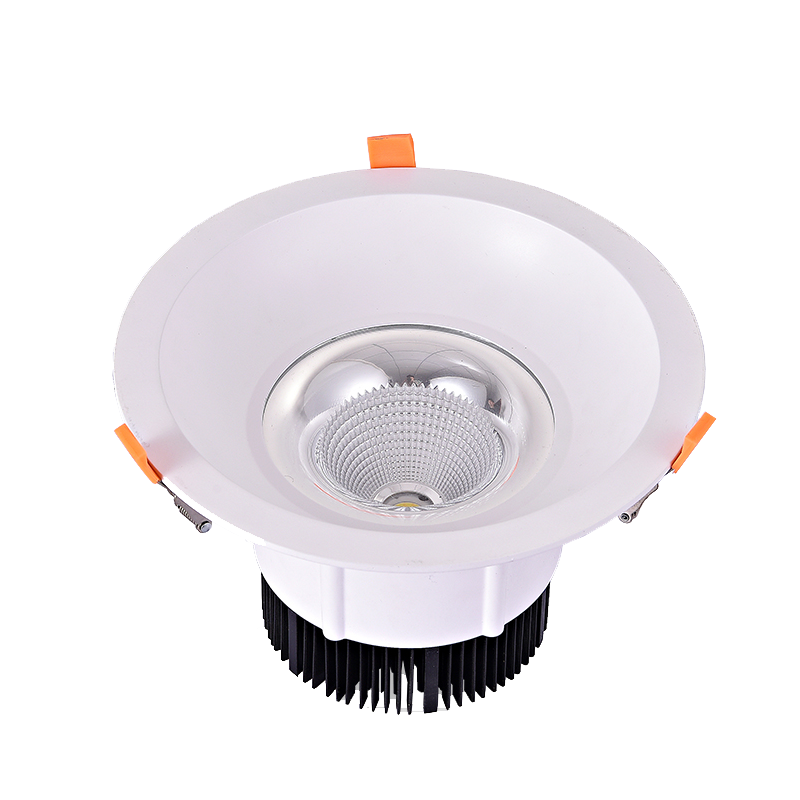

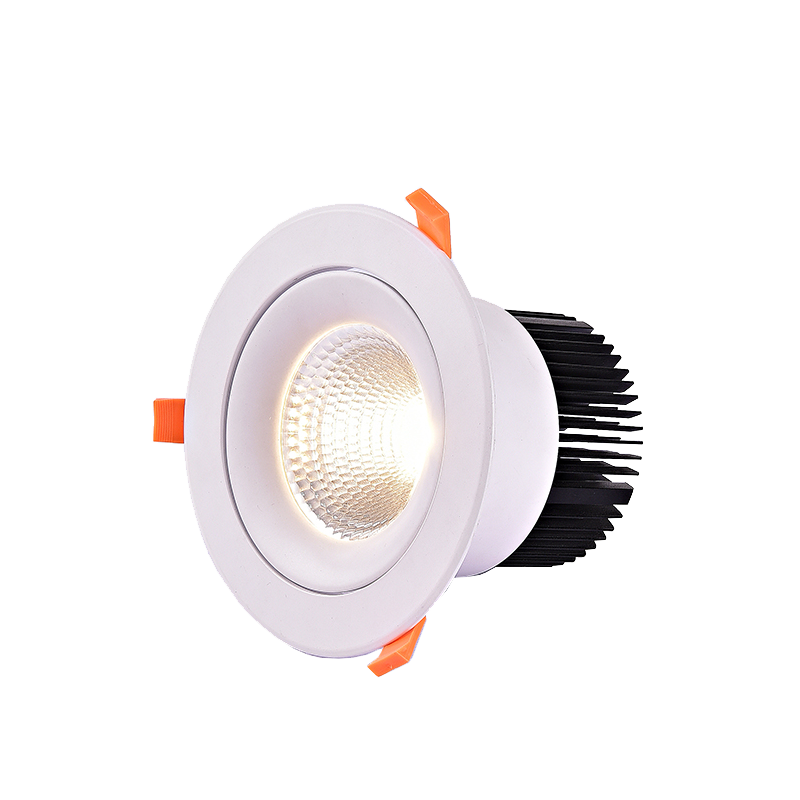

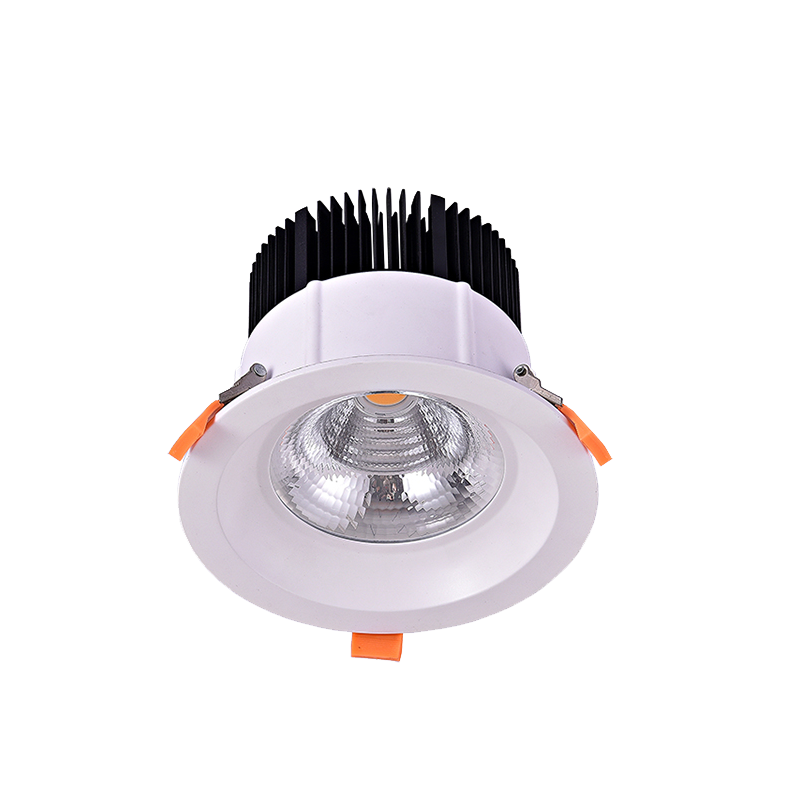

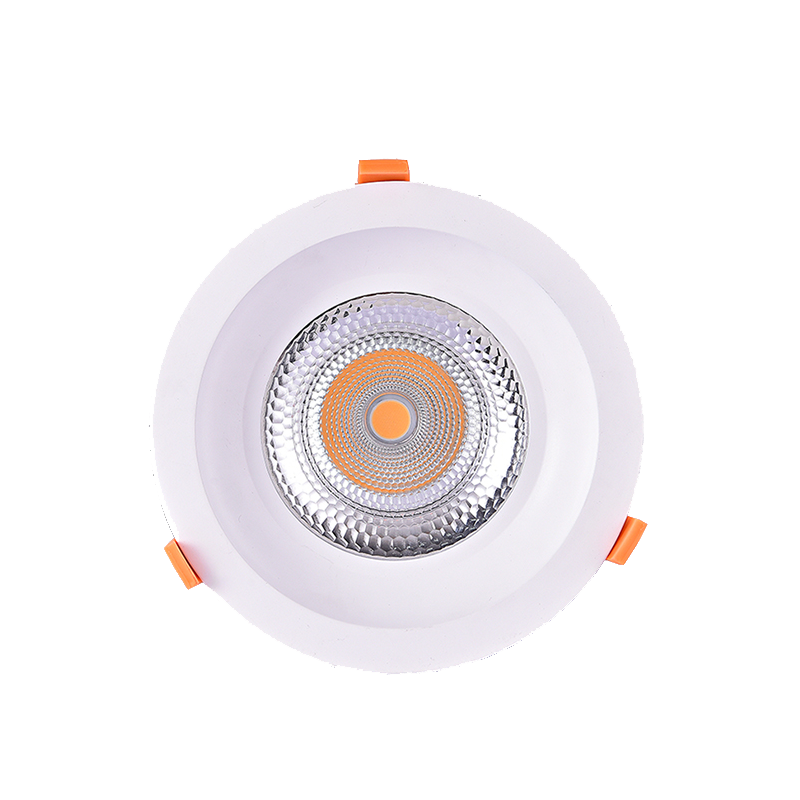

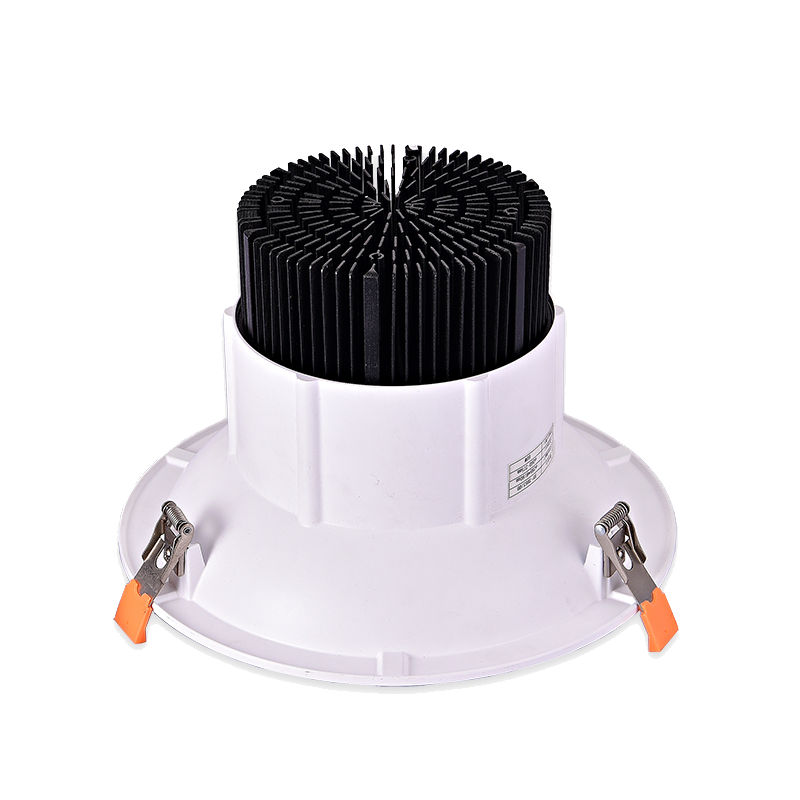

LED Downlight DTO Series

Model: JST-DTO

Wattage: 10W-80W

LED Chip: CITIZEN/CREE

Driver Brand: OSRAM/PHILIPS/LIFUD

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 24°/40°/60°

Diameter: 118mm-233mm

Cutout: 80mm-210mm


Description

Downlights, also commonly known as recessed lights, light downward and are undoubtedly an affordable and popular way to add lighting to a room.


Choose the right downlight also choose CRI. What is the CRI

A color rendering index (CRI) is a quantitative measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural or standard light source. Light sources with a high CRI

are desirable in color-critical applications such as cultural relics and artwork.


The index is measured from 0-100. Typically, light sources with a CRI of 80 to 90 are regarded as good and those with a CRI of 90+ are excellent! CRI of  100 is perfection! The general rule is: The higher the CRI, the

better the color rendering capacity.


Which CRI Ranges to Use

When purchasing and installing white LED lights, we recommend a CRI of over 90 but also say in some projects, a  minimum of 80 can be acceptable. Below is a brief explanation of the CRI ranges:


CRI 95 - 100 →  Phenomenal color rendering. Colors appear as they should, subtle tones pop out and are accented.


CRI 90 - 95 → Great color rendering! Almost all colors 'pop' and are easily distinguishable.


CRI 80 - 90 → Good color rendering, where most colors are rendered well. Acceptable for most commercial uses.


CRI Below 80 → Lighting with a CRI below 80 would be considered to have poor color rendering. Under this light, items and colors may look desaturated, drab, and at times unidentifiable. It would be difficult to

distinguish between similar colors.


Each CRI has its own unique advantages and can be selected based on your own specific environmental needs. Each CRI  is also available in different hue to suit your space, There are CRI options for every need.


Advantages


Specification
ModelPowerCRICCTPFCurrent
Input VoltageBeam AngleDimensionCutout
JST-DTO10W>80/902700K-5000K>0.900.25A
AC220-240V24°/40°/60°D118*H88mm80mm
JST-DTO15W>80/902700K-5000K>0.900.35A
AC220-240V24°/40°/60°D119*H103mm90mm
JST-DTO20W>80/902700K-5000K>0.900.50A
AC220-240V24°/40°/60°D142*H118mm110mm
JST-DTO30W>80/902700K-5000K>0.900.75A
AC220-240V24°/40°/60°D142*H118mm110mm
JST-DTO40W>80/902700K-5000K>0.901.00A
AC220-240V24°/40°/60°D180*H150mm145mm
JST-DTO50W>80/902700K-5000K>0.901.25A
AC220-240V24°/40°/60°D180*H150mm145mm
JST-DTO60W>80/902700K-5000K>0.901.50A
AC220-240V24°/40°/60°D194*H149mm160mm
JST-DTO80W>80/902700K-5000K>0.902.00A
AC220-240V24°/40°/60°D233*H170mm210mm

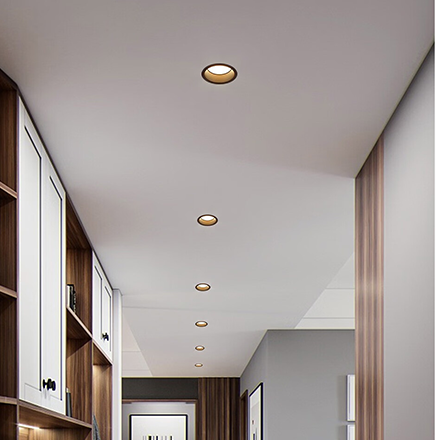

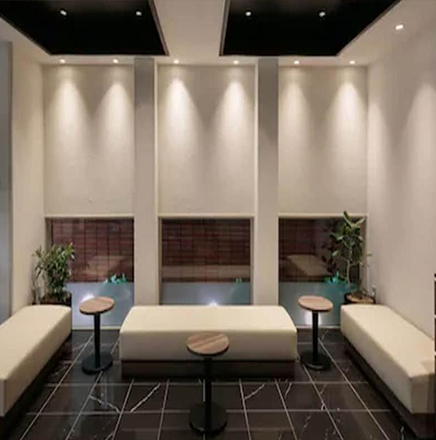

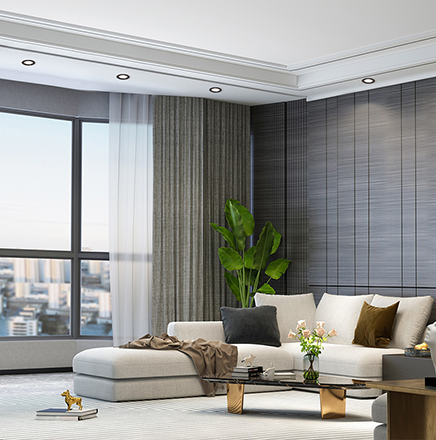

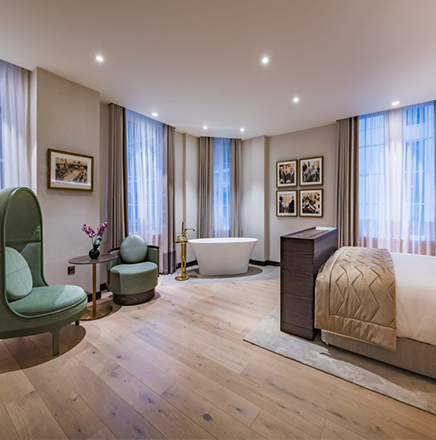

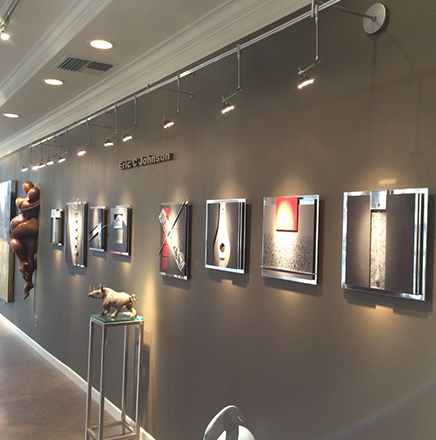

Application

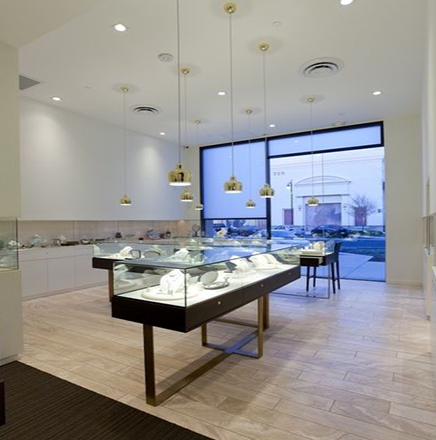

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,jewelry stores lighting,banks lighting, airport,lighting, suppermaket lighting etc.

LED Downlight DTO Series LED Downlight DTO Series LED Downlight DTO Series
LED Downlight DTO Series LED Downlight DTO Series LED Downlight DTO Series
