LED Downlight

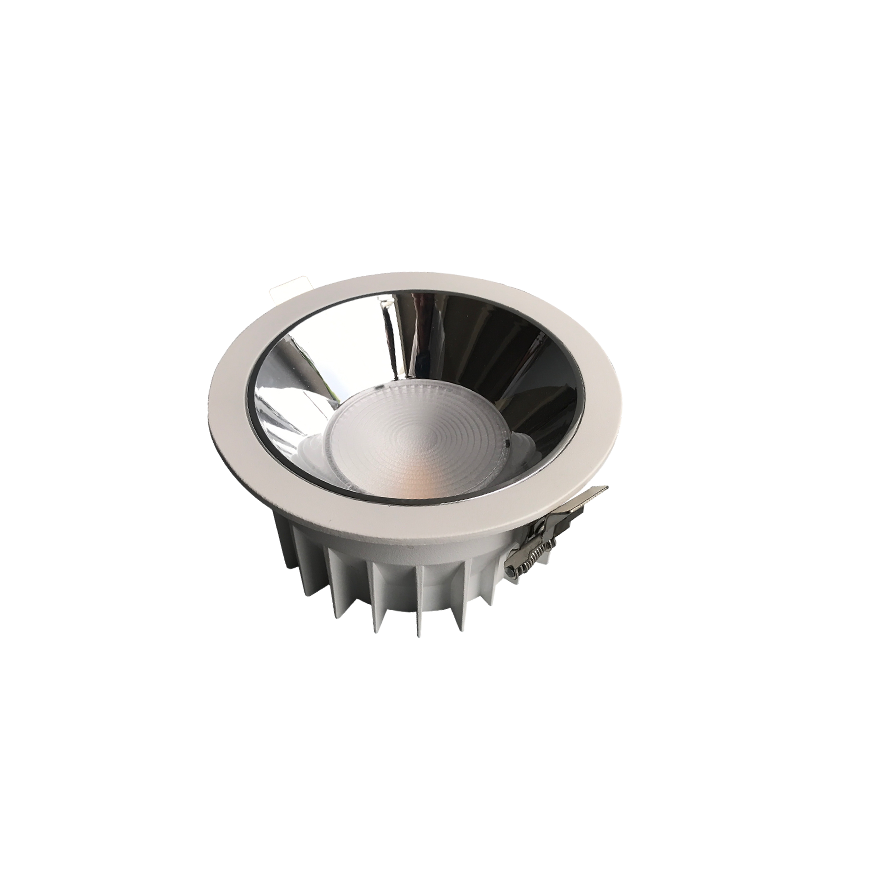

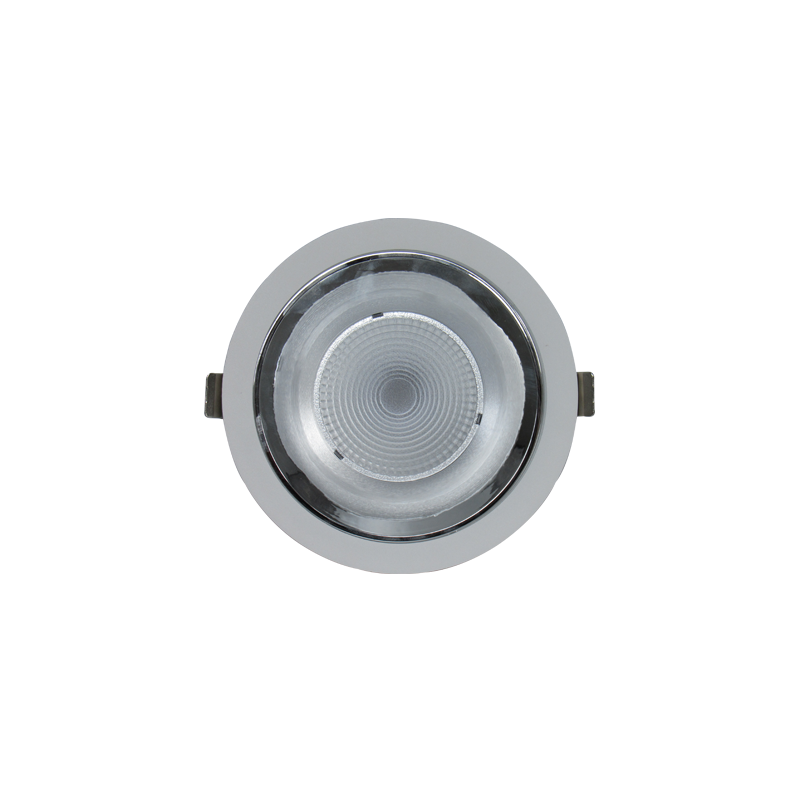

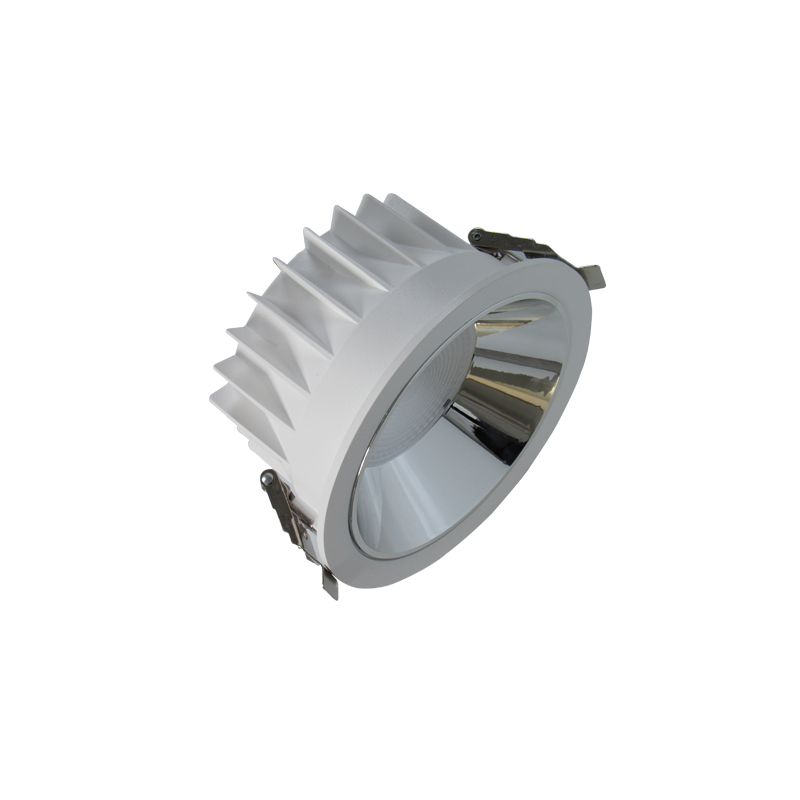

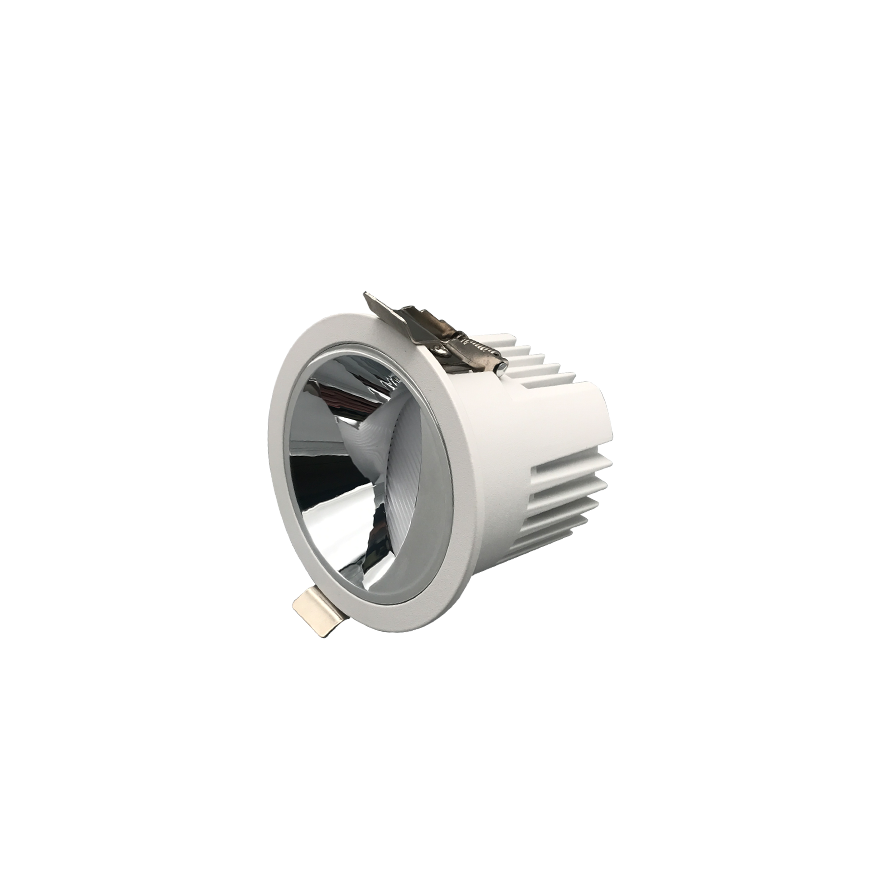

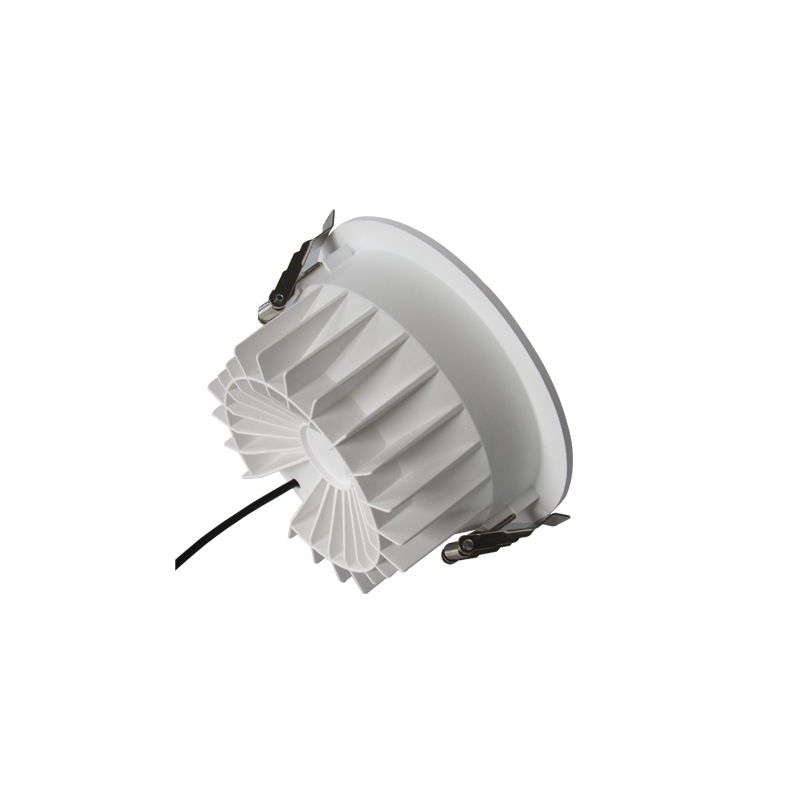

LED Downlight DTM-R Series

Model: JST-DTM-R

Wattage: 10-50W

LED Chip: CREE/Citizen

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 50°

Diameter: 115mm-230mm

Cutout: 100mm-215mm


Description

Recessed downlights are undoubtedly an affordable and popular way to add lighting to a room. Installed during new construction and home remodeling projects, it provides efficient lighting while maintaining a

neutral profile. Light fixtures can easily be hidden between ceiling joists to add ambience.


DTM is a fixed downlight, it is fixed and has no movable head. They are usually installed in a specific direction, with the light pointing downwards, and cannot be adjusted. While they may not offer the same degree of

flexibility as adjustable downlights, they can still provide good general lighting to a room.


LINGHTING

Due to their practical design Downlights don’t take up a lot of space. Modern Downlights can be used as practical task lights in those home areas where you need clear bright light. They can be installed in poorly lit

areas, such as inside a wardrobe in the bedroom, or under benches and cabinets in the kitchen, bathroom and laundry. Choose fixed or adjustable downlights to suit any purpose.


ENERGY EFFICIENCY

Compared to halogen and incandescent lamps, DTM LED downlights consume less electricity while producing high-quality, clear light. This is because they are able to convert energy into light, which consumes less

heat and helps create a cleaner environment. It is becoming more and more popular


Long life span

With the development of science and technology, we have adopted high-quality COB chips, high-efficiency radiators, so that the DTM has a life of 50,000 hours, so that there is no need to frequently change the lamp.

In addition, it costs less over time when people select lights that don’t need to be replaced all the time. Saving energy helps reduce the cost of utility bills.


DTM has 2 shapes:

Round -Classic style, never out of date- DTM-R series

Square -Modern design, make your space add different colors- DTM-S series



Advantages

1. High Ra>90,high efficiency, high luminosisy, SDCM<3, make surroundings of high-quality illumination

2. Glare-fee design, perfect light spot with precise cast.

3. Mirror finished reflector or noncorrosive PC white reflector options

4. Complete with non-dim, triac,0-10V, DALI dimmable LED driver

5. 4 CCT (2700K 3000k 4000k 5000k)

6. 50° beam anglefoucs on illuminating object.


Specification
ModelPowerCRI
CCT
PF
Current
Input VoltageBeam AngleDimensionCutout
JST-DTM-R-10W10W>902700K-5000K
>0.90
0.25A
AC220-240V50°D115*H65mm100mm
JST-DTM-R-20W20W>902700K-5000K>0.900.50A
AC220-240V50°D140*H80mm125mm
JST-DTM-R-30W30W>902700K-5000K>0.90.75AAC220-240V50°D160*H85mm145mm
JST-DTM-R-40W40W>902700K-5000K>0.91.00AAC220-240V50°D200*H98mm180mm
JST-DTM-R-50W50W>902700K-5000K>0.91.25A
AC220-240V50°D230*H102mm215mm


Application

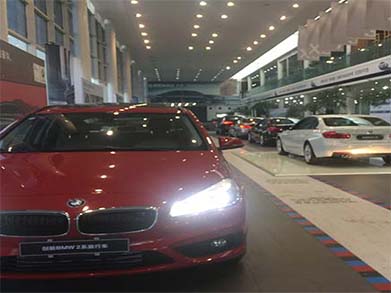

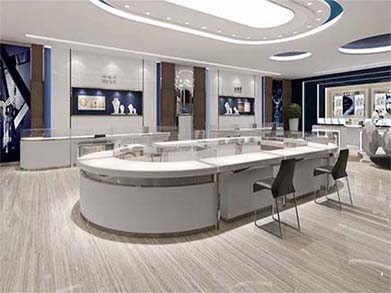

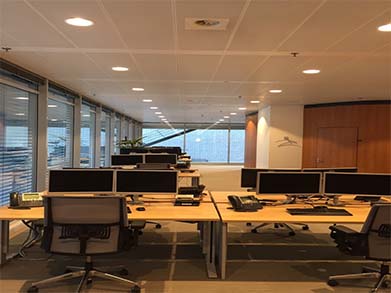

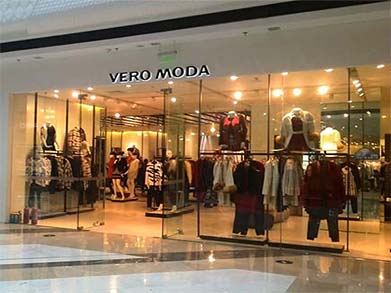

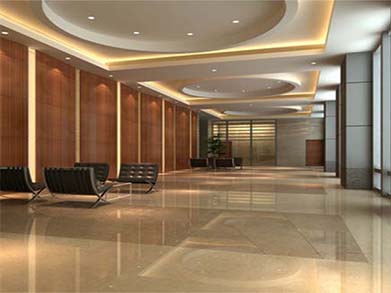

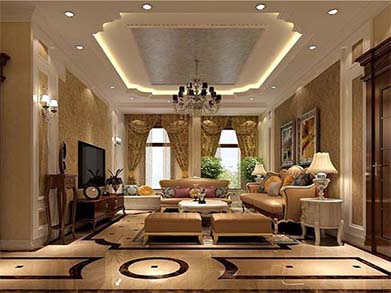

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,jewelry stores lighting,banks lighting, airport,lighting, suppermaket lighting etc
