LED Downlight

LED Downlight DTZ Series

Model: JST-DTZ

Wattage: 10W-50W

LED Chip: Citizen/Cree/Epistar

Driver Brand: OSRAM/Philips/Lifud

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 15°/24°/36°

Diameter: 95mm-190mm

Cutout: 75mm-170mm

Description

The LED downlight market is extremely competitive. Therefore, manufacturers are making cheap downlights and are compromising on quality to compete in the market.  But JST aren't compromisingcan, it still occupy

provide the highest quality, technologically advanced LED lighting products. The quality is always guaranteed and the price is not so high.


What is the difference between cheap and expensive LED downlights?

Cheap LED lights made with cheap LED chips and drivers which have a short lifespan, or the fixture provides much less light over time. It isn't not achieved the promised light output, more energy is consumed, the light

color is different,  flickers.


The DTZ series is a high-quality and affordable downlight.

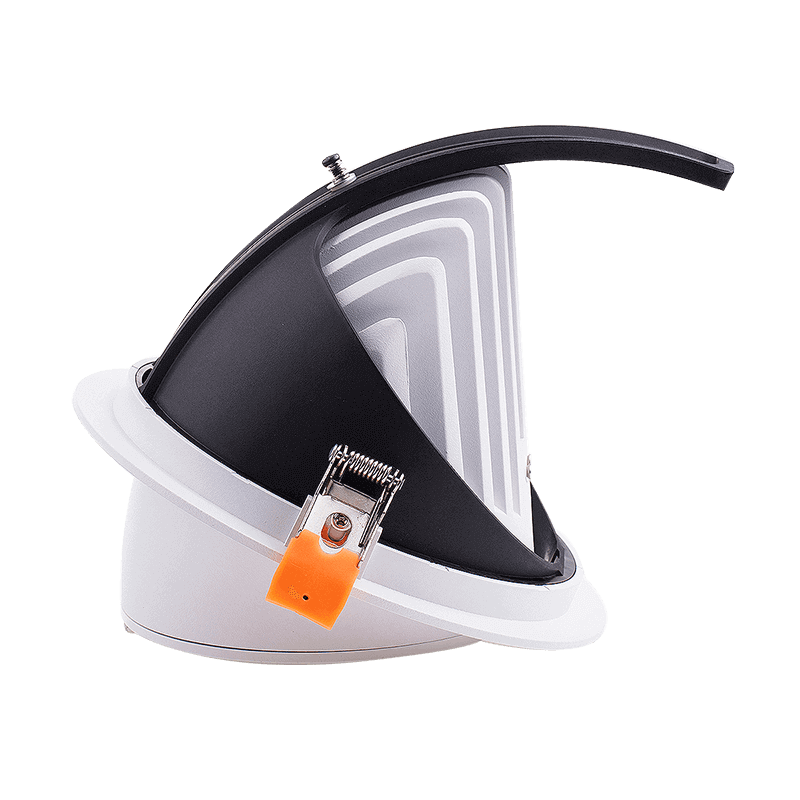

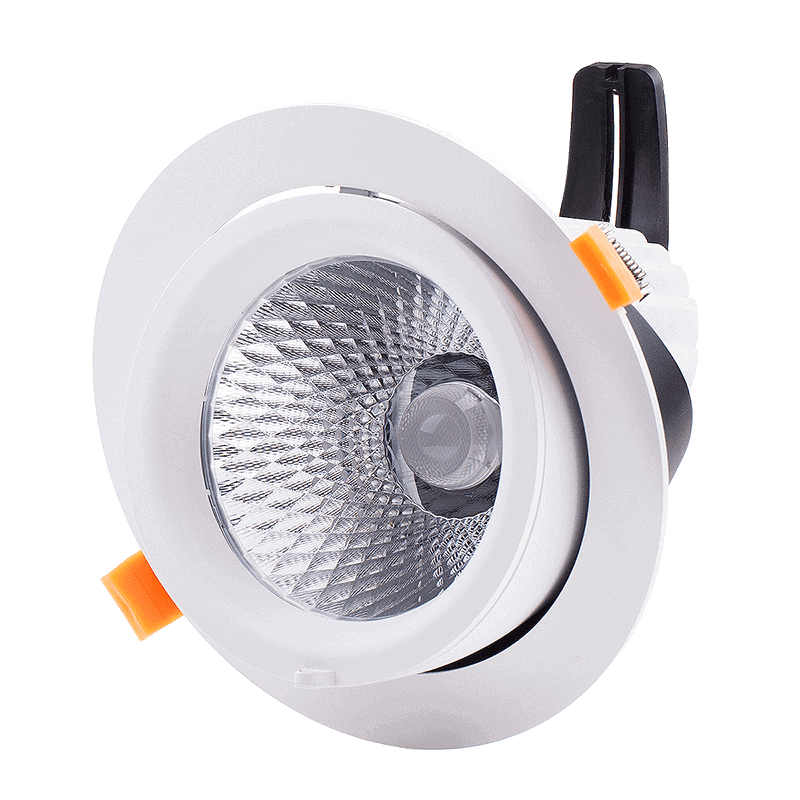

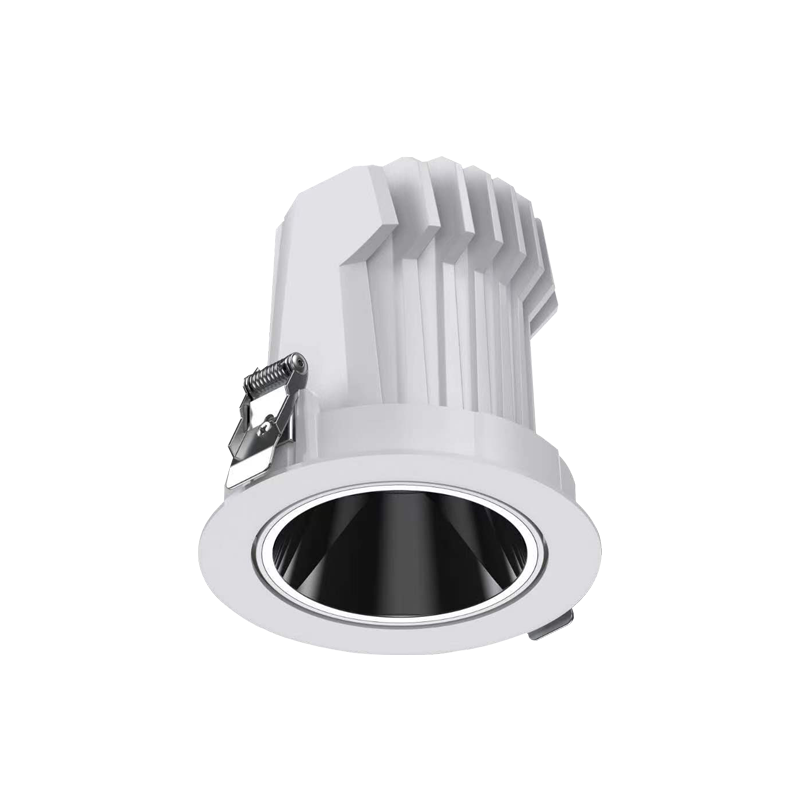

The DTZ series is an LED ceiling spotlight. Because it looks like an elephant's trunk, we call it an elephant trunk LED downlight. The DTZ series is also a downlight with adjustable beam angle. The 75° lamp holder

telescopic adjustment, 360° head rotation adjustment . It is suitable for a variety of working scenes to meet your lighting effects.

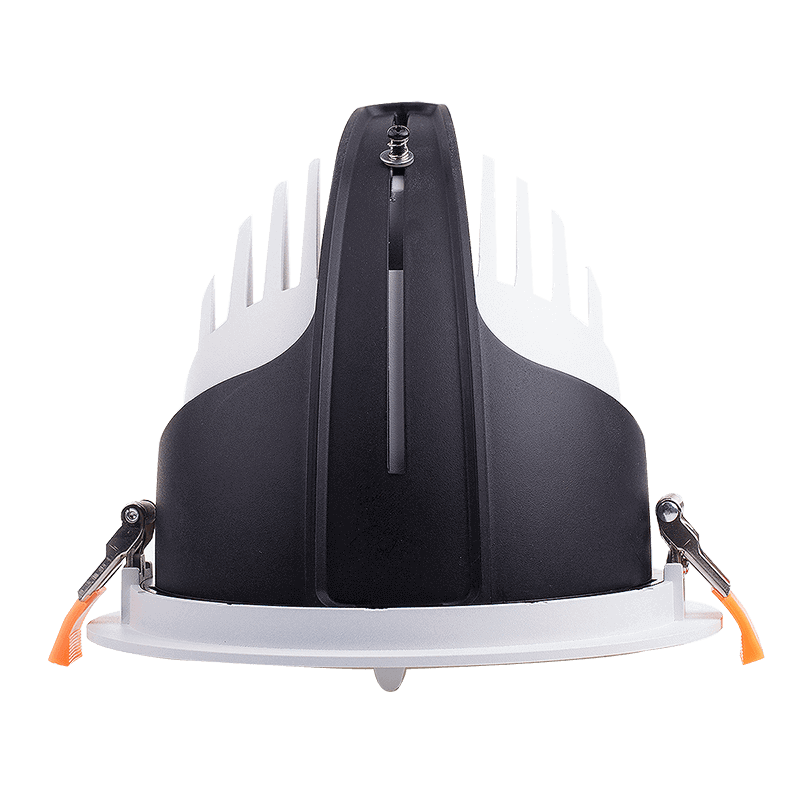

The DTZ series are made of the high-quality components, high-quality die-casing aluminum, efficient heat dissipation, good thermal conductivity, CREE/CITIZEN COB chip and LiFuD or OSRAM driver ensure excellent

durability and excellent light quality, it produces brighter light with very little power, 100 lm/w, CRI>90 making it ideal for any application where color quality is important.


15°, 24°, 36° angles to perfectly focus and highlight points of interest. Ideal for commercial lighting, windows, interiors, exhibitions, etc.



Advantages


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout
JST-DTZ10W>80/902700K-5000K>0.900.25AAC220-240V15/24/36D95*H70mm75mm
JST-DTZ15W>80/902700K-5000K>0.900.35AAC220-240V15/24/36D114*H95mm100mm
JST-DTZ25W>80/902700K-5000K>0.900.60AAC220-240V15/24/36D140*H115mm125mm
JST-DTZ35W>80/902700K-5000K>0.900.85AAC220-240V15/24/36D160*H130mm145mm
JST-DTZ40W>80/902700K-5000K>0.901.00AAC220-240V15/24/36D190*H160mm170mm
JST-DTZ50W>80/902700K-5000K>0.901.25AAC220-240V15/24/36D190*H160mm170mm

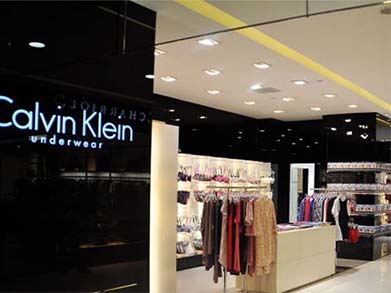

Application

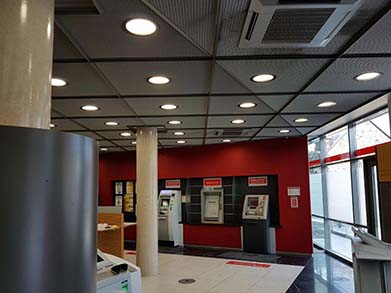

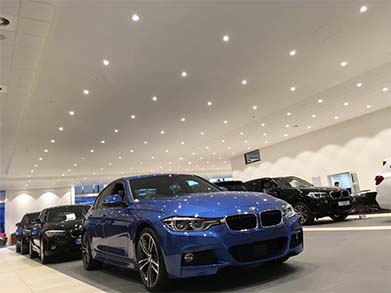

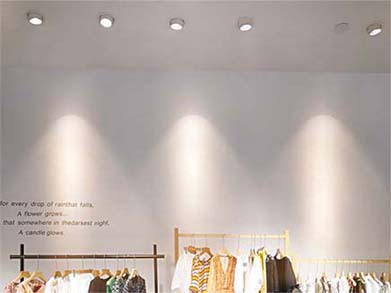

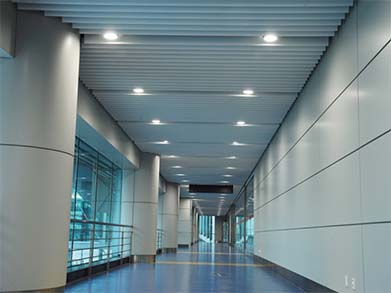

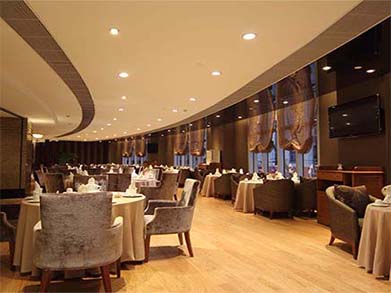

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,jewelry stores lighting,banks lighting, airport,lighting, suppermaket lighting etc.

LED Downlight DTZ Series LED Downlight DTZ Series LED Downlight DTZ Series
LED Downlight DTZ Series LED Downlight DTZ Series LED Downlight DTZ Series
