LED Downlight

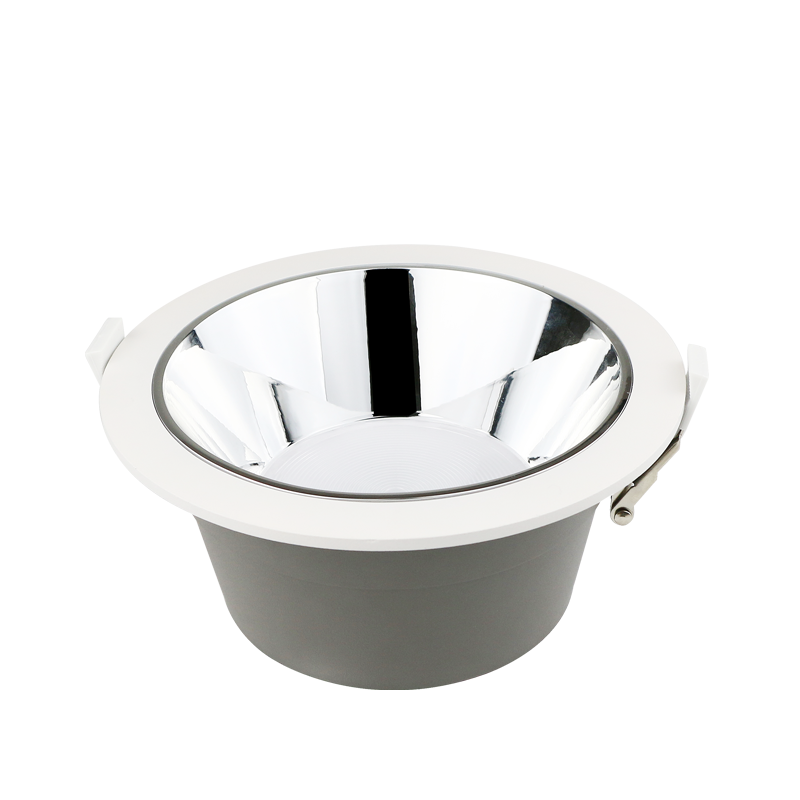

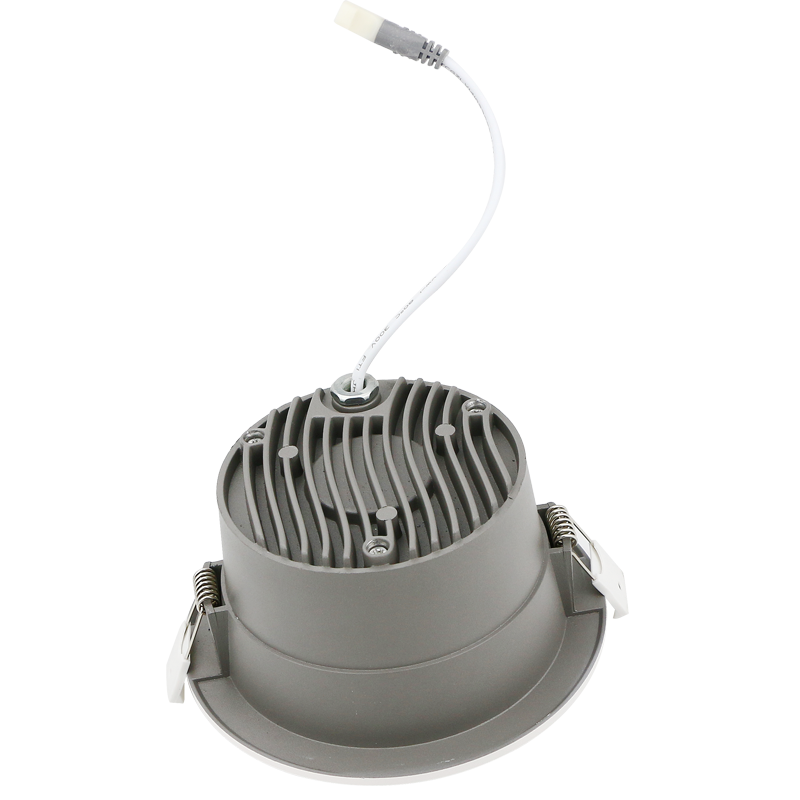

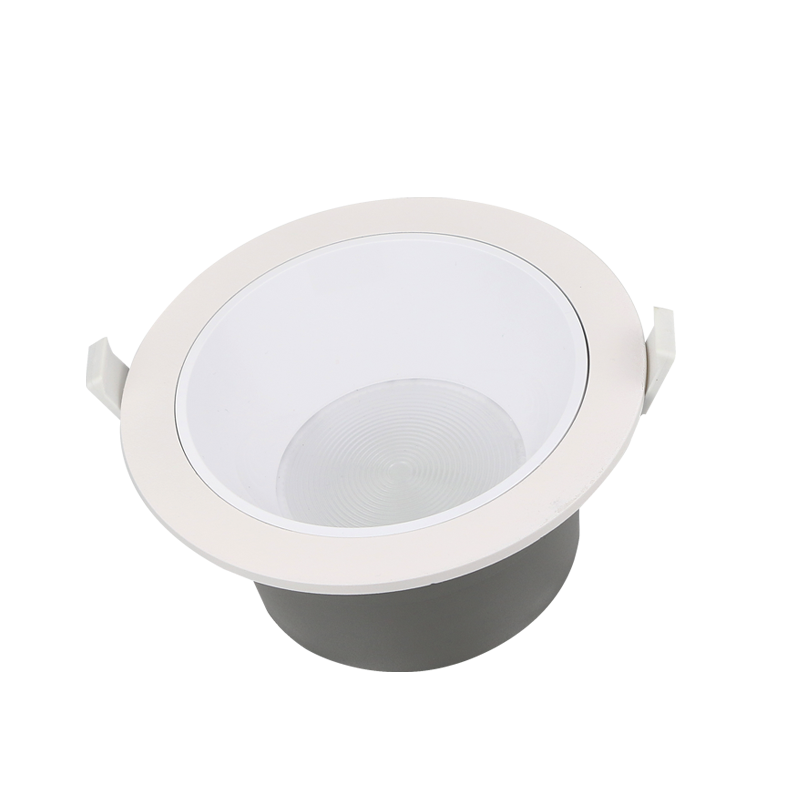

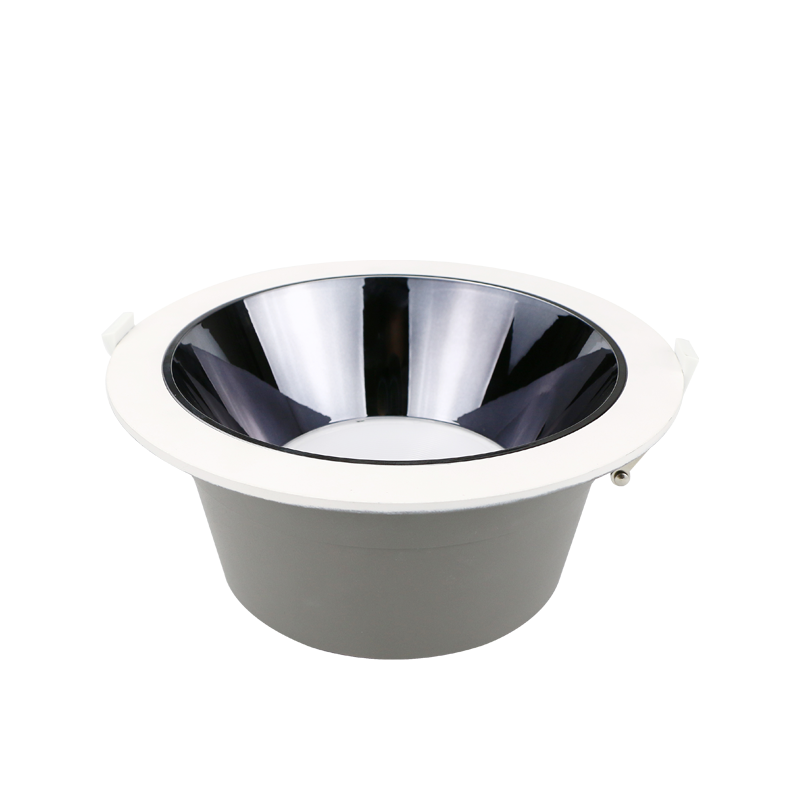

LED Downlight DTN Series

Model: JST-DTN

Wattage: 10W-50W

LED Chip: CITIZEN/CREE

Driver Brand: OSRAM/PHILIPS/LIFUD

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 60°

Diameter: 92mm-224mm

Cutout: 75mm-200mm


Description

Downlights, also commonly known as recessed lights, light downward and are undoubtedly an affordable and popular way to add lighting to a room.


How to choose the right downlight? First we need to understand CCT, so what is CCT?

CCT (Correlated color temperature) is essentially a measure of how yellow or blue the color of the light emitted by a light source appears. It is measured in Kelvin and is most commonly 2700K-5000K.


2700 - 3500K Warm white,

With a yellow or orange tone, it is loved for its ability to create a cozy and welcoming atmosphere. With its inviting glow, this CCT is perfect for relaxing after a long day and provides an intimate setting. Warm white

light can be used in dining areas, bedrooms, bathroom and so on.


3500K - 4500K: Natural white

JARSTAR 'Natural White' is 4000K. This colour temperature closely mirrors the unfiltered glow of natural sunlight and finds its application in a wide array of settings, spanning from residential to busy commercial spaces. Its versatility is particularly beneficial for task lighting in many areas of the home, or rooms devoid of direct natural light. As the most neutral color temperature range, natural white light is perfect for a variety of areas.


5000K and above: cool white

Cool white lighting is known for its refreshing blue to white hue and is commonly found in commercial spaces such as warehouses, offices, and professional spaces.


Each CCT has its own unique advantages and can be selected based on your own specific environmental needs. Each color appearance is also available in different styles to suit your space - whether indoors or outdoors,

whether it's a workshop or office. There are CCT options for every need.


When used correctly, color temperature is a powerful tool that can have a huge impact on the overall feel and functionality of a space. Whether you want a warm and cozy atmosphere or a bright and fresh look, let’sdiscover how to achieve the ideal lighting balance in your home.




Advantages
  1. Integrated design

  2. High quality, low glare for visual comfort

  3. Power selectable

  4. 75mm-200mm cutout to suit most applications

  5. White Rim - Fused with white ceiling

  6. 5years warranty


Specification
ModelPowerCRICCTPFCurrent
Input VoltageBeam AngleDimensionCutout
JST-DTN10W>80/902700K-5000K>0.900.25A
AC220-240V60°D92*H53mm75mm
JST-DTN15W>80/902700K-5000K>0.900.35A
AC220-240V60°D105*H55mm95mm
JST-DTN20W>80/902700K-5000K>0.900.50A
AC220-240V60°D135*H55mm120mm
JST-DTN30W>80/902700K-5000K>0.900.75A
AC220-240V60°D190*H90mm170mm
JST-DTN40W>80/902700K-5000K>0.901.00A
AC220-240V60°D224*H98mm200mm
JST-DTN50W>80/902700K-5000K>0.901.25A
AC220-240V60°D224*H98mm200mm


Application

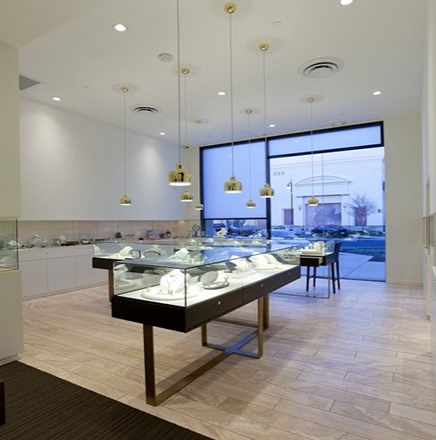

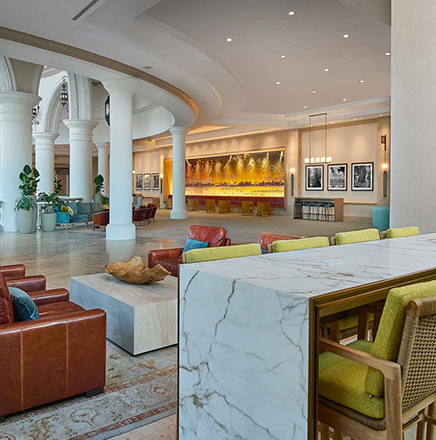

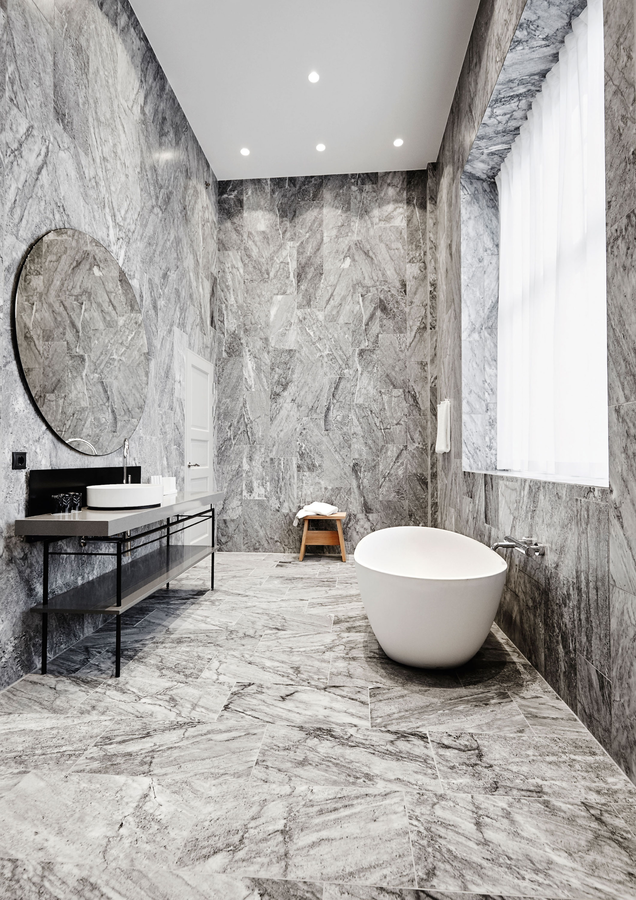

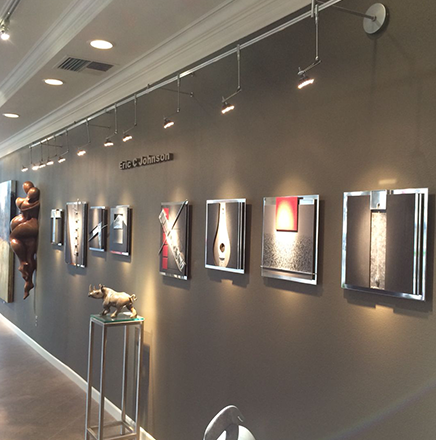

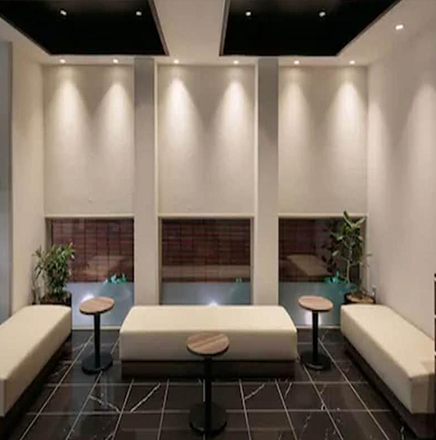

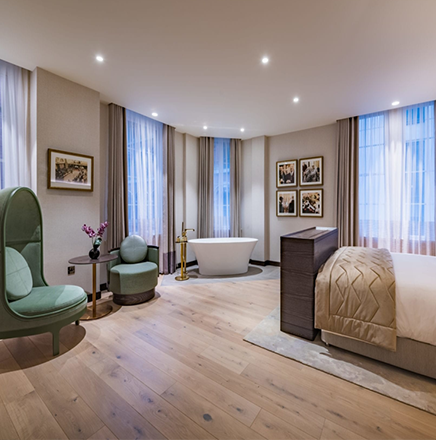

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,jewelry stores lighting,banks lighting, airport,lighting, suppermaket lighting etc.

LED Downlight DTN Series LED Downlight DTN Series LED Downlight DTN Series
LED Downlight DTN Series LED Downlight DTN Series LED Downlight DTN Series
