LED Downlight

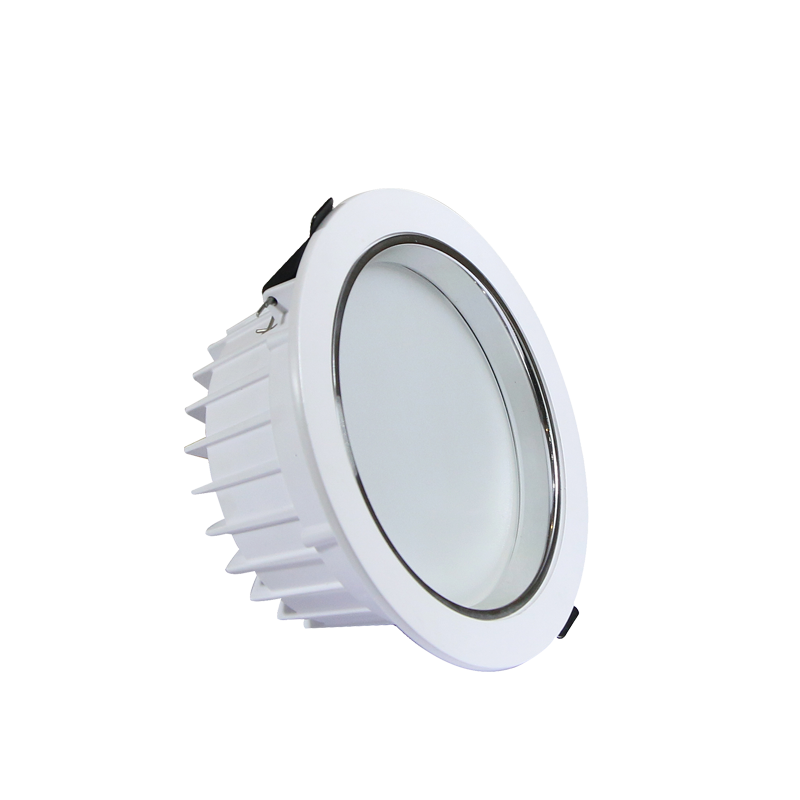

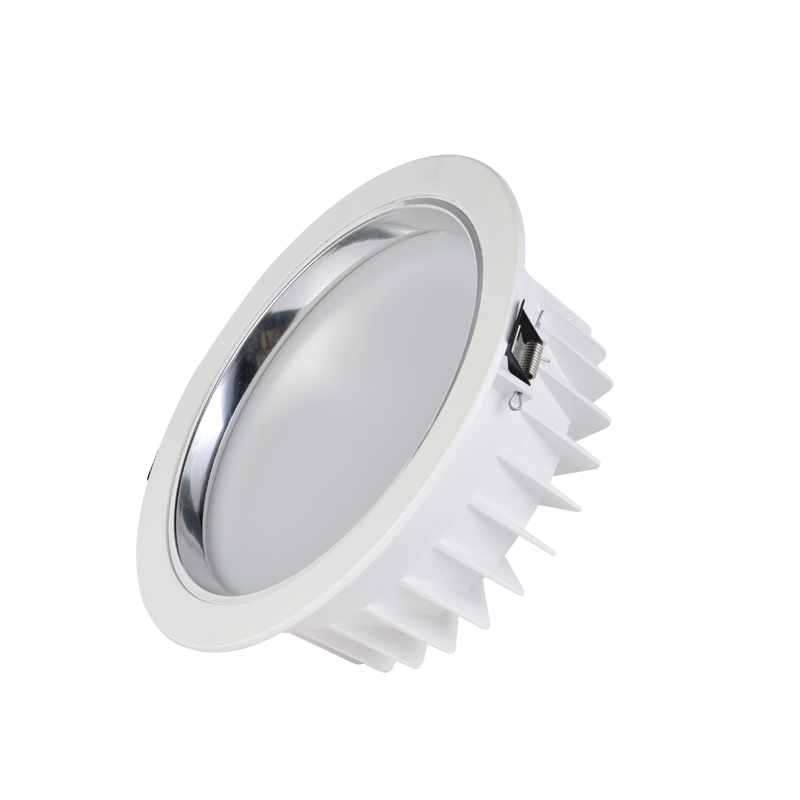

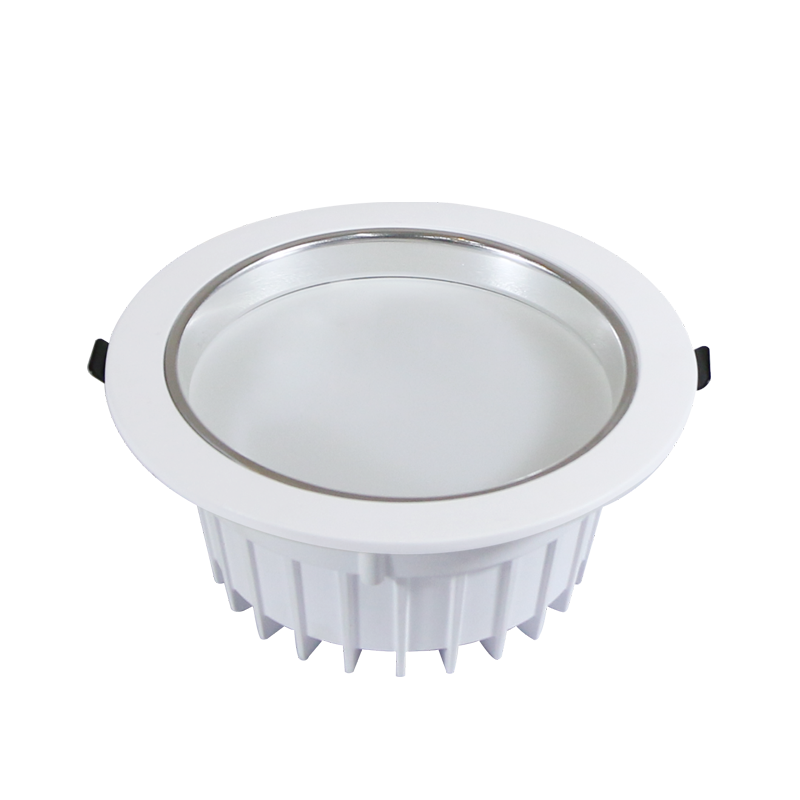

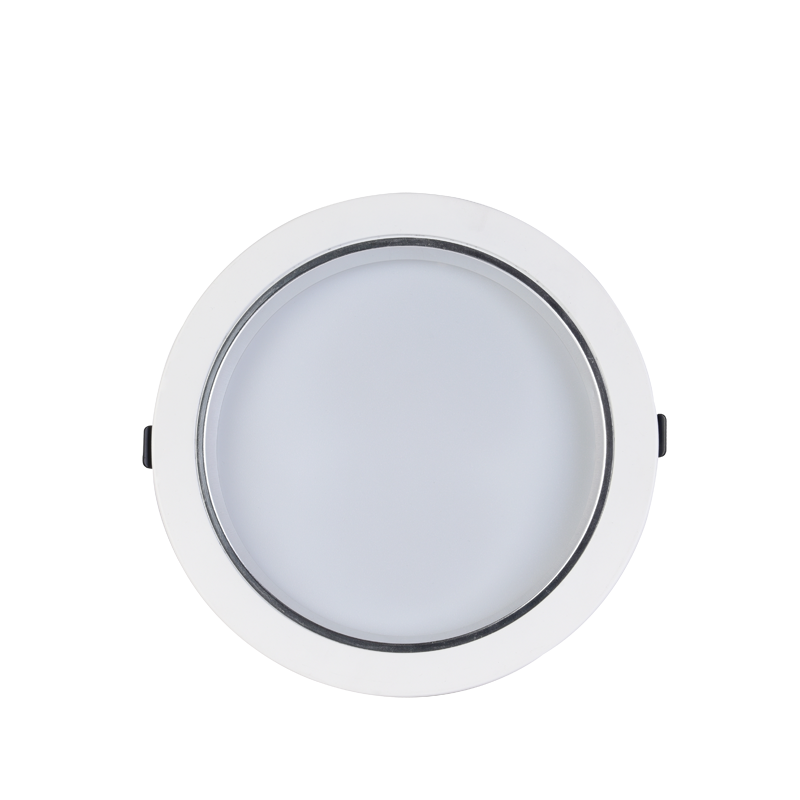

LED Downlight DTS Series

Model: JST-DTS

Wattage: 5W-50W

LED Chip: Philips

Driver Brand: OSRAM/PHILIPS/LIFUD

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 120°

Diameter: 110mm-300mm

Cutout: 85mm-260mm


Description

What is an SMD (Surface Mount Diode) downlight? An SMD downlight is a downlight composed of multiple LED chips. Multiple LED chips are usually mounted on the surface of a circuit board. DTS series downlight is

one of it. It is stylish, simple, efficient and environmentally friendly. The SMD chip is an excellent light source in any situation and has a fixed width beam angle 120° which provides excellent coverage.


The DTS series of downlights are an excellent choice for energy-saving, long-lasting and durable lighting, available in various wattages (5W--50W), color temperatures (3000K, 4000K, 5000K )and fixed 120° beam angle).

 Compared to traditional halogen lamps,  its energy consumption can be reduced by about 85% saving up to 30% of energy consumption. They are commonly used in residential, commercial and industrial settings.

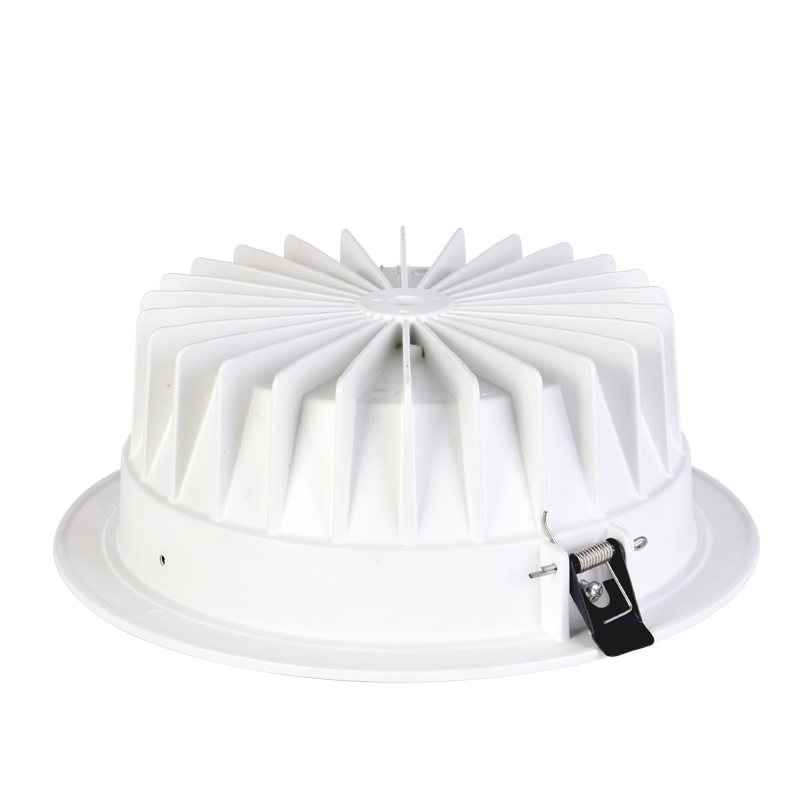

The DTS series has a large radiator and good heat dissipation. High-quality chip, high efficiency, color rendering index >80, with a large frosted diffuser which can hide the light source and scatter light evenly, effectively

anti-glare, equipped with constant current power supply, no flicker, no ultraviolet rays, eye protection .


DTS series downlights, with power up to 50 watts, can be used as the main light in your home. They can make your space more concise, enhance your style, and experience the difference brought by quality lighting.


JARSTAR puts a lot of thought and engineering into making sure every light we make uses the correct type of LED. If you need to spread light widely and evenly over a large area, SMD downlights may be a better choice.



Advantages
Specification
ModelPowerCRICCTPFCurrent
Input VoltageBeam AngleDimensionCutout
JST-DTS5W>80/902700K-5000K>0.900.13A
AC220-240V120°D100*H50mm85mm
JST-DTS7W>80/902700K-5000K>0.900.16A
AC220-240V120°D115*H60mm100mm
JST-DTS10W>80/902700K-5000K>0.900.25A
AC220-240V120°D130*H60mm115mm
JST-DTS15W>80/902700K-5000K>0.900.35A
AC220-240V120°D160*H70mm140mm
JST-DTS20W>80/902700K-5000K>0.900.50A
AC220-240V120°D180*H70mm160mm
JST-DTS25W>80/902700K-5000K>0.900.60A
AC220-240V120°D190*H70mm170mm
JST-DTS30W>80/902700K-5000K>0.900.75A
AC220-240V120°D230*H72mm200mm
JST-DTS40W>80/902700K-5000K>0.901.00A
AC220-240V120°D280*H100mm260mm
JST-DTS50W>80/902700K-5000K>0.901.25A
AC220-240V120°D300*H100mm260mm

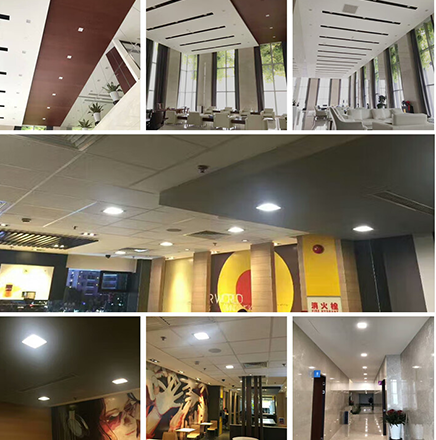

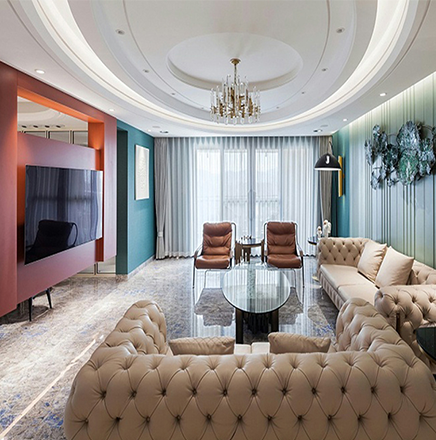

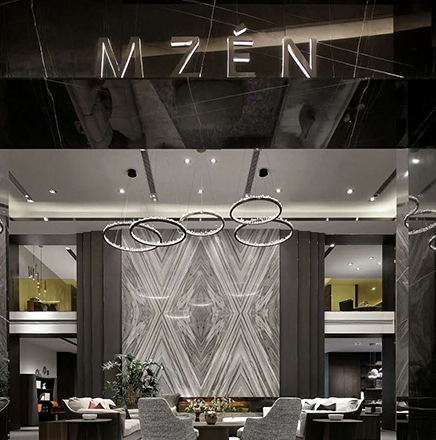

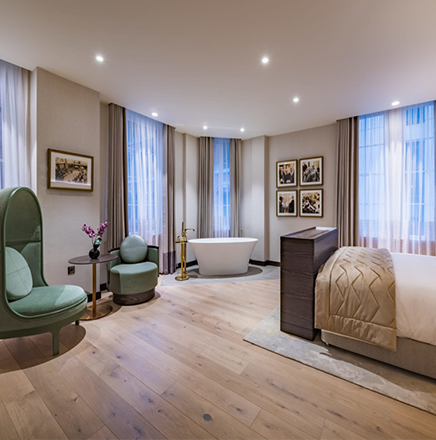

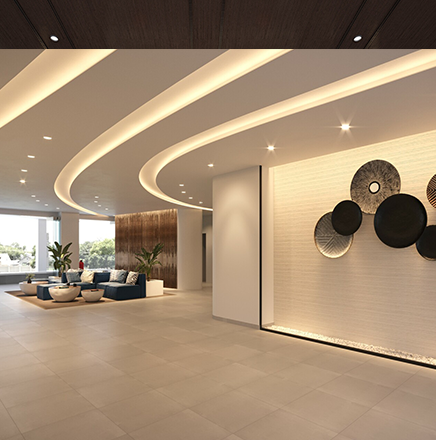

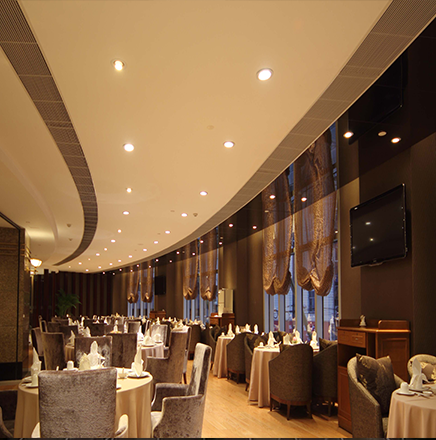

Application

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,jewelry stores lighting,banks lighting, airport,lighting, suppermaket etc.

LED Downlight DTS Series LED Downlight DTS Series LED Downlight DTS Series
LED Downlight DTS Series LED Downlight DTS Series LED Downlight DTS Series
