Model: JST-DMW
Wattage: 15W-50W
LED Chip: Citizen/Cree
Driver Brand: OSRAM/Philips/Lifud/Tridonic
RA: >80
Finish Color: White/Black/Customized
Beam Angle: 110°
Diameter: 145mm-300mm
Cutout: 125mm-240mm
Large-size downlights are the perfect solution for spaces that demand broad, uniform illumination and modern aesthetics. Whether it’s a commercial setting, a spacious living room, or an area with high ceilings, these fixtures provide powerful lighting while reducing the need for multiple installations.
Why Choose Large-Size Downlights?
Large-size downlights (such as 200mm or 240mm cutouts) provide broader light coverage, reducing the number of fixtures needed and offering a cleaner, more minimalist ceiling design. They are perfect for spaces that require high brightness and uniform lighting, such as commercial spaces, open kitchens, or high-ceiling living rooms.
What Are the Main Uses of Large-Size Downlights?
1. Commercial Spaces: Large downlights are ideal for offices, showrooms, and retail stores where consistent and bright lighting is crucial.

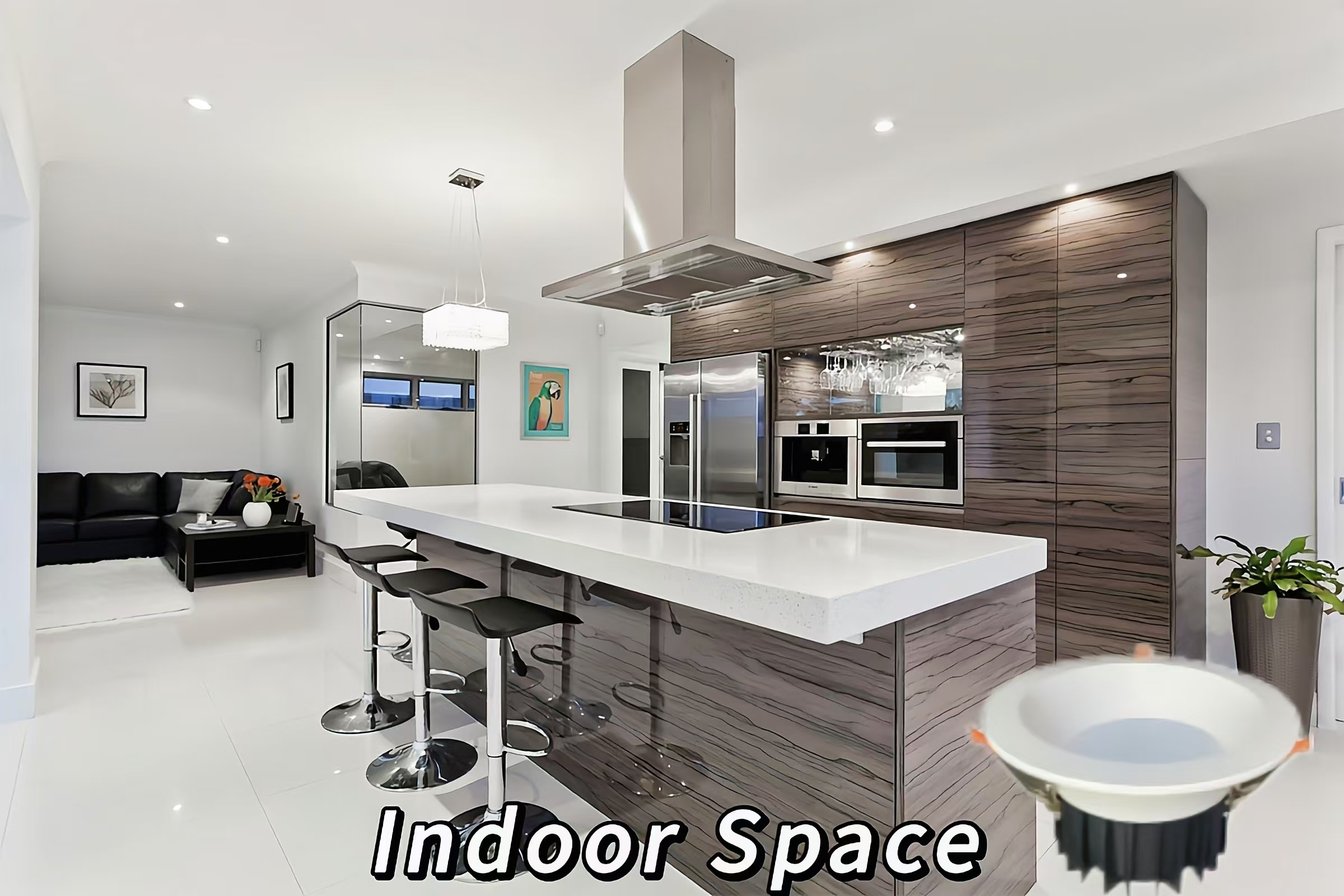

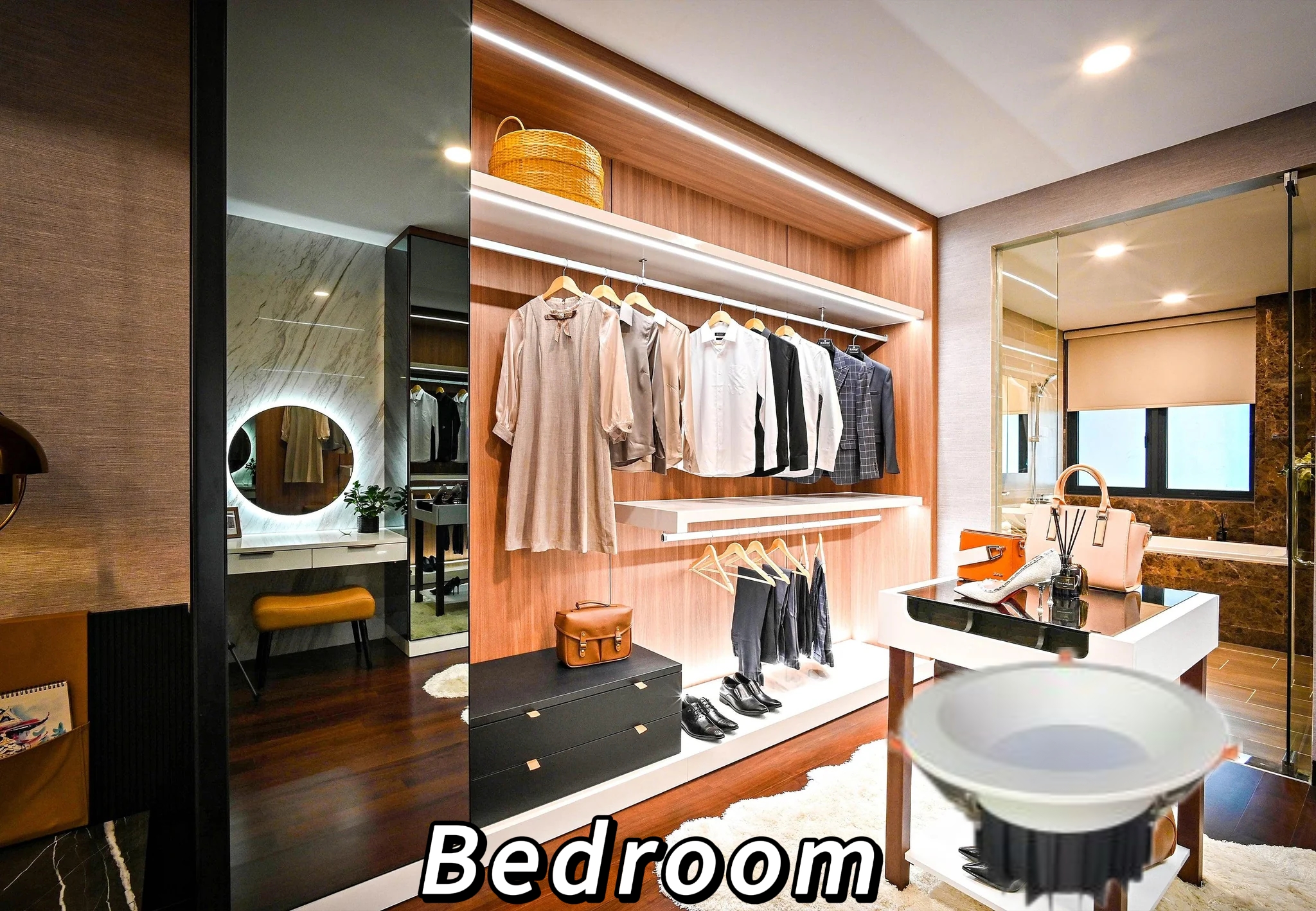

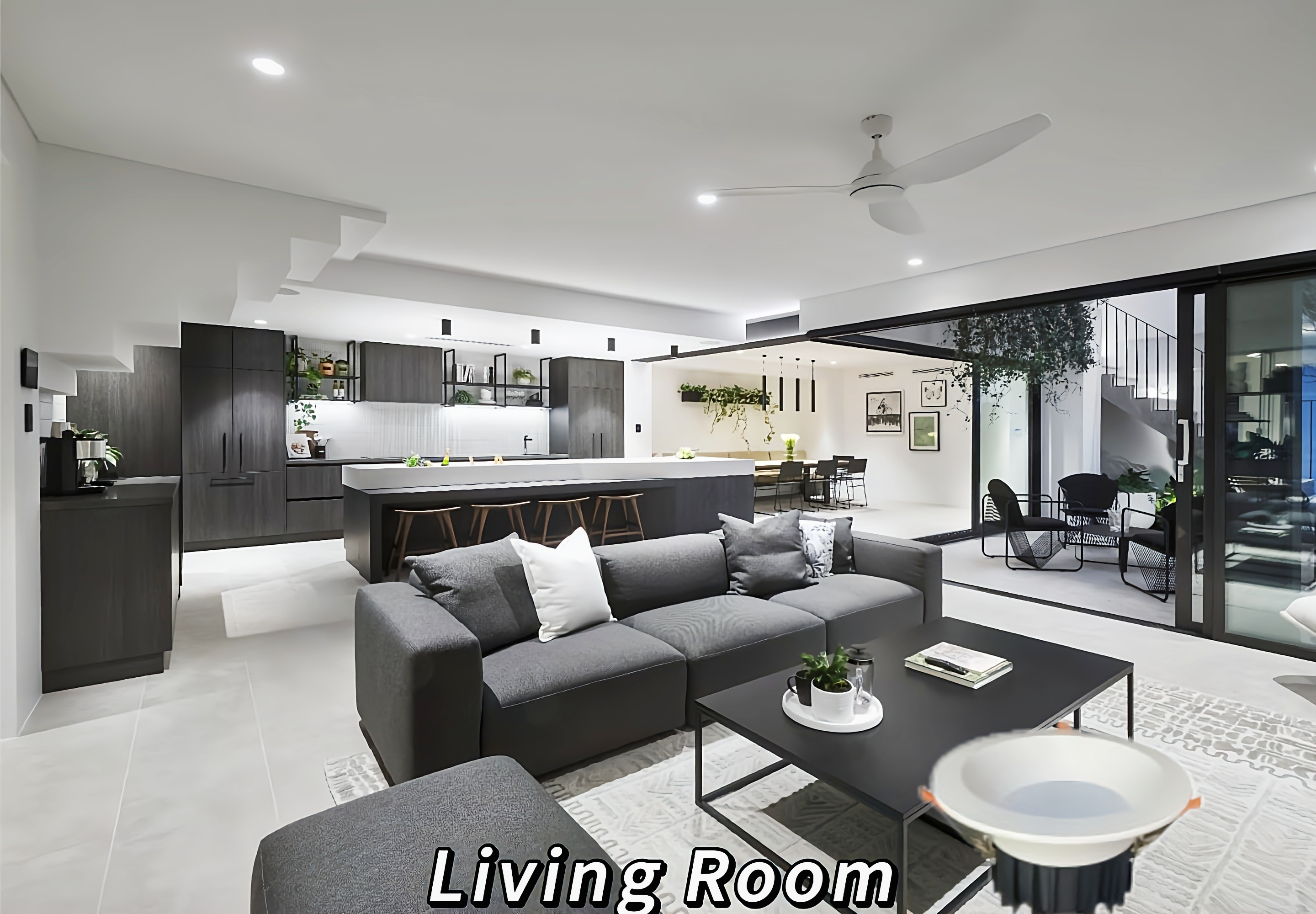

2. Residential Spaces: Perfect for larger living rooms, open-concept kitchens, or corridors that require expansive illumination without compromising on style.
3. High-Ceiling Areas: Their powerful output ensures effective lighting even in areas with higher ceilings, ensuring the space is well-lit and inviting.
How Do You Know What Size Downlight You Need?
When selecting the size of a downlight, consider the size of the area, the desired light intensity, and the ceiling height. For larger rooms or spaces with high ceilings, opting for a big-size downlight like a 240mm fixture will ensure that the light distribution is even and sufficient. For smaller rooms or areas with lower ceilings, a more compact downlight may be more suitable. Always aim for an even balance between brightness and aesthetics.
Big size, 145mm-300mm, multiple specifications for needs
Round design with multiple finish options (white, black, silver) to complement any decor
Tri-color options (3000K, 4000K, 5000K) and dimming capabilities (Triac, 0-10V, DALI) allow for versatile use
Up to 100 lumens per watt, providing powerful lighting while saving energy
Long lifespan of over 50,000 hours with premium materials
Model | Power | CRI | PF | Input Voltage | Beam Angle | Dimension | Cutout |
JST-DMW | 15W | >80/90 | >0.90 | AC220-240V | 110° | D145*H62mm | 125mm |
JST-DMW | 20W | >80/90 | >0.90 | AC220-240V | 110° | D160*H65mm | 145mm |
JST-DMW | 25W | >80/90 | >0.90 | AC220-240V | 110° | D190*H75mm | 170mm |
JST-DMW | 35W | >80/90 | >0.90 | AC220-240V | 110° | D225*H75mm | 200mm |
JST-DMW | 40W | >80/90 | >0.90 | AC220-240V | 110° | D250*H75mm | 220mm |
JST-DMW | 50W | >80/90 | >0.90 | AC220-240V | 110° | D300*H110mm | 240mm |
Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting, Jewelry stores lighting, Suppermaket lighting etc.
