LED Downlight

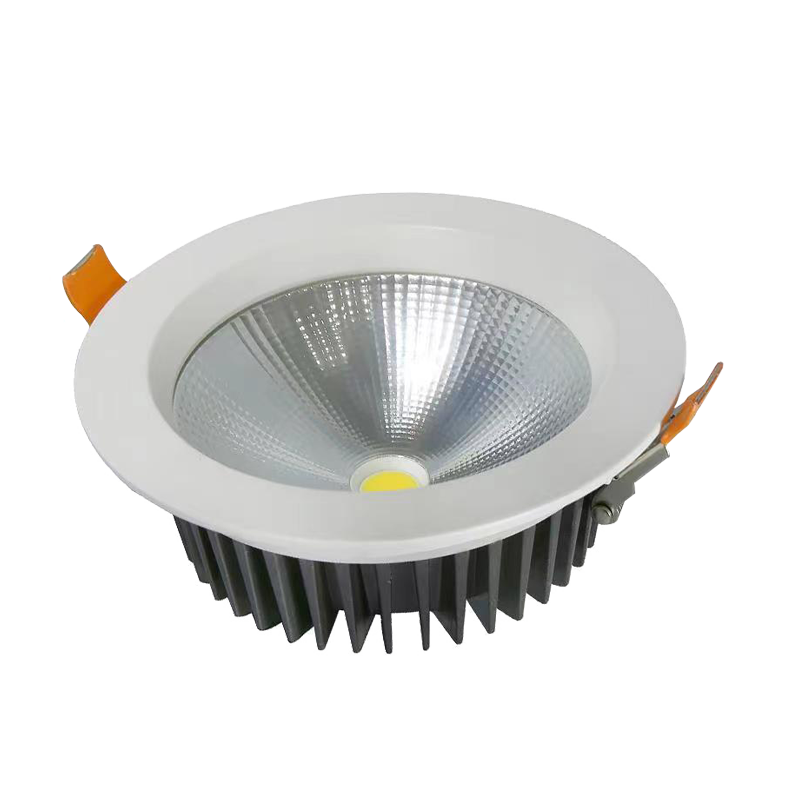

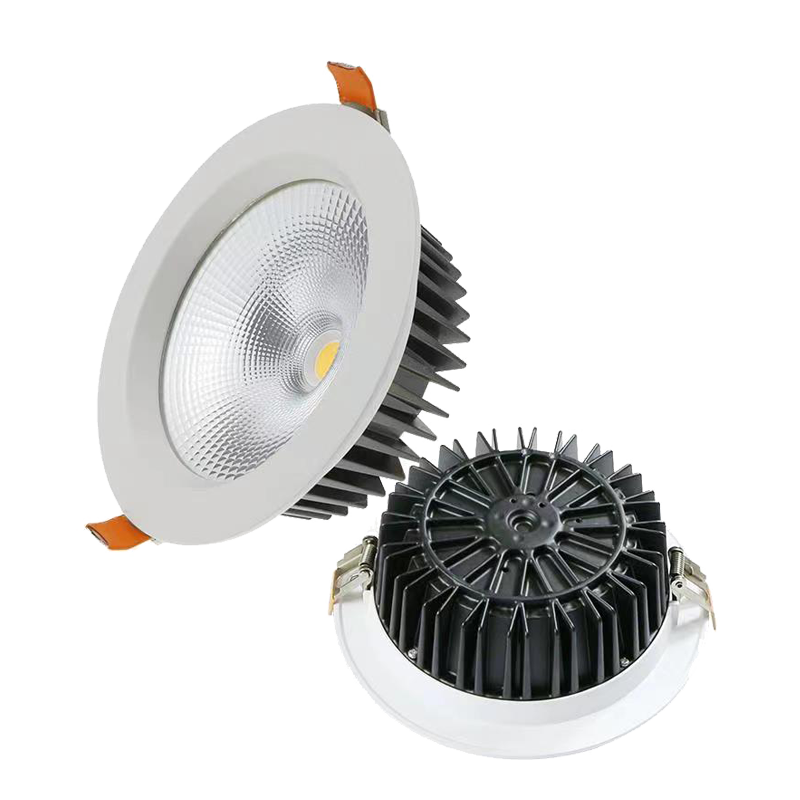

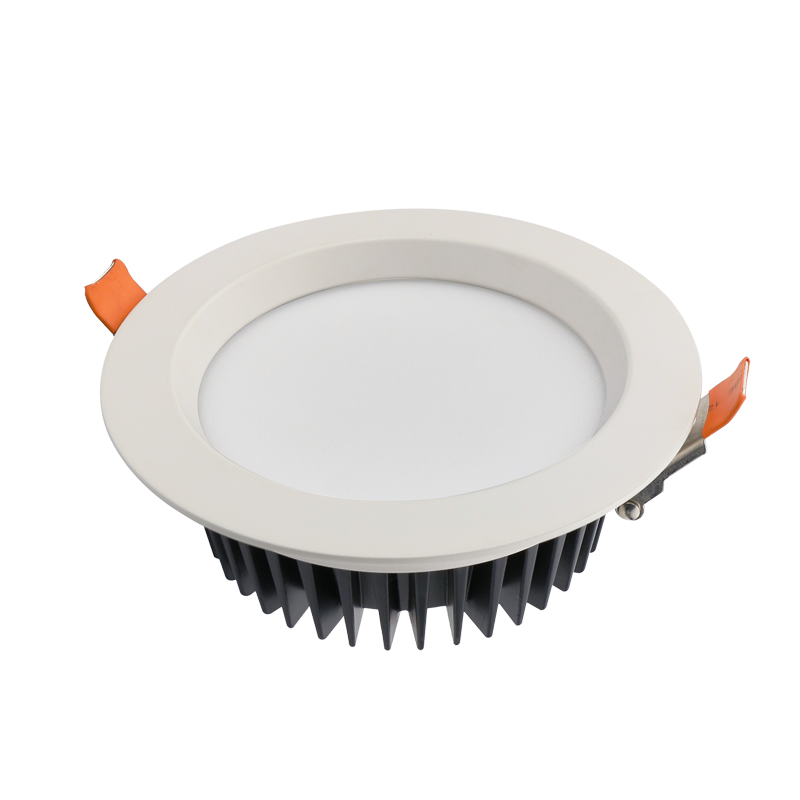

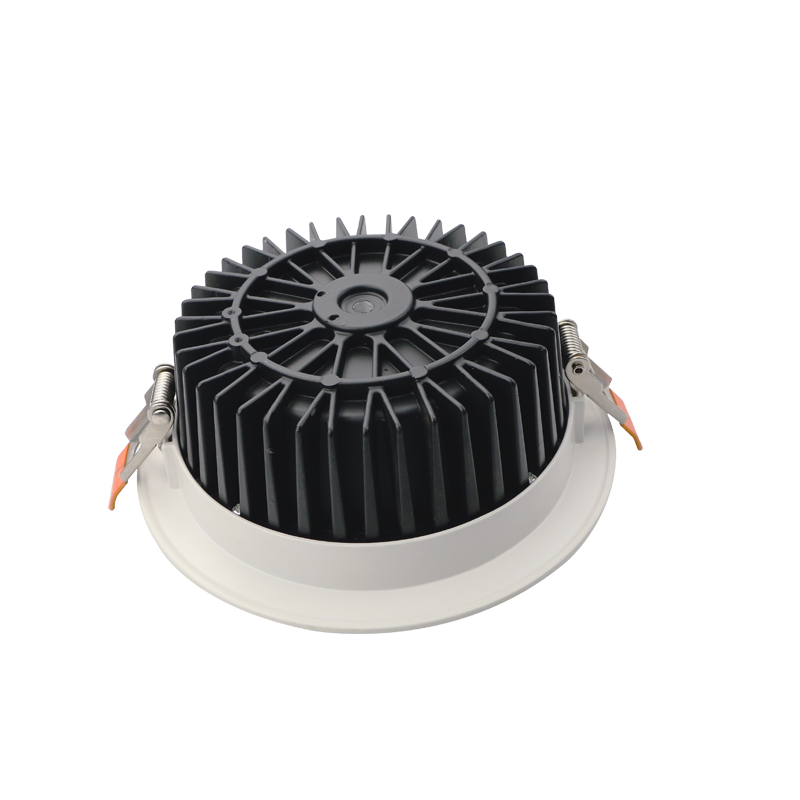

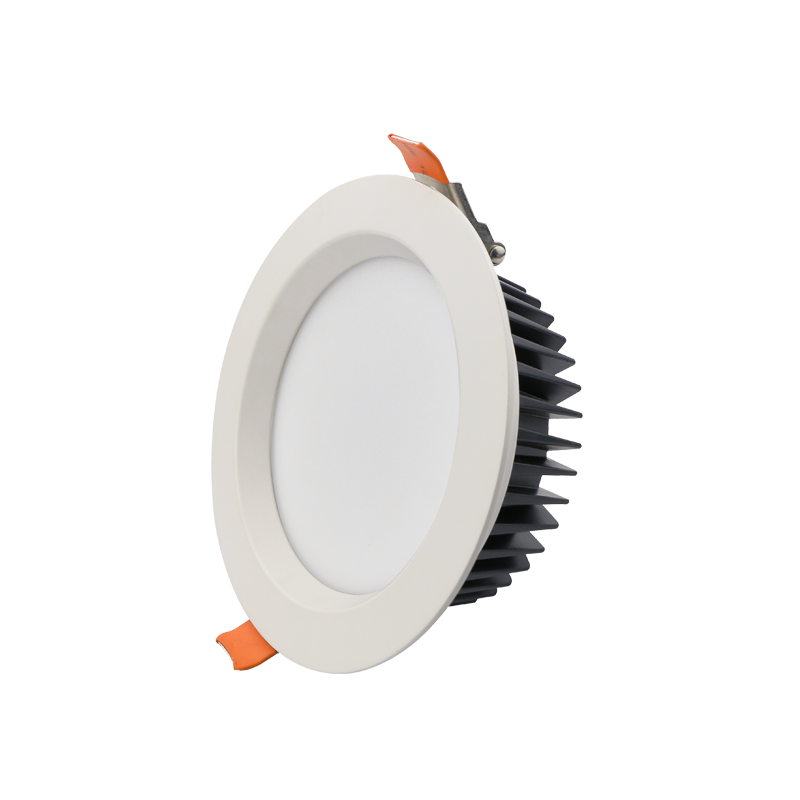

LED Downlight DTQ Series

Model: JST-DTQ

Wattage: 10W-40W

LED Chip: CITIZEN/CREE

Driver Brand: OSRAM/PHILIPS/LIFUD

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 60°/9

Diameter: 115mm-230mm

Cutout: 95mm-200mm


Description

As the best indoor-design ceiling recessed spotlight using high-quality COB LED that offers a high brightness focus light, assorting with optically designed reflector of 60/90beam angle which makes the light more

comfortable and more even.


The DTQ series has many advantages that ordinary lamps cannot have. First of all, compared with ordinary lamps, the lighting no strobe, no ultraviolet ray, green and eco-friendly.


Another advantage of DTQ series is maximize power savings.  With uniform light, perfect light spot and soft lighting,Low power, low power consumption, less heat produced, energy saving more than 95% compare

with traditional incandescent.


The next advantage is that the average life of DTQ series is up to 50,000hrs of  lighting. This lifespan is 3-4 times the average lifespan of the light. DTQ series with IP65 is cheap, has good quality and protects against

external substances such as dirt, rain, wind...


The DTQ series has two types of chips, SMD and COB. I have explained the different advantages of these two types before. Please check the description of the DTF series. No matter which chip is used, JST guarantees the same high quality and a 5-year warranty.


With these advantages, DTQ series become one of our best sellers




Advantages


Specification
ModelPowerCRICCTPFCurrent
Input VoltageBeam AngleDimensionCutout
JST-DTQ10W>80/902700K-5000K>0.900.25A
AC220-240V60°/9D115*H48mm95mm
JST-DTQ15W>80/902700K-5000K>0.900.35A
AC220-240V60°/9D145*H60mm125mm
JST-DTQ20W>80/902700K-5000K>0.900.50A
AC220-240V60°/9D160*H90mm140mm
JST-DTQ30W>80/902700K-5000K>0.900.75A
AC220-240V60°/9D142*H60mm110mm
JST-DTQ40W>80/902700K-5000K>0.901.00A
AC220-240V60°/9D230*H72mm145mm

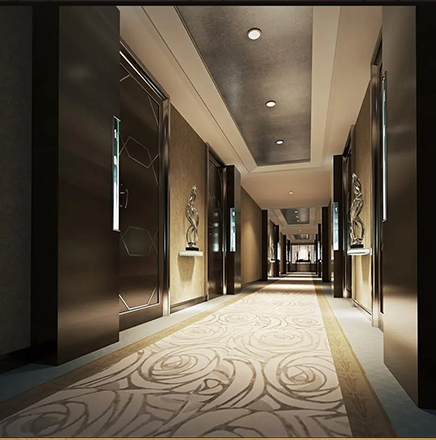

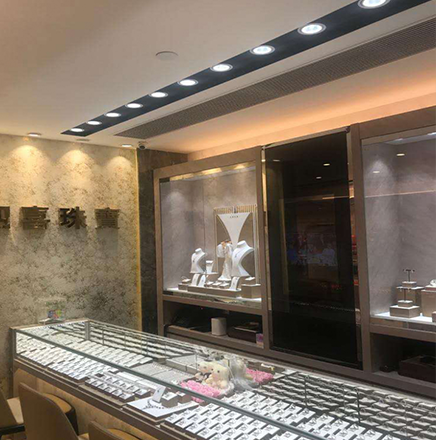

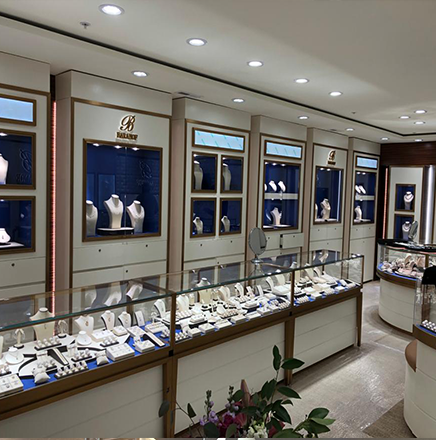

Application

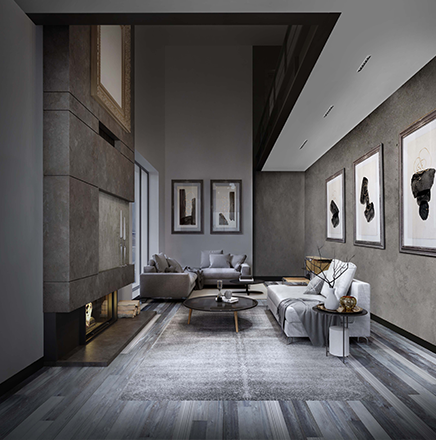

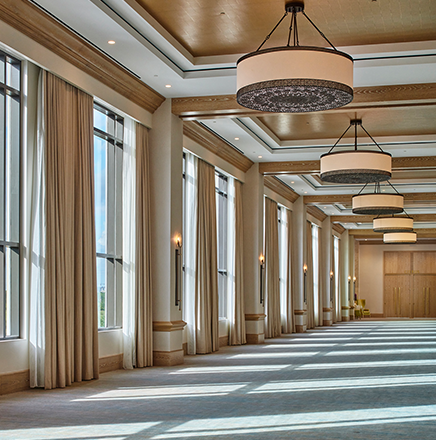

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,jewelry stores lighting,banks lighting, airport,lighting, suppermaket lighting,outdoor ceiling areas lighting, under canopies lighting etc.

LED Downlight DTQ Series LED Downlight DTQ Series LED Downlight DTQ Series
LED Downlight DTQ Series LED Downlight DTQ Series LED Downlight DTQ Series
