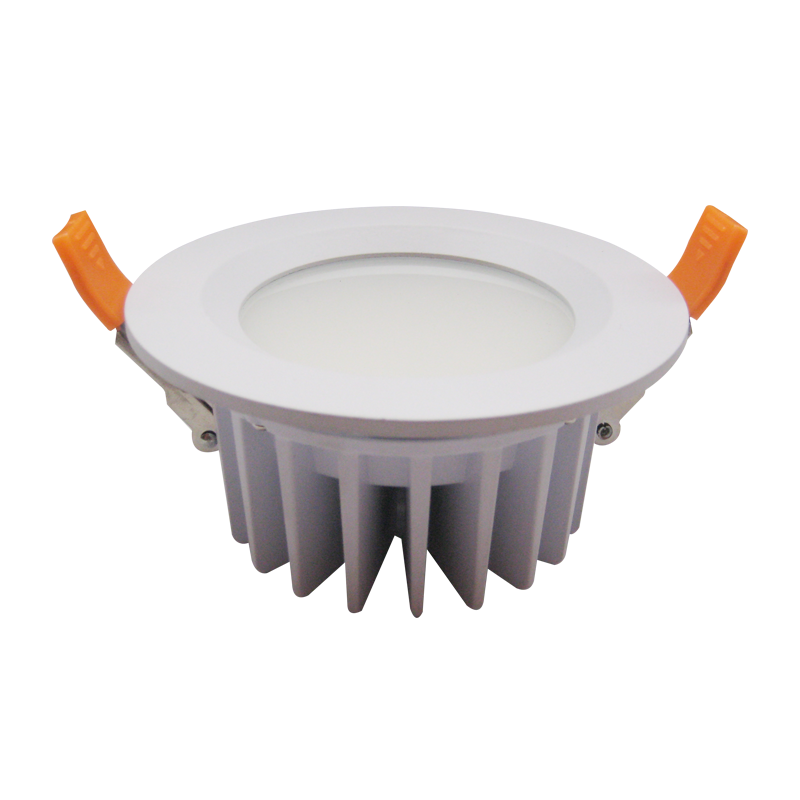

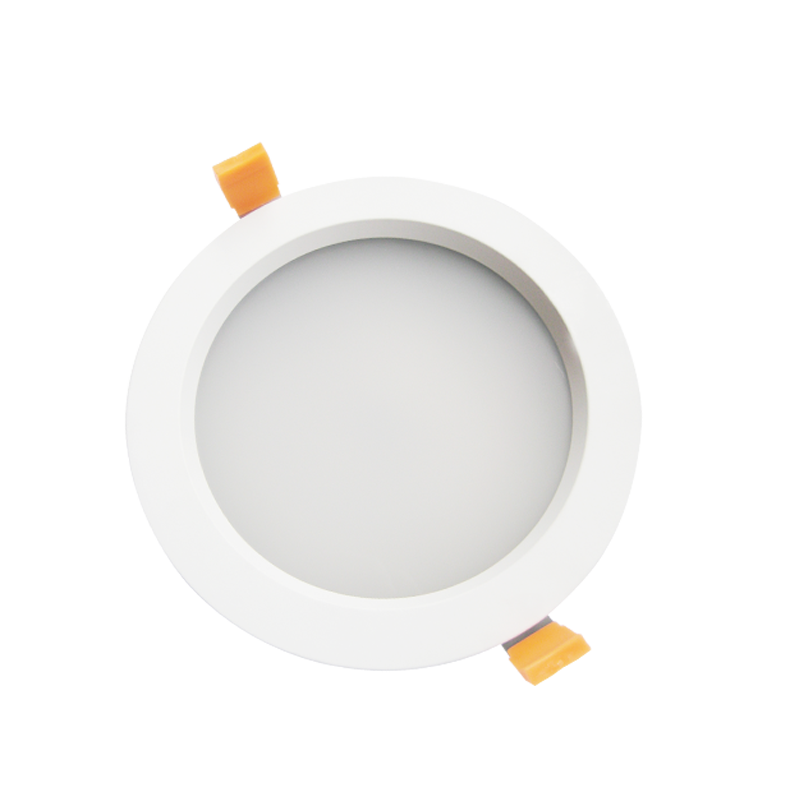

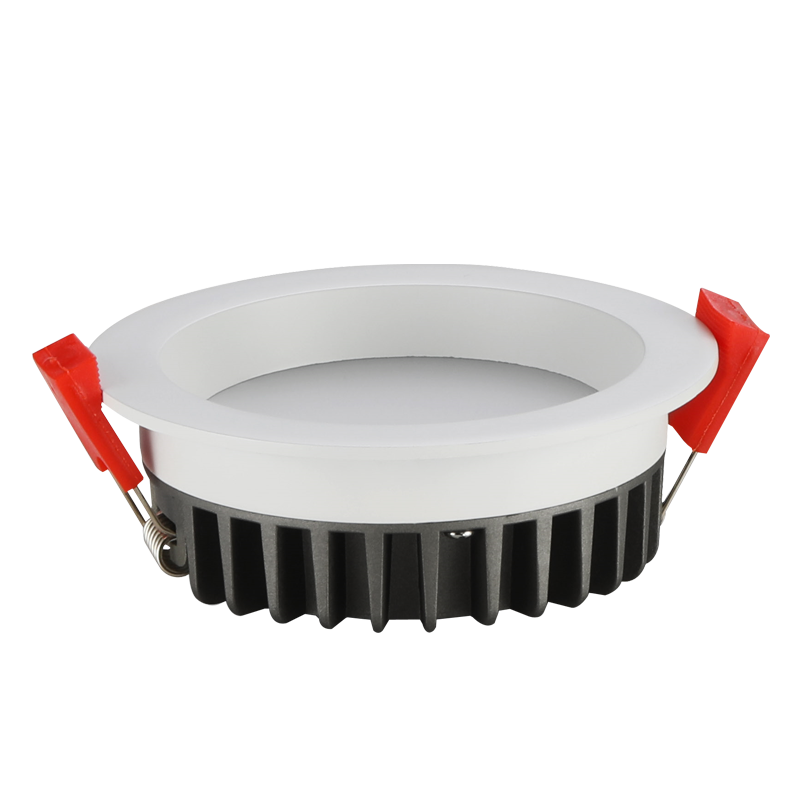

Model: JST-DTE-SMD
Wattage: 10W-25W
LED Chip: PHILIPS3030 SMD
Driver Brand: MEANWELL/SOSEN
RA: >90
IP Rate: IP65
Finish Color: White/Black/Customized
Beam Angle: 10°/30°/90°
Diameter: 95mm-155mm
Cutout: 80mm-130mm
Is your bathroom always been dull and dark? Well, it's time to change it up and make your space more brightness functional by choosing our high-performance IP65 LED DTE downlights!
How to choose right bathroom lights? -What you need to know about your bathroom lighting regulations
The most important thing to consider when choosing bathroom lights is whether they are safe. Bathroom lighting does have special needs to keep in mind – of course, we all know water and electricity aren’t a good
combination!
To help you decide which lights can be used in your bathroom, each fixture has an IP rating - IP20/IP44/IP65. These ratings are used around the world and refer to how well a lighting fixture prevents water or dust/small
particles from entering it.
When picking out your bathroom lights you'll want to make sure you choose the correct IP rating for the area , and our IP65 DTE range of downlights are waterproof and dustproof, so you can install them directly
above the shower in your bathroom - Zone 1. Don't worry it will get wet from splashes and water jets because it's designed to withstand the elements!

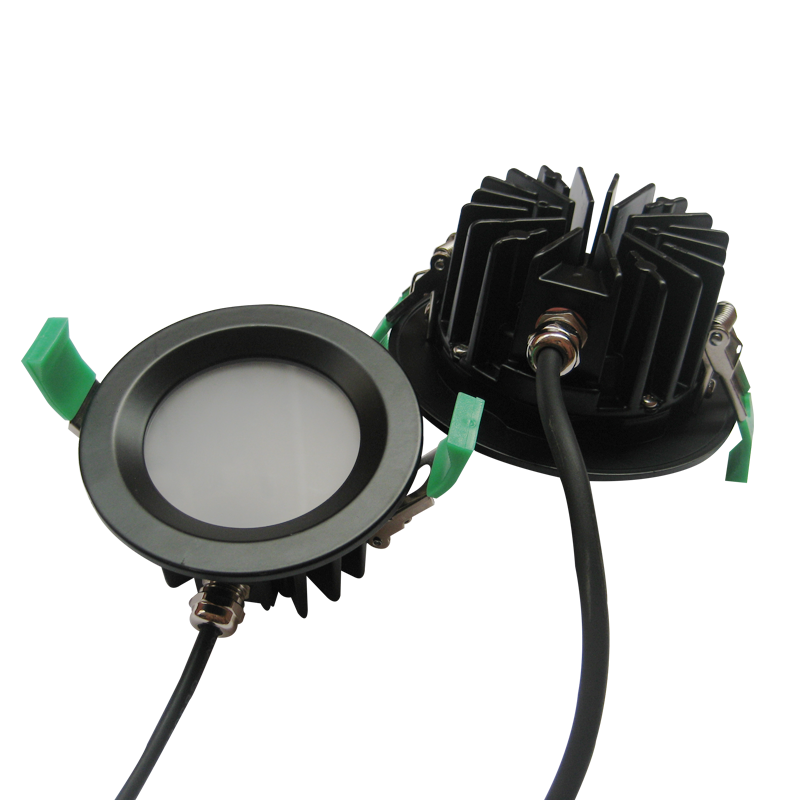

Since these IP65 LED DTE series downlights are fixed downlight types, that is, the direction of the beam shines downward, their position needs to be determined before installation. DTE have COB chip/SMD chip
optioanl. NON-Dim, Triac Dimming, 0-10V Dimming, DALI Dimming, 4 different drivers to choose from, so having a dimmable light allows you to customize the ambience of your space to match your mood. If you
want to relax in the bathtub, dim the downlights to create a relaxing and cozy atmosphere. Or when you're busy in the morning, you can dim the lights to give you a clear view and wake you up while you're sleeping!
• Power from 10W up to 25W;
• Available in PC diffuser or lens for optical choice;
• Waterproof IP65 can be used for outdoor;
• Durable with rated life span of +50,000 hours;
• Finish color white / black / customized;
• Easy installation.
Model | Power | CRI | CCT | PF | Current | Input Voltage | Beam Angle | Dimension | Cutout |
JST-DTE-S | 10W | >80/90 | 2700K-5000K | >0.60 | 0.25A | AC220-240V | 10°/30°/90° | D95*H51mm | 80mm |
JST-DTE-S | 15W | >80/90 | 2700K-5000K | >0.90 | 0.35A | AC220-240V | 10°/30°/90° | D115*H55mm | 90mm |
JST-DTE-S | 20W | >80/90 | 2700K-5000K | >0.90 | 0.50A | AC220-240V | 10°/30°/90° | D155*H67mm | 130mm |
JST-DTE-S | 25W | >80/90 | 2700K-5000K | >0.90 | 0.60A | AC220-240V | 10°/30°/90° | D155*H67mm | 130mm |

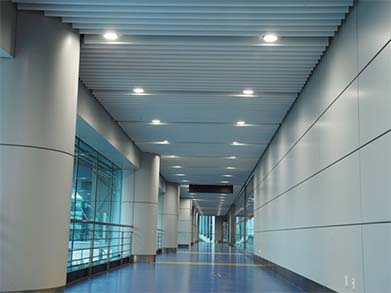

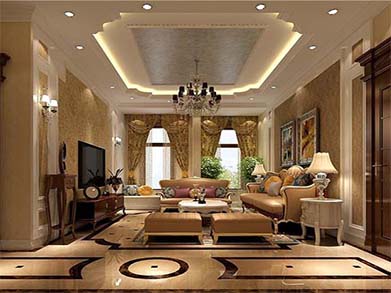

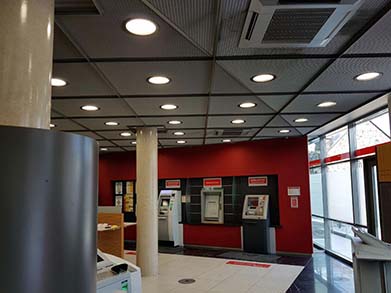

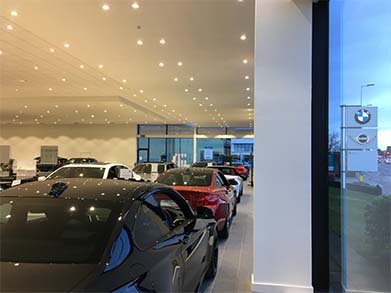

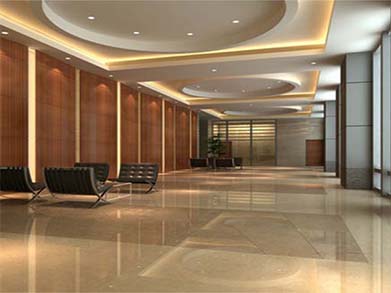

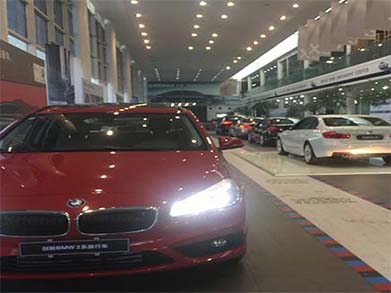

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,jewelry stores lighting,banks lighting, airport,lighting, suppermaket lighting,outdoor ceiling areas lighting, under canopies lighting etc.
