Model: JST-DTX
Wattage: 15W-50W
LED Chip: Citizen/Cree
Driver Brand: OSRAM/Philips/Lifud
IP: 65
RA: >90
Finish Color: White/Black/Customized
Beam Angle: 15°/24°/36°
Diameter: 115mm-220mm
Cutout: 95mm-200mm
Downlights are hidden light fixtures which are embedded into the ceiling used to provide quality lighting in a specific area. It is designed to direct light down into a narrow beam to illuminate a large area and to create
a positive atmosphere. So LED downlights are directional lighting fixtures, only its opposite side can be lighted. The beam angle of it is concentrated, the light is concentrated, and the contrast between light and dark
is strong. LED downlight More prominent objects, higher lumens, and a quiet atmosphere.
There are 4 common combinations for LED downlights - IP20, IP44, IP65, IP67
IP20 - suitable for interior using at dry areas.

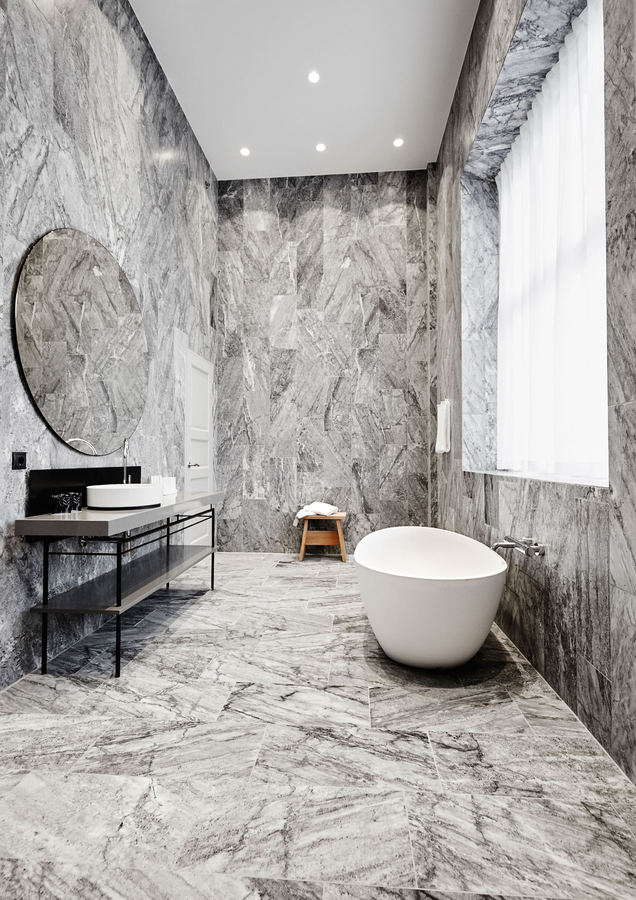

IP44 - suitable for interior using at wet areas, like bathroom. Also suitable for external use in soffits and porches etc.
IP65 - suitable for interior and exterior using (non-immersion)
IP67 - suitable for interior and exterior using.
The DTY Series isn't just about withstanding the weather; it's also about enhancing your space. With a range of stylish finishes—white, black, and silver—you can match your downlights to any decor. And with beam angles of 15°, 24°, and 36°, you can focus light exactly where you need it, creating a warm and inviting atmosphere.
This series boasts a high color rendering index(CRI), ensuring that colors appear natural and vibrant under their glow. Plus, with a range of power options from 15W to 50W, you can choose the perfect balance of brightness and energy efficiency for your space.

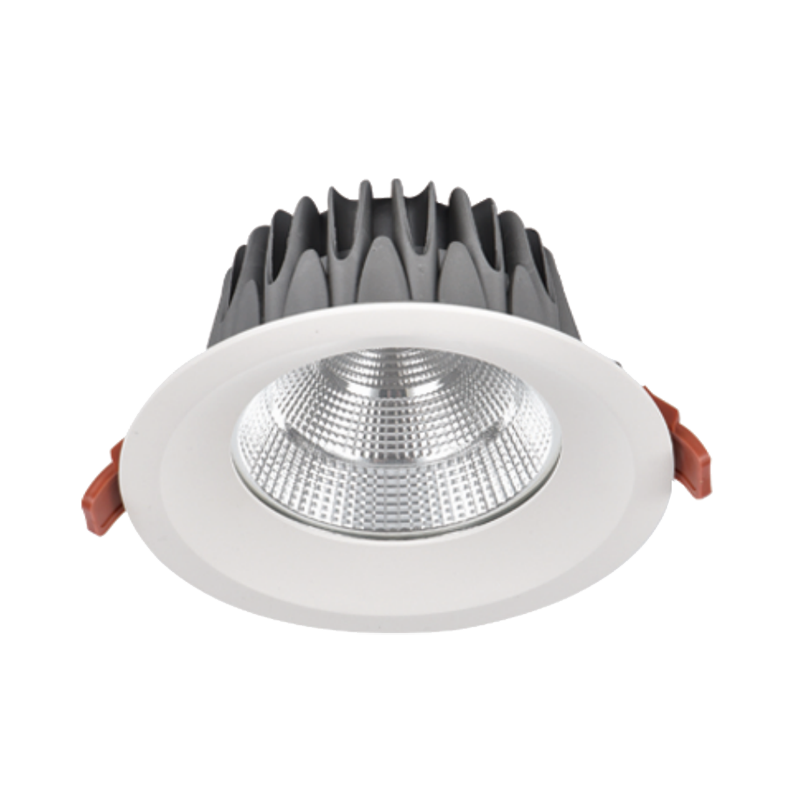

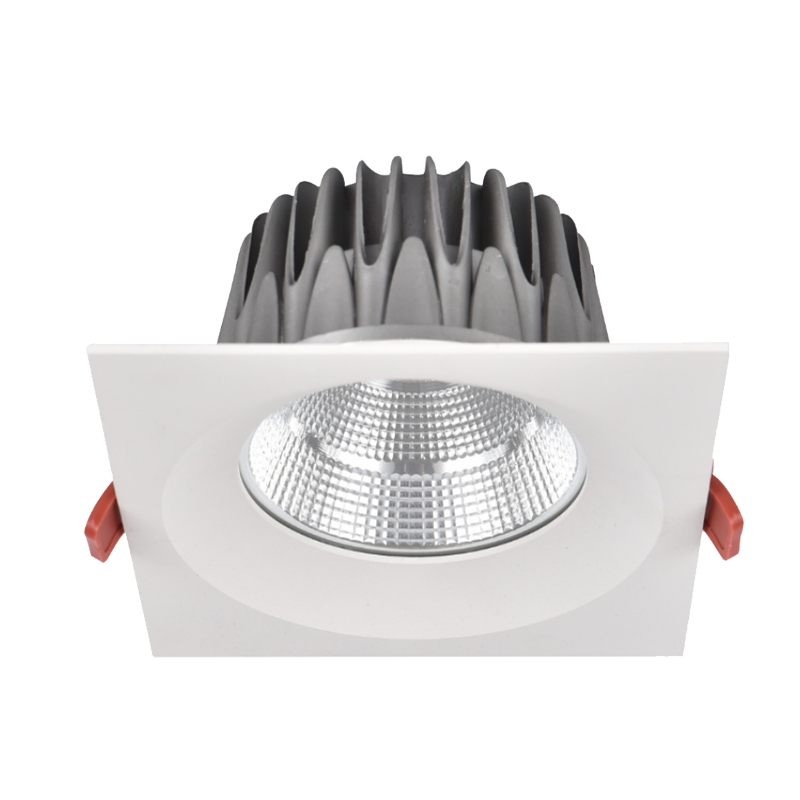

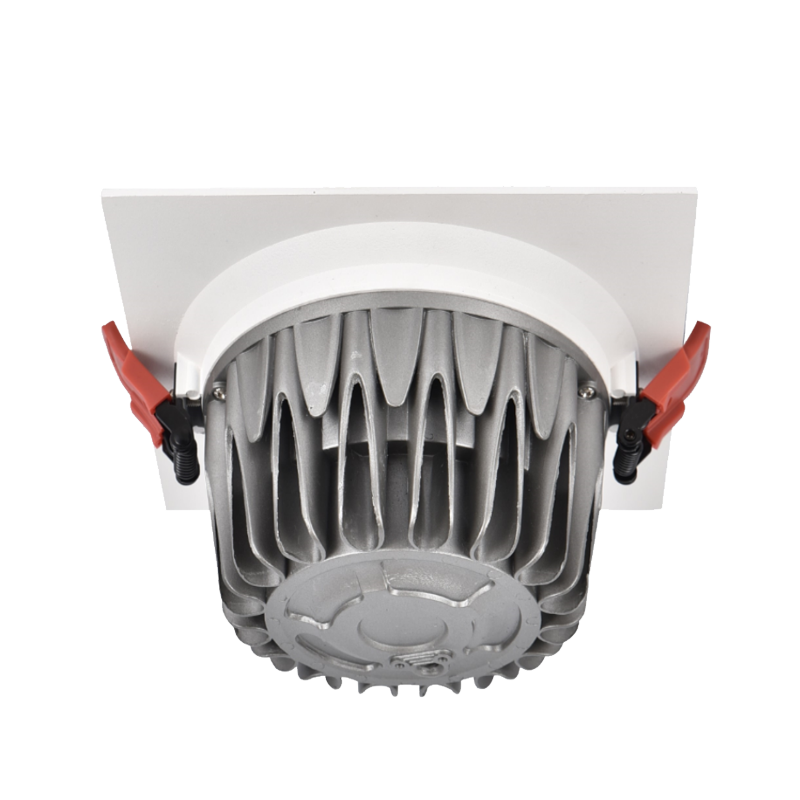

Die-casing aluminum housing, improve heat dissipation efficiency
High quality chip, energy saving, low heat, low power consumption, long service life, high light efficiency.
Simple design, no flicker, no noise, energy saving, better protection your eyes.
15°/24°/36° beam angle, high quality, >90Ra, bright colors,
IP65 design, more effective water and dust resistance
Wide range of application
Model | Power | CRI | CCT | PF | Current | Input Voltage | Beam Angle | Dimension | Cutout |

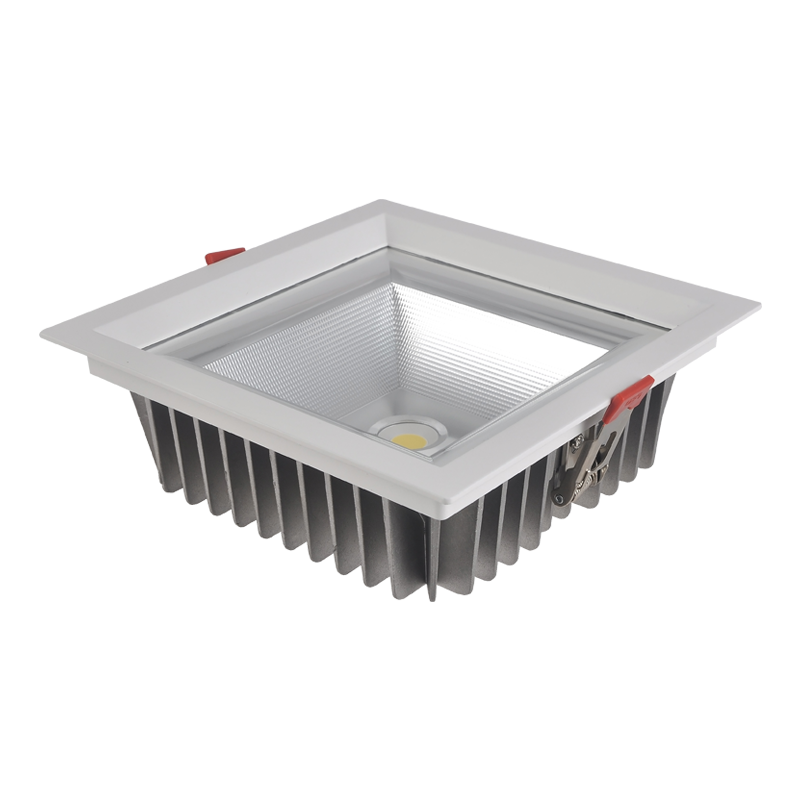

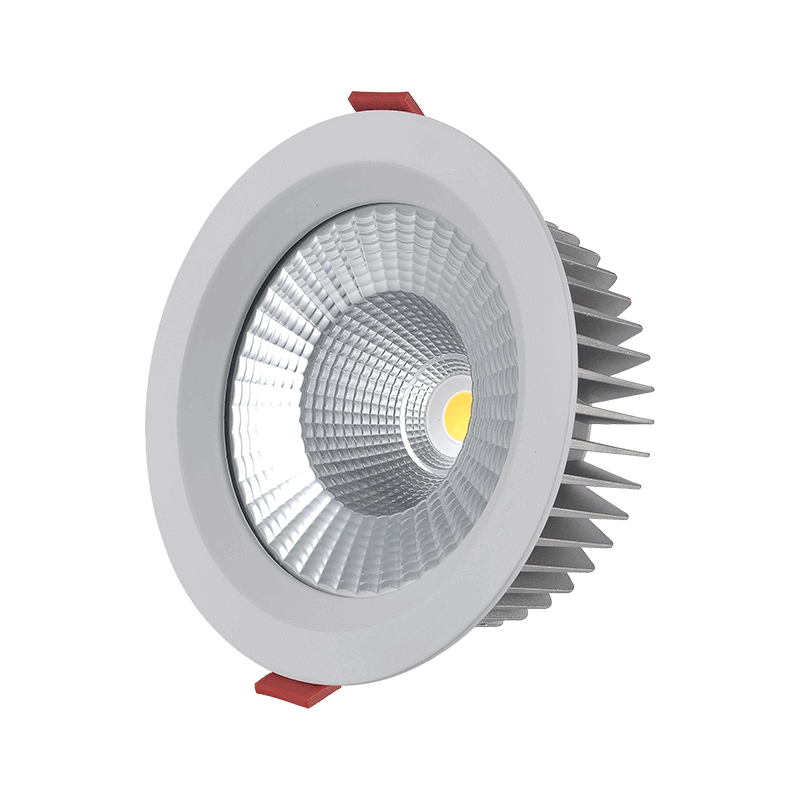

JST-DTY-S/R | 15W | >80/90 | 2700K-5000K | >0.90 | 0.35A | AC220-240V | 15°/24°/36° | D115*H78mm | 95mm |
JST-DTY-S/R | 20W | >80/90 | 2700K-5000K | >0.90 | 0.50A | AC220-240V | 15°/24°/36° | D135*H80mm | 120mm |
JST-DTY-S/R | 30W | >80/90 | 2700K-5000K | >0.90 | 0.75A | AC220-240V | 15°/24°/36° | D170*H90mm | 150mm |
JST-DTY-S/R | 40W | >80/90 | 2700K-5000K | >0.90 | 1.00A | AC220-240V | 15°/24°/36° | D195*H105mm | 170mm |
JST-DTY-S/R | 50W | >80/90 | 2700K-5000K | >0.90 | 1.25A | AC220-240V | 15°/24°/36° | D220*H130mm | 200mm |

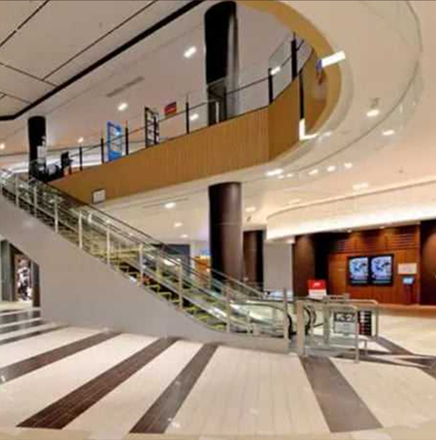

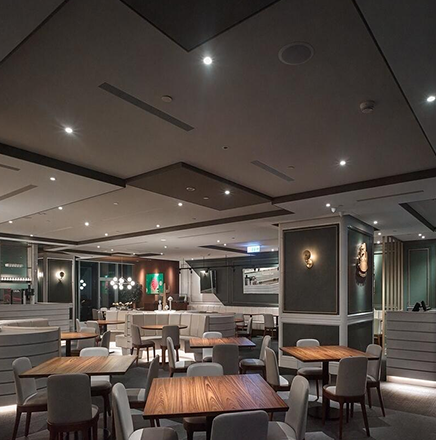

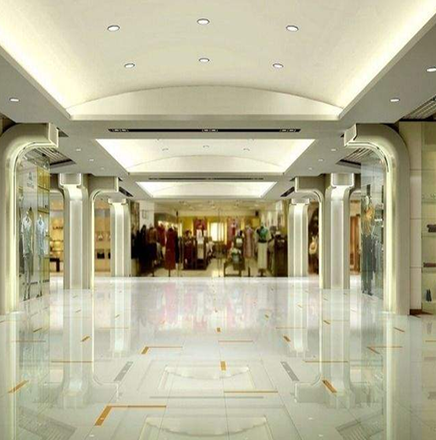

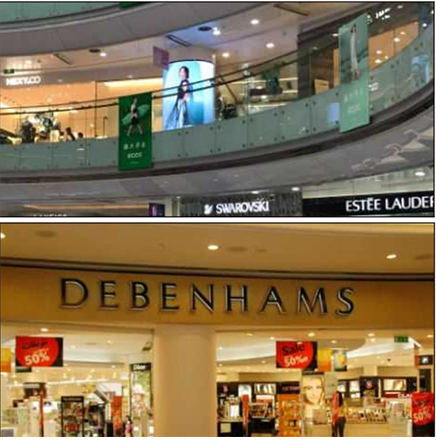

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting, Jewelry stores lighting,Banks lighting, Airport lighting, Suppermaket lighting, Art galleries lighting, Villas lighting, Bars lighting, Exhibition halls lighting, Outdoor ceiling areas lighting, Under canopies lighting etc.
