LED Downlight

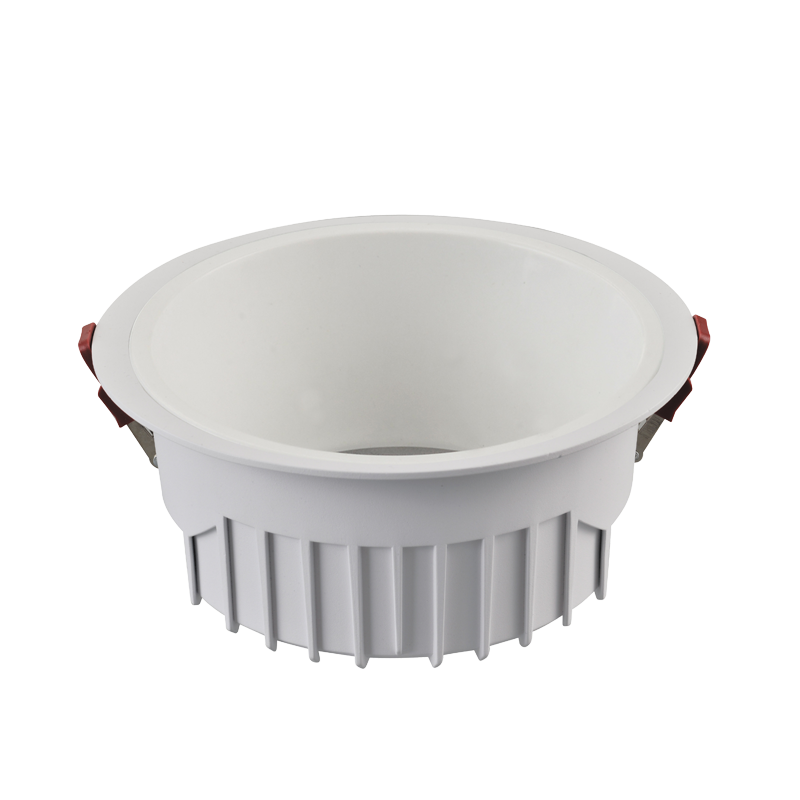

IP44 LED Downlight DTX Series

Model: JST-DTX

Wattage: 7W-40W

LED Chip: Citizen/Cree

Driver Brand: OSRAM/Philips/Lifud

IP: 44

RA: >90

Finish Color: White/Black/Customized

Beam Angle: 60°

Diameter: 90mm-220mm

Cutout: 70mm-200mm


Description

Why choose deep recessed downlights?

Because the light-emitting surface and the light source are hidden deep inside the lamp body, the light source is further away from the ground, UGR<19, which is not easy to produce glare. The addition of the

anti-glare cup is more conducive to protecting people's vision and creating a more comfortable environment. When you looking up at the lamp, only saw light but no source. The DTX series of LED downlights is a

deeply recessed downlight.

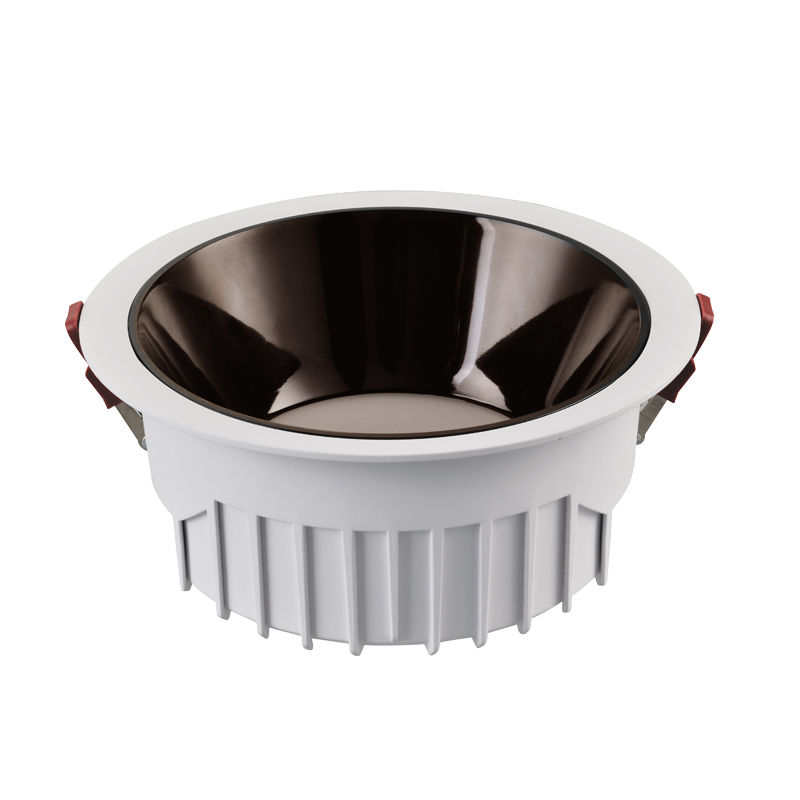

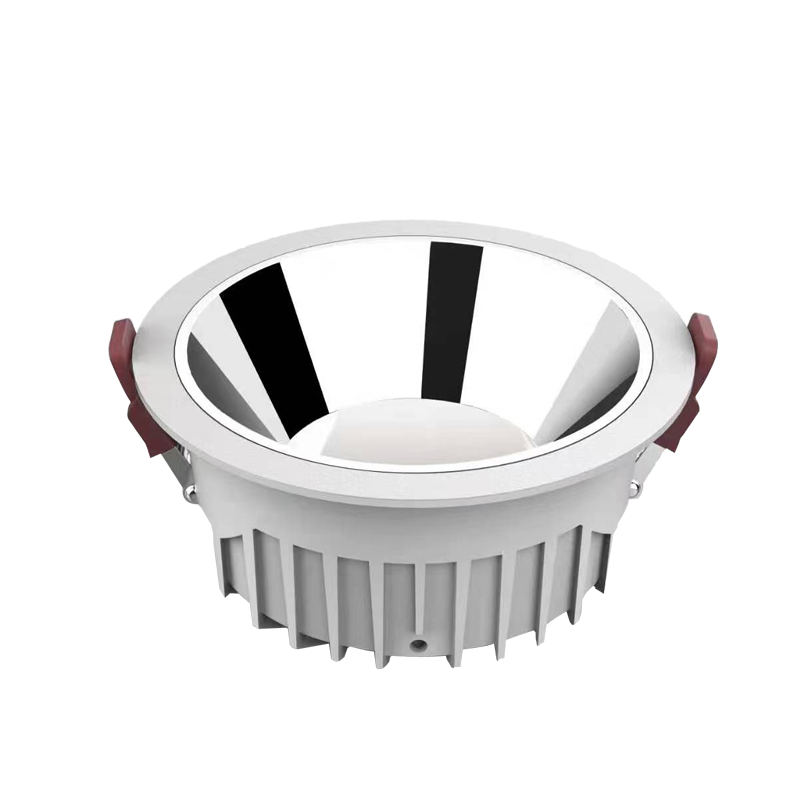

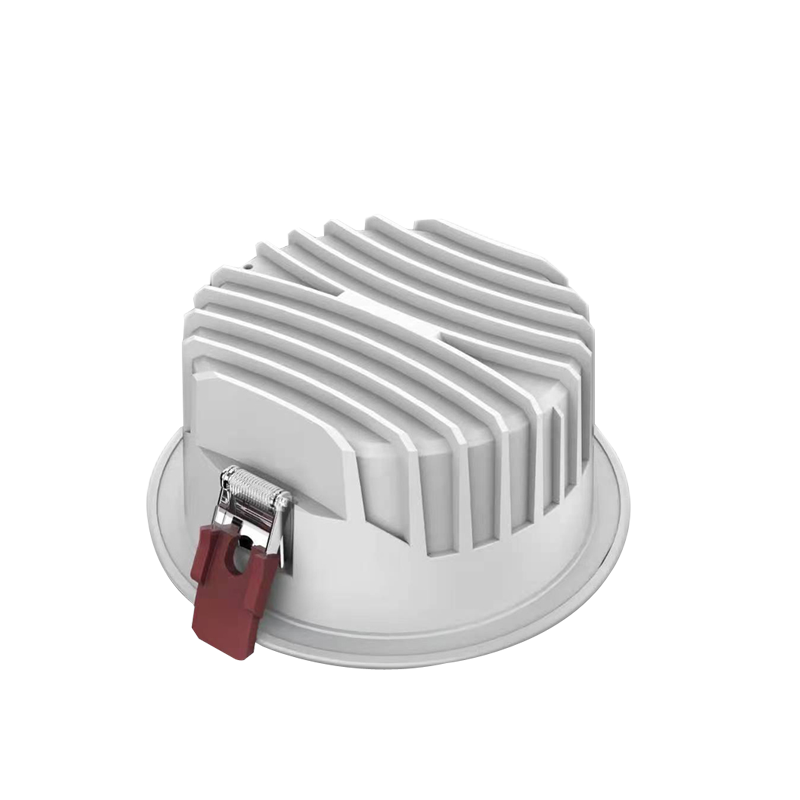

The DTX series deep anti-glare downlight is designed for commercial and architectural spaces, boasting a commercial-grade quality while maintaining an elegant aesthetic. LED downlight guarantees optimal heat

dissipation with its die-cast aluminum alloy material. ABS material anti-glare cup can be made into other colors. Using high-quality chips and drivers, RCI>80, high brightness, low light attenuation, soft light, no glare,

effective eye protection, and a lifespan of up to 50,000 hours

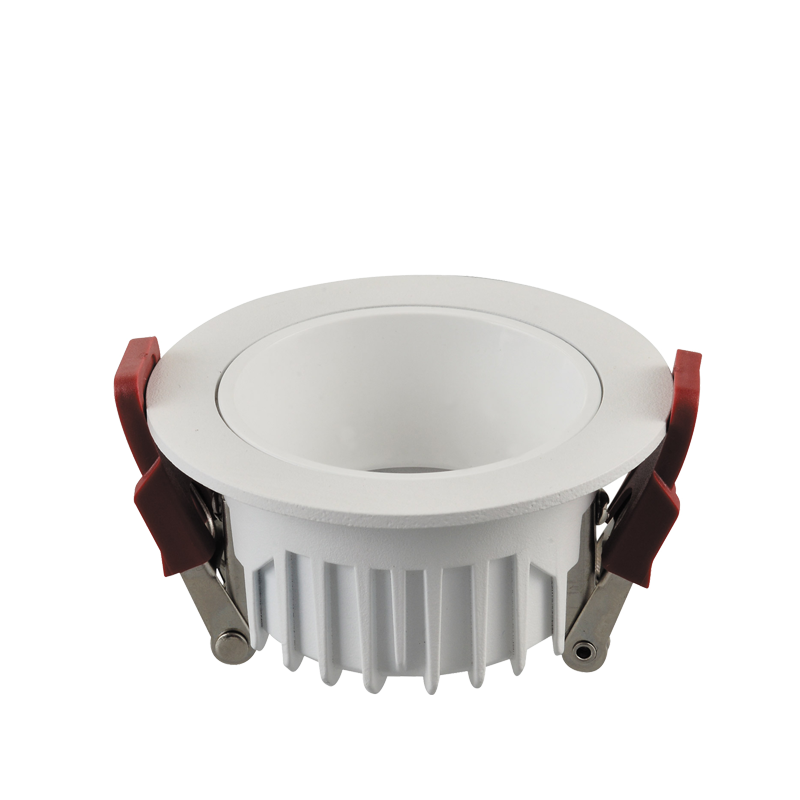

Flicker-free with instant start w/NO humming, this downlight provides the perfect level of brightness and ambiance without any noise pollution. The DTX series deep anti-glare downlight with high-quality spring clips ,

easy to install and instantly illuminate your space. Choose from a range of color temperatures (3000K, 4000K, 5000K) to suit your environment for maximum flexibility.


TThe DTX series has exquisite white edges and a very beaute, textured appearance. Its biggest feature is that the lamp body is compact, light, anti-glare, and stylish in appearance. It is an excellent atmosphere master

which with a fixted 60° beam angle, direct light emission, large luminescence, and improved space levels.

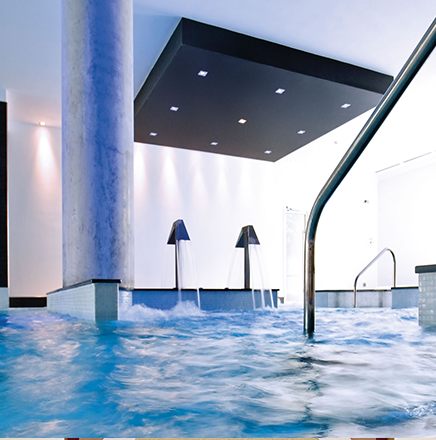

LED Downlight DTX series with IP44, can be application in damp areas, such as bathroom, kichen, under eave...Wider range of applications.


Enjoy a best-in-class lighting solution with  DTX series deep anti-glare downlight.


Advantages


Specification
ModelPowerCRICCTPFCurrentInput VoltageBeam AngleDimensionCutout
JST-DTX7W>80/902700K-5000K>0.900.16AAC220-240V60°D90*90*H50mm70mm
JST-DTX10W>80/902700K-5000K>0.900.25AAC220-240V60°D105*105*H53mm85mm
JST-DTX15W>80/902700K-5000K>0.900.35AAC220-240V60°D120*120*H62mm100mm
JST-DTX20W>80/902700K-5000K>0.900.50AAC220-240V60°D160*160*H73mm140mm
JST-DTX30W>80/902700K-5000K>0.900.75AAC220-240V60°D190*190*H82mm170mm
JST-DTX40W>80/902700K-5000K>0.900.10AAC220-240V60°D220*220*H95mm200mm

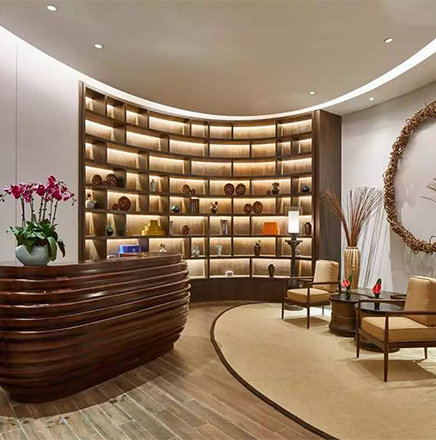

Application

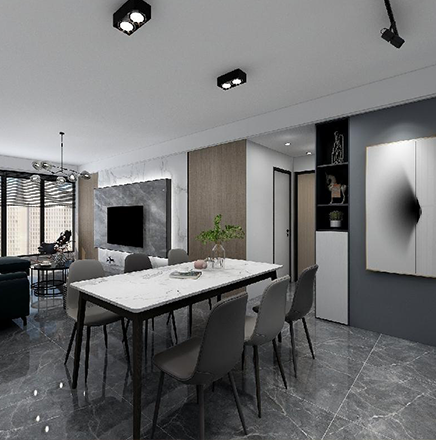

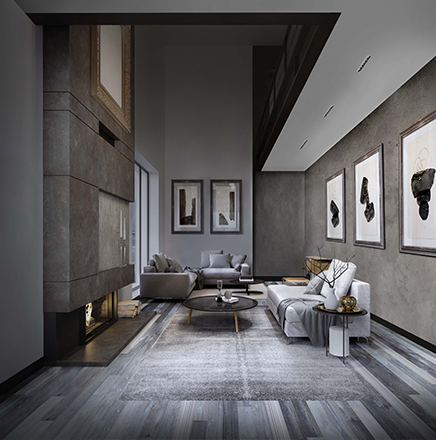

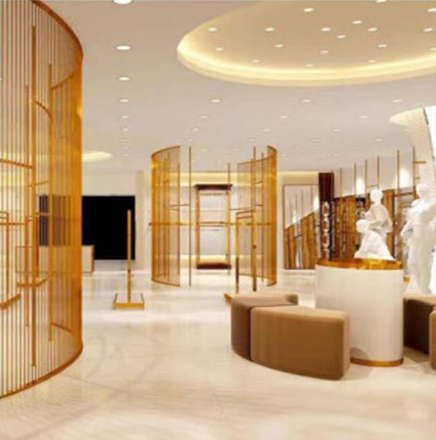

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,jewelry stores lighting,banks lighting, airport,lighting, suppermaket lighting,outdoor ceiling areas lighting, under canopies lighting etc.

IP44 LED Downlight DTX Series IP44 LED Downlight DTX Series IP44 LED Downlight DTX Series
IP44 LED Downlight DTX Series IP44 LED Downlight DTX Series IP44 LED Downlight DTX Series
