Model: JST-DTW
Wattage: 5W-15W
LED Chip: Citizen/Cree
Driver Brand: OSRAM/Philips/Lifud
IP: 65
RA: >90
Finish Color: White/Black/Customized
Beam Angle: 24°/40°/60°/90°
Diameter: 90mm-238mm
Cutout: 75mm-210mm
If you want clean and simple lighting in your home or work environment, consider installing downlights. The downlight is inconspicuous, and the edge of the lamp is directly flush with the ceiling, which saves space.

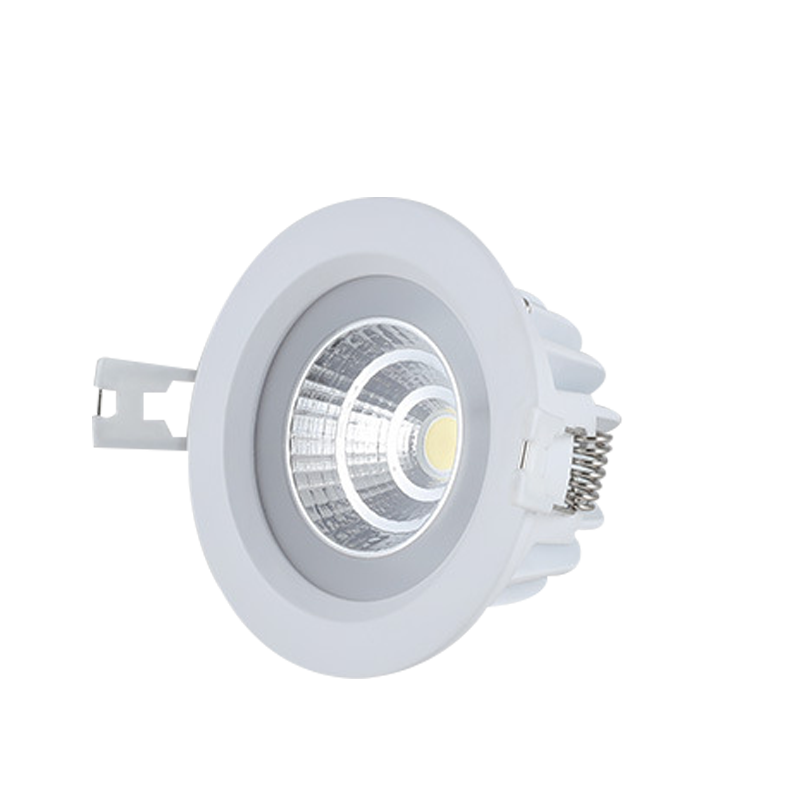

The DTW series downlights are unique, elegant and functional, designed to meet the needs of a variety of applications.

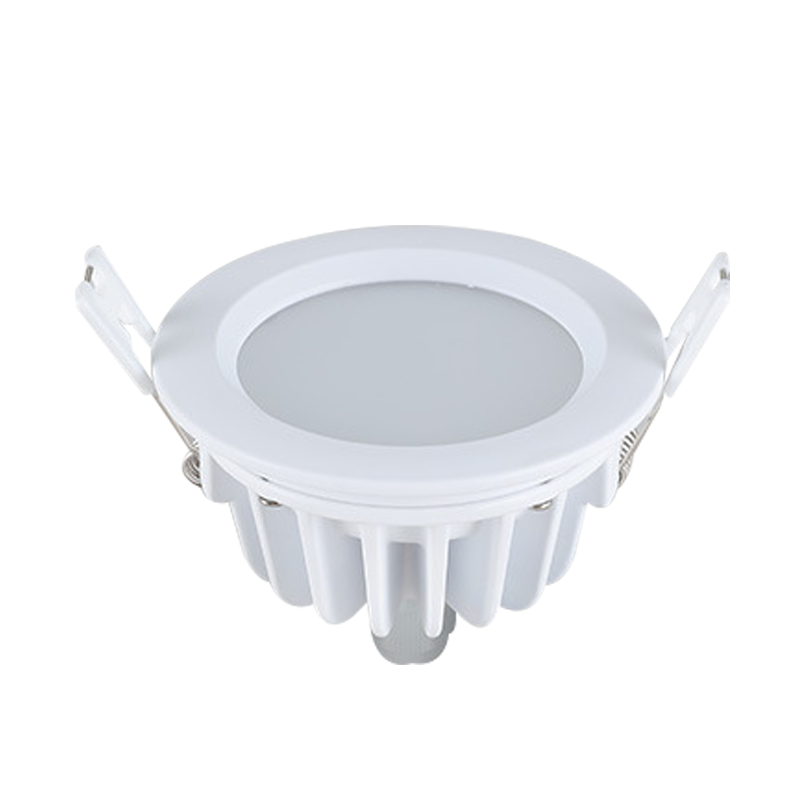

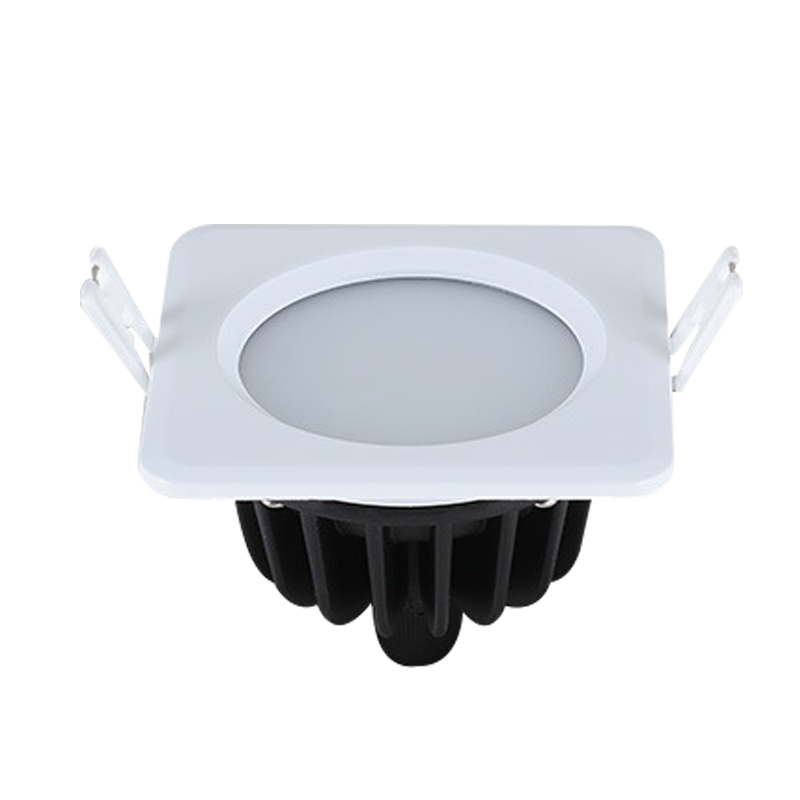

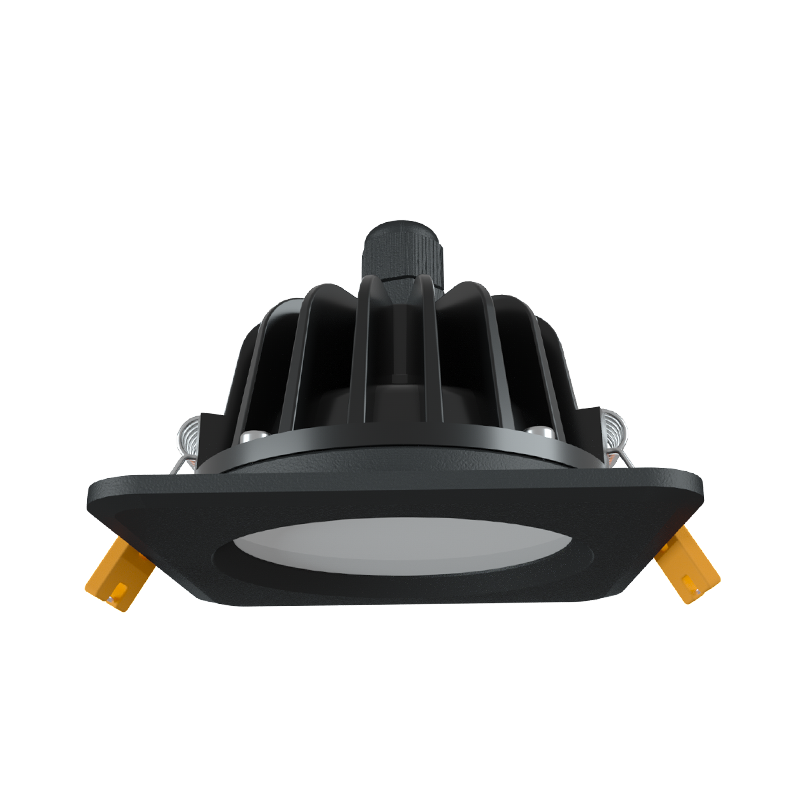

- Round and Square shapes, 7W and 12W are for round and square shapes, and 15W-35W are only for round but not square.
- There are also two types of diffuser plates: transparent and frosted. The transparent has stronger penetration than the frosted one, which means that the transparent diffusion plate makes the light brighter. The
frosted diffusion plate has better anti-glare effect.
- IP65, with waterproof and dustproof function, suitable for indoor damep places and outdoor use.
-DTW series has 4 smooth beam angles of 24°/40°/60°/90°. The beam angle can be selected according to objects of different sizes。
100 lm/W efficiency for maximum return on the investment in minimum time.
So, the JARSTAR's DTW series LED downlights is your first choice.
Excellent luminous efficiency
Instant start, no flashing
Solid State, shockproof
Save power more than 90% by ordinary bulbs
Long time working, produce low heat
No RF Interference
No mercury or other hazardous materials, accord with RoHs
Model | Power | CRI | CCT | PF | Current | Input Voltage | Beam Angle | Dimension | Cutout |
JST-DTW-R/S | 7W | >80/90 | 2700K-5000K | >0.90 | 0.16A | AC220-240V | 24°/40°/60°/90° | D90*90*H67mm | 75mm |
JST-DTW-R/S | 12W | >80/90 | 2700K-5000K | >0.90 | 0.30A | AC220-240V | 24°/40°/60°/90° | D108*108*H72mm | 95mm |
JST-DTW-R | 15W | >80/90 | 2700K-5000K | >0.90 | 0.35A | AC220-240V | 24°/40°/60°/90° | D140*140*H72mm | 125mm |
JST-DTW-R | 20W | >80/90 | 2700K-5000K | >0.90 | 0.50A | AC220-240V | 24°/40°/60°/90° | D190*190*H70mm | 170mm |
JST-DTW-R | 25W | >80/90 | 2700K-5000K | >0.90 | 0.60A | AC220-240V | 24°/40°/60°/90° | D190*190*H70mm | 170mm |
JST-DTW-R | 30W | >80/90 | 2700K-5000K | >0.90 | 0.75A | AC220-240V | 24°/40°/60°/90° | D238*238*H70mm | 210mm |
JST-DTW-R | 35W | >80/90 | 2700K-5000K | >0.90 | 0.85A | AC220-240V | 24°/40°/60°/90° | D238*238*H70mm | 210mm |

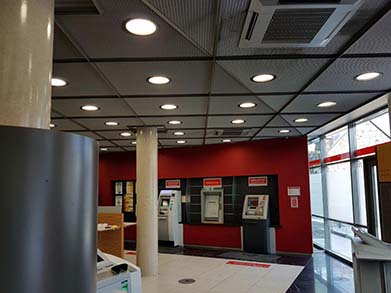

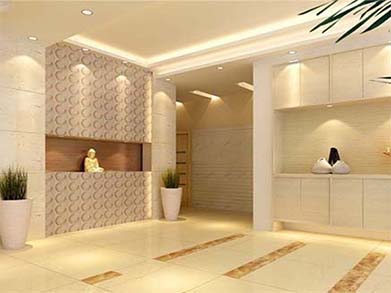

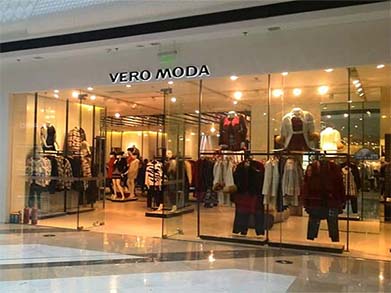

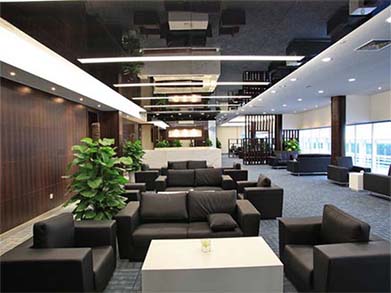

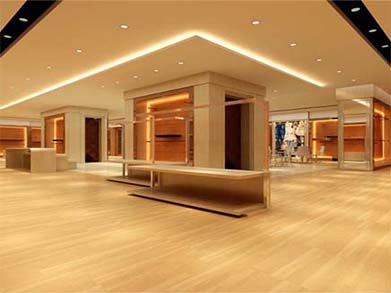

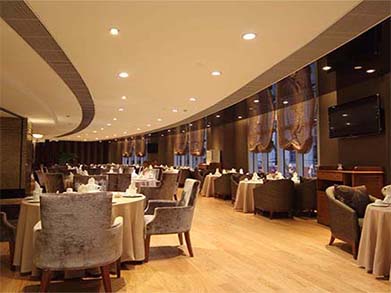

Commercial spaces lighting, Stations lighting, Clubs lighting, Residential areas lighting, Offices lighting, Schools lighting, Restaurants lighting, Museums lighting, Hotels lighting, Showrooms lighting,jewelry stores lighting,banks lighting, airport,lighting, suppermaket lighting,outdoor ceiling areas lighting, under canopies lighting etc.
